Overview

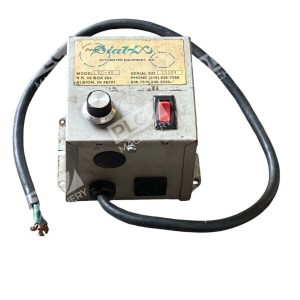

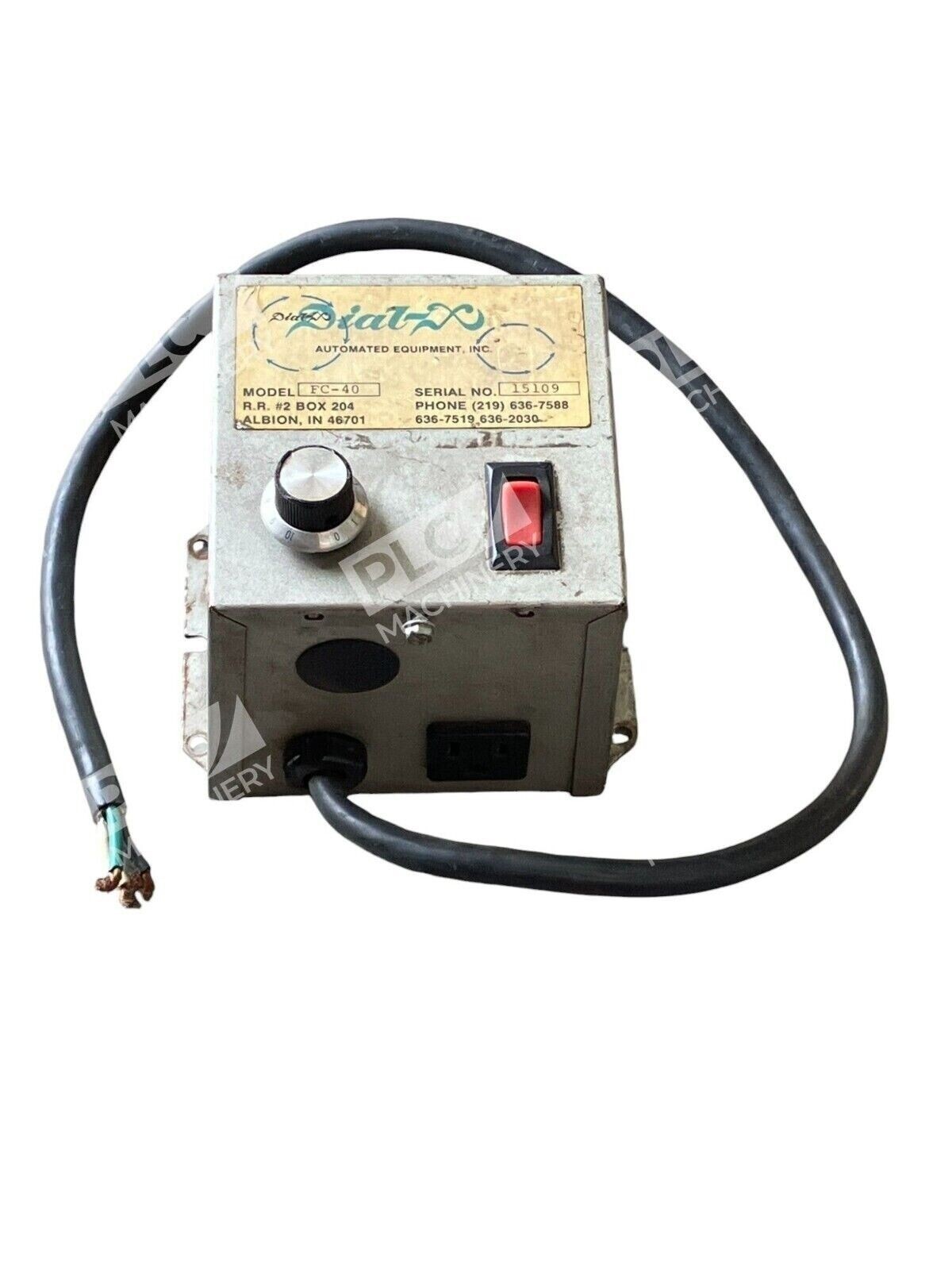

The Rodix FC-40 Plus series feeder control is a fixed-frequency, variable-voltage analog controller designed for reliable operation of vibratory feeder systems. The FC-40 feeder control seamlessly integrates with vibratory bowl feeders, linear inline feeders, and bulk storage hoppers that do not require external sensors. This industrial-grade unit delivers straightforward speed modulation through a front-mounted dial, making it ideal for applications requiring manual speed adjustment without complex sensing or PLC integration.
Key Features
- Variable voltage output with fixed frequency operation for consistent feeder performance

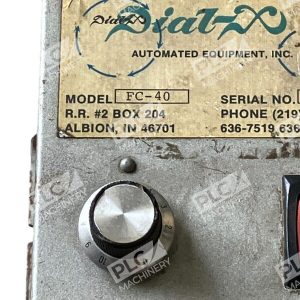

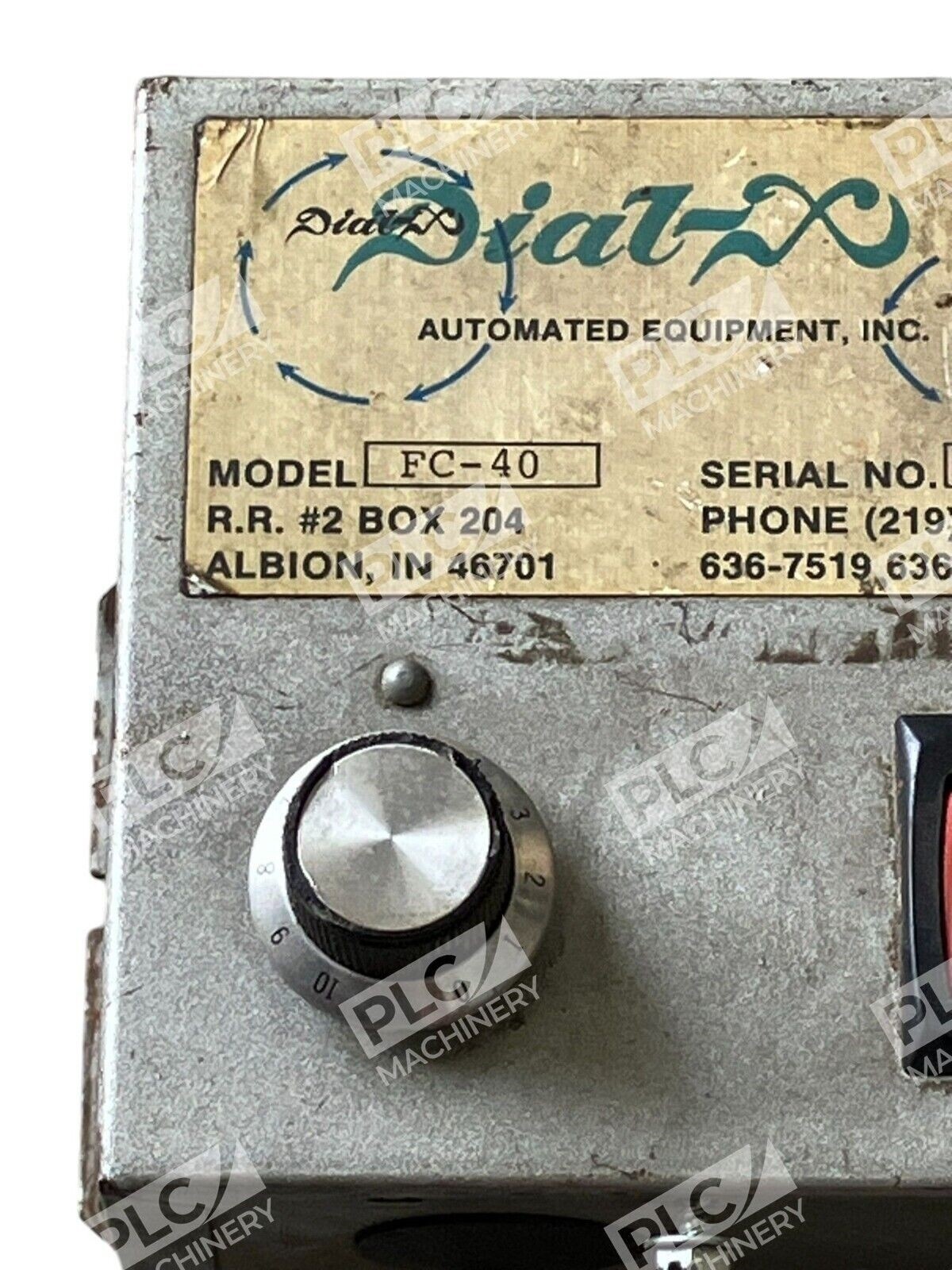

- On/off rocker switch and dual dial control for manual speed adjustment (0–10 range)
- Single AC output with 120VAC 50/60Hz 15A rated current at 80% duty cycle
- Designed for 3 and 4 coil vibratory feeder bowls rated 15 amps or less
- Durable enclosure with three-prong power cord for standard wall outlet compatibility
- Field-proven reliability in high-volume feeding applications
Technical Specifications
- Input Power: 120VAC 50/60Hz
- Rated Current: 15A (at 80% duty cycle)
- Output: Fixed frequency, variable voltage AC
- Control Method: Dial-controlled (0–10 range) + On/Off switch
- Frequency: 50/60Hz selectable
- Fuse Rating: 15A (standard requirement)
- Connector: 3-prong power cord
- Mounting: Tabletop or bolt-down via enclosure
- Operating Environment: NEMA-1 General Purpose enclosure (standard)
- Suitable For: 3 and 4 coil vibratory feeder bowls (up to 15A)
Typical Applications
- Industrial vibratory bowl feeders for parts orienting and singulation
- Linear track feeders for assembly line automation
- Bulk hopper systems requiring variable speed control
- Small to medium volume production feeding without external feedback sensors
- Machine tool and assembly automation feeder control
Compatibility & Replacements
Compatible With
- 3 and 4 coil vibratory feeder bowls (up to 15 amps)
- Linear inline track feeders and conveyors
- Bulk storage hoppers with vibratory drives
- Standard 120VAC 50/60Hz single-phase wall outlet power
- Feeder systems with dial-based manual speed control
Replaces / Drop-In Replacement For
- Rodix FC-40 (earlier generation models)
- Other dial-based variable-voltage feeder controllers in the FC-40 series
- Verify specific model compatibility with your feeder bowl coil rating and amperage before ordering
Works With
- AC vibratory feeder drives and solenoid coils
- Standard industrial feeder bowls from major manufacturers
- Manual speed adjustment (no PLC or networked control required)
- On/off interlock circuits for basic feeder sequencing
- Systems requiring simple 120VAC power control without sensor feedback
