Overview

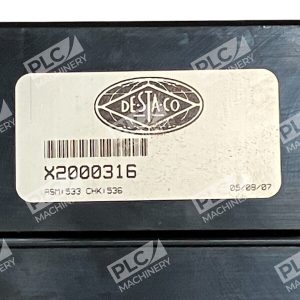

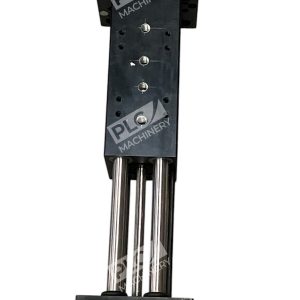

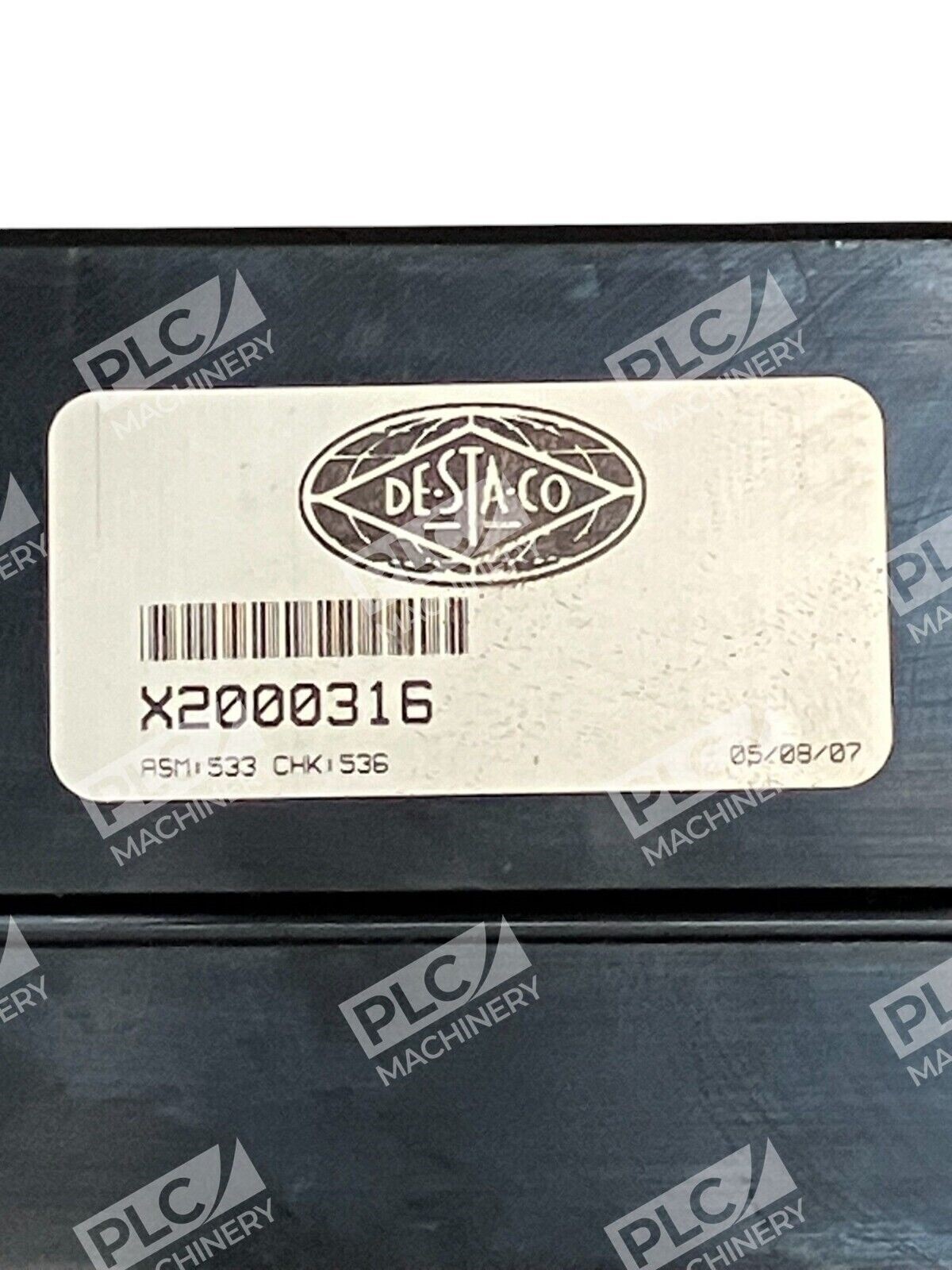

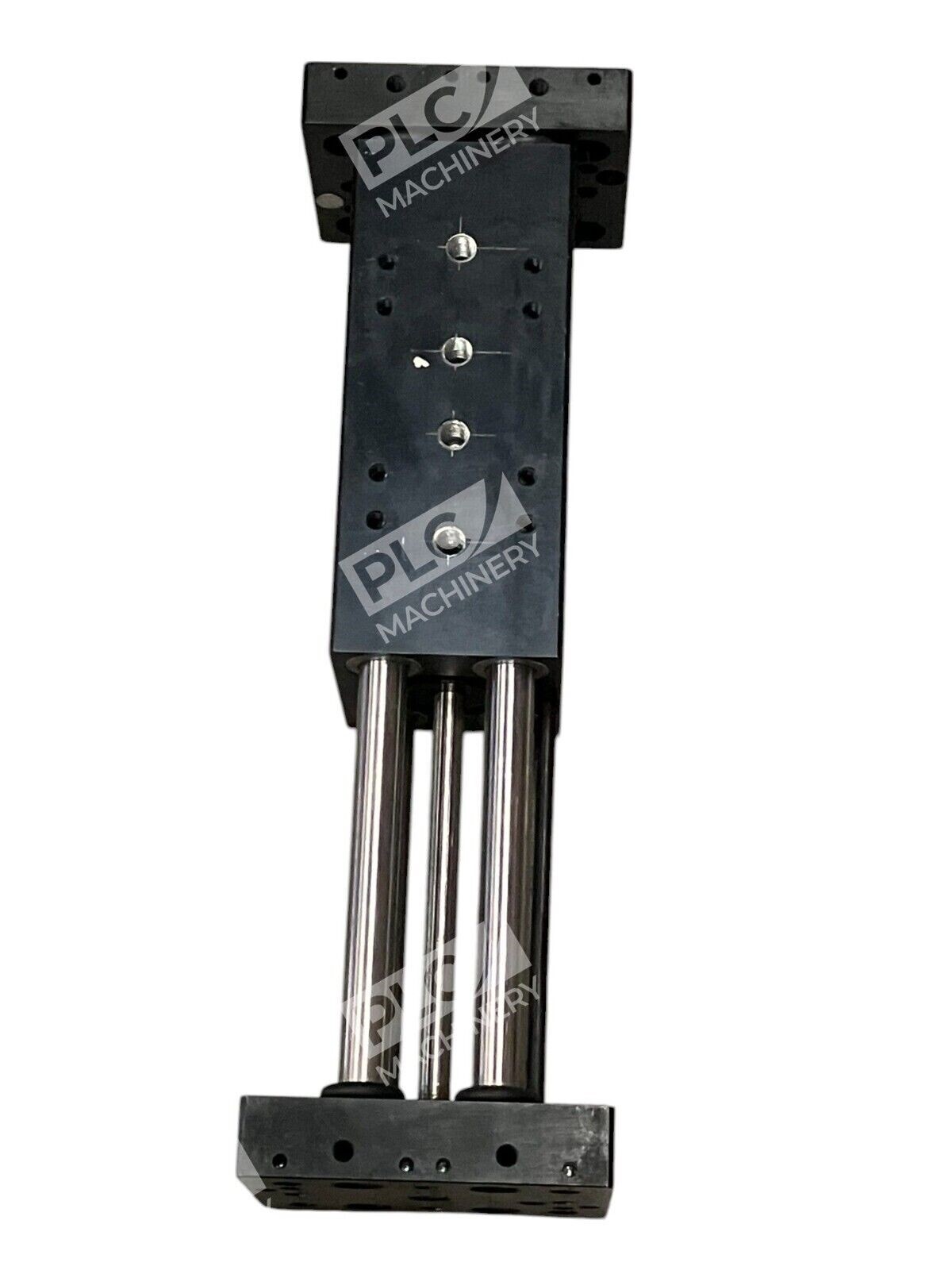

The Destaco X2000316 pneumatic slide, part of the Robohand product line, is a pneumatic-actuated linear positioning component designed for industrial automation environments. This unit (ASM:533, CHK:536) is engineered for precision motion control in assembly, material transfer, and pick-and-place operations. As a used component in verified working condition, the X2000316 provides a cost-effective solution for system maintenance and expansion in manufacturing automation systems.
Key Features
- Pneumatic-actuated linear motion for reliable repeatability
- Compact, mountable design suitable for multi-axis automation setups
- Compatible with standard industrial pneumatic control systems
- Designed for high-cycle production environments
- DirectConnectâ„¢ feature enables seamless multi-axis integration
- Verified functional condition with immediate availability
Technical Specifications
The Destaco X2000316 operates on standard industrial pneumatic pressure (typically 5–100 psi range) and integrates with conventional air supply systems. The slide features precision positioning capability suitable for small-to-large object handling in automation applications. Mounting provisions allow integration into existing machine frames and robotic systems.
Typical Applications
- Assembly line automation and part transfer
- Pick-and-place motion systems
- In-line directional changes and escapements
- Multi-axis positioning for robotic end-effector applications
- Manufacturing transfer applications requiring precision movement
Compatibility & Replacements
Compatible With
- Destaco Robohand gripper systems
- Standard industrial pneumatic control networks
- Multi-axis automation platforms using pneumatic actuation
- Allen-Bradley and Siemens PLC-controlled systems with pneumatic I/O
- ISO 1219 pneumatic circuit designs
Replaces / Drop-In Replacement For
The X2000316 is the original Destaco model number for this pneumatic slide assembly. Verify your system’s specific model designation (ASM:533 CHK:536) before ordering to ensure correct installation. If replacing an earlier-generation or competitive pneumatic slide, confirm mounting pad dimensions and air inlet thread sizes with your system integrator.
Works With
- Pneumatic solenoid valve arrays (NAMUR interface)
- Pneumatic regulators and logic controls
- 5/2 and 3/2 directional control valves
- Standard ISO 4401 NG10/NG16 valve stacks
- EtherCAT and PROFINET gateway controllers for pneumatic I/O mapping
