Overview

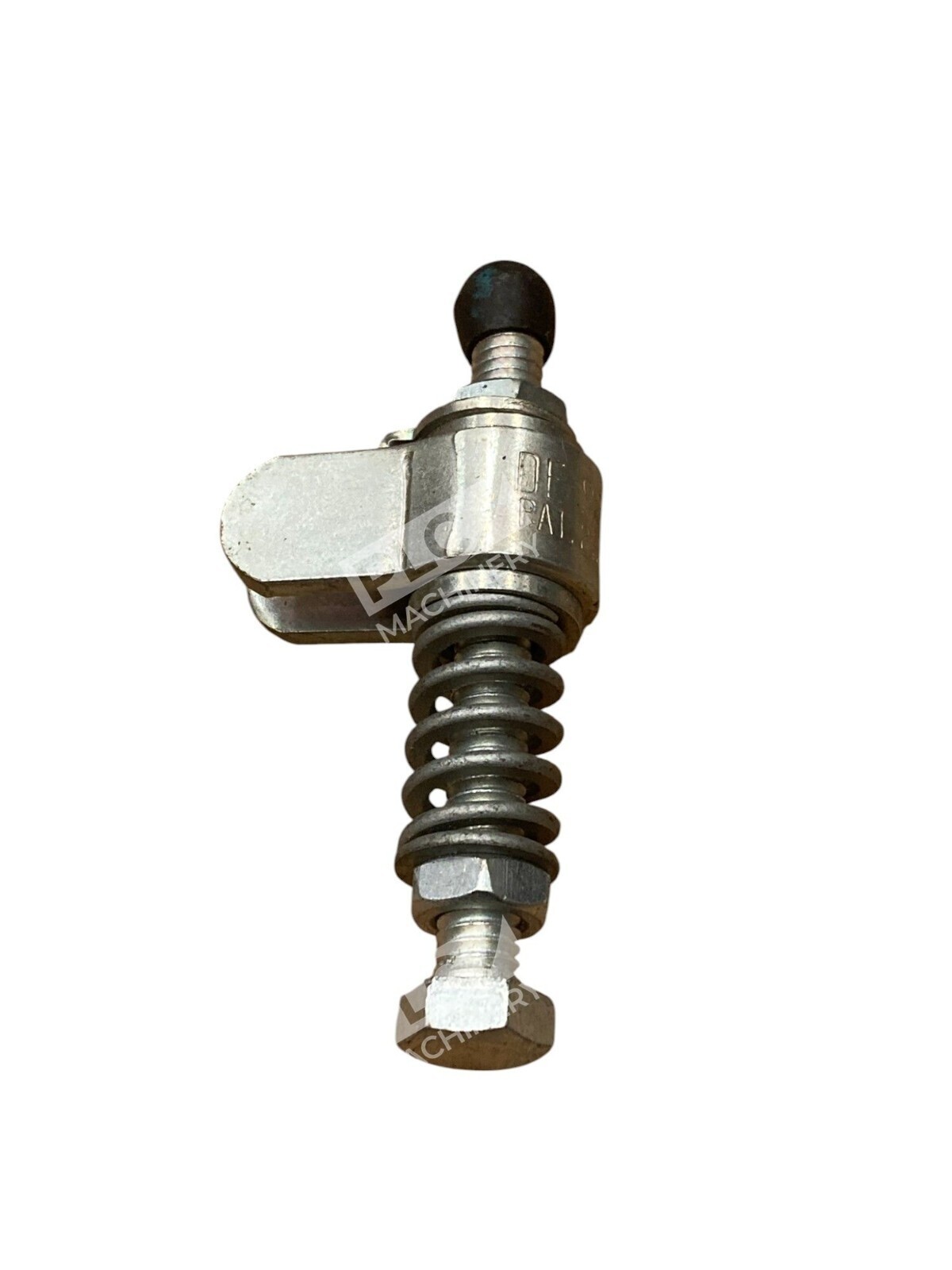

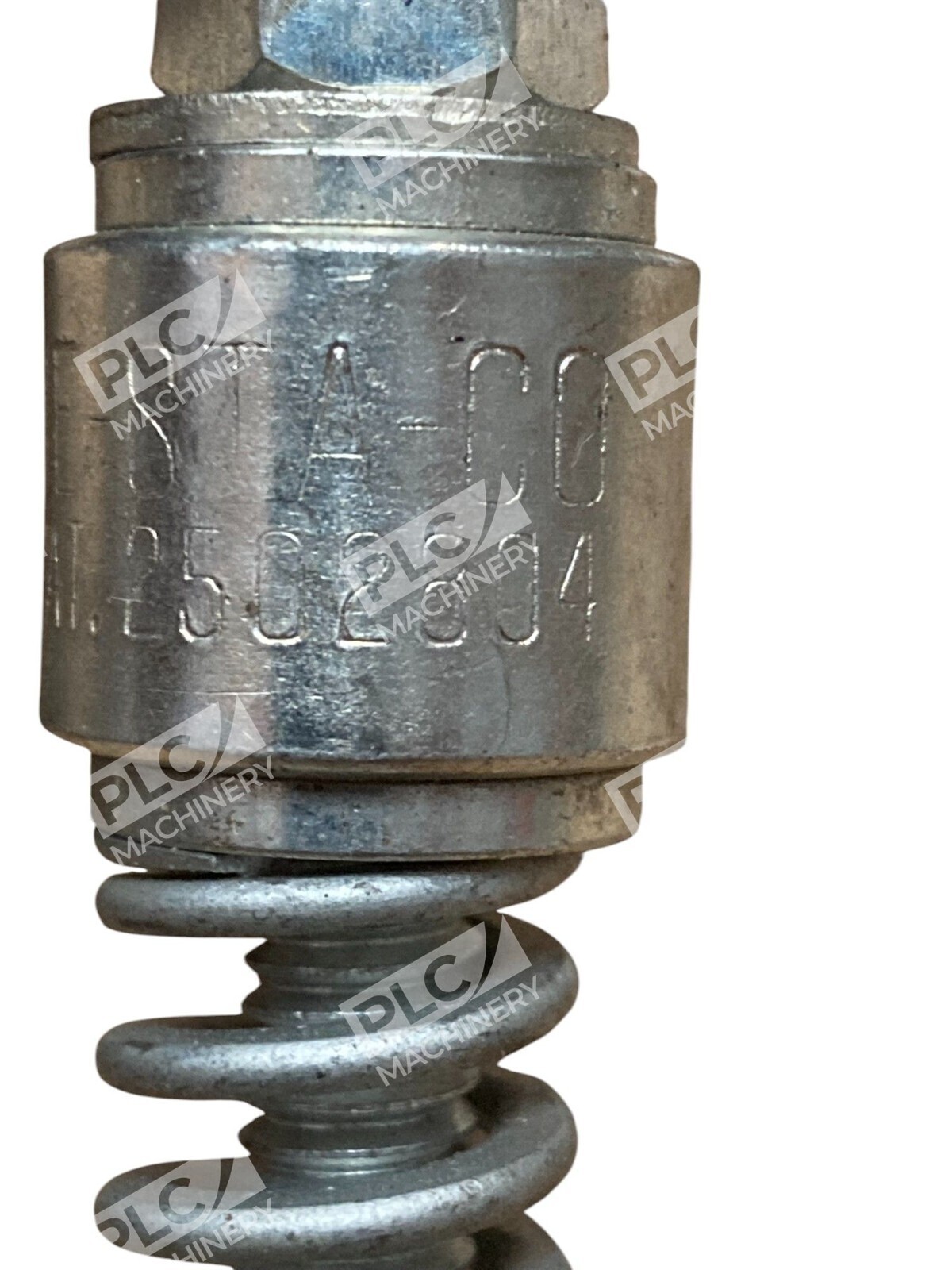

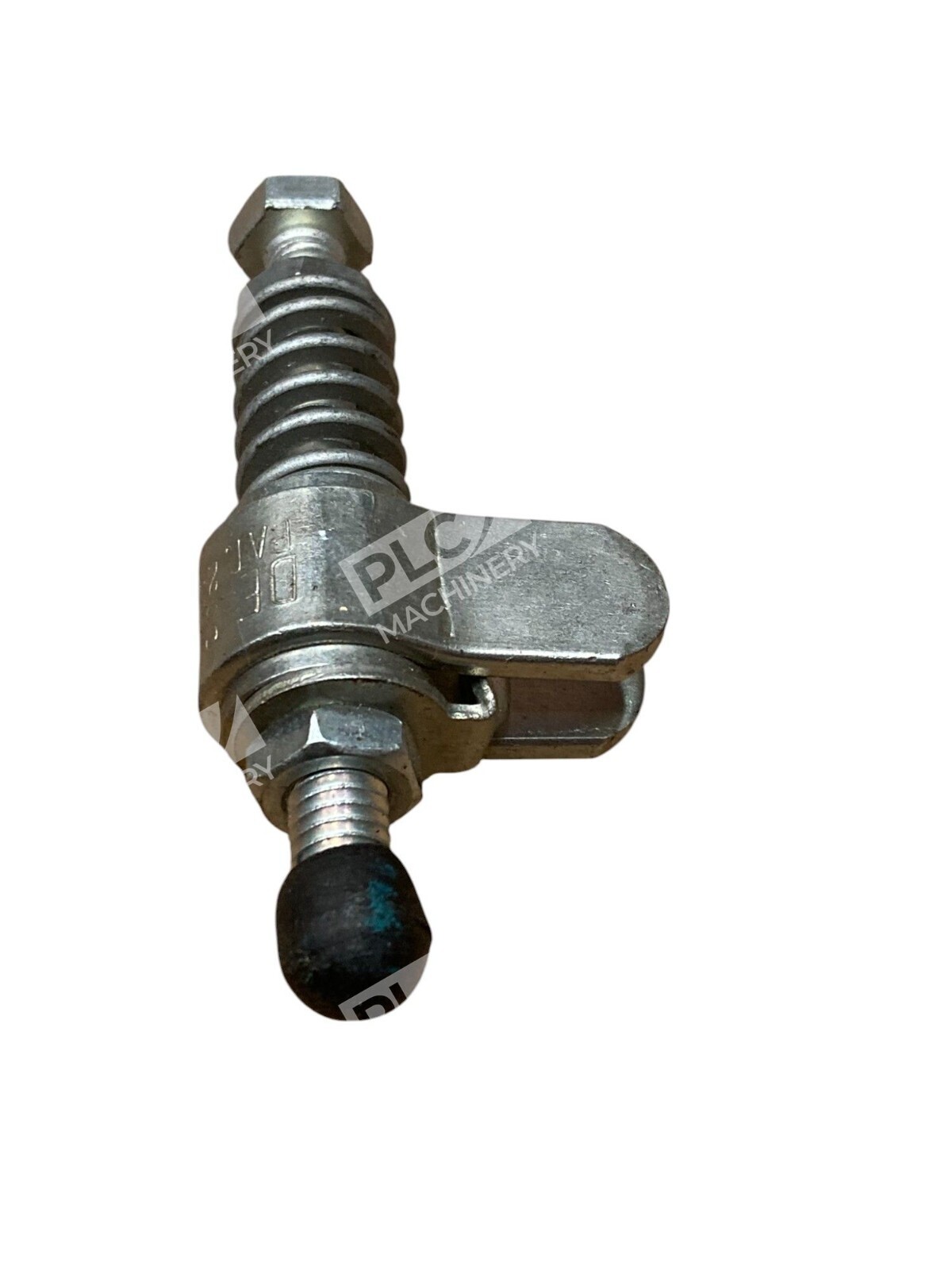

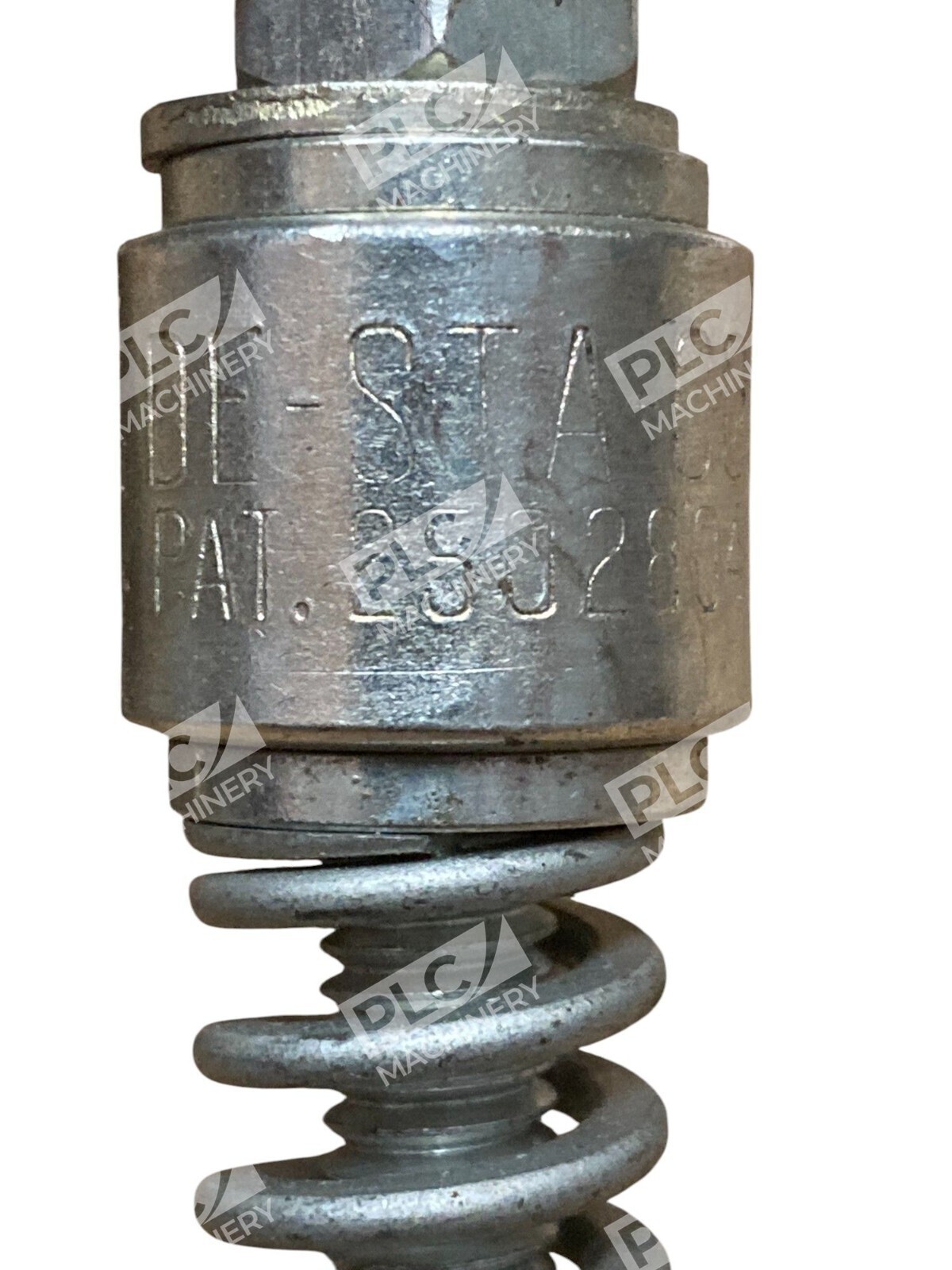

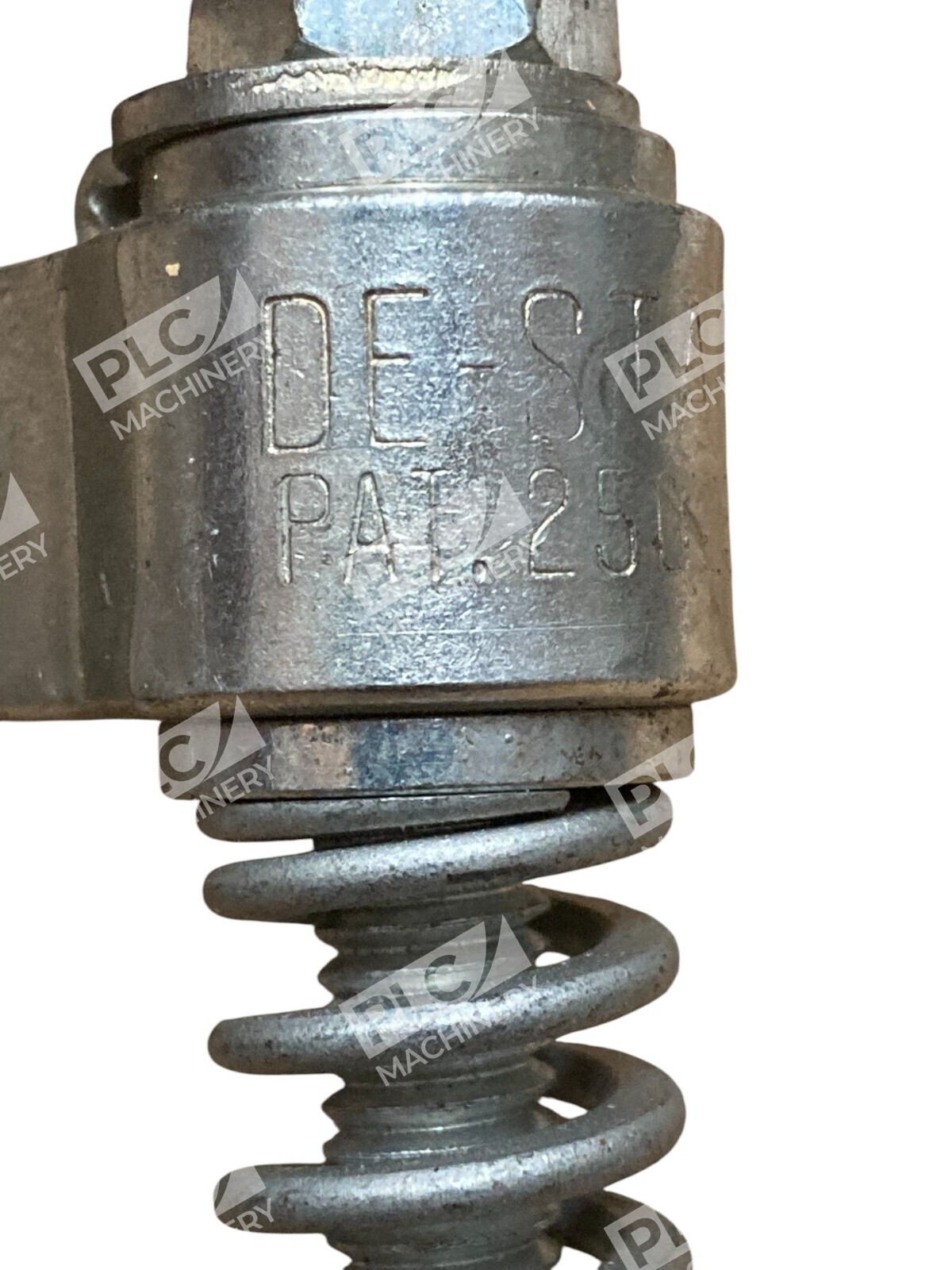

The Destaco 2502804 spindle assembly with spring mechanism represents a proven workholding solution for manufacturing, CNC, and metalworking operations. These spindle assemblies consist of an internal compression spring that adjusts thickness according to the material, making them suitable for fixtures requiring load compensation across varying part heights.
Key Features
- Non-marking, secure clamping of workpieces
- Internal compression spring for automatic thickness adjustment

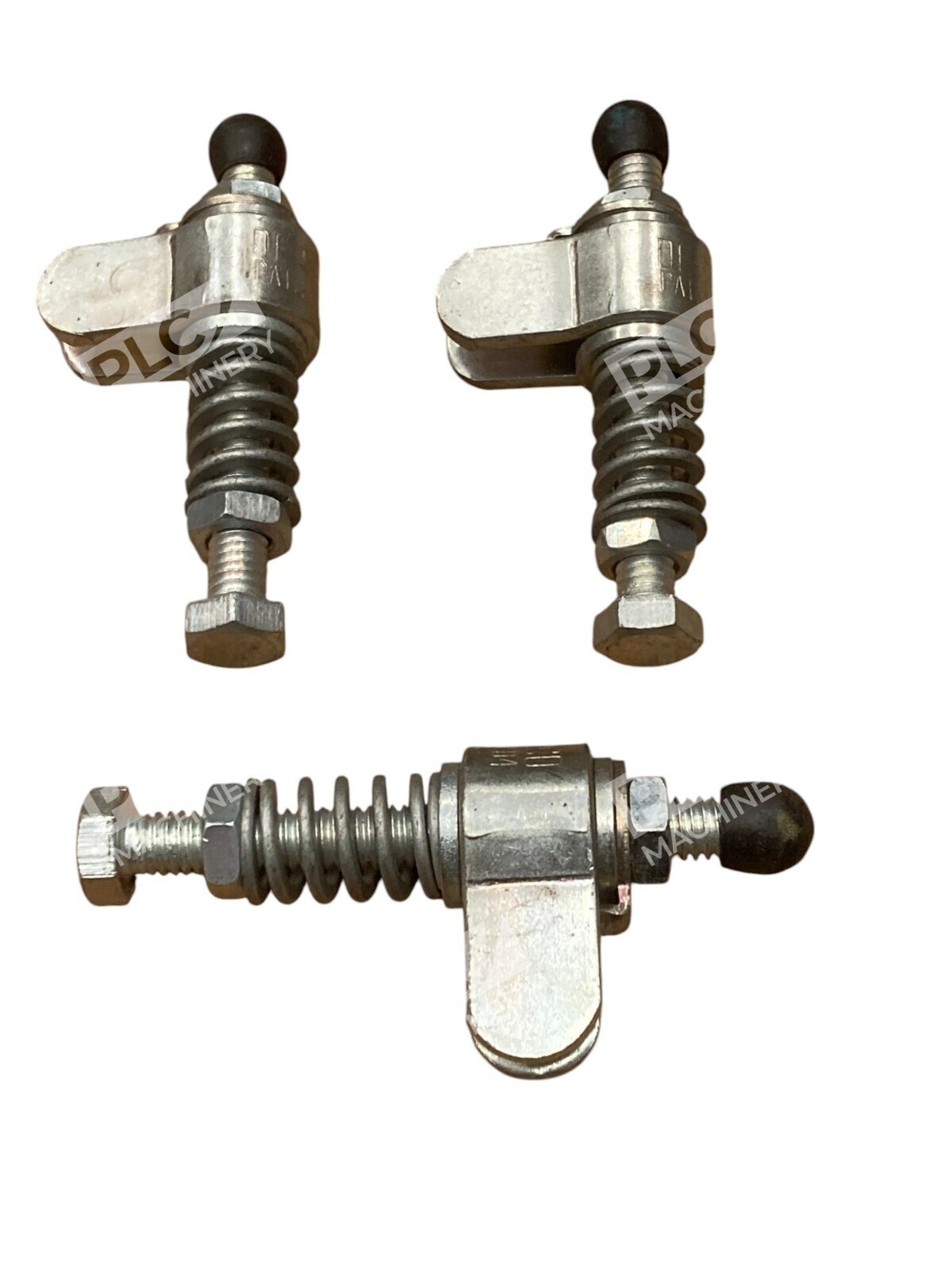

- Lot of 3 units for multiple fixture applications
- Compatible with standard toggle clamp configurations
- Steel construction with protective finishes for durability
Technical Specifications
The Destaco 2502804 is engineered to work within standard toggle clamp systems. Spindle assemblies are available in different thread sizes, heights and swivel angles to accommodate various mounting requirements. Construction materials include hardened steel spindles with neoprene or elastomer tips to prevent marking on finished surfaces.
Typical Applications
- CNC machining fixtures requiring repeatable clamping force
- Manufacturing assembly jigs for precision part positioning
- Metalworking operations with variable stock thickness
- Tool room workholding for mold and die work
- Multi-station production fixtures
Compatibility & Replacements
Compatible With
- Destaco horizontal and vertical toggle clamps
- Destaco straight-line action clamping systems
- OEM toggle clamp mechanisms from major manufacturers
- Standard fixture mounting plates and locating blocks
Replaces / Drop-In Replacement For
Verify compatibility with your fixture design or system integrator before ordering. The Destaco 2502804 is a specific assembly designed for particular clamp configurations.
Works With
- Destaco manual toggle clamp assemblies
- Standard industrial fixture components
- Workholding automation systems
- CNC and manual machine tool setups
