Overview

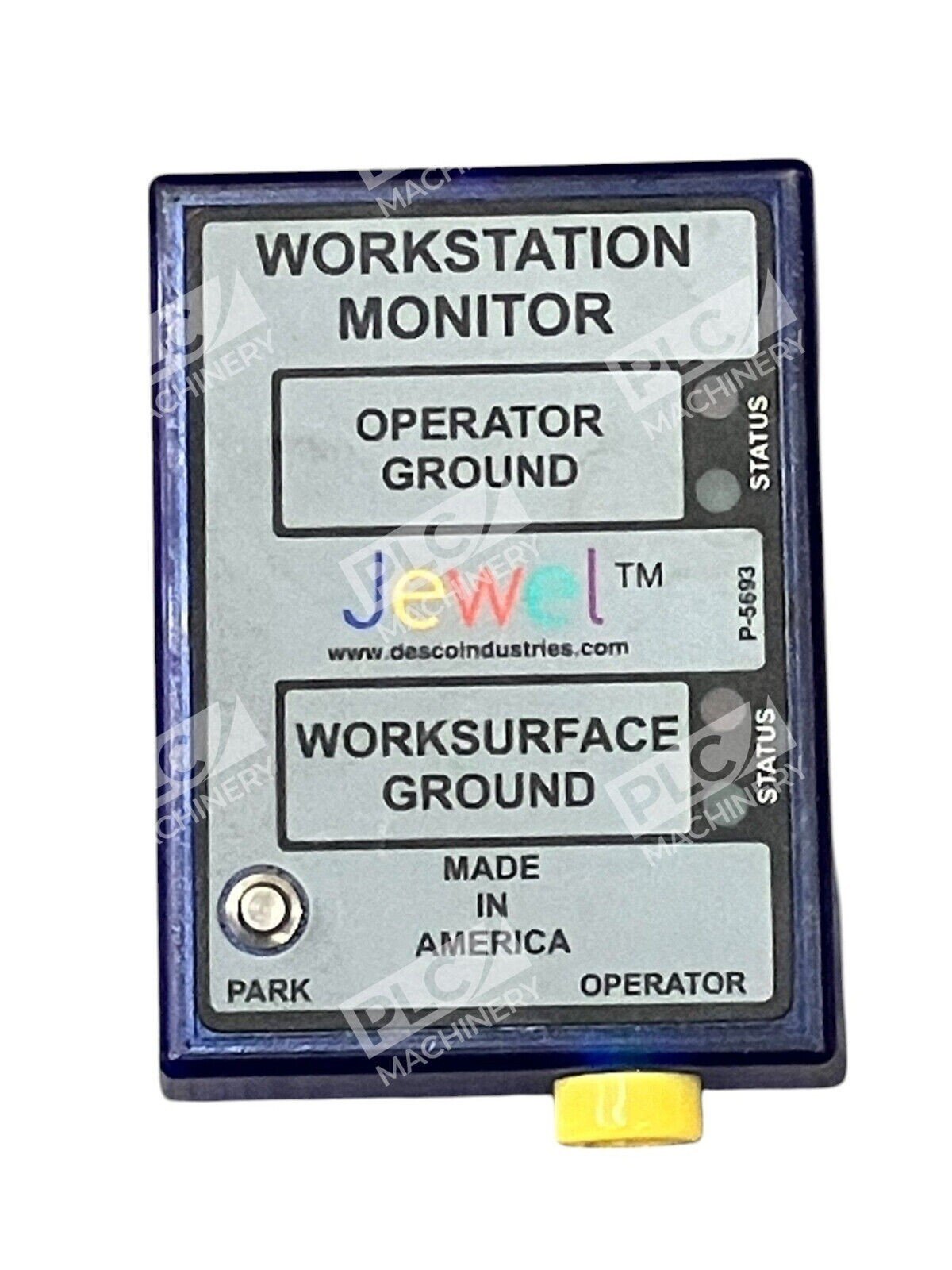

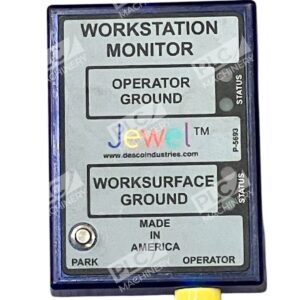

The Desco 19212 is a Jewel® Workstation Continuous Mini Monitor designed for ESD-sensitive assembly and testing environments. This single-station monitor provides real-time monitoring of operator grounding integrity and ESD mat connectivity with automatic alarm response upon detection of faults. It operates on 120/24VAC input and is calibrated to NIST standards for regulatory compliance.
Key Features
- Dual-channel monitoring: continuously tracks operator wrist strap and worksurface mat grounding
- Fast alarm response: audible and visual alerts activate in less than 50 milliseconds on strap failure or disconnection
- Path-to-ground detection: verifies grounding path resistance below 500 megohms

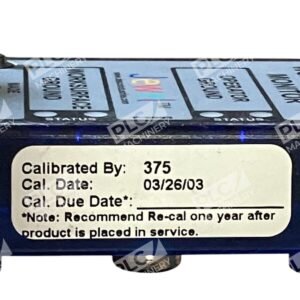

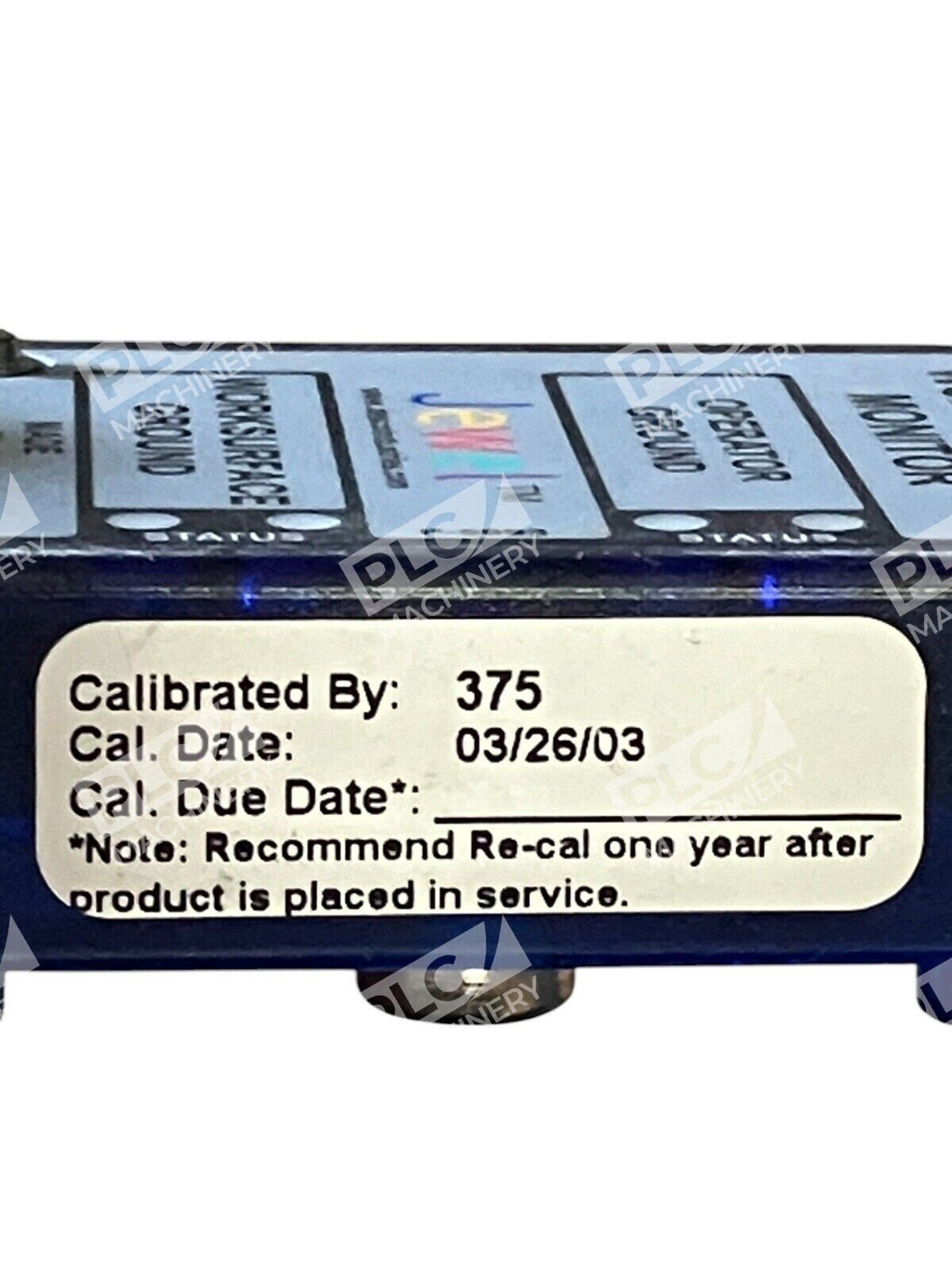

- NIST calibration: certified to NIST standards with included calibration certificate
- Compact Sapphire-colored design for easy eye-level mounting without consuming work surface space
Technical Specifications

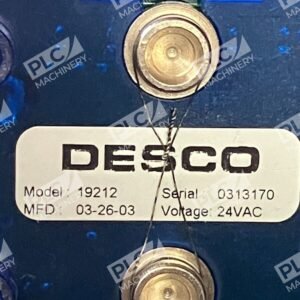

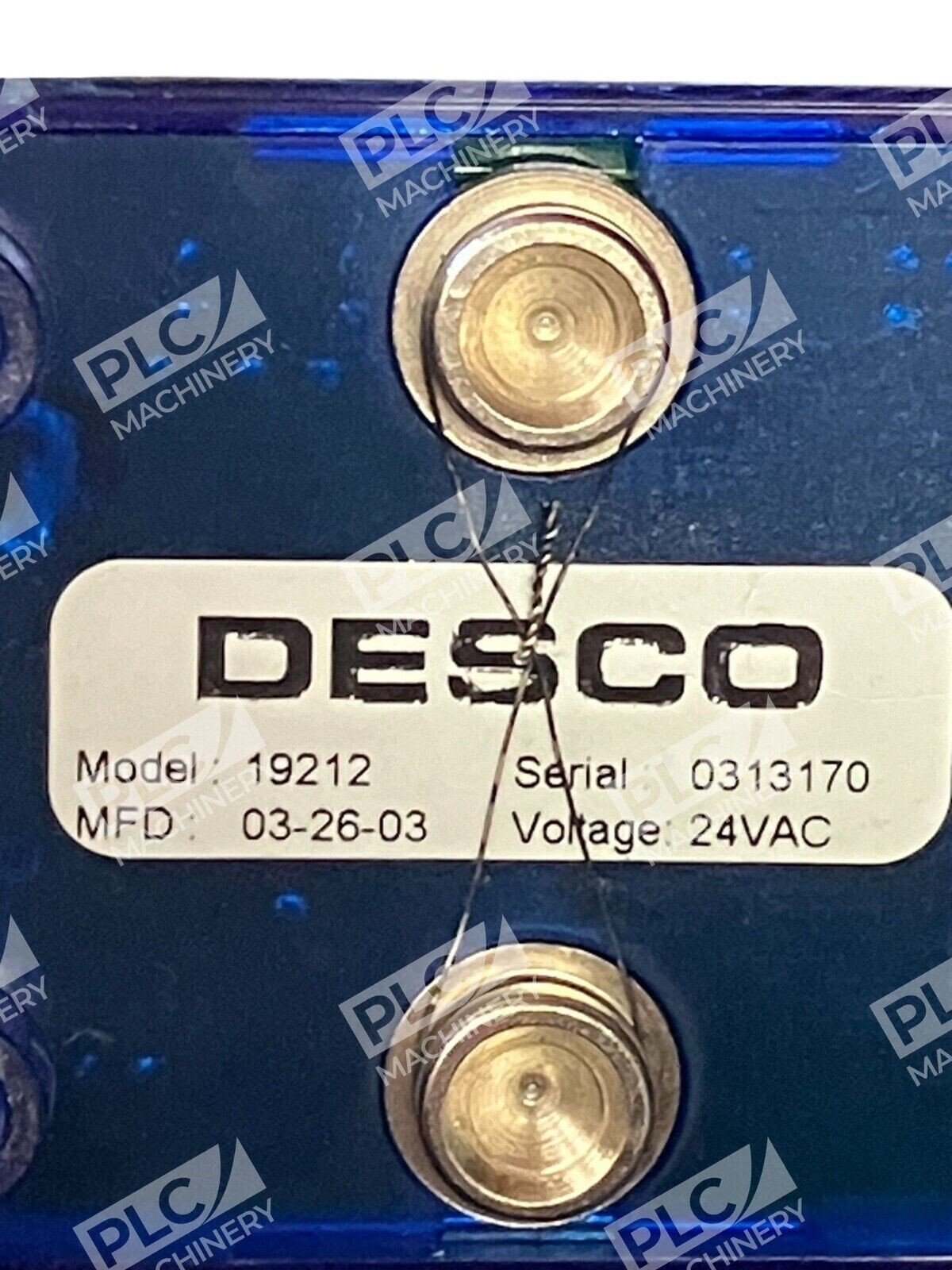

- Model: 19212
- Color: Sapphire
- Input Voltage: 120VAC / 24VAC switchable
- Monitored Operators: 1
- Monitored Worksurfaces: 1
- Ground Path Specification: Less than 500 megohms
- Alarm Response Time: Less than 50 milliseconds
- Calibration Standard: NIST
- Monitor Type: Single Conductor Impedance Sensing Continuous Monitor
Typical Applications
- Electronics assembly and soldering workstations
- Semiconductor testing and component packaging
- PCB handling and repair facilities
- Controlled ESD environments requiring operator protection verification
- Quality assurance and inspection stations in clean rooms
Compatibility & Replacements
Compatible With
- Desco ESD mats and worksurface grounding systems
- Desco wrist straps and coil cords (standard 1 megohm sensing)
- Standard 120VAC and 24VAC facility power supplies
- ESD workstations meeting ANSI/ESD S20.20 standards
Replaces / Drop-In Replacement For
- Other Desco Jewel workstation monitors in the 19212-19217 series may have regional or voltage variants; verify your specific requirement before ordering
Works With
- ANSI/ESD S20.20 compliant facilities
- ESD Handbook TR20.20 Section 5.3.9.2.1 continuous monitoring protocols
- Desco calibration and maintenance systems
