Overview

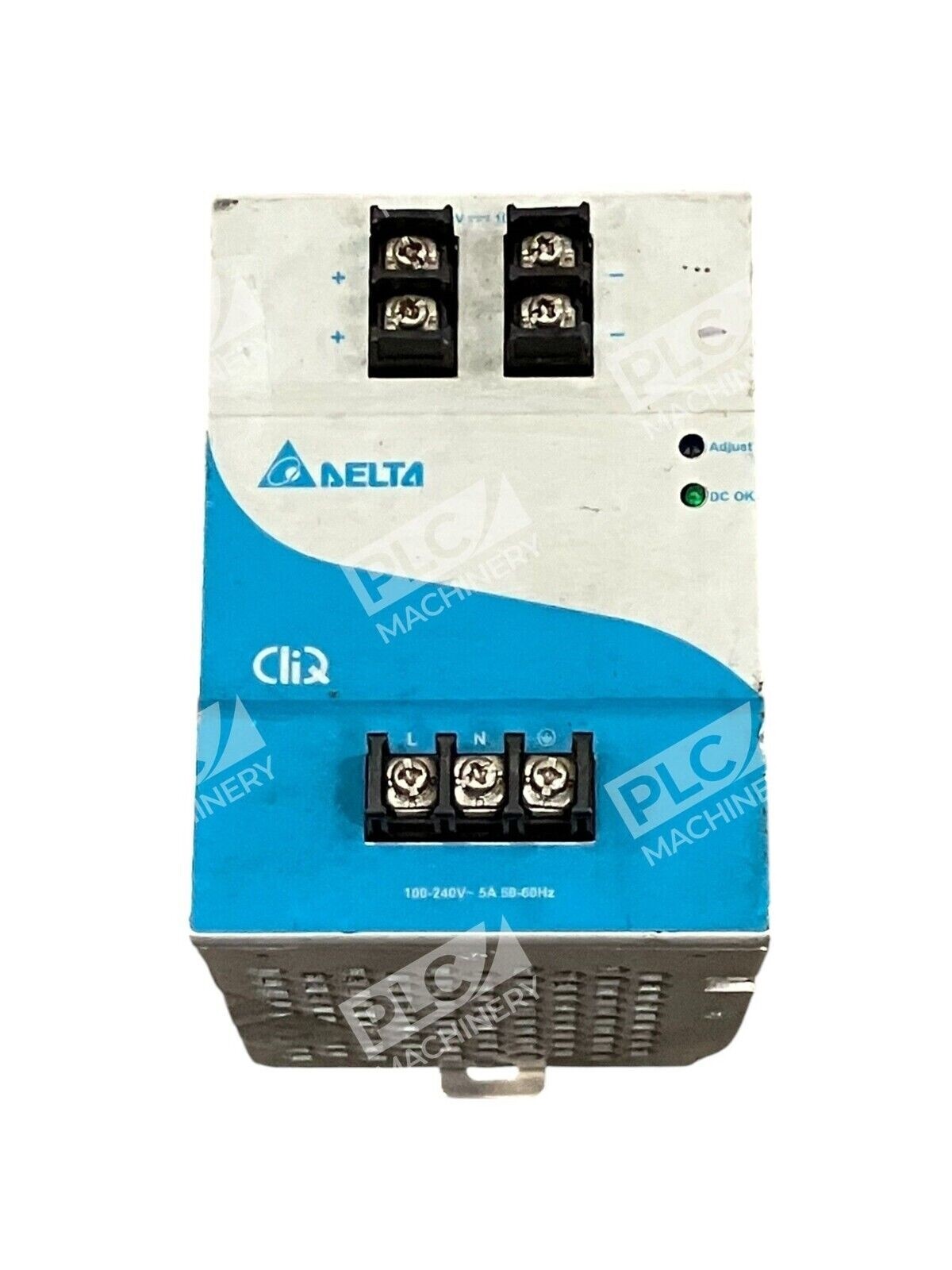

The Delta DRP024V240W1AA is a single-phase industrial DIN rail power supply from Delta Electronics’ CliQ series. This unit delivers 24V DC at 10A (240W output) with a universal input voltage range of 85–264VAC without power de-rating across the entire input range. Built for harsh industrial environments, the DRP024V240W1AA combines rugged construction with advanced protection features and is certified for hazardous locations.
Key Features
- Universal AC Input: Features universal AC input voltage range from 85 Vac to 264 Vac with no power de-rating for the entire input voltage range
- Power Boost Technology: Built-in Power Boost of 150% for 3 seconds for reliable high inrush current startup
- Comprehensive Protections: Single phase power supply unit includes overvoltage, overcurrent, over temperature and short circuit protections
- Rugged Construction: The rugged metal is both shock and vibration resistant according to IEC 60068-2 standard
- Hazardous Location Certified: Hazardous Locations approval to ATEX and Class I, Div 2 and SEMI F47 certified
- Corrosion Resistant: Full corrosion resistant aluminium chassis
Technical Specifications
- Output Voltage: 24V DC
- Output Power: 240W
- Output Current: 10A
- Input Voltage Range: 85–264VAC, 1-phase
- Operating Temperature: –20°C to +80°C
- Dimensions: 4.76 L × 3.35 W × 4.67 D inches
- Power Boost: 150% for 3 seconds
- Certifications: ATEX, Class I Div 2, SEMI F47
- Hold-up Time: 20ms minimum
- Protection: Overvoltage, overcurrent, thermal, short circuit
Typical Applications
- Industrial automation control systems and PLCs
- Servo motor drive power supply in hazardous environments
- Machine tool control cabinets
- Hazardous location (ATEX Zone 1/2) installations
- Factory automation and manufacturing systems
- Process control and monitoring equipment
Compatibility & Replacements
Compatible With
- DIN rail mounting systems (35mm standard rail)
- Industrial automation controllers requiring 24V DC power
- Servo drives and motor control systems
- Field I/O and sensor networks
- Legacy and modern industrial control architectures
Replaces / Drop-In Replacement For
- Other Delta CliQ 24V/240W DIN rail models in legacy applications
- Verify compatibility with your system integrator before ordering
Works With
- Delta AC servo drives and motion control systems
- Allen-Bradley and Siemens industrial controllers
- Modbus and standard industrial networks
- ATEX hazardous location-rated control equipment
- Standard 24V DC field devices and solenoids
