Overview

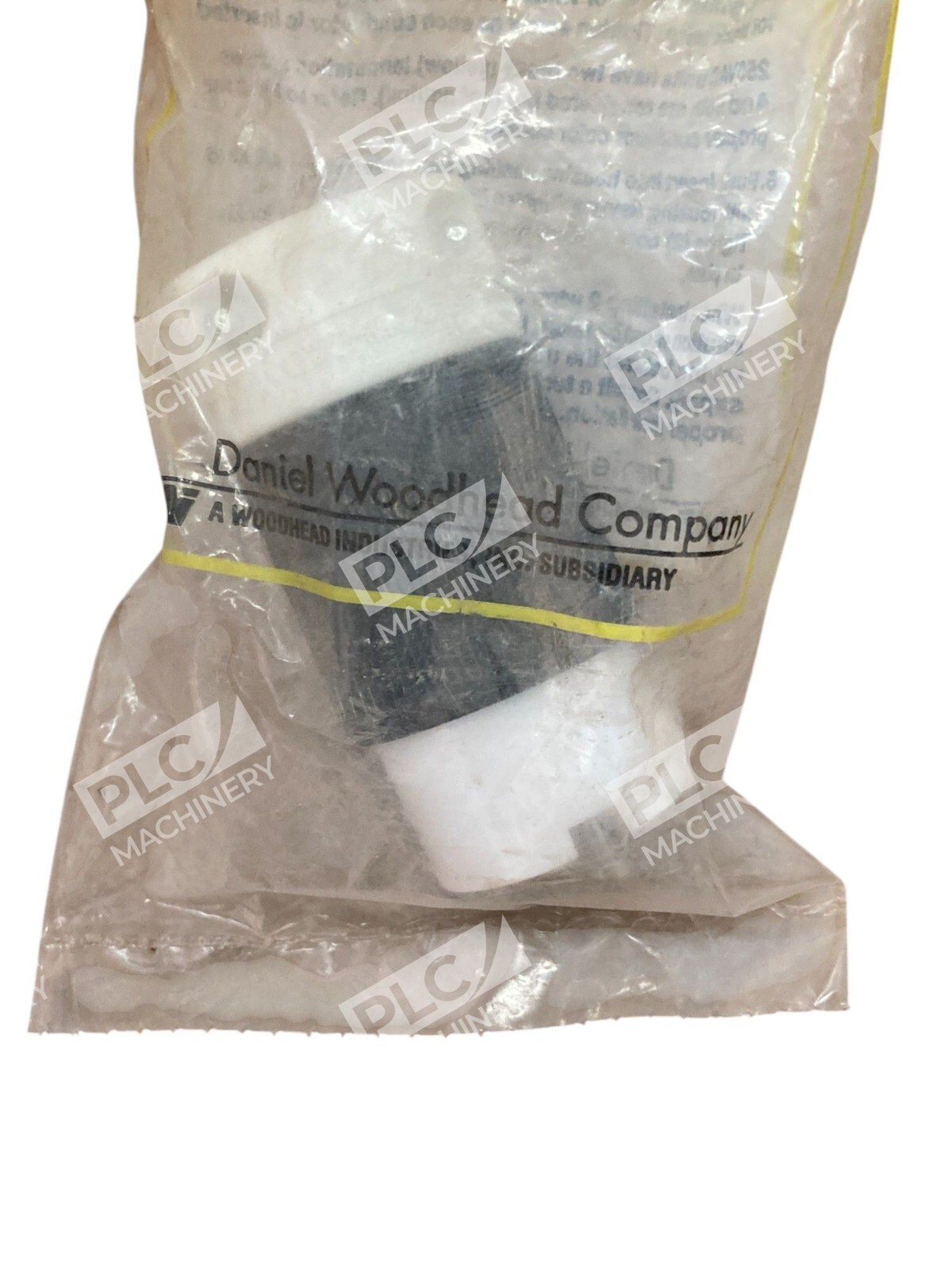

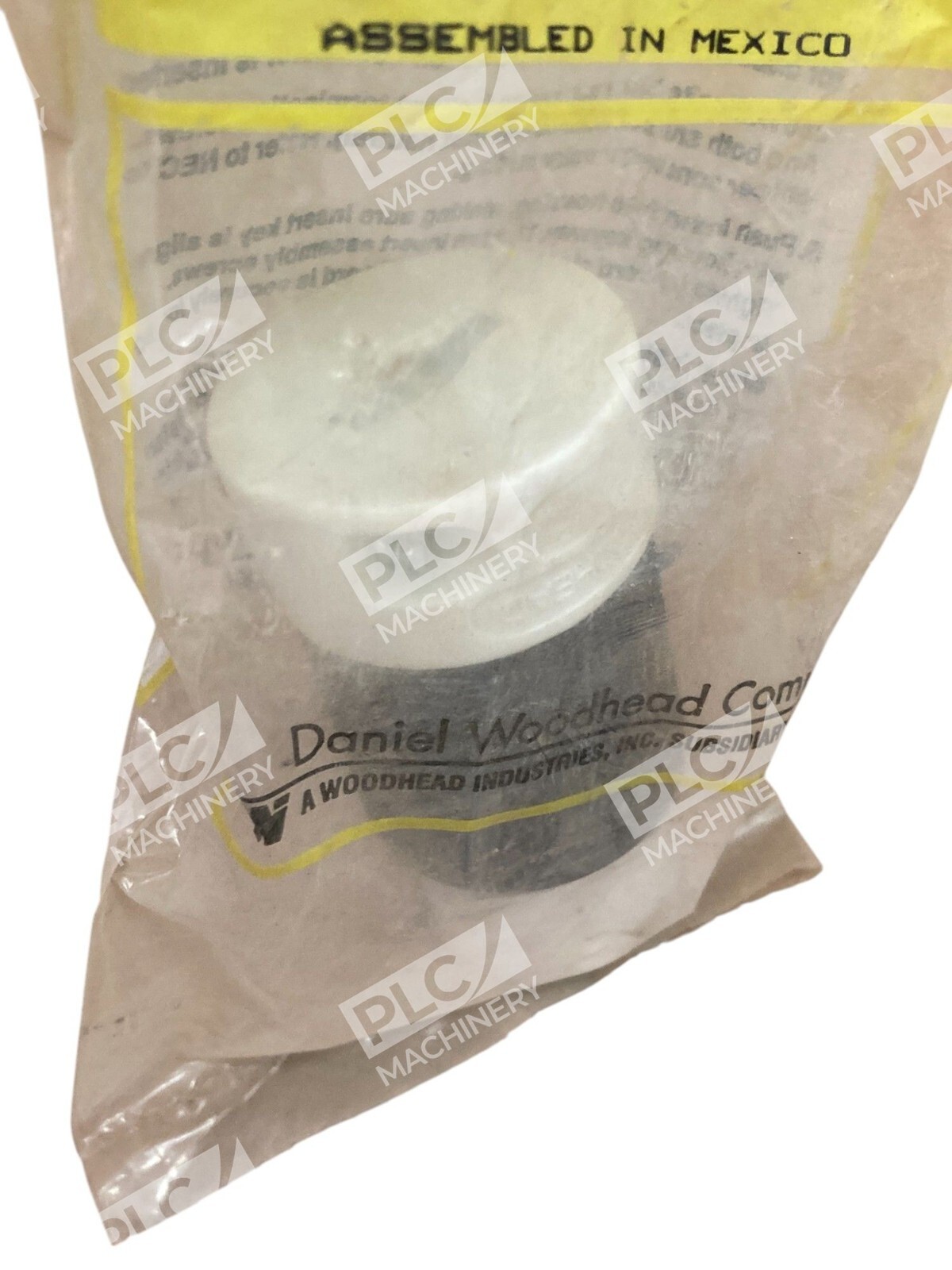

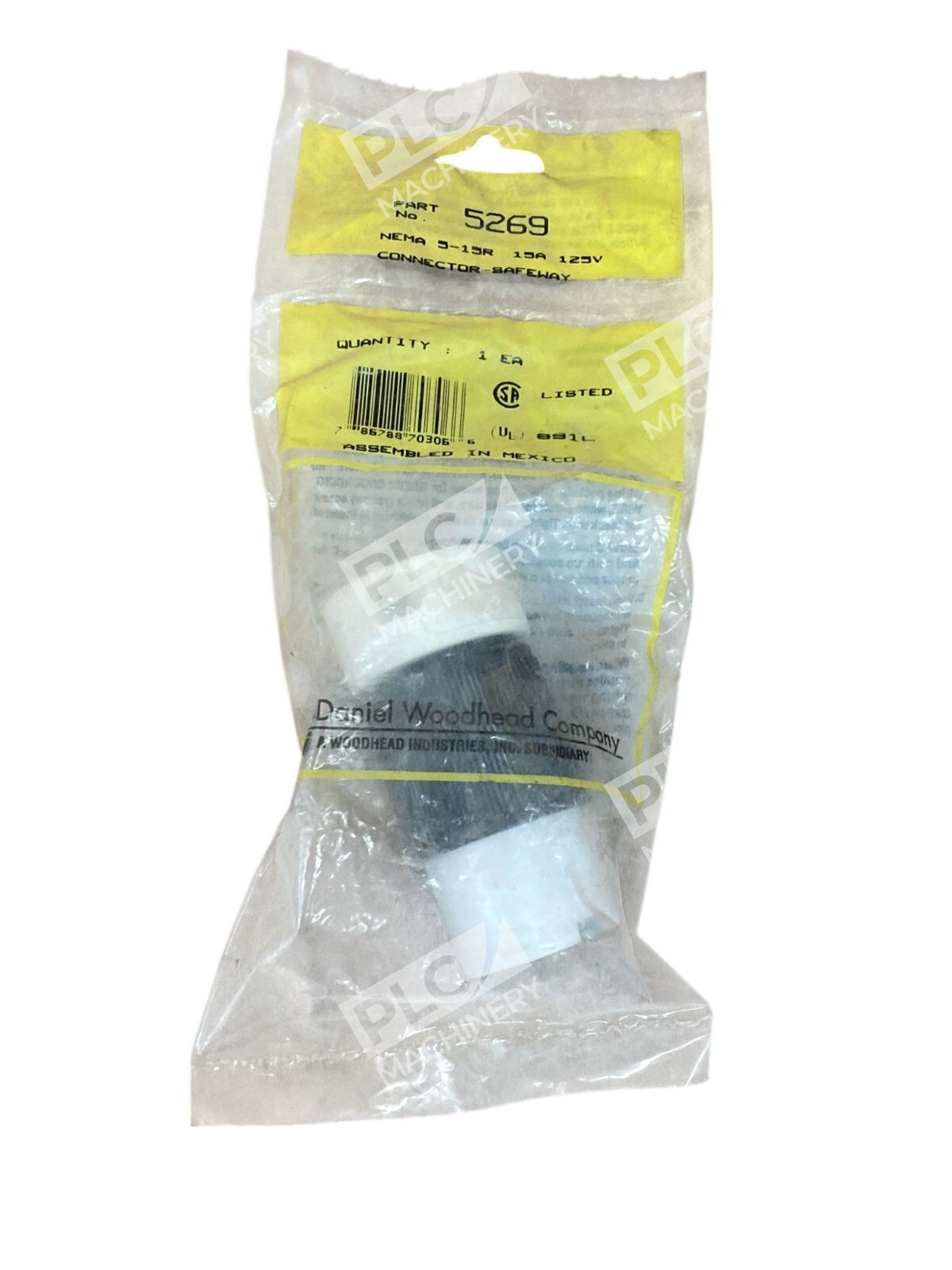

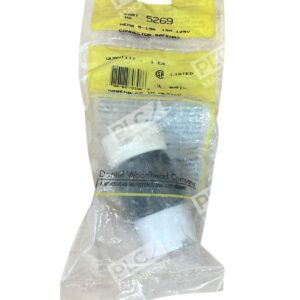

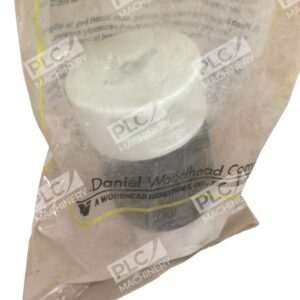

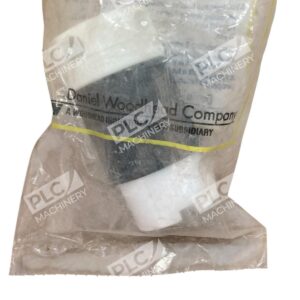

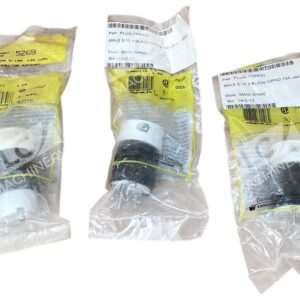

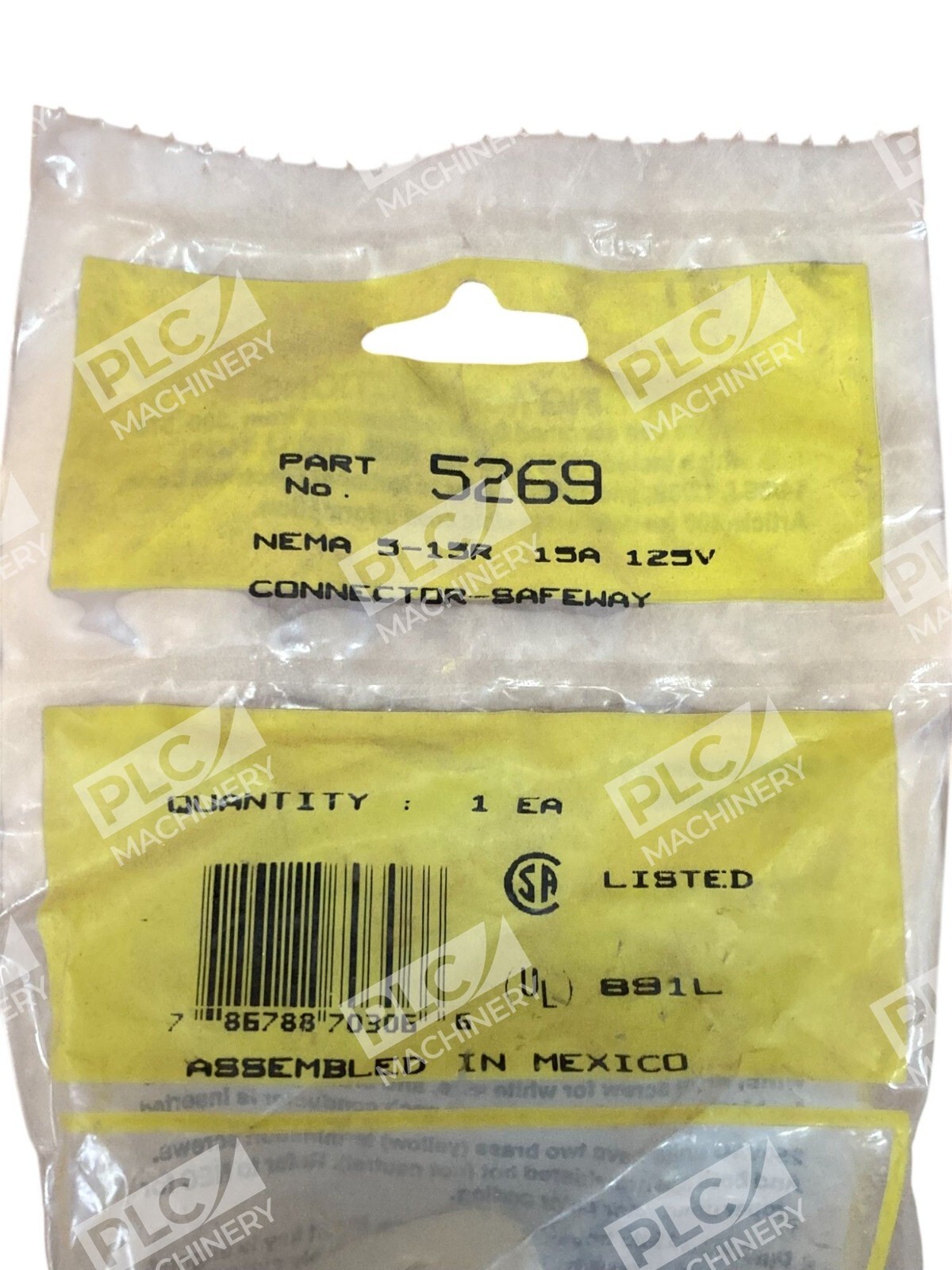

The Woodhead 5269 is a rugged industrial-grade NEMA 5-15R connector designed for reliable power distribution in commercial and industrial settings. This set includes three units, providing spare connectors for maintenance, repairs, and equipment redundancy. Built on Woodhead’s economical Safeway platform, the 5269 delivers proven performance in applications requiring durable, cost-effective electrical connections.
Key Features
- NEMA 5-15R configuration with 2-pole, 3-wire grounding design
- Nylon housing resists impact, chemicals, and environmental stress
- Solid brass contacts reduce friction and minimize overheating
- UL and CSA certified for industrial and commercial use
- Wide operating temperature range from -40°C to 60°C
- Accommodates #18–#10 AWG stranded copper conductors
Technical Specifications
- Voltage Rating: 125V AC
- Current Rating: 15 Amps

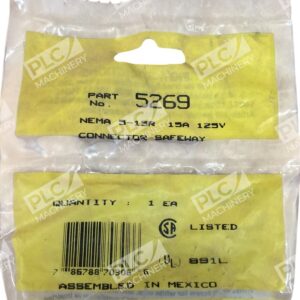

- NEMA Configuration: 5-15R
- Poles: 2 | Wires: 3 (Grounding)
- Contact Material: Solid Brass (Brass Hot, Silver Neutral, Green Ground)
- Housing Material: Nylon
- Wire Accommodation: #18–#10 AWG
- Operating Temperature: -40°C to 60°C
- Certifications: UL 498, CSA C22.2 No. 42

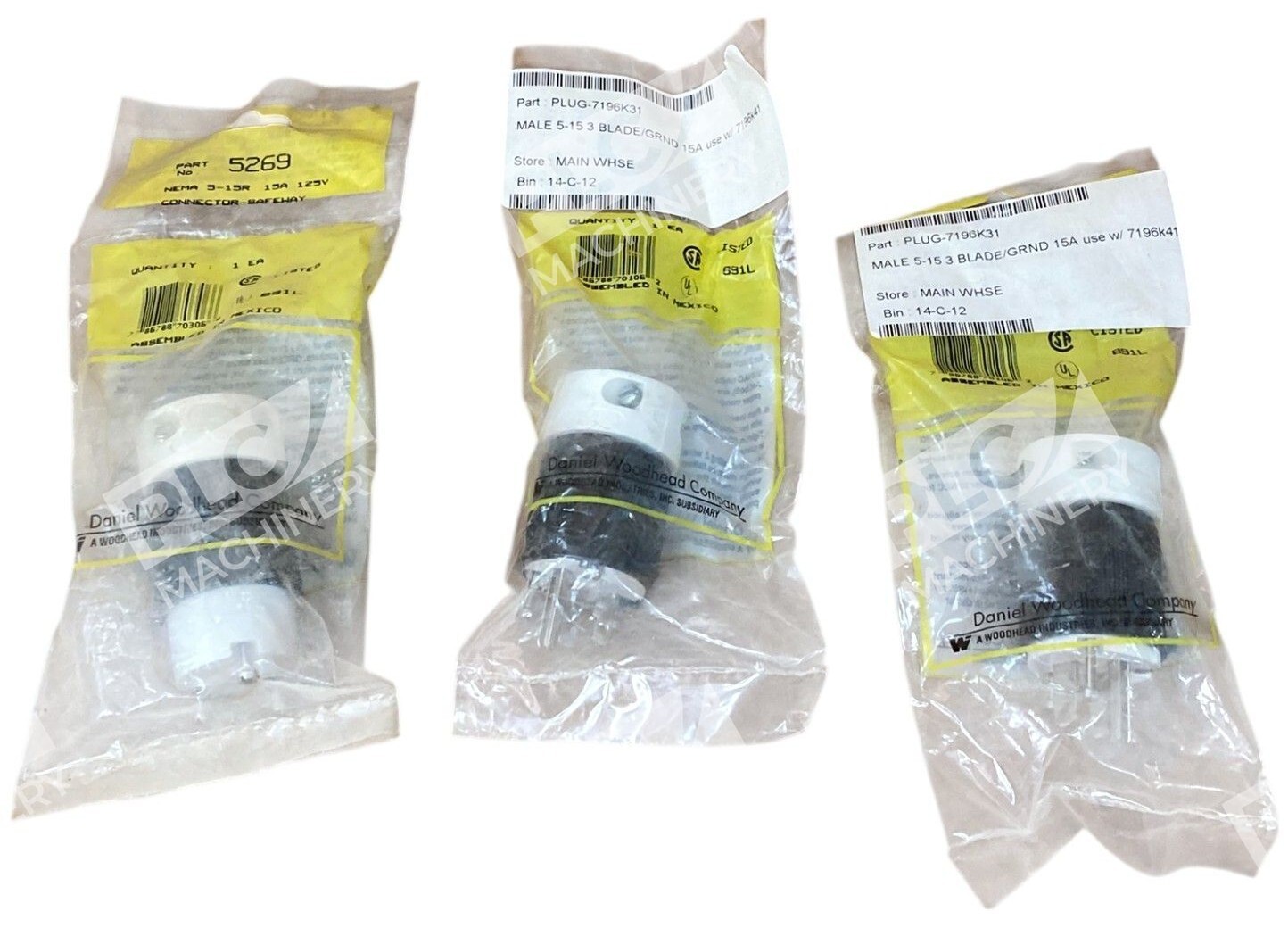

- Quantity: 3 connectors per lot
Typical Applications
- Maintenance and replacement connectors for industrial power cords
- Factory and warehouse electrical systems requiring grounded outlets
- Commercial HVAC, machinery, and equipment connections
- Backup connectors for existing installation inventories
- Retrofit and repair work on legacy electrical infrastructure
Compatibility & Replacements
Compatible With
- Standard 125V, 15A NEMA 5-15 wall outlets and receptacles
- Industrial power distribution systems and cord sets
- Commercial-grade electrical equipment rated for 15A operation
- Standard electrical wiring in North America (UL/CSA jurisdictions)
Replaces / Drop-In Replacement For
- Earlier-generation Woodhead Safeway connector models
- Generic NEMA 5-15R industrial plugs of equivalent rating
- Standard 15A straight-blade connectors in worn or damaged condition
Works With
- Industry-standard power cord assemblies (12/3 AWG through 18 AWG)
- UL-listed and CSA-listed electrical installations
- Cord clamps rated for 0.230″ to 0.720″ cord diameter
- Standard brass terminal blocks and screw terminals
