Overview

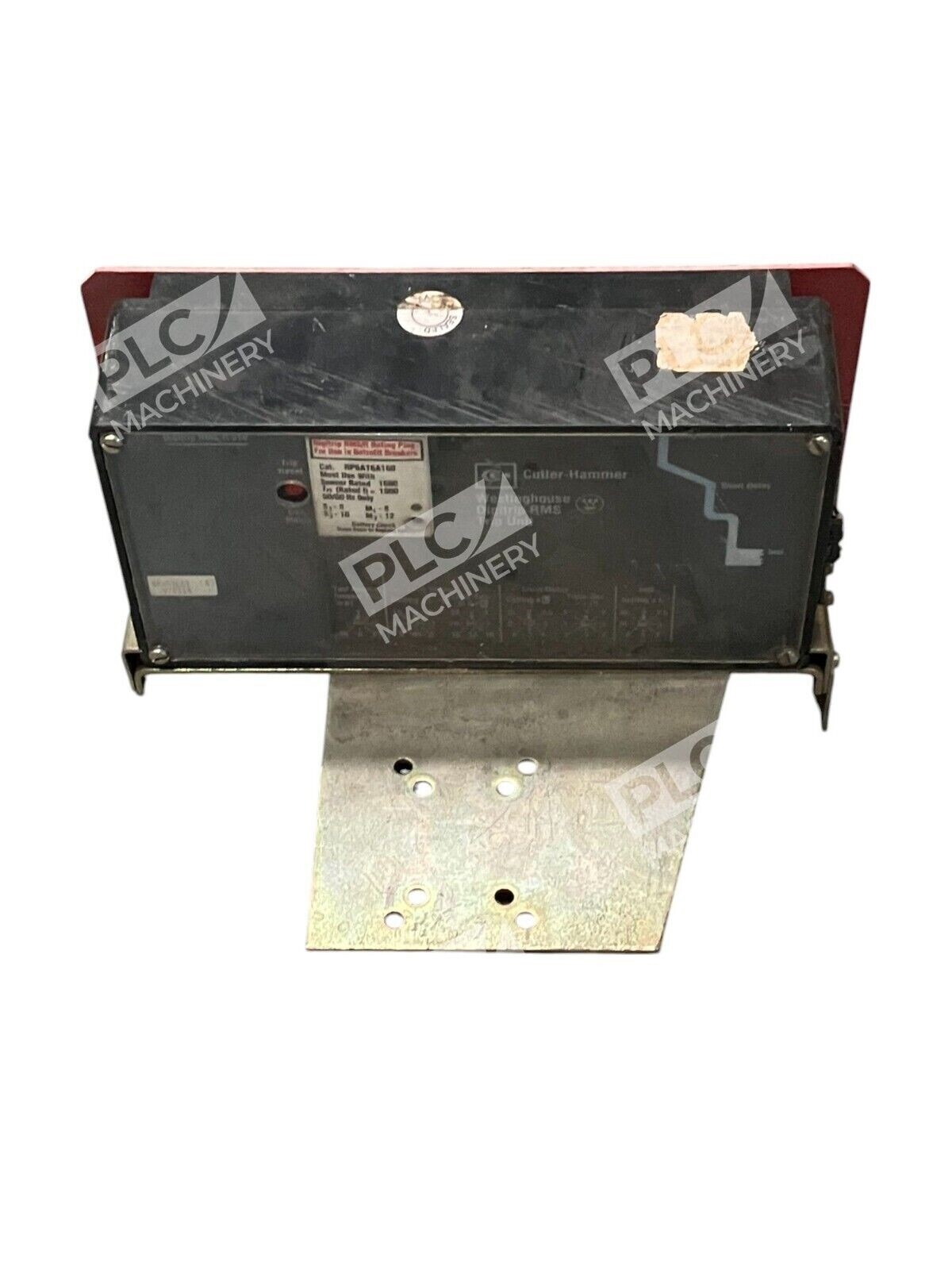

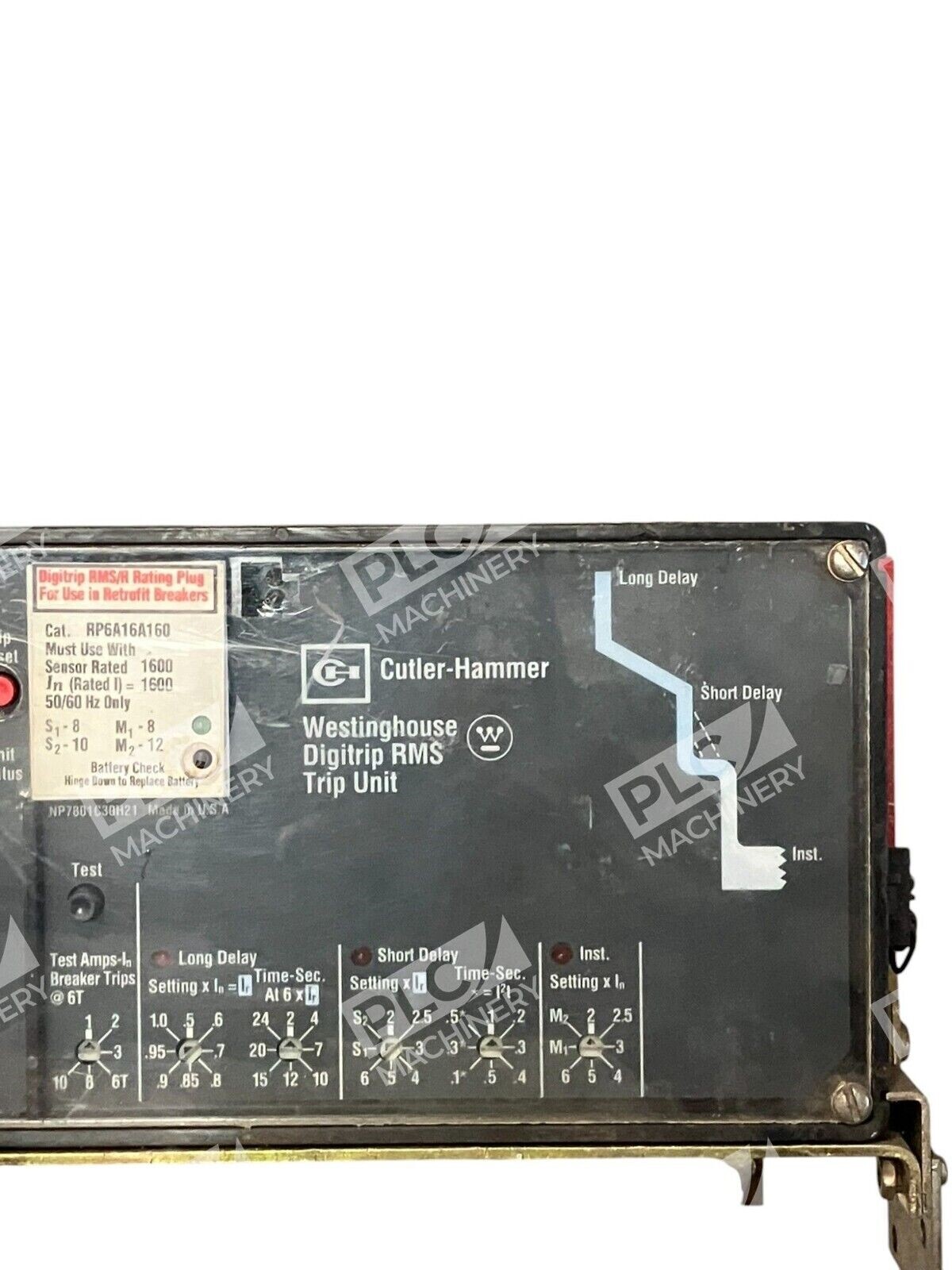

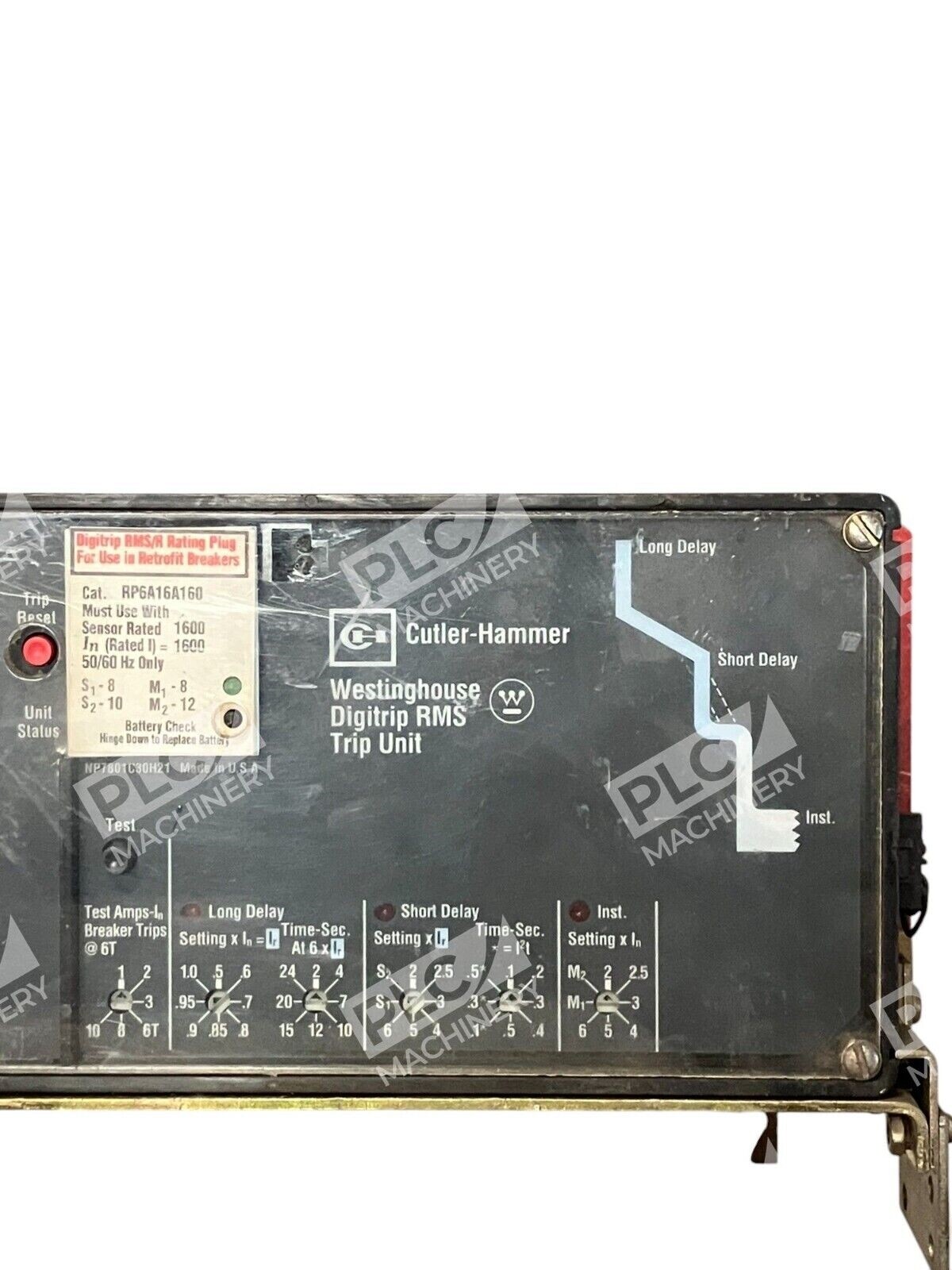

The Cutler-Hammer RP6A16A160 is a 1600-amp rating plug assembly designed for the Digitrip RMS/R 510 electronic trip unit platform. It is used with Cutler Hammer Westinghouse / Eaton Digitrip RMS / R 510 Trip Units for Type SPB, DS, & LA Circuit Breakers. This is a precision electrical component that sets the calibration and trip characteristics for molded case circuit breakers in industrial distribution systems. The RP6A16A160 plug plugs directly into the Digitrip RMS/R trip mechanism to customize protection curves.
Key Features
- 1600-amp trip rating – Handles high-current industrial applications
- 480/600 VAC rated – Suitable for standard industrial three-phase power systems
- Electronic adjustability – Supports long delay, short delay, and instantaneous trip settings
- Three-pole configuration – Designed for three-phase circuit protection
- Drop-in replacement – Direct compatibility with Digitrip RMS/R 510 trip units
Technical Specifications
- Part Number: RP6A16A160
- Trip Rating: 1600 Amps
- Voltage Rating: 480/600 VAC
- Poles: 3
- Compatible Trip Unit: Digitrip RMS/R 510
- Manufacturer: Eaton (Cutler-Hammer / Westinghouse)
- Application: Molded Case Circuit Breaker rating plug
- Manufactured: December 2015 (USA)
- Weight: Approximately 1–2.4 lbs
Typical Applications
Rating plugs are precision-calibrated components used to set the protective characteristics of electronic trip units in:
- Industrial power distribution panels and switchboards
- Motor control centers and combination starters
- OEM equipment with integrated circuit protection
- Facility upgrades and equipment retrofitting
- Service and maintenance of legacy Eaton/Cutler-Hammer breakers
Compatibility & Replacements
Compatible With
- Digitrip RMS/R 510 electronic trip units
- Type SPB, DS, and LA molded case circuit breakers
- Eaton / Westinghouse circuit breaker platforms
- Industrial electrical distribution systems rated 480/600 VAC
Replaces / Drop-In Replacement For
- Original Eaton/Westinghouse RP6A16A160 rating plugs
- Style# 3D86734G15 (manufacturer internal cross-reference)
- Other 1600-amp Digitrip RMS/R 510 rating plugs of equivalent specification
Works With
- Digitrip RMS/R 510 electronic trip mechanism
- Long Delay, Short Delay, and Instantaneous protection settings
- Ground Fault protection (on applicable trip unit models)
- Eaton Cutler-Hammer switchgear and control center systems
