Overview

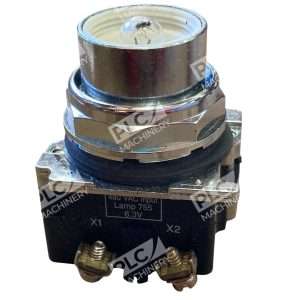

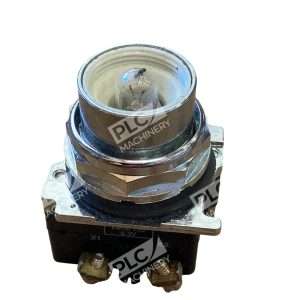

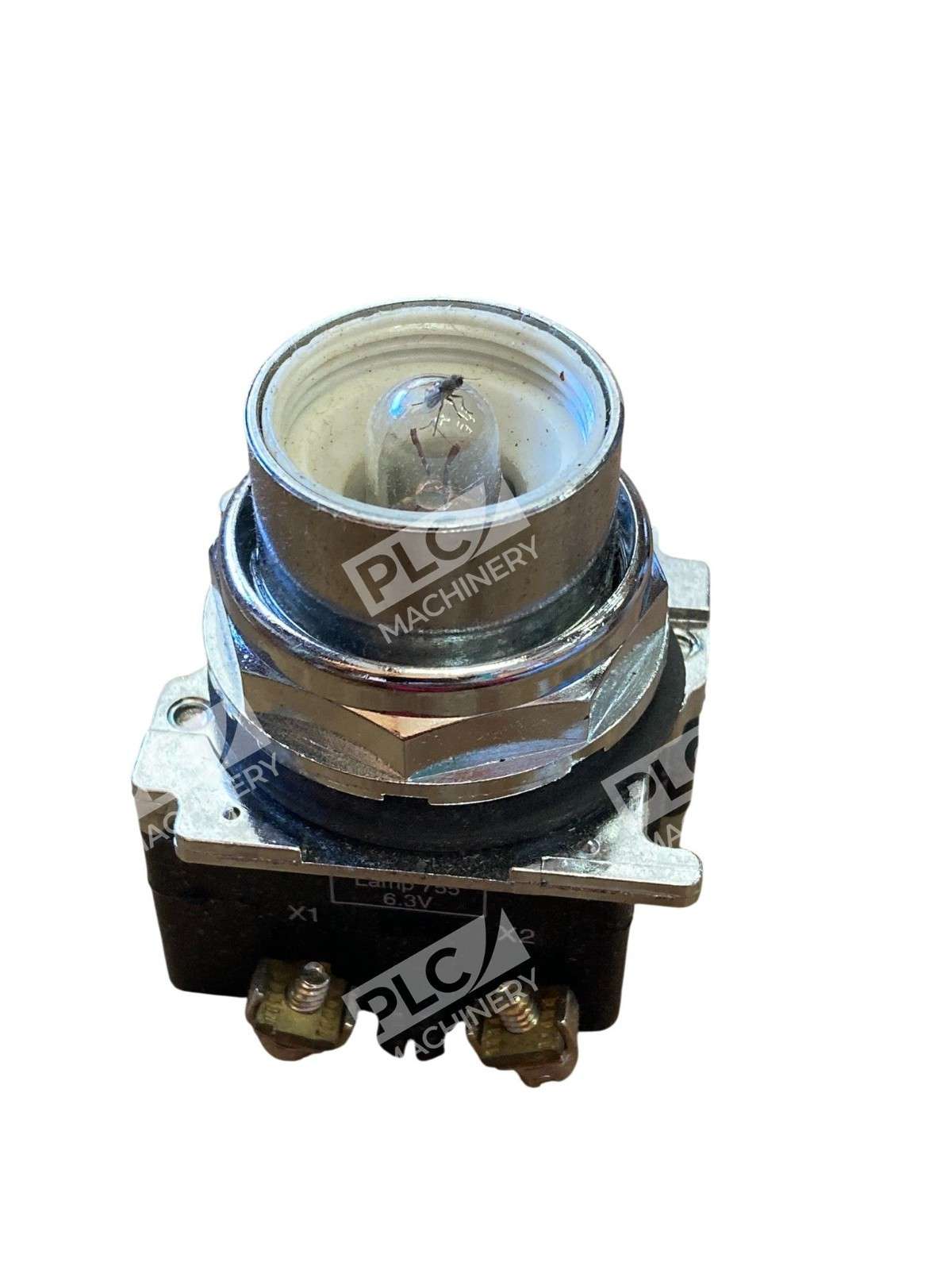

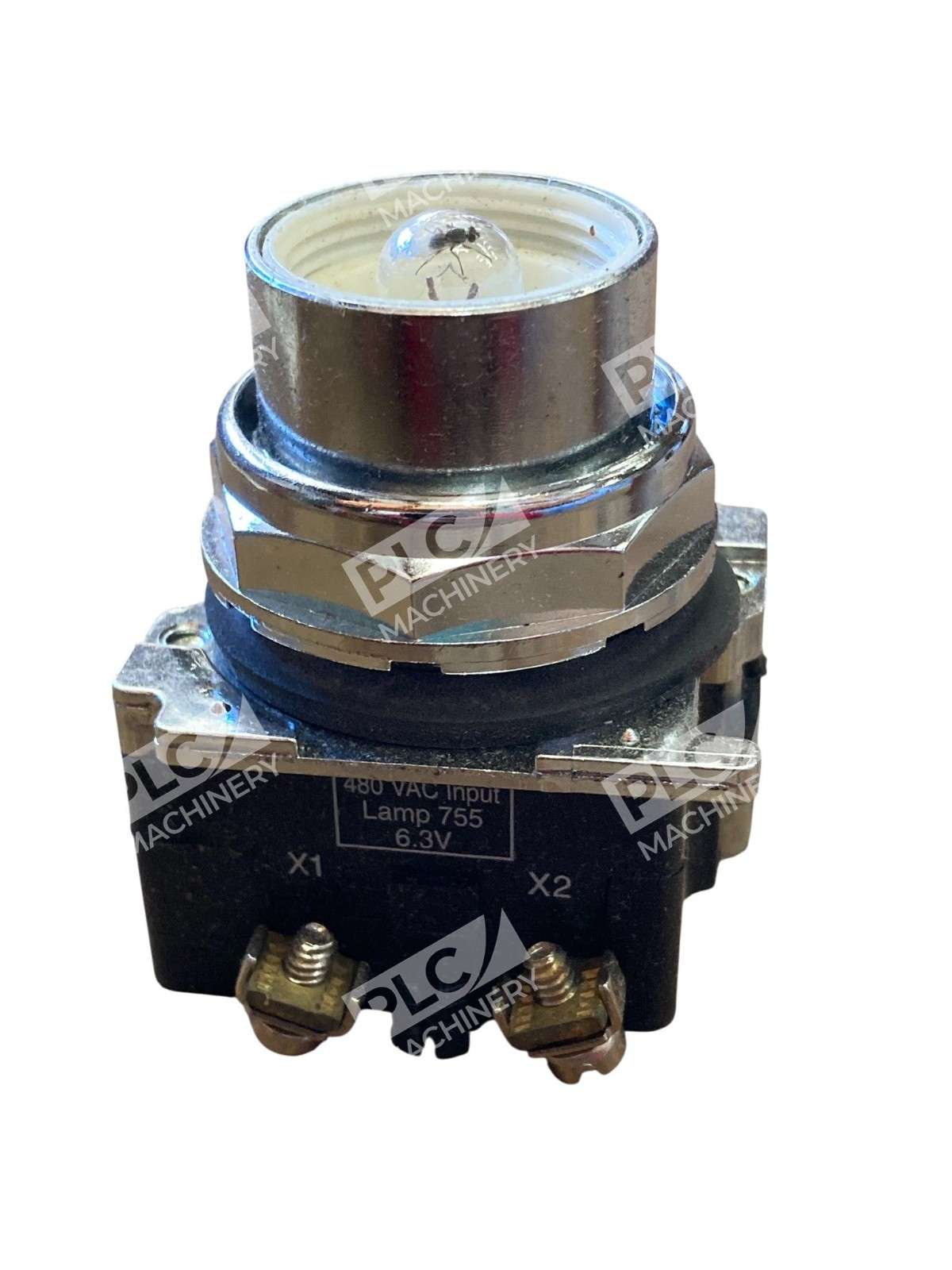

The Cutler-Hammer 10250T414 illuminated pushbutton is a professional-grade control component from Eaton‘s 10250T series of heavy-duty industrial pushbuttons. This 30.5mm pushbutton features heavy-duty zinc die cast construction, making it suitable for harsh industrial environments where reliability and durability are non-negotiable. The illuminated design enhances operator visibility and control clarity in manufacturing, process automation, and motion control systems.
Key Features
- Heavy-duty zinc die cast construction for extended operational life
- Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
- Drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments
- Illuminated design for enhanced visibility in industrial settings
- Water- and oil-tight design meets demanding environmental requirements
Technical Specifications
The 10250T414 conforms to standard industrial ratings and certifications. Operating mode is momentary, with NEMA 3, 3R, 4, 4X, 12, 13 ratings and CE/CSA certifications. The unit employs incandescent illumination technology and utilizes a transformer-based light supply for reliable operation across industrial temperature and humidity ranges.
Typical Applications
The Cutler-Hammer 10250T414 is ideal for:
- Motor control and startup/stop circuits
- Emergency stop stations
- Machine tool and assembly line automation
- Wet, dusty, and corrosive environments requiring watertight enclosures
- Panel-mounted operator interfaces requiring tactile feedback and visual feedback
Compatibility & Replacements
As a member of the 10250T family, this pushbutton integrates seamlessly with existing Eaton/Cutler-Hammer control systems and can be mounted in standard 30.5mm (1.2-inch) pushbutton holes. It is compatible with 10250T series contact blocks and light units. For applications requiring alternative lighting voltages or contact configurations, other 10250T variants (such as 10250T411, 10250T415, 10250T478) offer similar heavy-duty construction with different electrical specifications. Consult Eaton’s product range for exact replacement compatibility.
