Overview

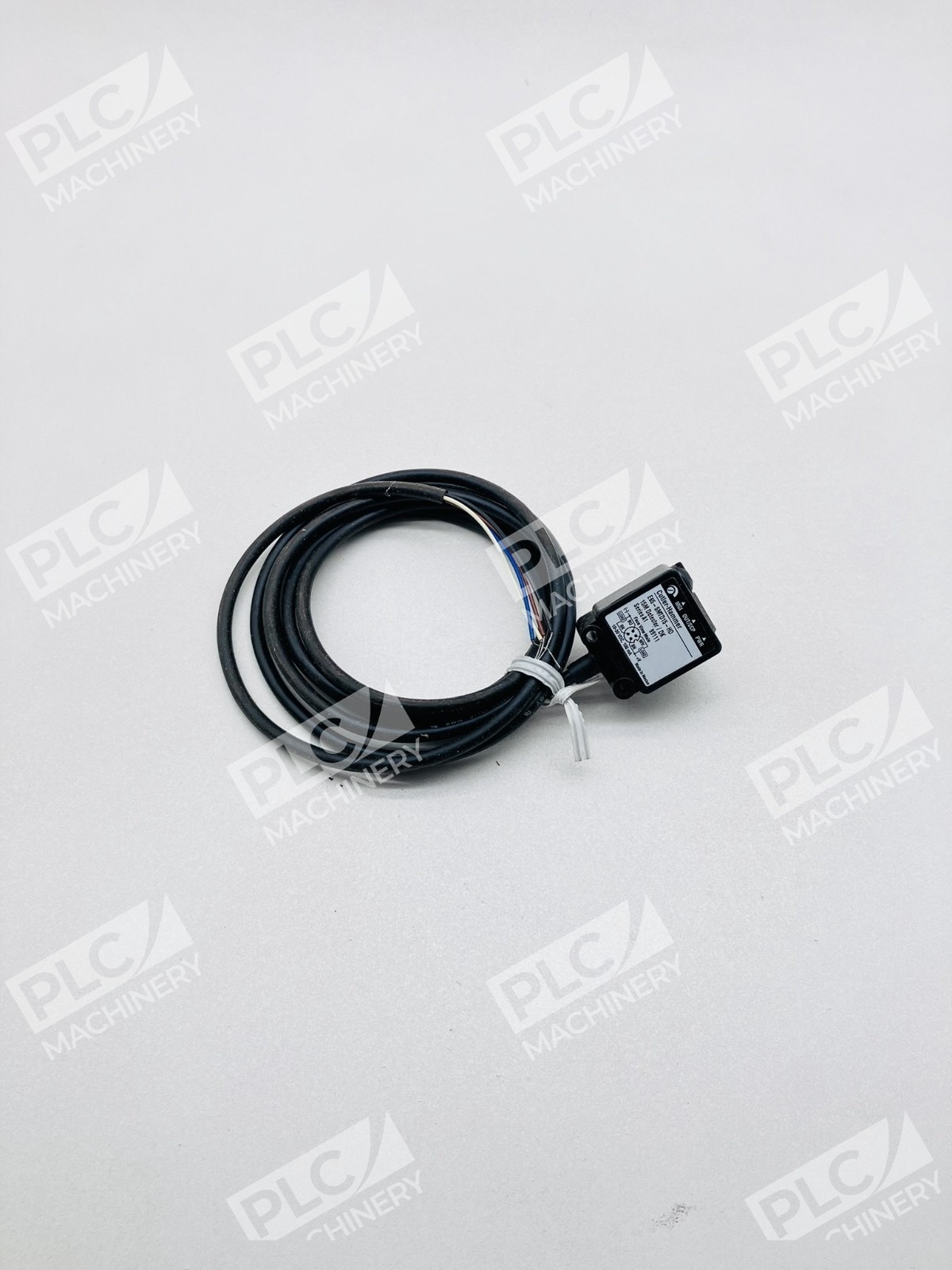

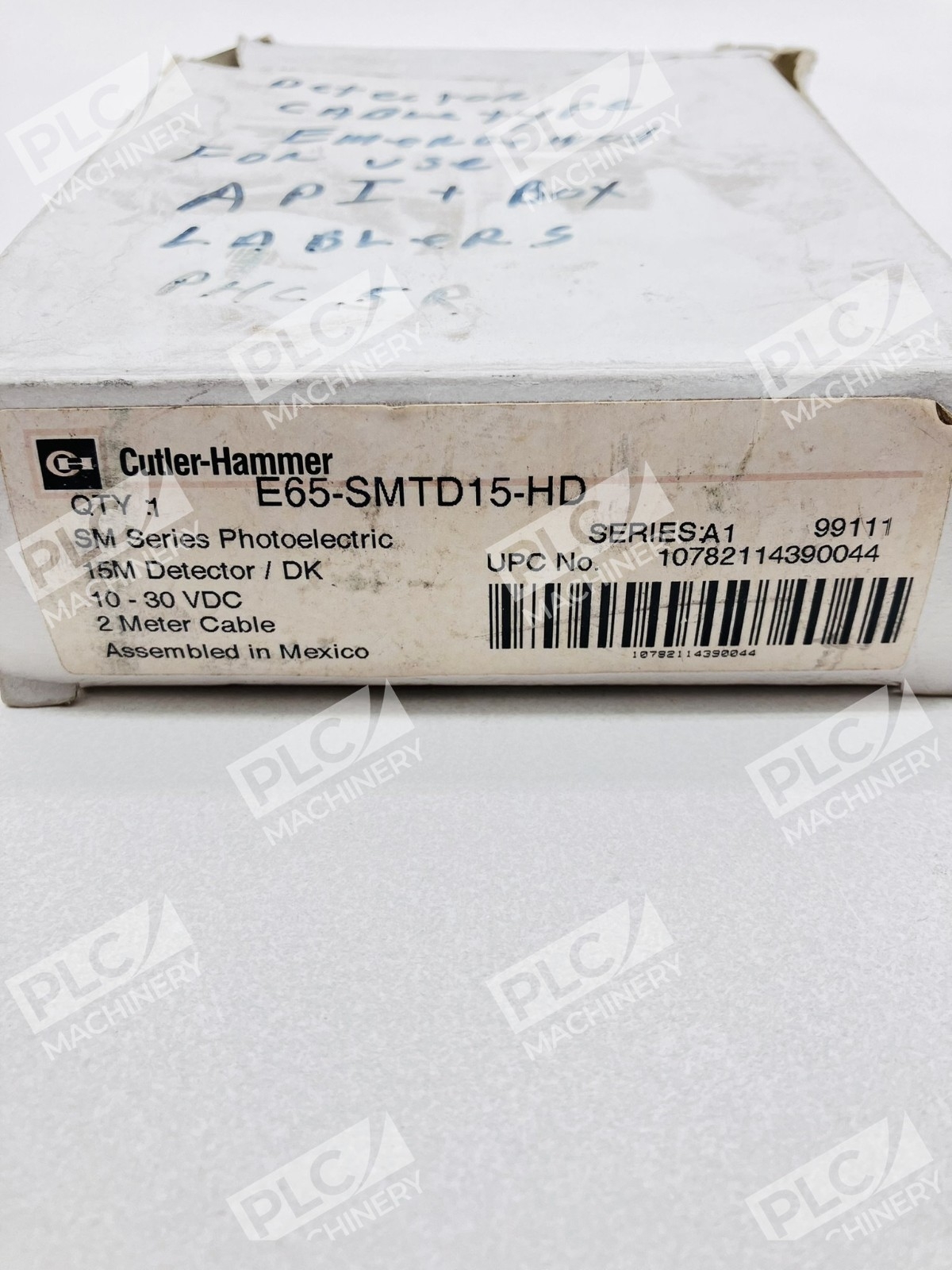

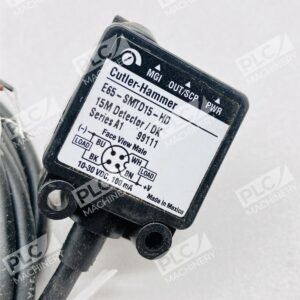

The Cutler-Hammer E65-SMTD15-HD is a thru-beam photoelectric sensor receiver from Eaton’s compact SM Series. Designed for industrial detection and automation control applications, this receiver unit operates across 15-meter sensing distances and pairs with a compatible transmitter to detect the presence or absence of objects on assembly lines, conveyor systems, and process equipment. The dark-operate (normally-off) configuration activates output when the beam is blocked, making it ideal for object detection and counting applications.
Key Features
- 15-meter sensing range: Supports long-distance thru-beam detection for wide machinery and conveyor applications
- TargetLock™ LED indicators: Visual confirmation of proper sensor alignment and diagnostic feedback to prevent downtime
- Dual output modes: NPN and PNP open collector outputs accommodate both sinking and sourcing circuit designs
- Durable compact housing: Rectangular body with multiple mounting options for tight installation spaces

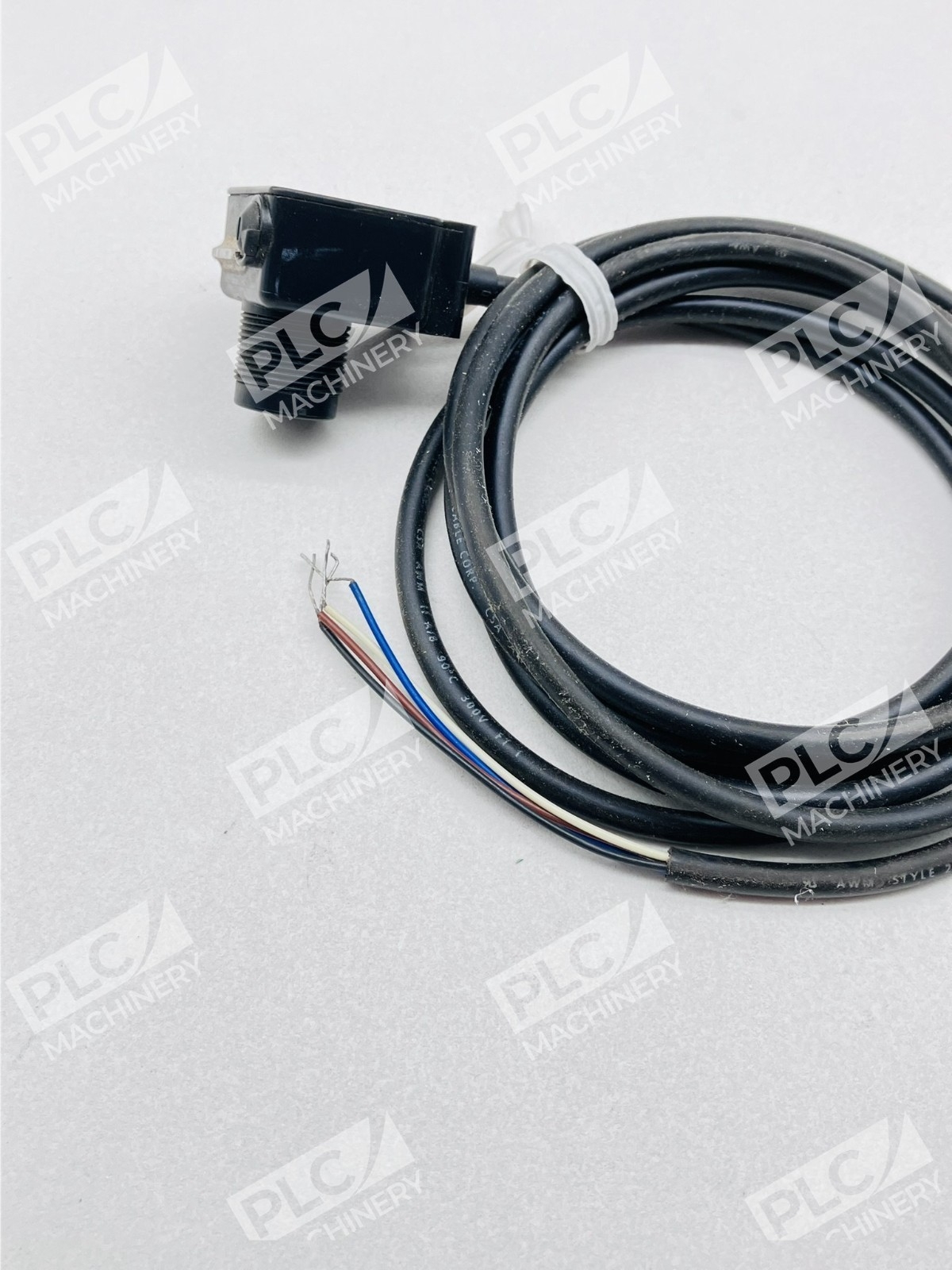

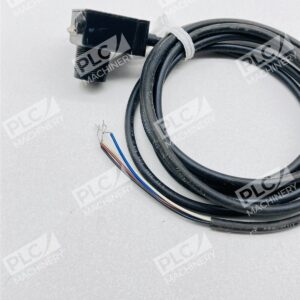

- Cable connection: 2-meter DC cable with connector interface
- Industrial certifications: UL, CSA, and CE approved for North American and European deployments
Technical Specifications
- Input voltage: 10–30 VDC
- Sensing distance: 15 meters (49 feet)
- Output type: NPN/PNP open collector
- Maximum output current: 100 mA at 30 VDC
- Response time: 1 millisecond
- Beam type: Visible red sensing beam (thru-beam)
- Operating mode: Dark operate (normally-off)
- Cable length: 2 meters (6.6 feet)
- Housing material: Insulated material, quad 40 profile
- Certifications: UL (E166051), CSA C22.2 No. 14, IEC/EN 60947-5-2, CE
Typical Applications
The E65-SMTD15-HD excels in high-speed detection and control tasks across industrial settings:
- Assembly line object detection and position sensing
- Conveyor belt presence detection and product counting
- Machinery safety interlocks and barrier monitoring
- Automated packaging and material handling systems
- Box and carton detection on production lines
- Loading dock and gate proximity sensing
Compatibility & Replacements
Compatible With
- Eaton SM Series thru-beam transmitters (E65-SMT15 source/transmitter units)
- Industrial PLC input modules with 10-30VDC signal compatibility
- 24VDC and 12VDC control circuits (10-30VDC range)
- NPN and PNP sinking/sourcing logic circuits
- Standard industrial automation control systems and safety circuits
Replaces / Drop-In Replacement For
The E65-SMTD15-HD directly replaces earlier dark-operate receiver models within the SM thru-beam family. Related model variants include E65-SMTD15-HL (light-operate version) and E65-SMTD15-HLD (light-operate with 4-pin micro DC connector). Verify transmitter compatibility before installation.
Works With
- Eaton E65-SMT15 thru-beam transmitter (source unit)
- Industry-standard 24VDC industrial control voltage supplies
- Allen-Bradley ControlLogix and CompactLogix input modules
- Siemens S7-1200, S7-1500, and LOGO! controllers with 24VDC I/O
- Omron CP series and CJ series PLCs with NPN/PNP input support
- Mitsubishi FX and Q series programmable controllers
