Overview

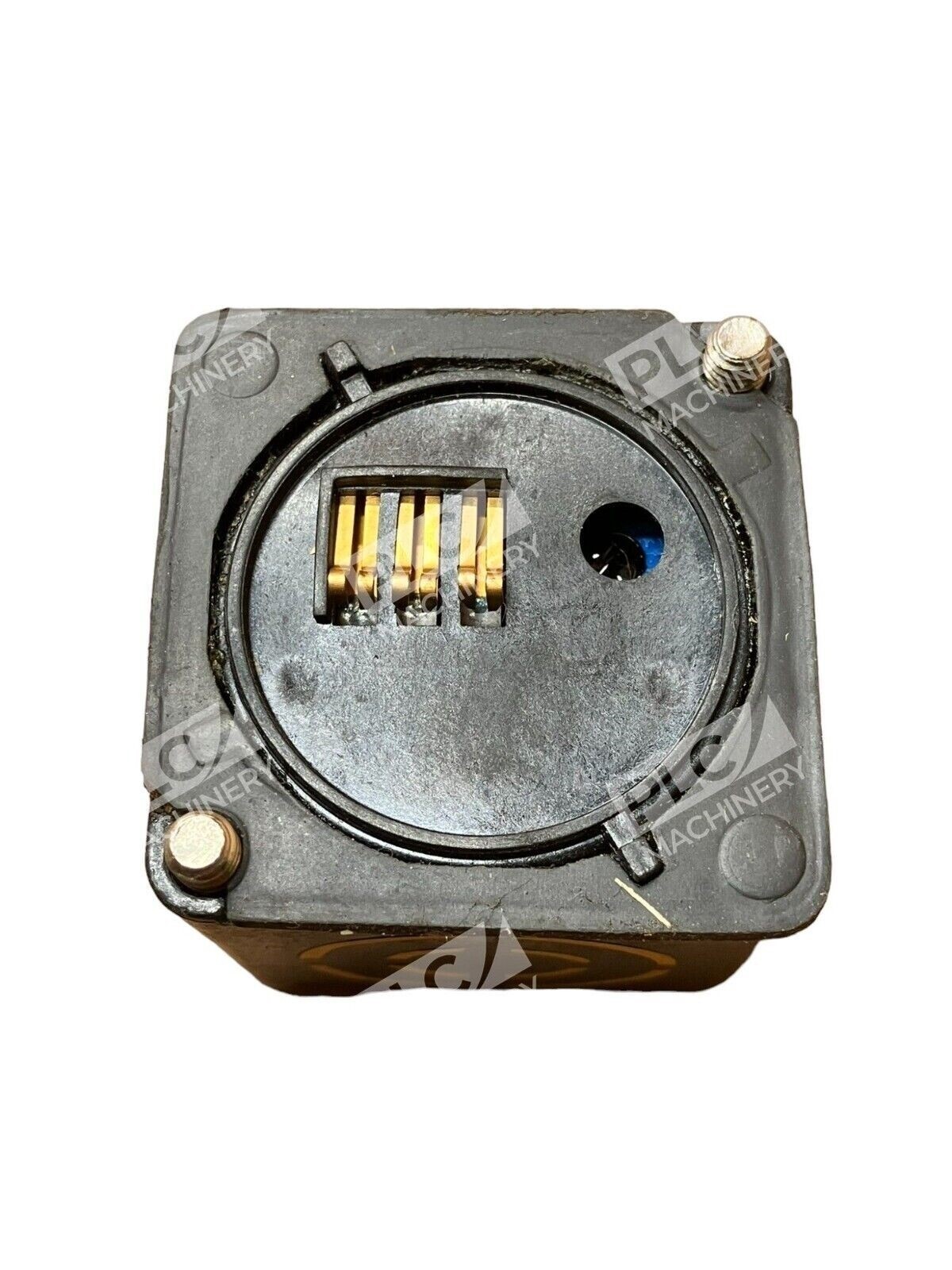

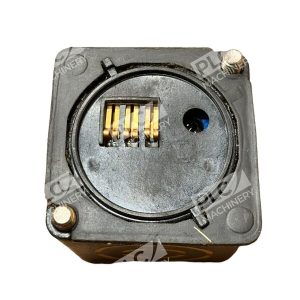

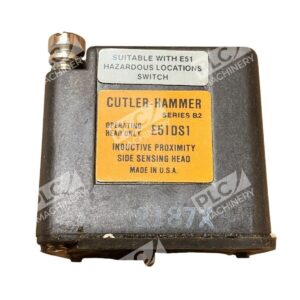

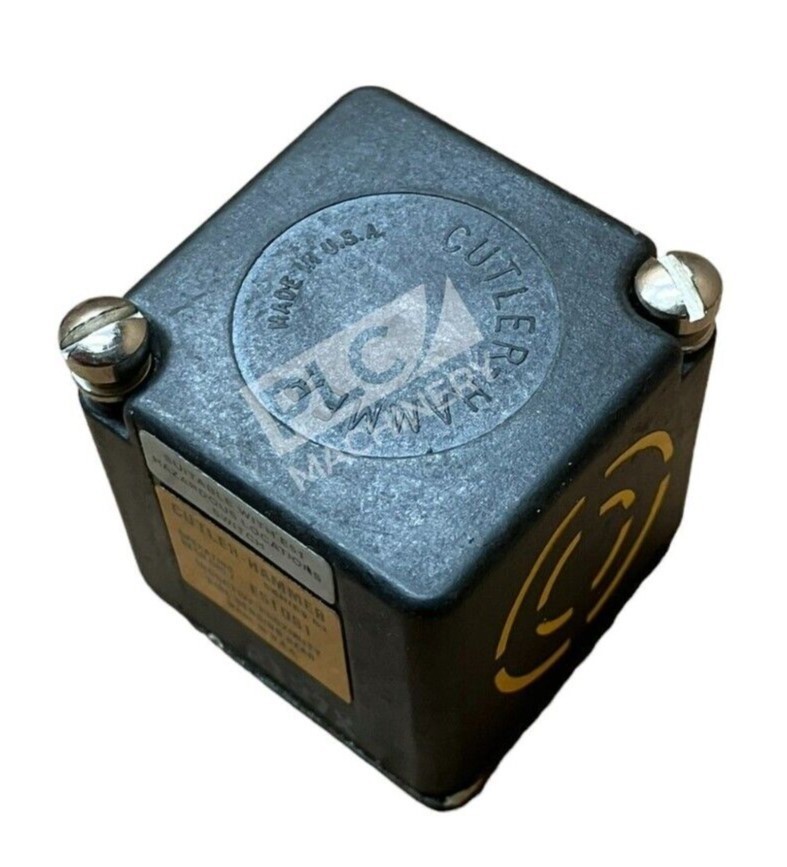

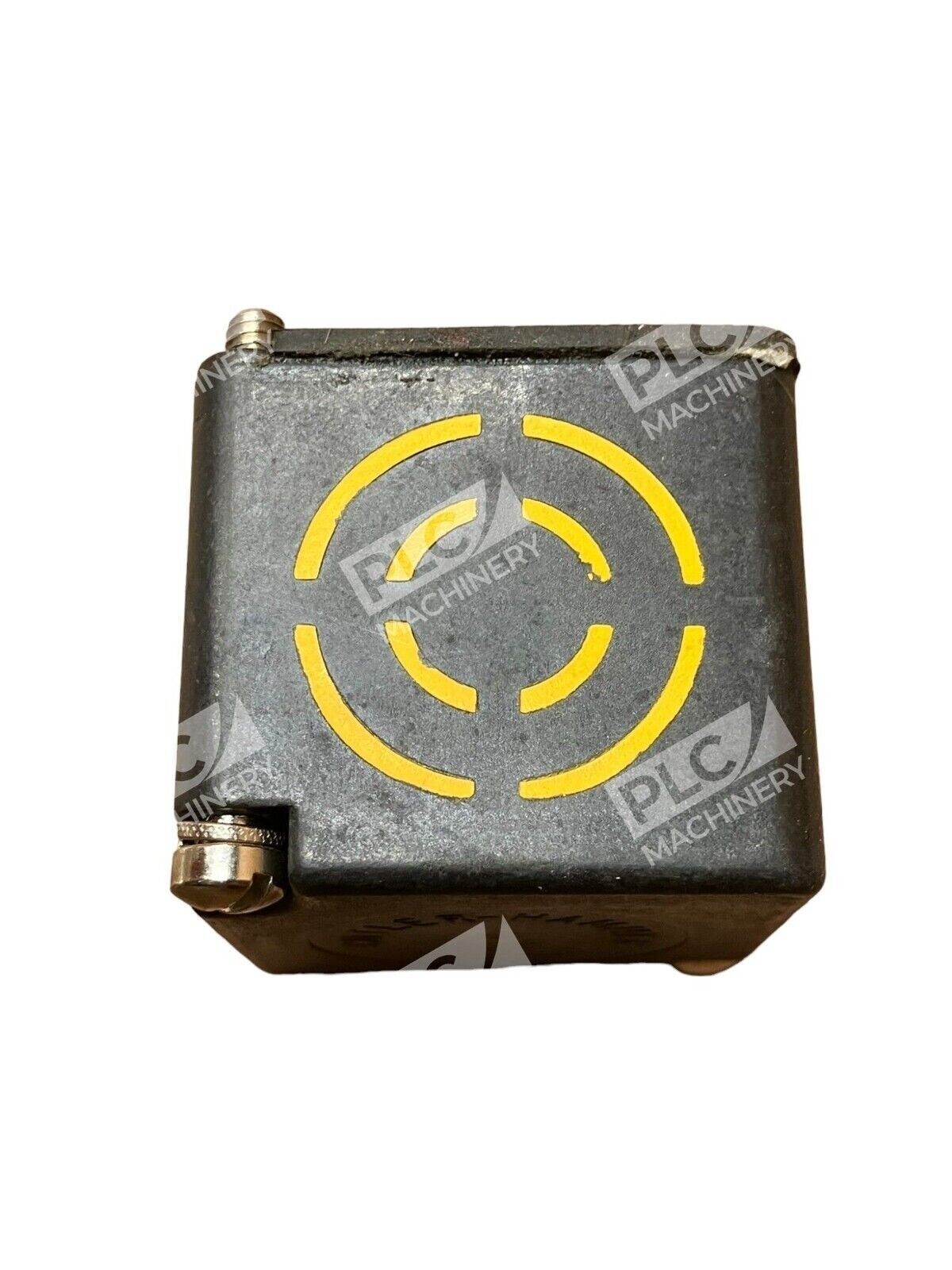

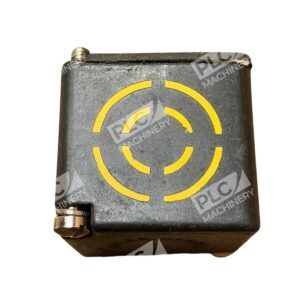

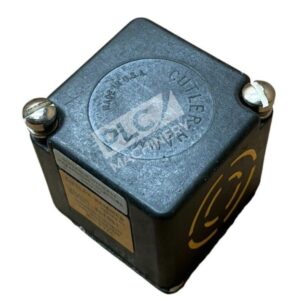

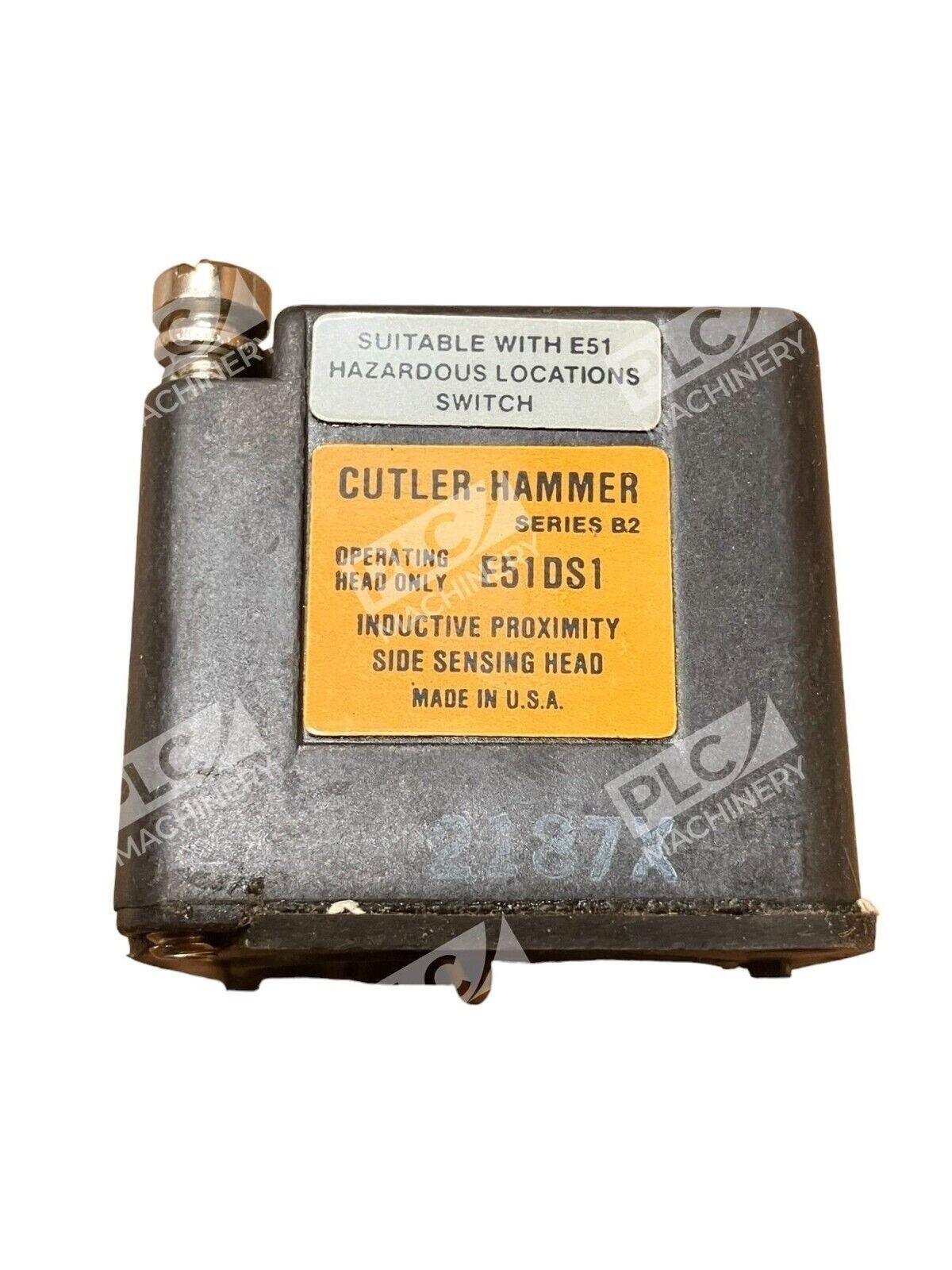

The E51DS1 proximity sensor is a compact shielded inductive sensor head designed for industrial motor control and limit detection applications. The E51DS1 is an Eaton Cutler Hammer inductive proximity limit switch with 0.51 inch sensing range with side sensing capability and shielded design for reliable operation in industrial environments. This is a head-only component; a body and receptacle are required to form a complete operating unit.
Key Features
- Inductive Technology: Detects all metal with programmable NO or NC operation
- Shielded Design: Reduces interference in industrial environments with high electromagnetic activity
- Side Sensing Position: Optimizes mounting flexibility for conveyor and machinery limit applications
- 0.51-Inch Sensing Range: Precise, adjustable detection distance for reliable triggering
- Standard Frequency Operation: Compatible with standard industrial electrical systems
- NEMA Style Mounting: Integrates with legacy and modern motor control systems
Technical Specifications
Refer to the specifications table below for detailed electrical and physical parameters.
Typical Applications
- Motor limit control and travel detection
- Conveyor belt position sensing and emergency stops
- Machine tool position feedback and safety interlocks
- Rotary and linear motion detection in packaging equipment
- Automation and logic control equipment requiring NEMA limit switch integration
Compatibility & Replacements
Compatible With
- Eaton E51 Series motor control systems
- NEMA-style limit switch installations
- Industrial 110-240V AC control circuits
- Motion control and automation equipment using standard frequency proximity detection
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The E51DS1 is a direct replacement for other E51 series side-sensing heads with identical mounting and sensing specifications.
Works With
- Eaton E51 series body and receptacle components
- Standard industrial relay logic and PLC input modules
- Motor starters and soft-starters requiring limit feedback
- Legacy NEMA motor control centers
