Overview

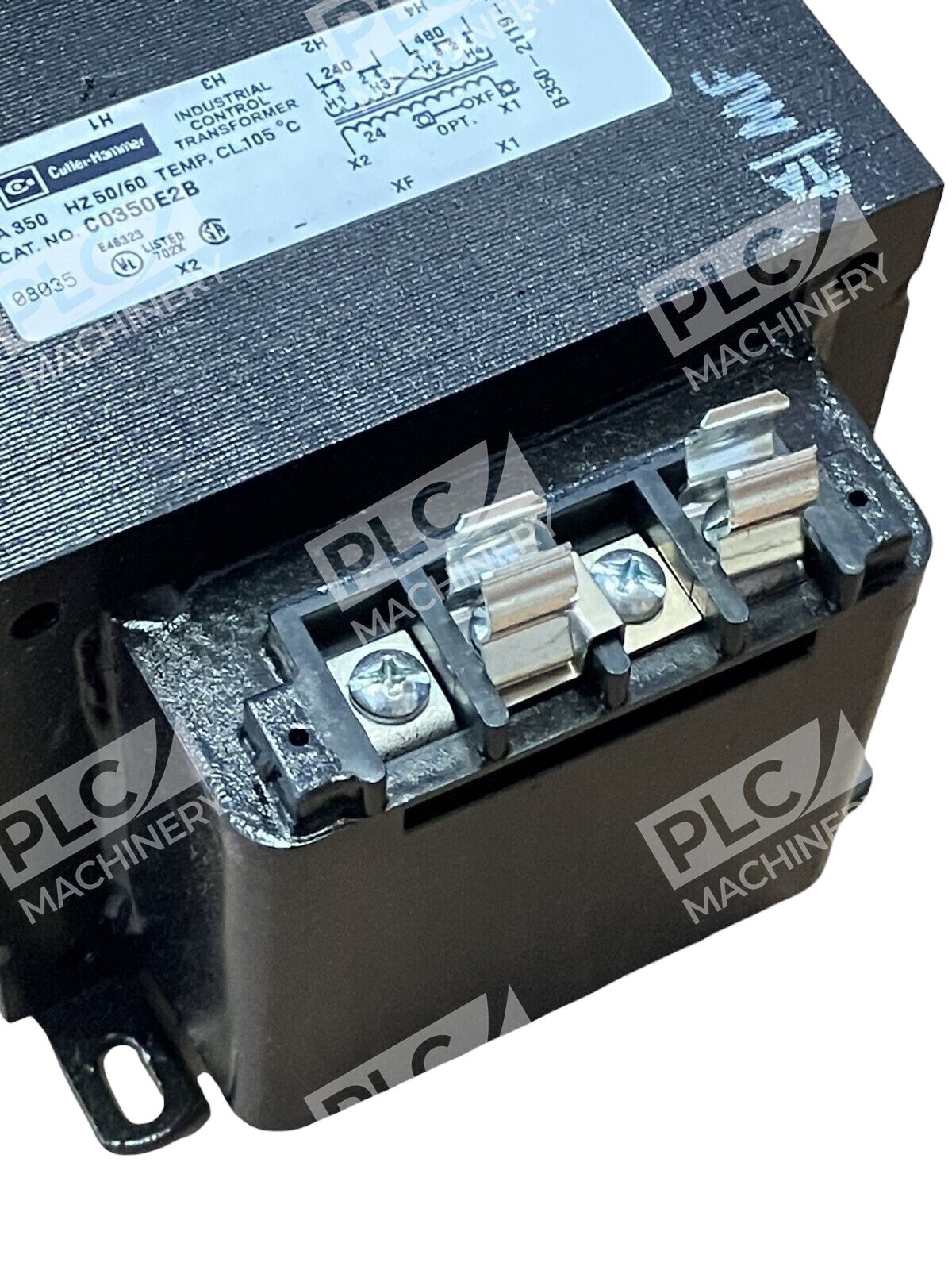

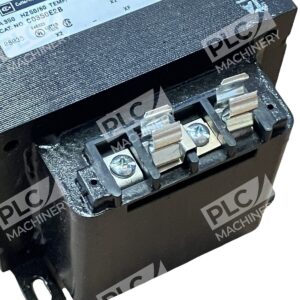

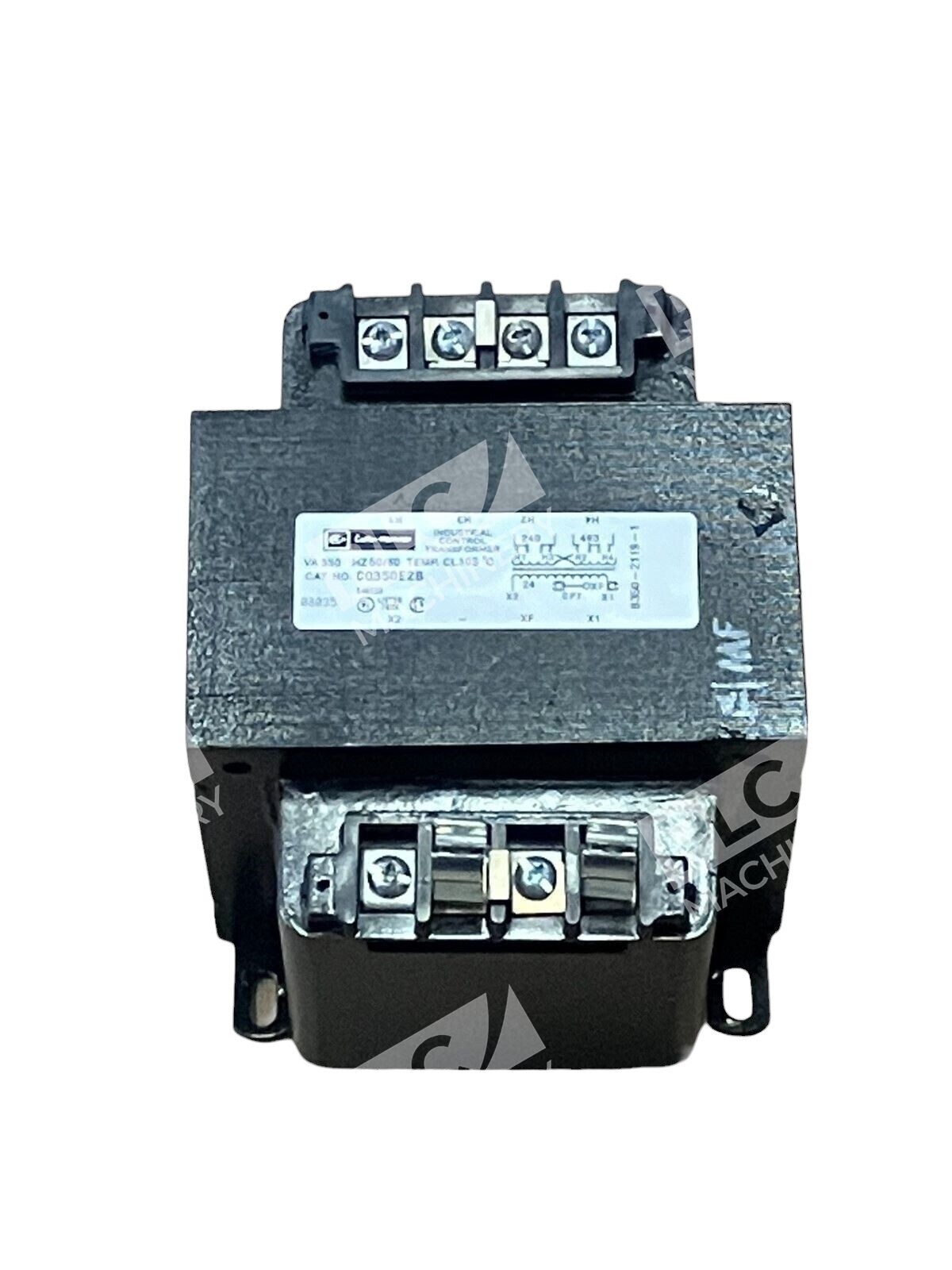

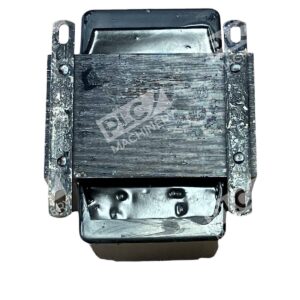

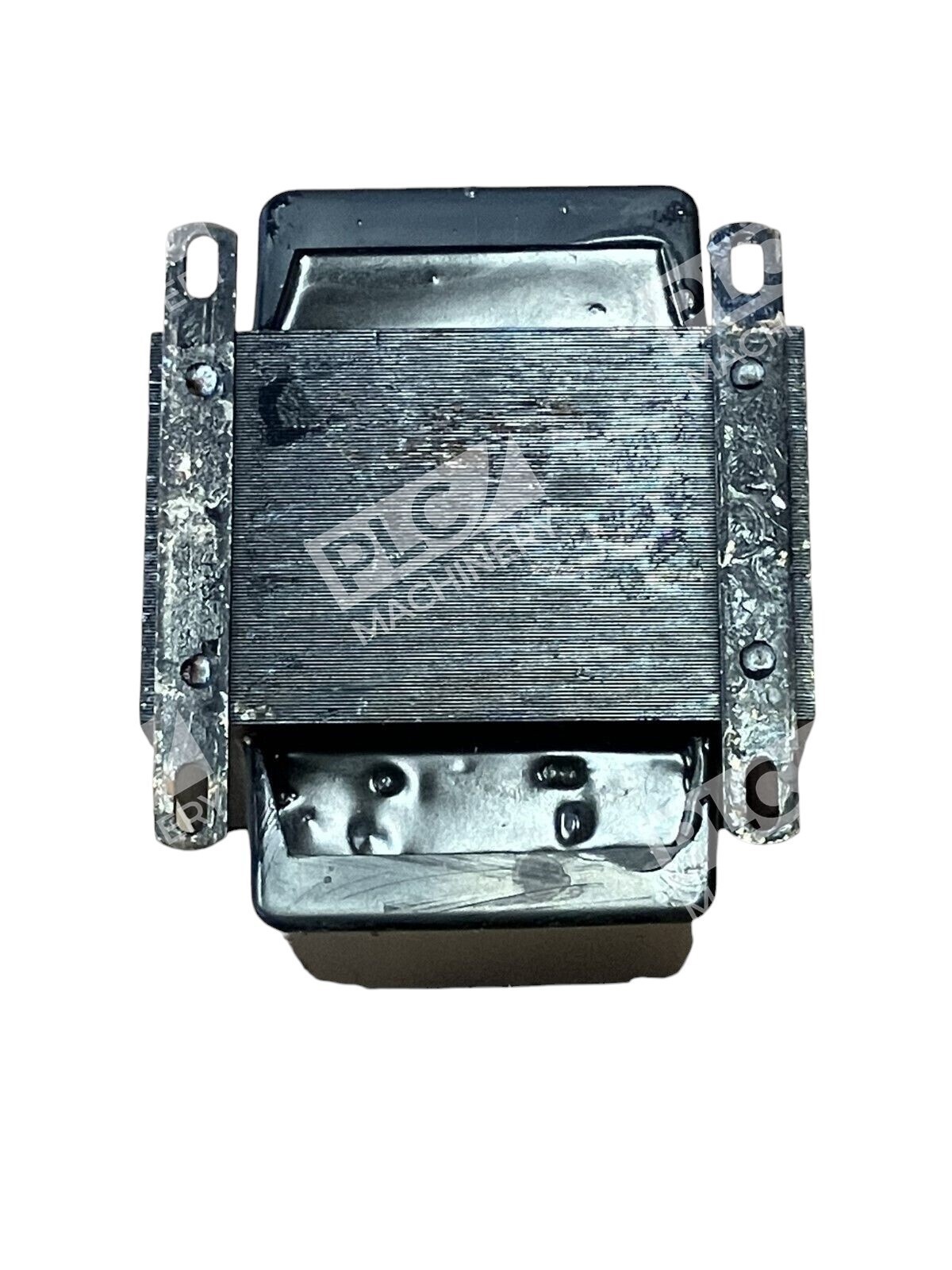

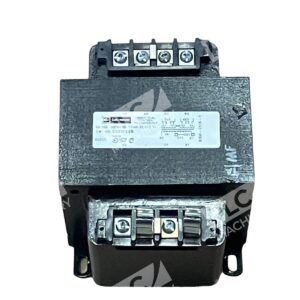

The Cutler-Hammer C0350E2B is a 350 VA single-phase industrial control transformer designed for reliable power conversion in automation, PLC, and motion control systems. This MTE-type (Midget Transformer Encapsulated) unit features dual input windings rated for either 240V or 480V AC primary voltage, stepping down to a 24V AC secondary for control circuits. Operating at standard 50/60 Hz frequency, the transformer is ideal for supplying power to HMIs, PLC modules, relay logic, and solenoid control networks in industrial manufacturing and process automation environments.
Key Features
- 350 VA rated capacity for dependable control power delivery
- Single-phase construction with dual input voltage options (240V or 480V)
- 24V AC secondary output suitable for control circuit applications
- MTE encapsulated design ensures protection from moisture and environmental contaminants
- 50/60 Hz frequency rating accommodates both North American and international installations
- Compact mounting dimensions optimize panel and enclosure integration
Technical Specifications
- Power Rating: 350 VA
- Phase: Single-phase
- Primary Voltage (Input): 240V or 480V AC (dual winding configuration)
- Secondary Voltage (Output): 24V AC
- Frequency: 50/60 Hz
- Transformer Type: MTE (Midget Transformer Encapsulated)
- Input Windings: 2
- Output Windings: 1
- Temperature Rise: 131°F at full capacity
- Dimensions (Approx.): 5-1/4 inches deep × 3-13/16 inches high
- Manufacturer: Eaton Cutler-Hammer
- Part Number: C0350E2B
Typical Applications
The C0350E2B transformer is commonly specified in industrial control cabinets for:
- PLC auxiliary power supplies and processor modules
- HMI (Human-Machine Interface) touchscreen systems
- Relay logic and contactor control circuits
- Solenoid valve and pneumatic actuator control
- Emergency stop circuits and safety interlocks
- Small motor starter and soft-start power supply
- Industrial distribution and process automation panels
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix and ControlLogix processors
- Siemens S7-1200 and S7-1500 automation systems
- Mitsubishi FX3U and iQ-R PLC series
- Omron NX and NJ-series controllers
- Schneider Electric TeSys motor starters and contactors
- Standard industrial control enclosures and distribution panels
- 24V AC solenoid and relay networks
Replaces / Drop-In Replacement For
- Cutler-Hammer C0350E2A (earlier revision)
- Comparable 350 VA MTE transformers from legacy automation systems
Works With
- 24V AC control circuit wiring and terminals
- Standard industrial relay and contactor coil specifications
- PLC analog input modules requiring stable 24V AC reference
- Legacy and modern industrial automation protocols
