Overview

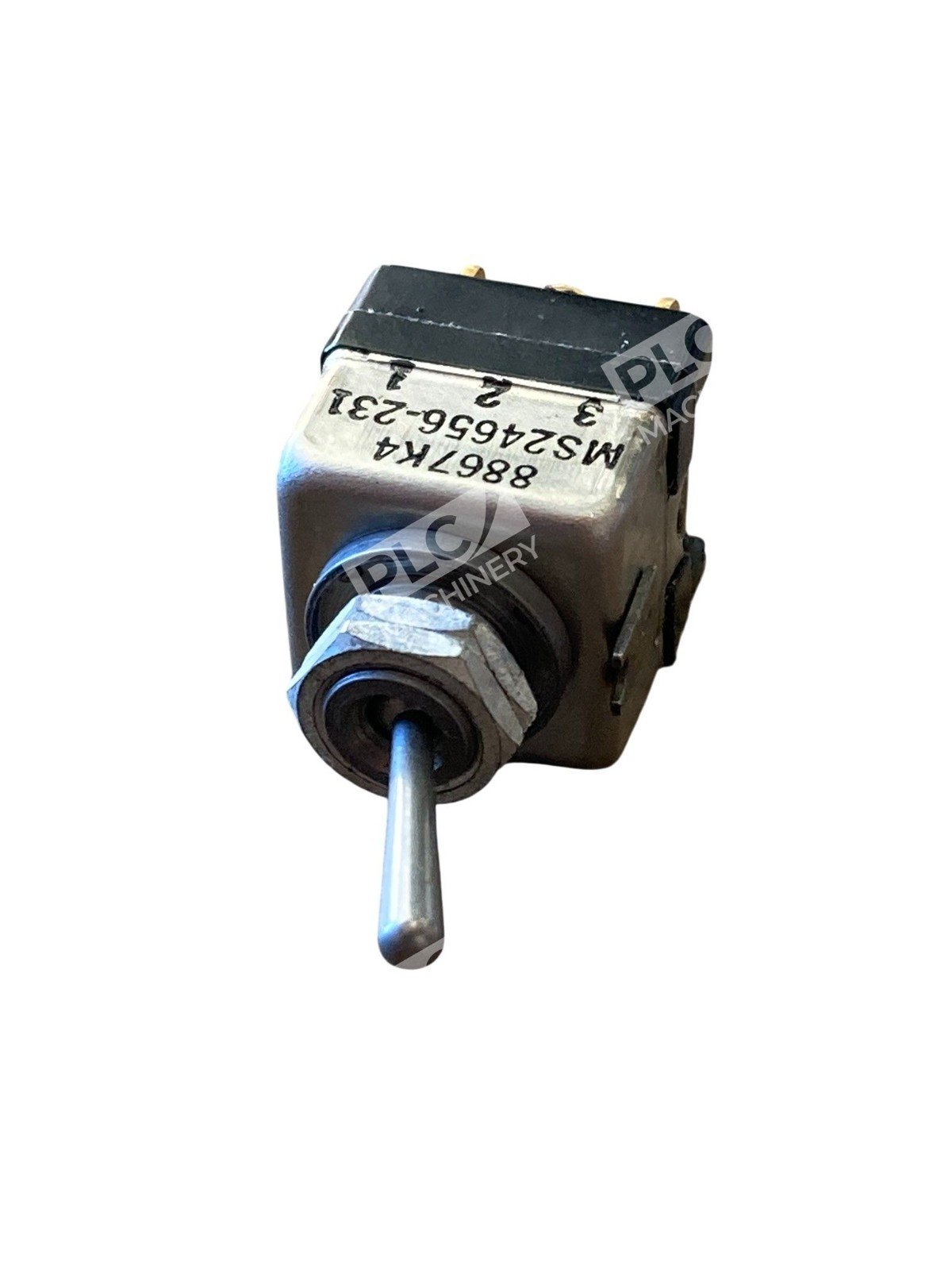

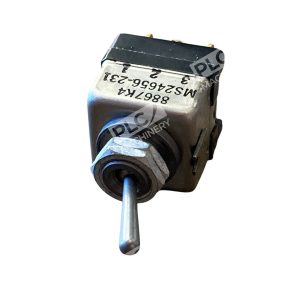

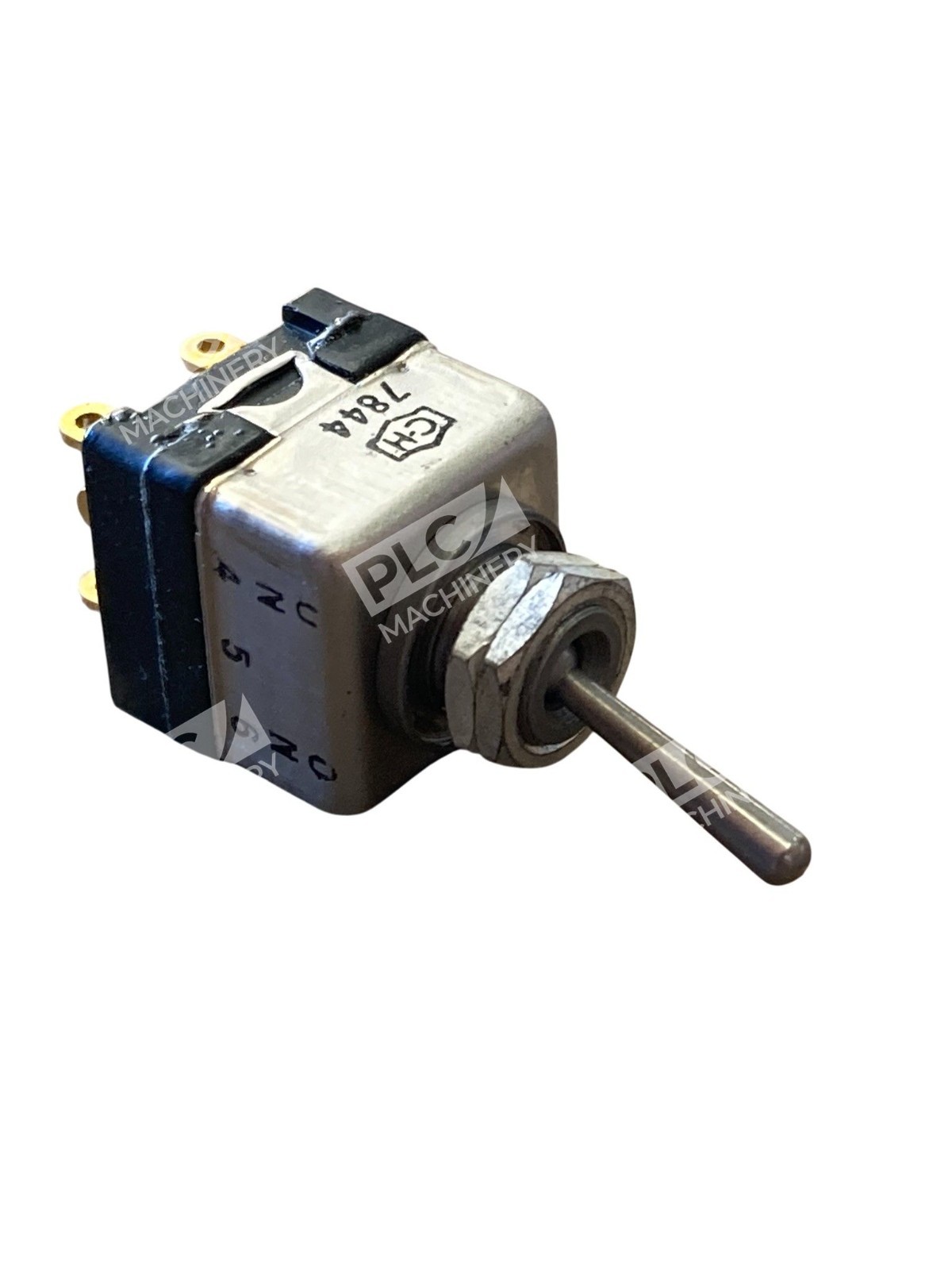

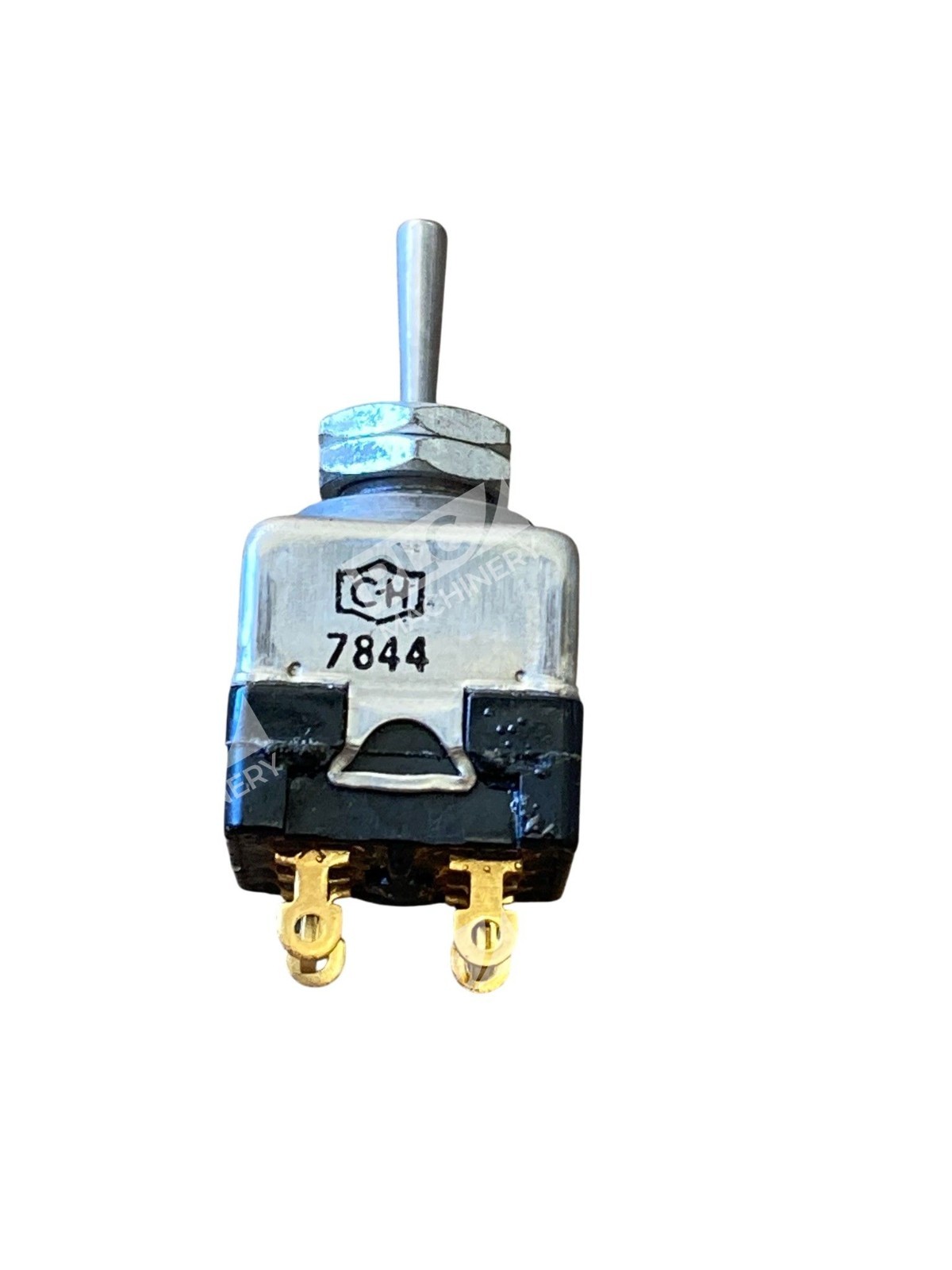

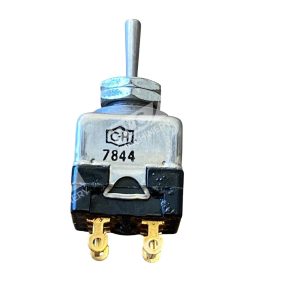

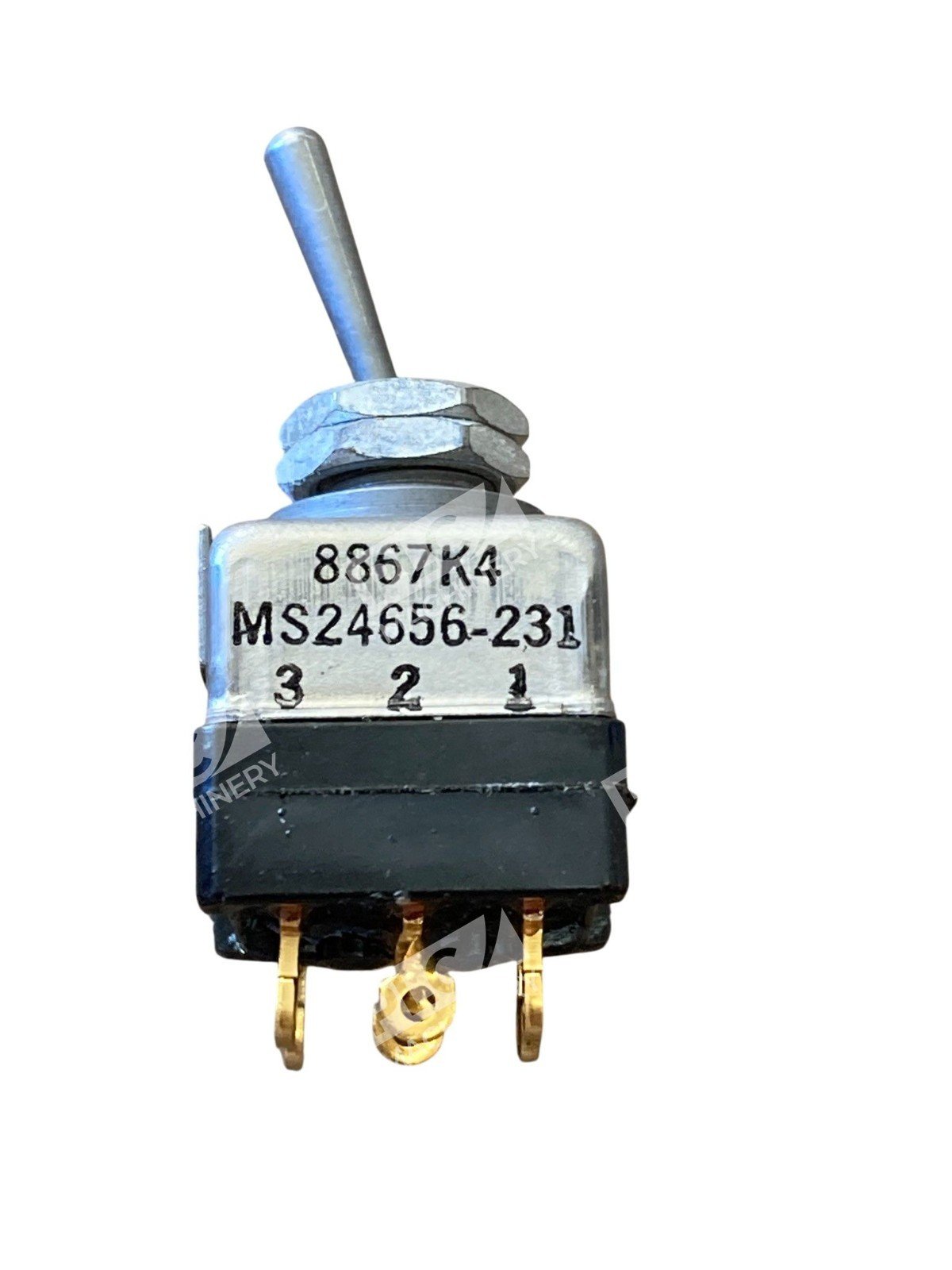

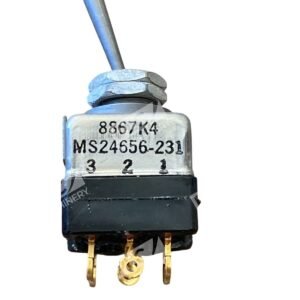

The Eaton 8867K4 MS24656-231 is a miniature toggle switch designed for low-voltage DC switching applications. This compact switch meets military specification MIL-S-8834 and is commonly found in aerospace, avionics, communications, and industrial control systems. The switch features positive make-and-break action with sealed construction to protect internal components in demanding environments.
Key Features
- Miniature form factor with 1/4-40 threaded bushing for panel mounting

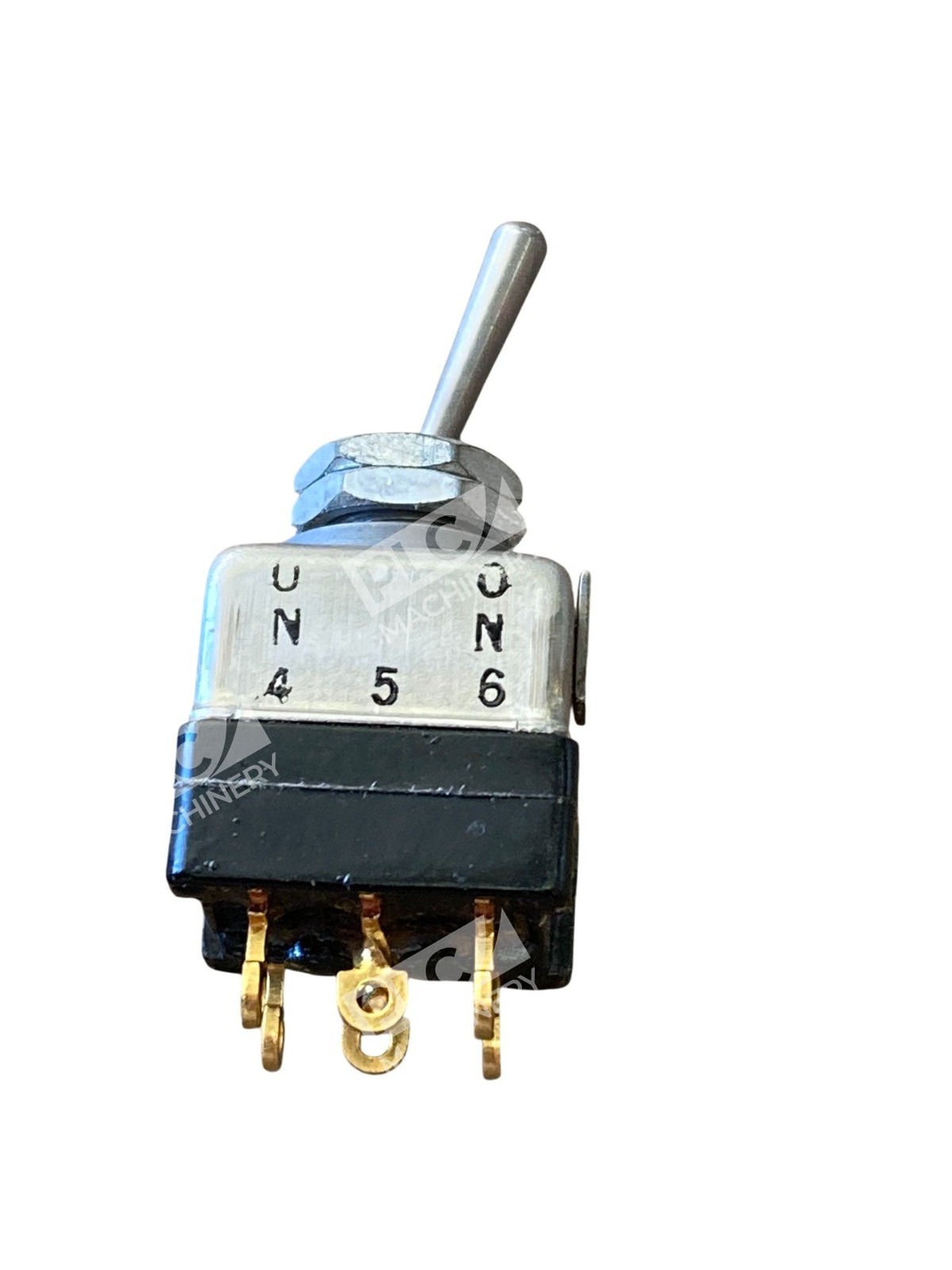

- 2-position on-on configuration for maintained switching
- Wiping action contacts with dry circuit carrying capabilities
- Sealed bushing design protects against contamination

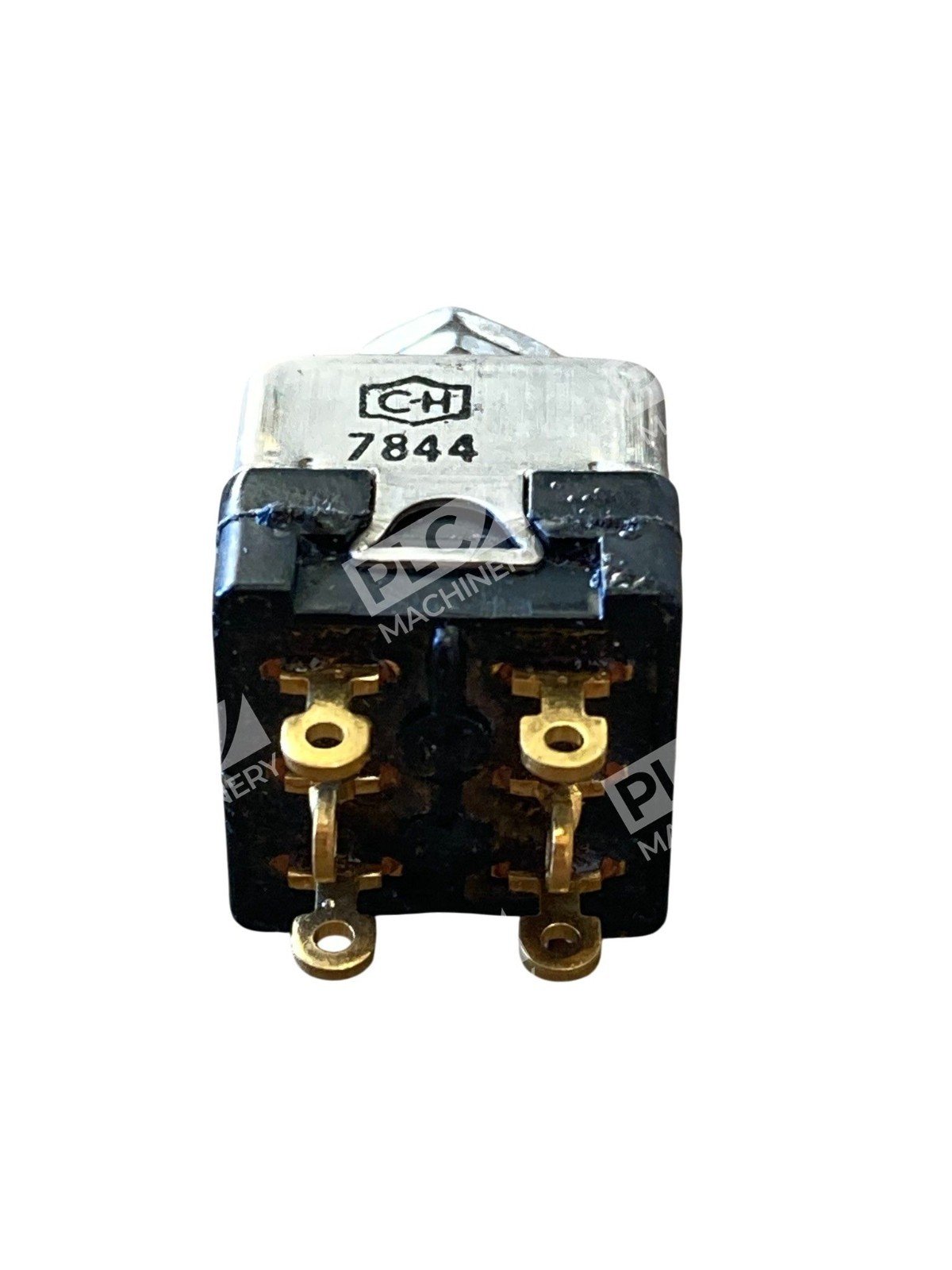

- Solder lug terminals (.045/.050 diameter holes) for reliable solderable connection
- Positive make-and-break action ensures reliable engagement
- MIL-S-8834 military specification compliance
Technical Specifications
- Maximum Current Rating: 5A at 28V DC
- Voltage Rating: 28V DC (standard rating)
- Contact Style: Wiping action
- Termination: Solder lug (two terminals)
- Switch Configuration: DPST (Dual Pole, Single Throw)
- Mounting: Panel mount via 1/4-40 threaded bushing
- Operating Temperature Range: Per MIL-S-8834 specification
- Contact Material: Silver-alloy wiping contacts
- Military Specification: MIL-S-8834
Typical Applications
- Aircraft and avionics equipment control
- Military communications systems
- Industrial automation and control panels
- Test and measurement equipment
- Compact DC switching circuits where space is limited
- Battery isolation and circuit control
Compatibility & Replacements
Compatible With
- 28V DC power systems (aerospace standard)
- Low-voltage control circuits
- Panel-mount switch installations with 1/4-40 bushing hole
- Military and industrial switch arrays
Replaces / Drop-In Replacement For
- Verify compatibility with your original equipment documentation before ordering, as toggle switch substitution requires electrical and mechanical compatibility confirmation
Works With
- Standard panel-mount switch assemblies
- Legacy aerospace and military control systems
- Switch matrices and control arrays
- Custom industrial control cabinets
