Overview

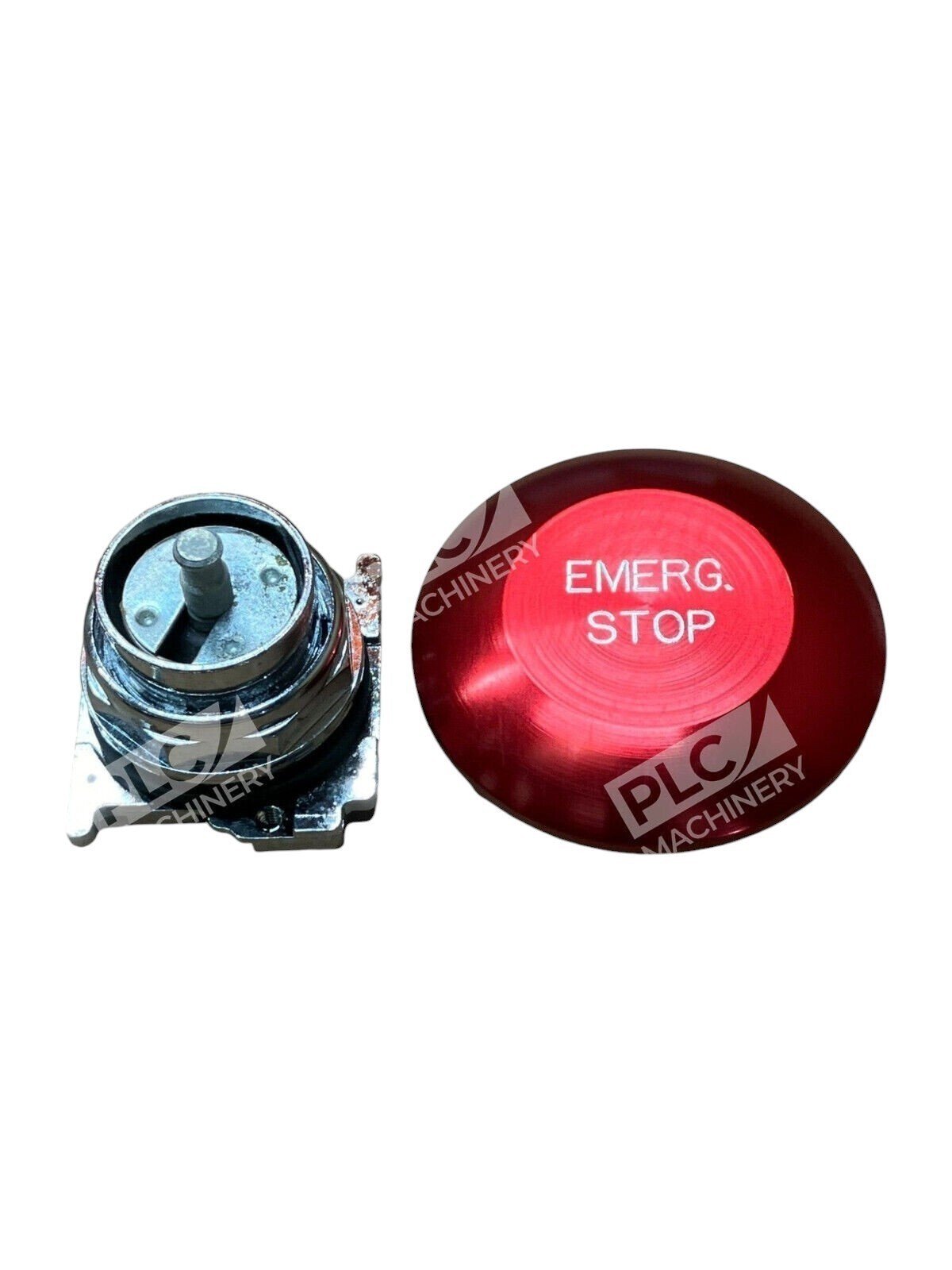

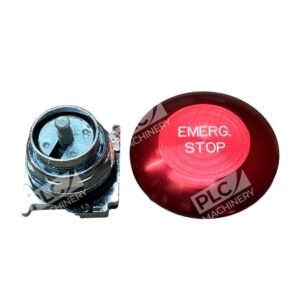

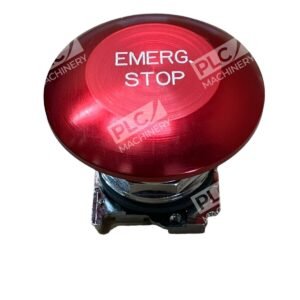

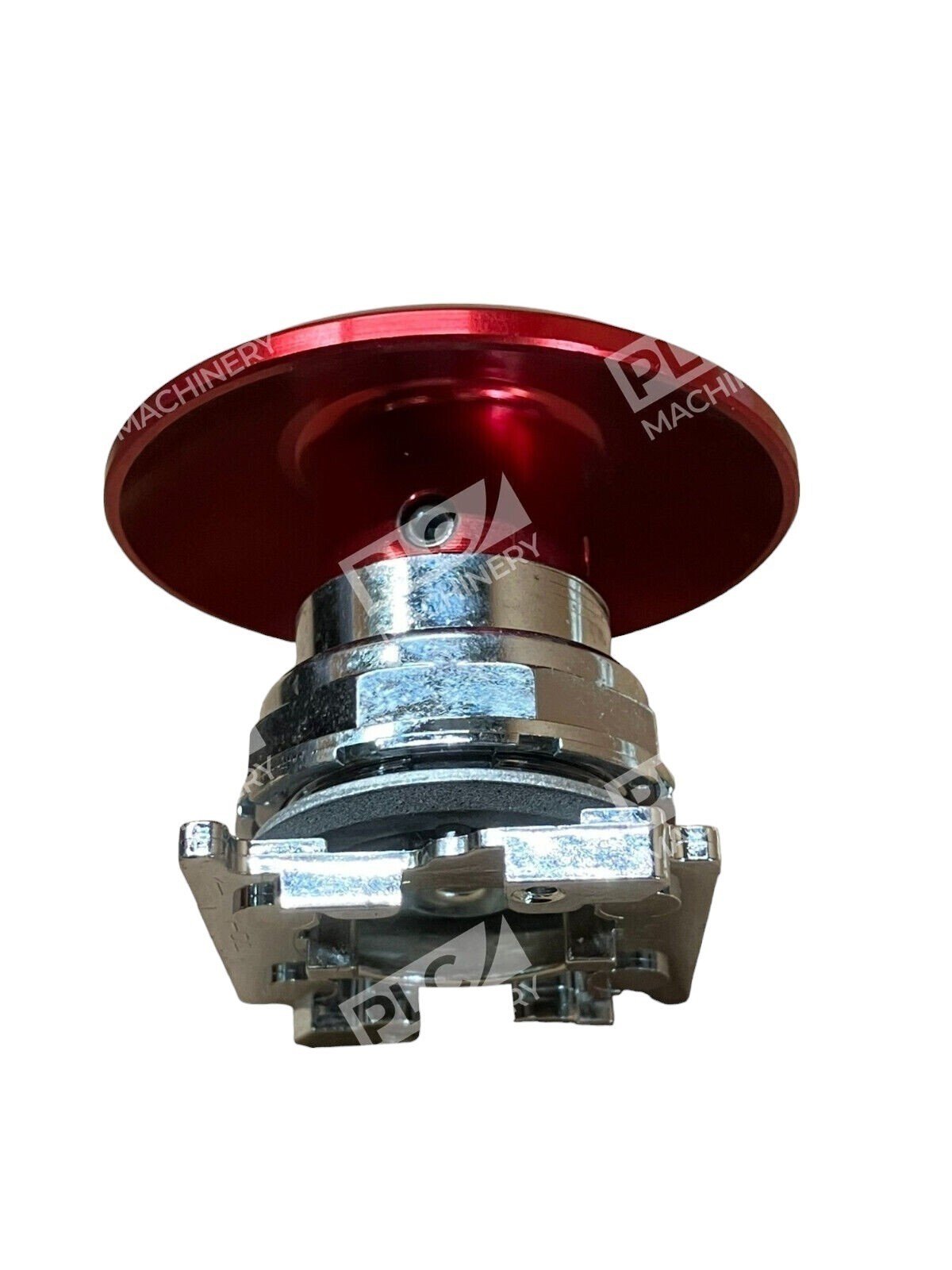

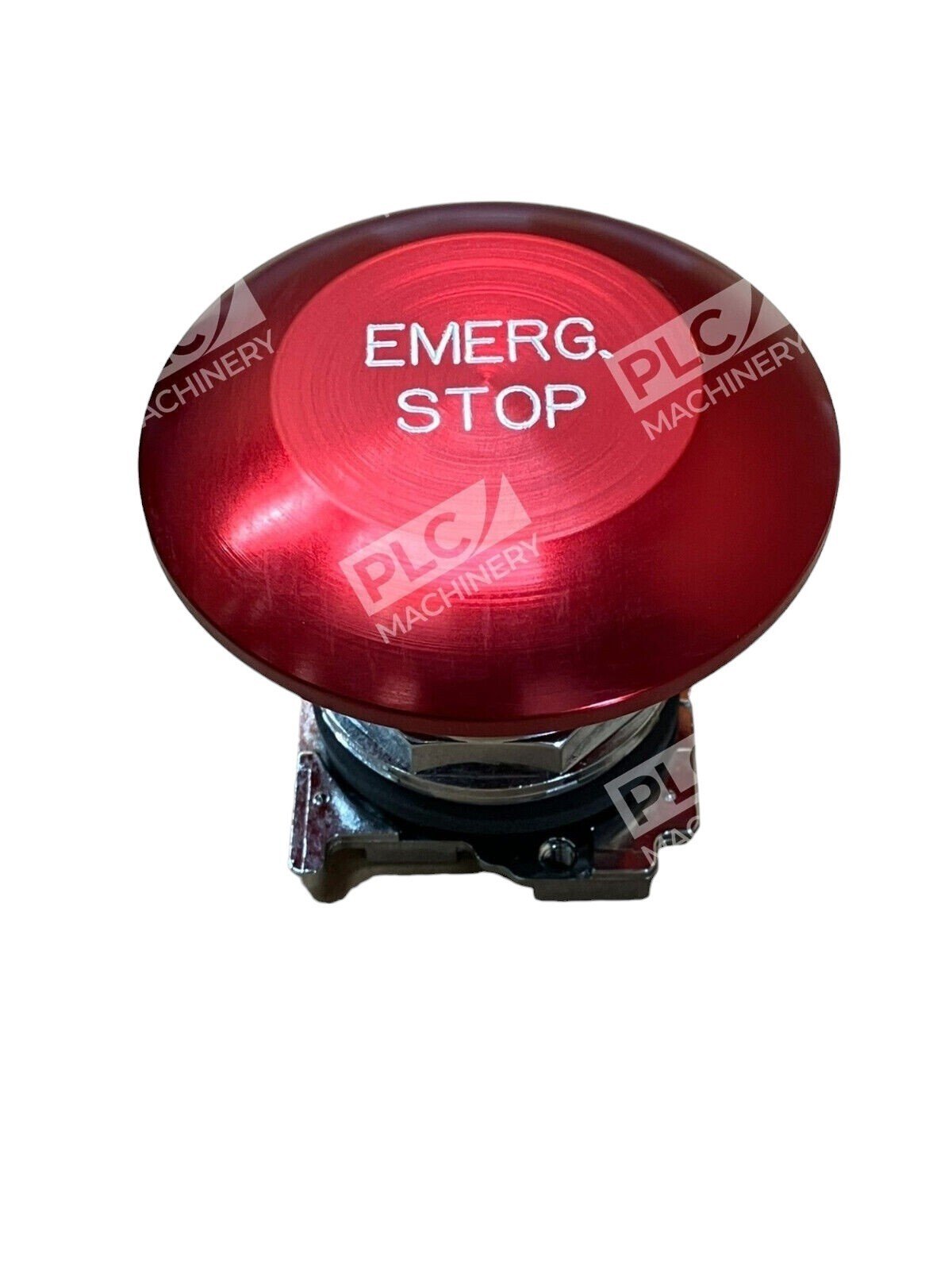

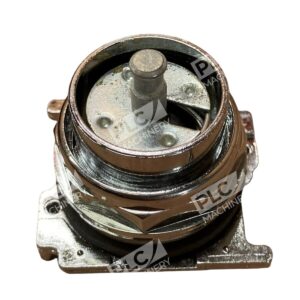

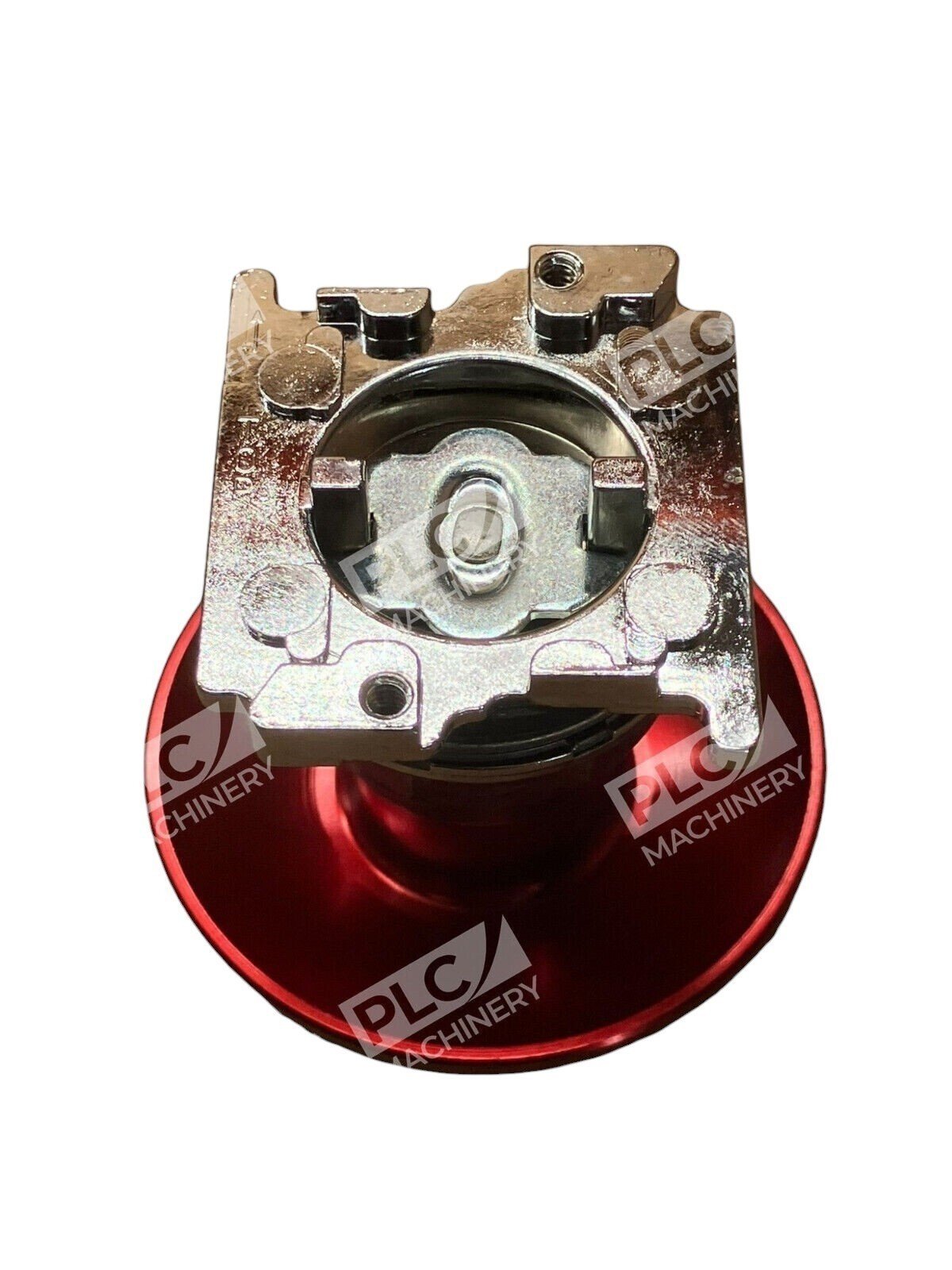

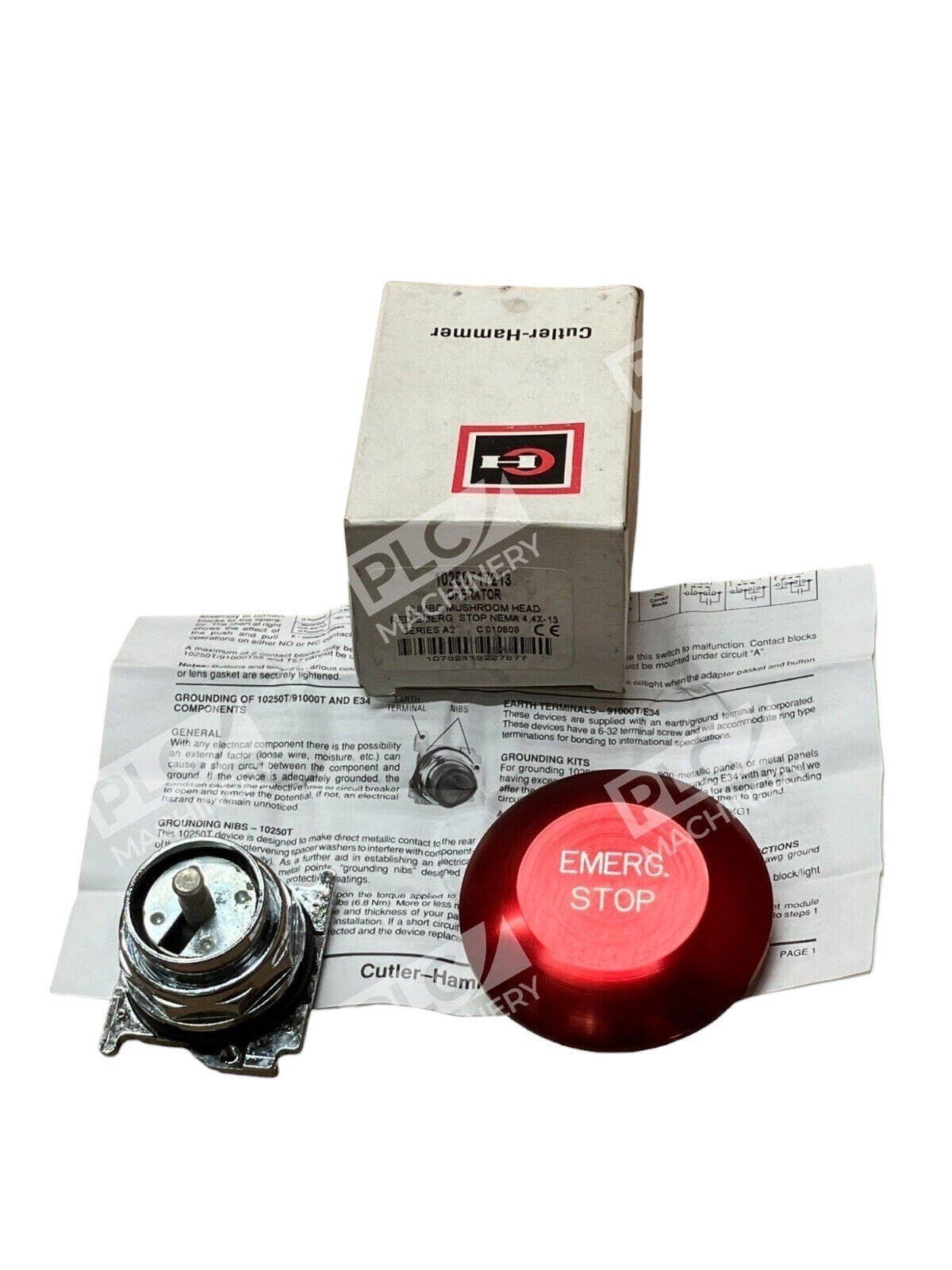

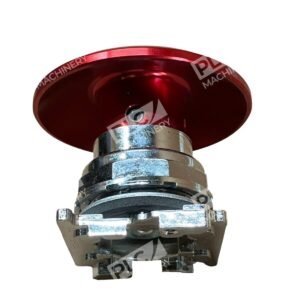

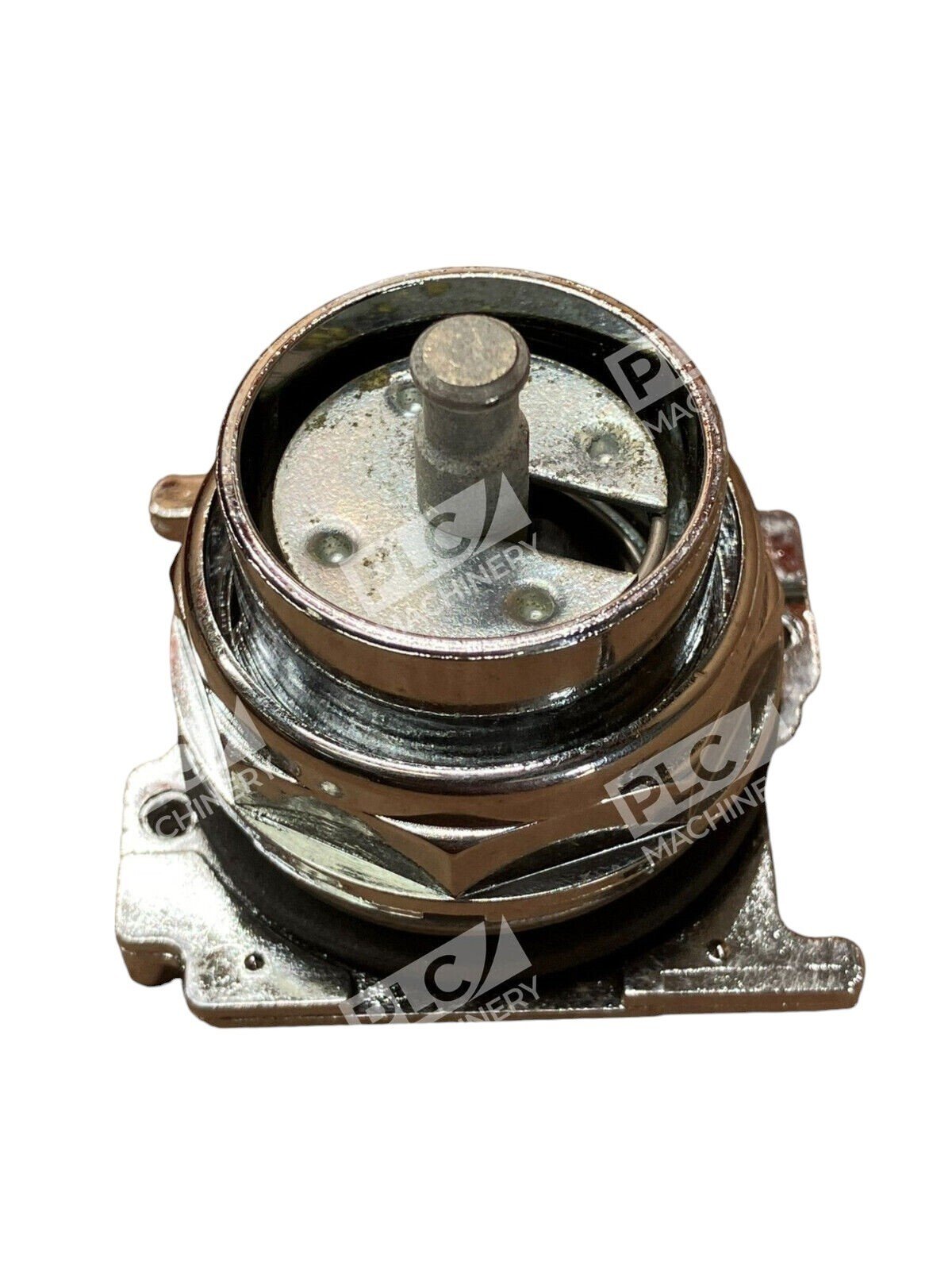

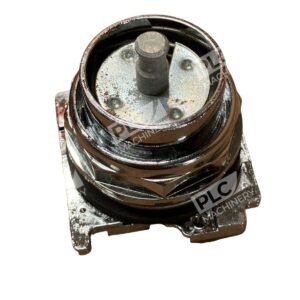

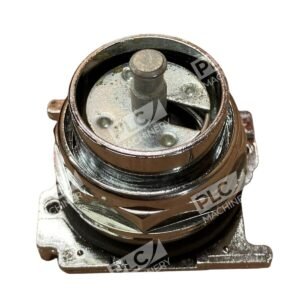

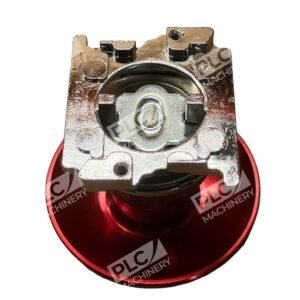

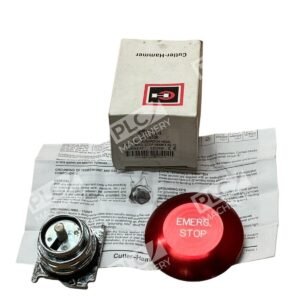

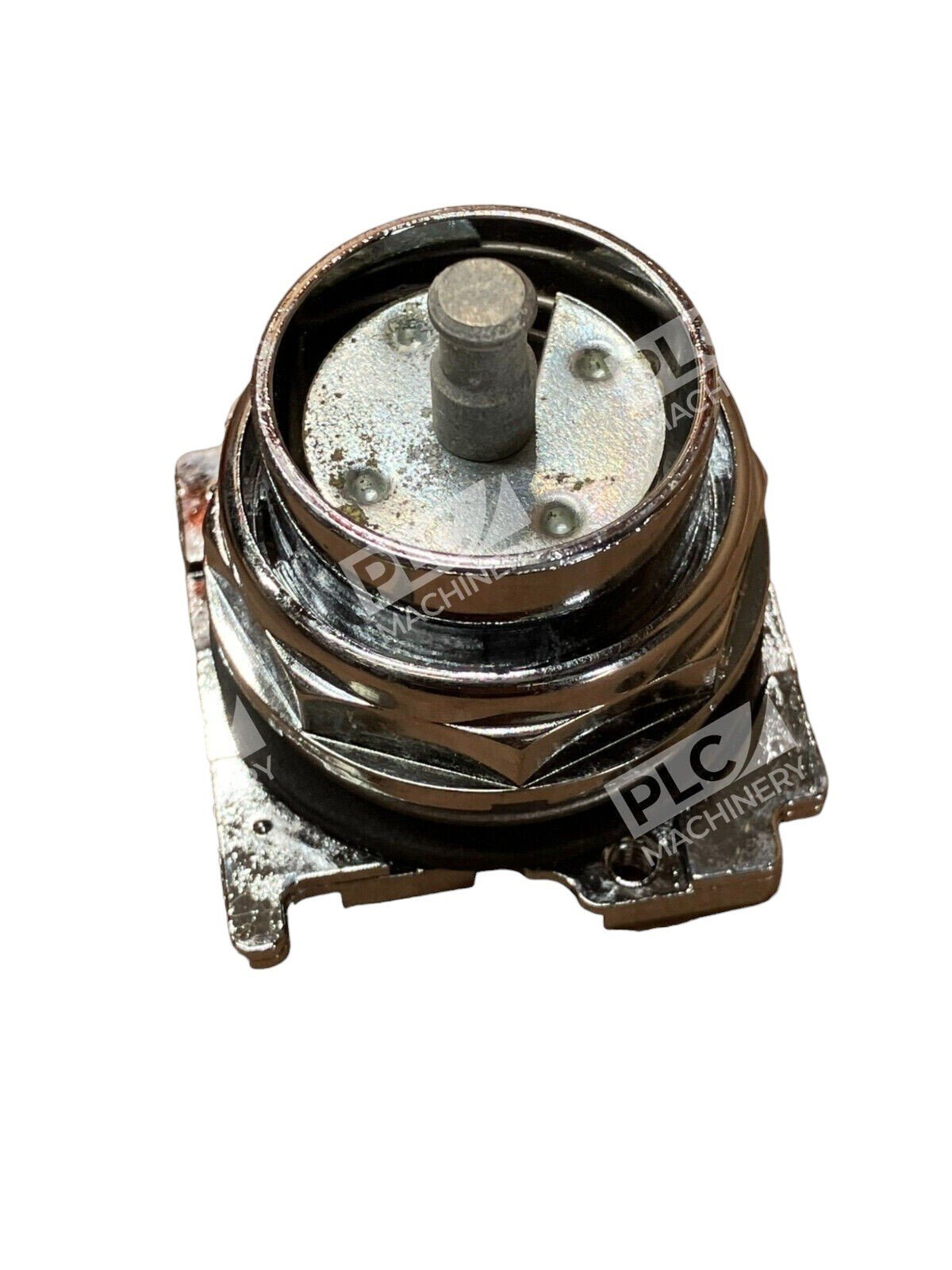

The Eaton 10250T17213 emergency stop pushbutton is a non-illuminated momentary operator with a jumbo 65 mm red mushroom head designed for high-visibility emergency shutdown in industrial control systems. Built with heavy-duty zinc die-cast construction and an anodized aluminum actuator, this pushbutton is suitable for integration into the Eaton 10250T series modular pushbutton lineup. Its bright red color and oversized mushroom shape meet ANSI/IEC safety standards for emergency-stop identification and rapid operator response in critical situations.
Key Features
- Jumbo 65 mm red mushroom head — high-visibility emergency stop operator
- Non-illuminated momentary action — spring-return operation for manual E-stop control
- Heavy-duty zinc die-cast construction — reliable metal housing with chrome-plated bezel
- Reliability nibs and enclosed silver contacts — maintain contact integrity under dry circuit and fine dust conditions
- Drainage holes — prevent liquid buildup and ensure operation in variable environments
- NEMA 3, 3R, 4, 4X, 12, 13 and IP65 rated — suitable for wash-down and outdoor control enclosures
Technical Specifications
- Part Number: 10250T17213
- Manufacturer: Eaton Cutler-Hammer
- Operator Type: Jumbo mushroom, non-illuminated
- Operator Size: 30.5 mm (door punch diameter) / 65 mm (mushroom head diameter)
- Action Type: Momentary (spring-return)
- Actuator Color: Red
- Contact Form: 2 NO (Normally Open) contacts
- Contact Rating (AC-15): 6 A @ 120 V AC; 4 A @ 240 V AC; 2 A @ 660 V AC
- Contact Rating (DC-13): 1 A @ 125 V DC; 0.55 A @ 250 V DC; 0.1 A @ 660 V DC
- Bezel Material: Chrome-plated zinc die-cast
- Actuator Material: Anodized aluminum
- Housing Material: Die-cast zinc
- Connection Type: Pressure connections
- NEMA Ratings: NEMA 3, 3R, 4, 4X, 12, 13
- IP Rating: IP65
- Standards Compliance: UL 508, CSA, CE (EN 60947-5-1, EN 60947-5-5)
Typical Applications
- Industrial control panels and machine control systems requiring manual emergency shutdown
- Manufacturing equipment, production lines, and conveyor systems
- Pump and motor starter enclosures
- Outdoor or wash-down rated electrical enclosures (NEMA 4X, IP65)
- Automated assembly systems and robotics control cabinets
- Safety circuits and emergency stop chains in compliance with machinery directives
Compatibility & Replacements
Compatible With
- Eaton 10250T series modular pushbutton switch platforms
- Standard 30 mm modular control component enclosures
- Hardwired emergency stop circuits and safety relay networks
- NEMA 3, 3R, 4, 4X, 12, 13 rated control panels
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This operator is specific to the 10250T series platform and supersedes earlier non-modular E-stop push buttons from Cutler-Hammer’s legacy product line.
Works With
- Emergency stop relay modules and hardwired safety circuits
- Standard industrial DC and AC contactor coils
- Motor starters and thermal overload protection devices
- Pressure connections compatible with standard pushbutton contact blocks
