Overview

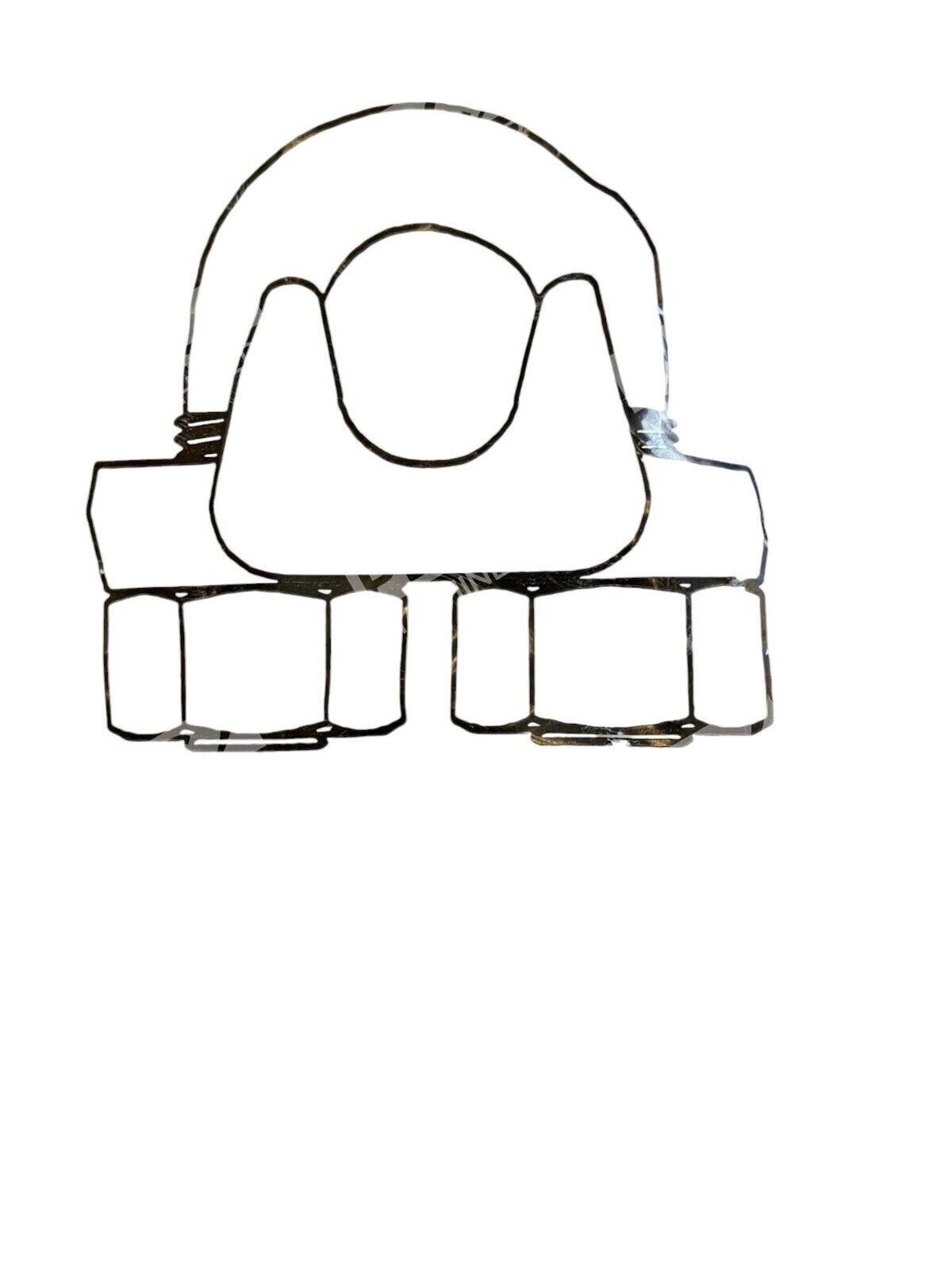

The Crosby 1010177 wire rope clip is a drop-forged U-bolt style connector rated for 5/8″ wire rope diameter (9/16″–5/8″ range). The G-450 series delivers 80% efficiency of published wire rope breaking strength, making it suitable for secure cable terminations in hoists, winches, rigging, and material handling equipment. The distinctive red U-bolt identifies genuine Crosby quality and facilitates equipment identification.
Key Features
- Drop-forged steel construction with proven load-bearing strength for demanding rigging applications.
- 80% efficiency rating ensures reliable performance at published wire rope breaking strength values.
- Hot-dip galvanized finish provides corrosion and rust resistance in outdoor and wet environments.
- Product Identification Code (PIC) forged into the base for material traceability and compliance tracking.
- Rolled threads on clips up to 1-1/2″ size for secure, repeatable torque application.

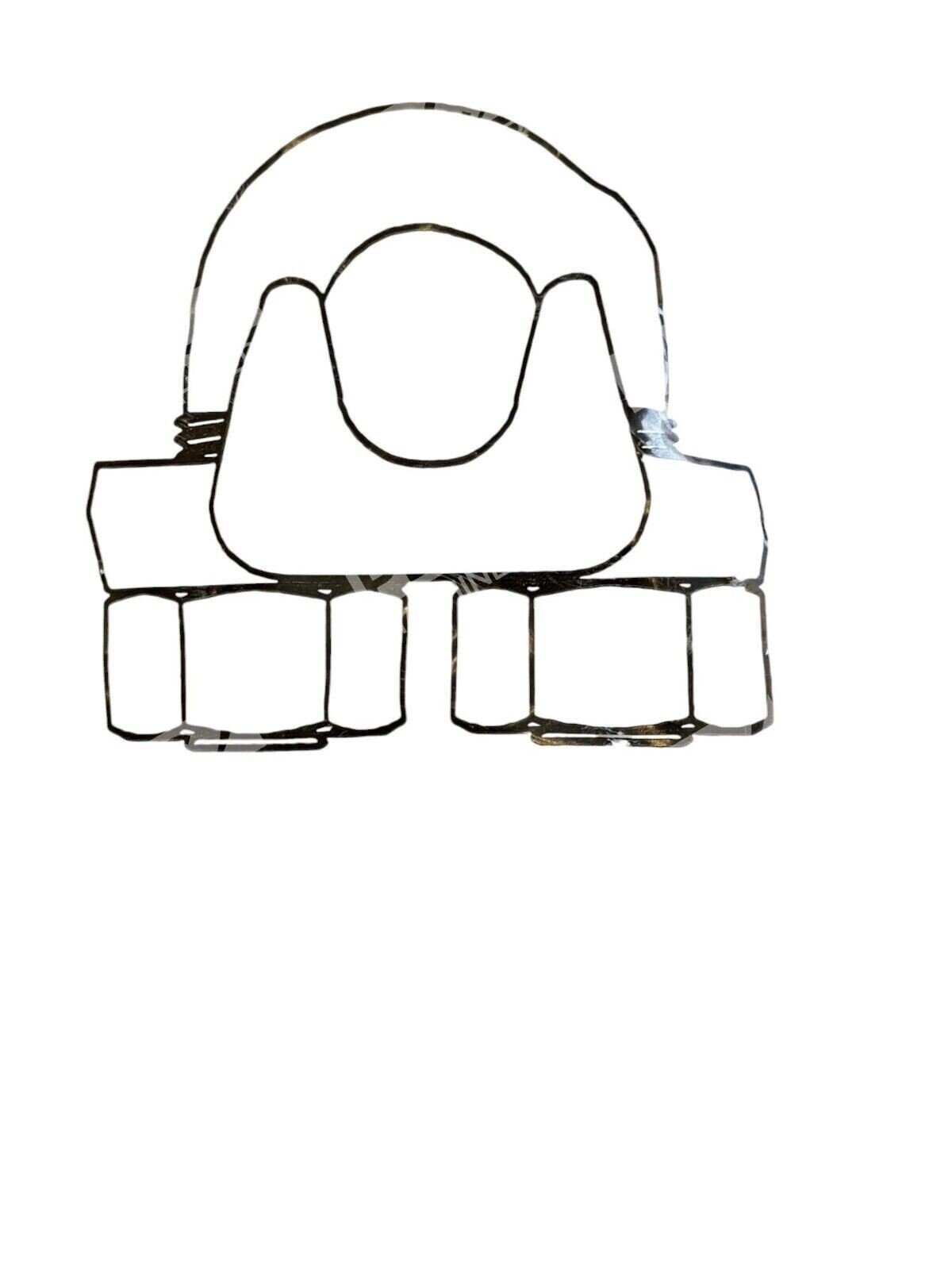

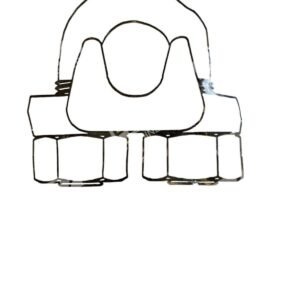

- Red U-bolt design for easy visual identification as genuine Crosby hardware.
Technical Specifications
- Wire Rope Size: 9/16″–5/8″ (5/8″ nominal)
- Series: G-450
- Material: Drop-forged steel
- Finish: Hot-dip galvanized
- Efficiency Rating: 80% of catalog wire rope breaking strength
- Torque Rating: 95 ft-lb
- Rope Turnback Required: 12 inches minimum per termination
- Minimum Clips Required: 3 per termination
- Width: 2-1/2 inches
- Height: 2-1/4 inches
- Weight: 1.1 lbs
- Standards Compliance: ASME B30.9, ASME B30.26, Federal Specification FF-C-450 TYPE 1 CLASS 1
Typical Applications
The Crosby 1010177 wire rope clip is commonly used in:
- Hoist and winch cable terminations
- Rigging and lifting slings
- Marine and offshore lifting hardware
- Crane and derrick cable assemblies
- Material handling and load securement
- Industrial rope-to-hardware connections
Compatibility & Replacements
Compatible With
- 5/8″ wire rope (9/16″–5/8″ diameter range)
- Standard U-bolt clip bolts and nuts (M10 or equivalent)
- Any rigging assembly or lifting equipment rated for 5/8″ cable
- Hoists, winches, and mechanical lifting systems
- Load securement and cargo tie-down systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Crosby 1010177 is the manufacturer’s standard 5/8″ G-450 red U-bolt clip and may replace earlier or non-certified versions where load and environmental conditions are equivalent.
Works With
- All standard 5/8″ wire rope termination assemblies
- Thimbles, swages, and cable eyes rated for 5/8″ rope
- ASME B30.9 and B30.26 compliant rigging systems
- Federal Specification FF-C-450 certified hardware networks
