Overview

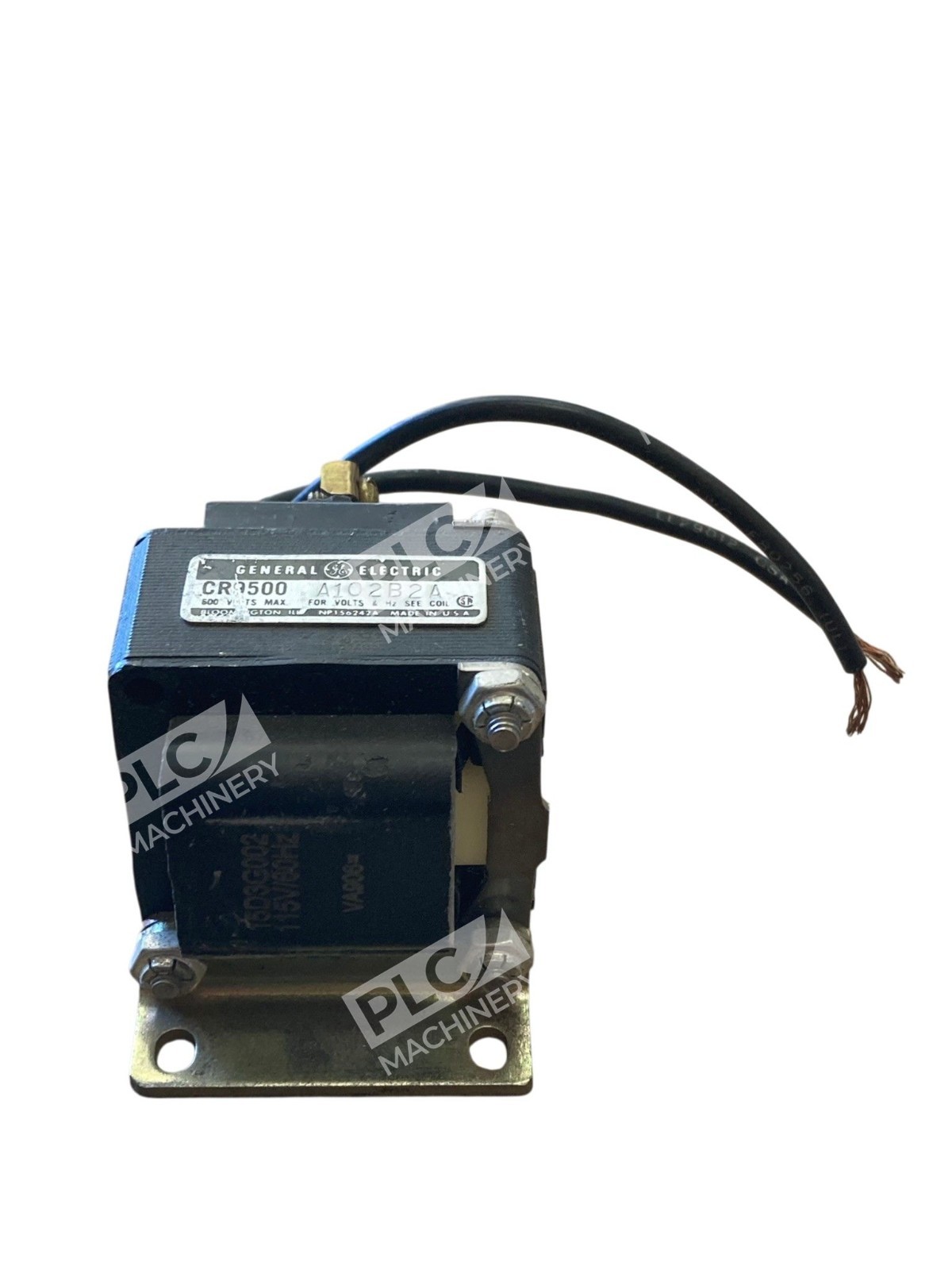

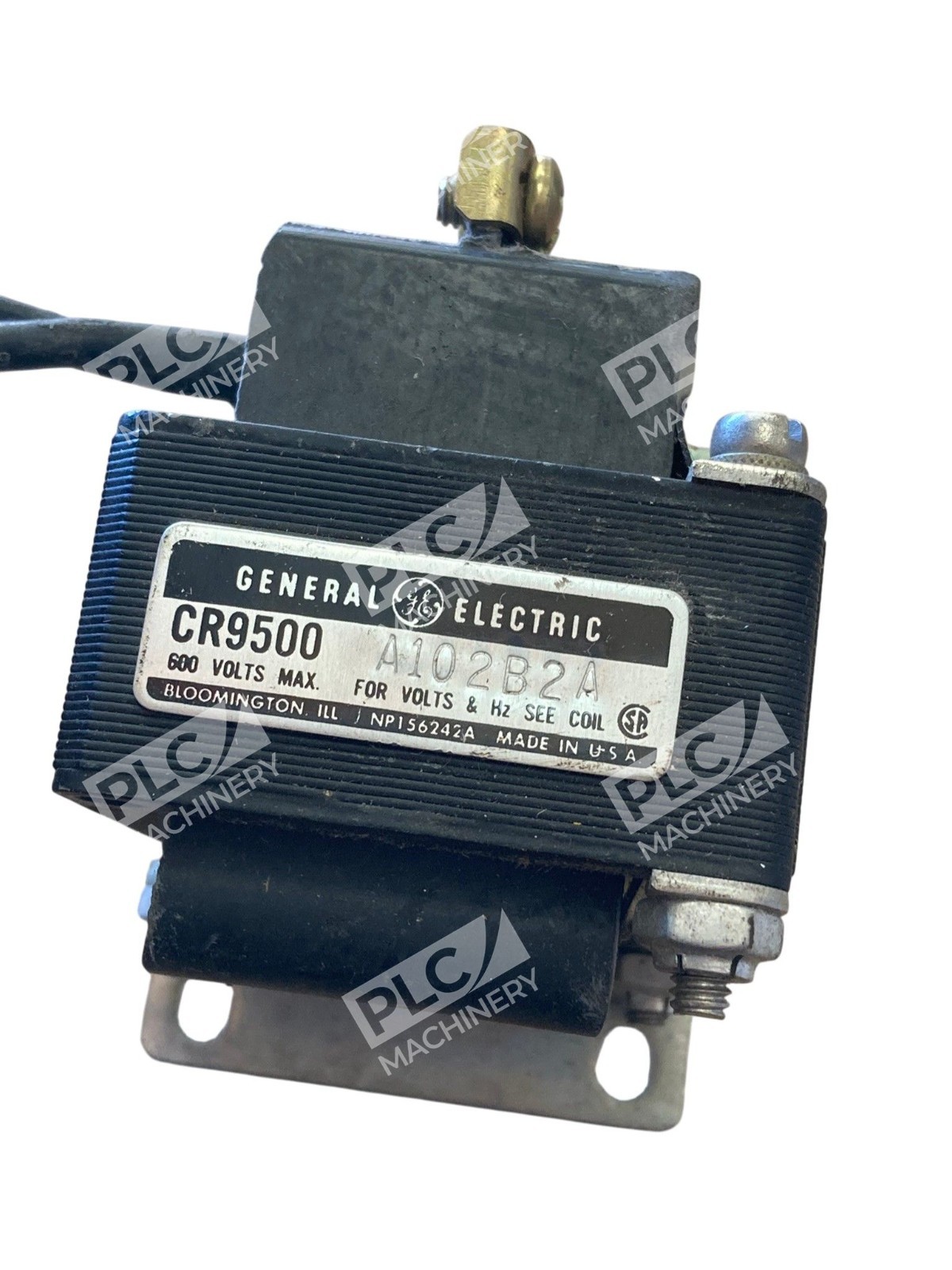

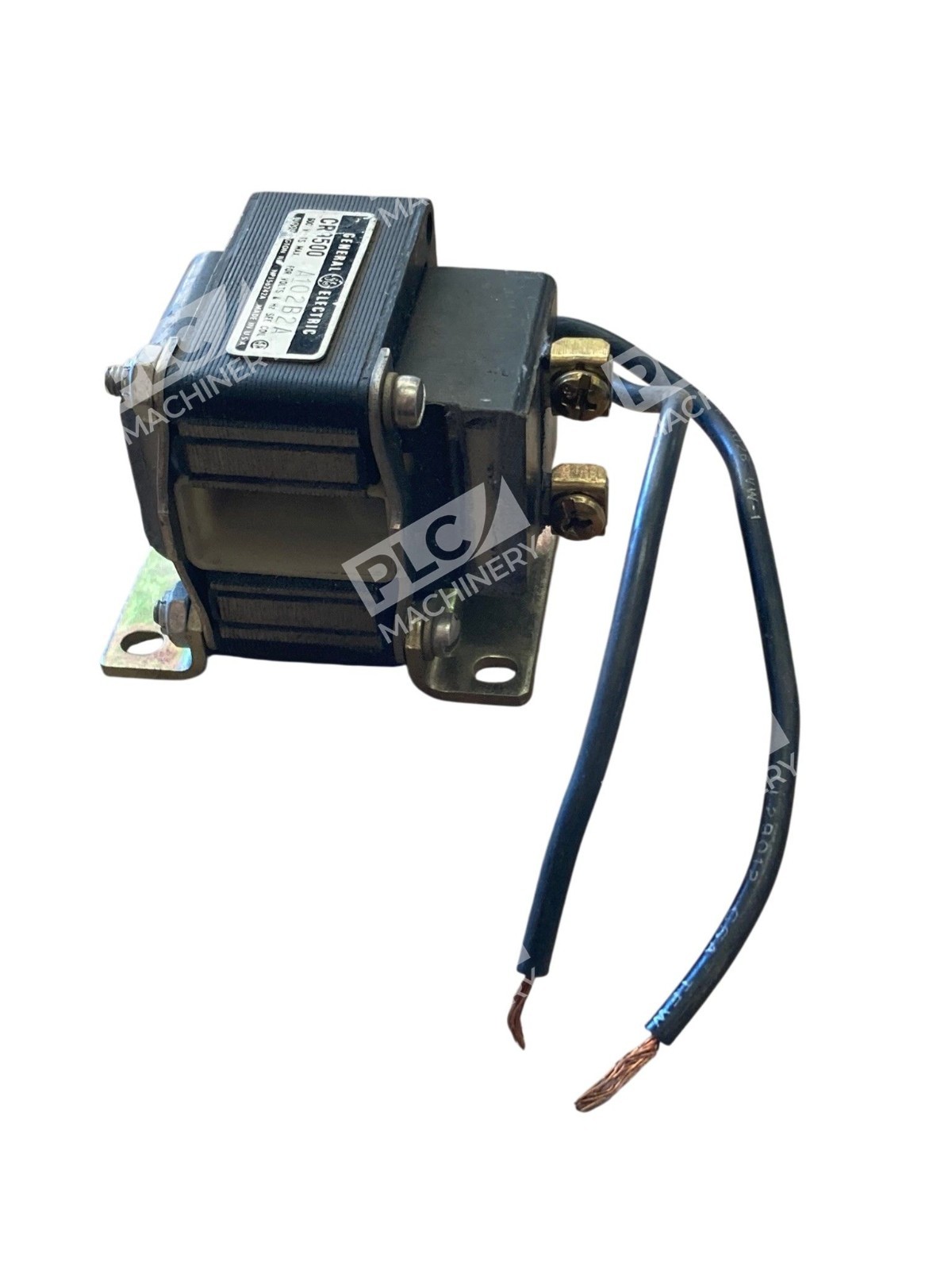

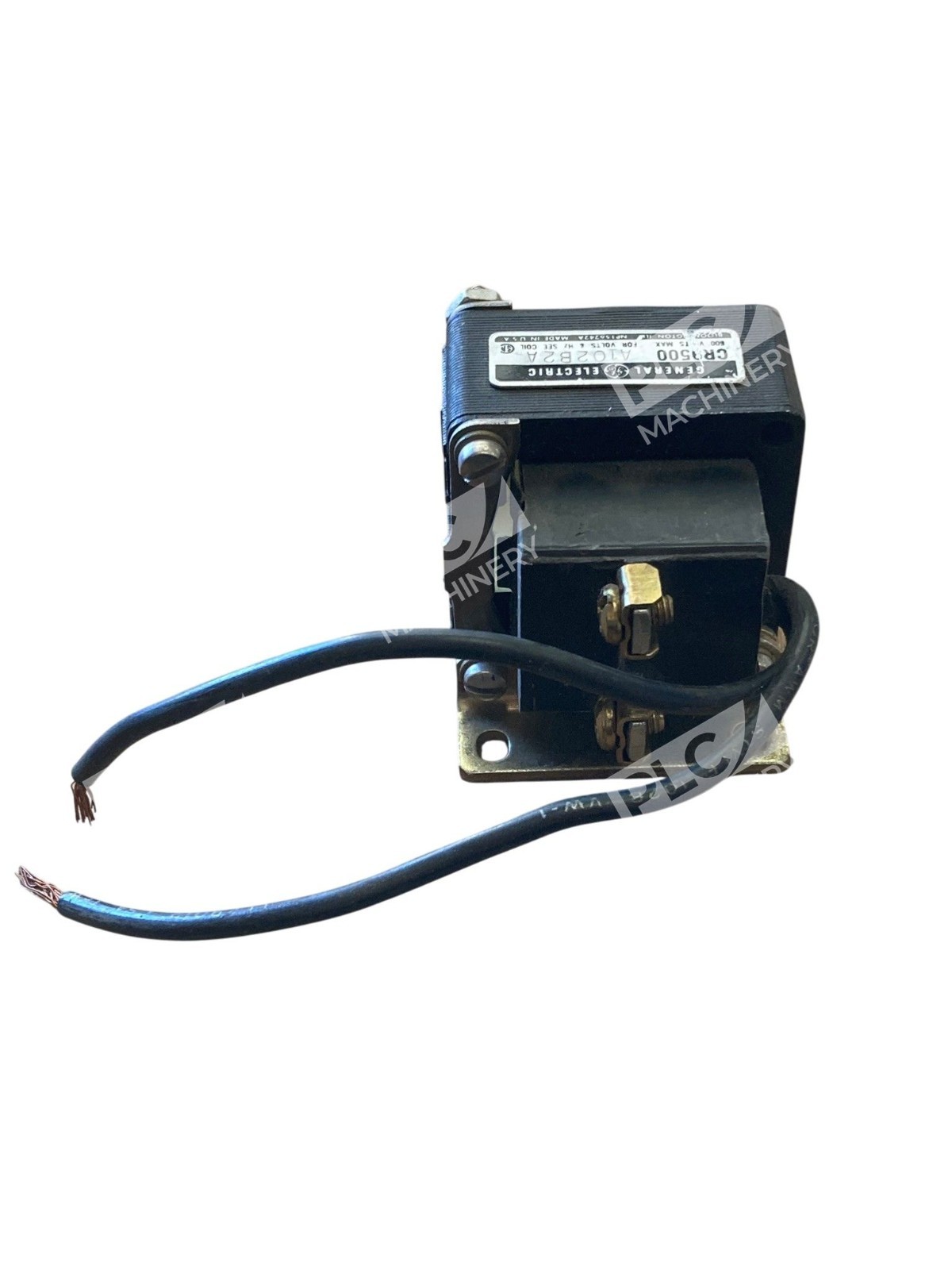

The CR9500-A102B2A from General Electric is an AC industrial solenoid coil designed for pull-type electromagnetic actuation. The CR9500-A102B2A is part of GE’s proven CR9500 series and is widely used in industrial automation, motor starters, contactors, and control circuits where reliable electromagnetic switching is required.
Key Features
- AC pull-type solenoid coil design for reliable electromagnetic actuation
- Suitable for integration with General Electric industrial control equipment
- Compact, end-mounted configuration for space-constrained applications
- Proven CR9500 series platform used across manufacturing and automation sectors
Technical Specifications
The following specifications apply to this unit:
- Manufacturer Series: CR9500
- Part Number: CR9500-A102B2A
- Solenoid Type: AC Pull-Type Coil
- Mounting Style: End Mount
- Maximum Stroke: 1 inch (25.4 mm)
- Magnetic Force (Horizontal): Approximately 3.20 lb
- Sealed Current: 50 VA nominal
- Duty Cycle: Continuous
- Condition: New, No Original Box
Typical Applications
The CR9500-A102B2A solenoid is commonly deployed in:
- Motor starter and contactor coil replacement
- Industrial automation control systems
- Electromagnetic valve and clutch actuation
- Factory automation and material handling equipment
- Manufacturing process control circuits
Compatibility & Replacements
Compatible With
- General Electric CR9500 series contactors and starters
- Industrial control cabinets rated for AC solenoid operation
- OEM equipment requiring CR9500 replacement coils
- Standard 50/60Hz industrial power distribution systems
Replaces / Drop-In Replacement For
The CR9500-A102B2A serves as a direct replacement for equivalent CR9500 series solenoid assemblies with matching voltage, frequency, and mounting specifications. Verify exact part number compatibility with your system documentation before ordering.
Works With
- General Electric motor control products
- Allen-Bradley and other compatible industrial control platforms
- Standard three-phase and single-phase power systems
- Electromagnetic relay and contactor assemblies
