Overview

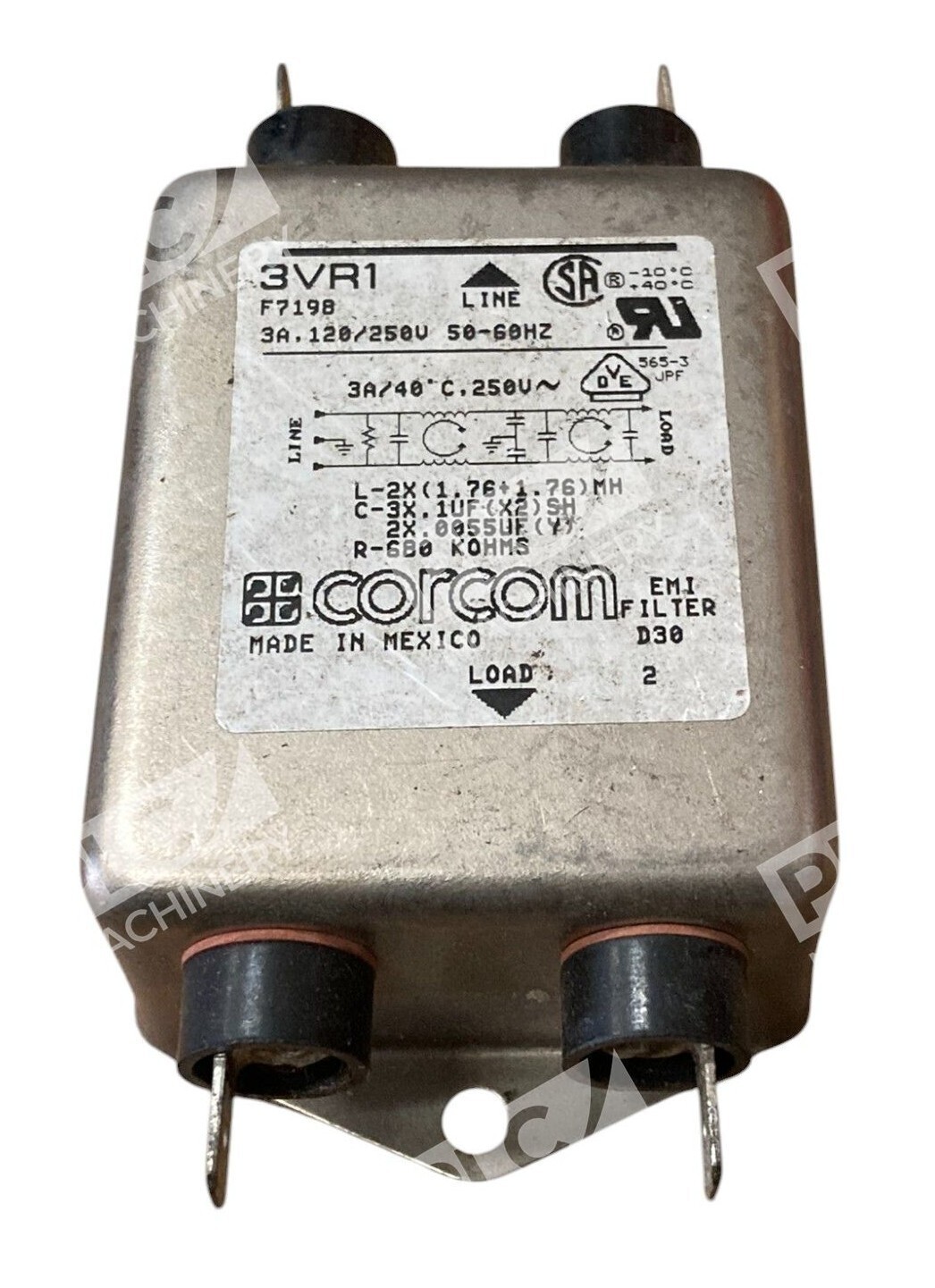

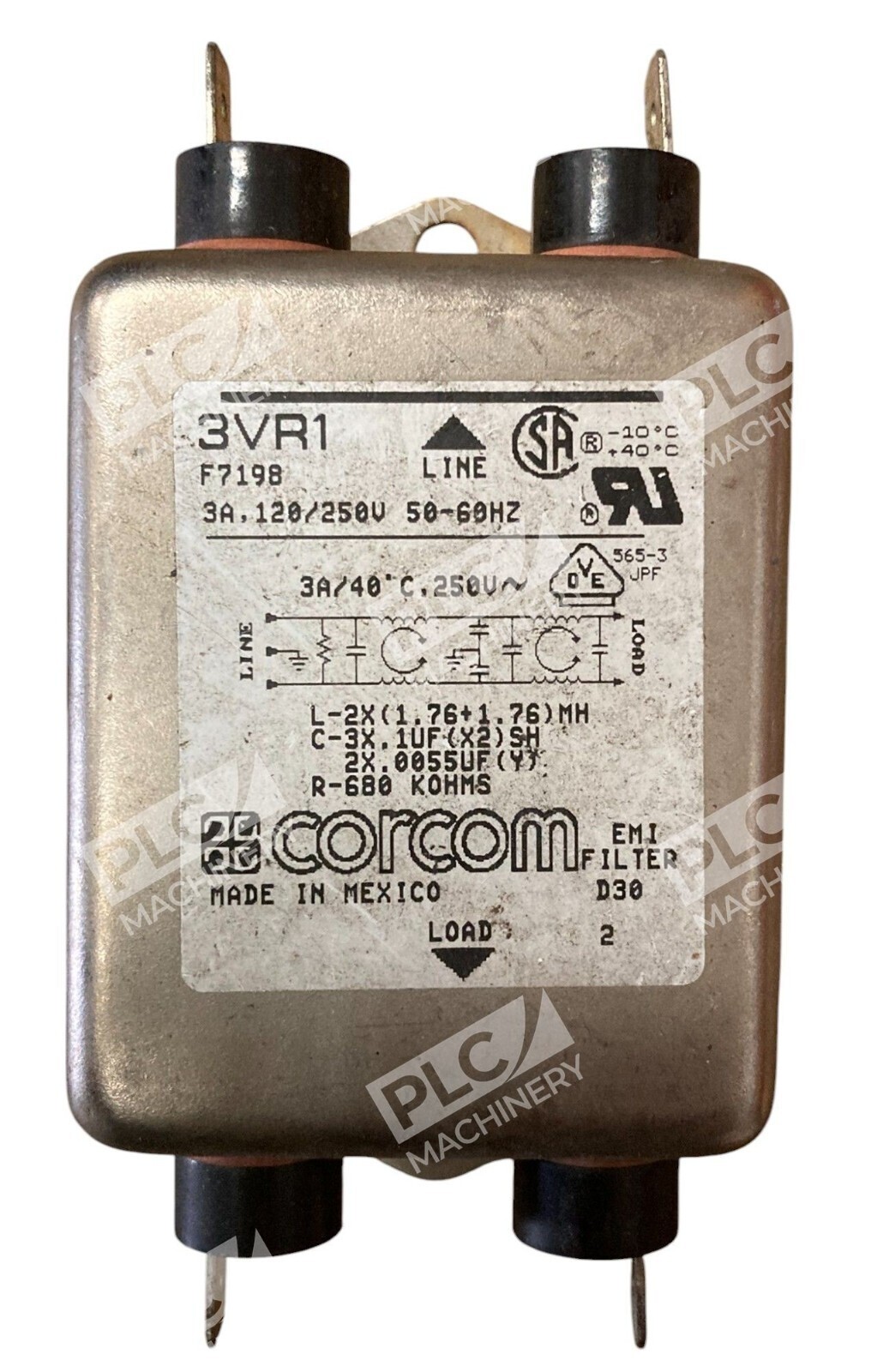

The Corcom 3VR1 is a compact, single-phase EMI filter designed to suppress electrical noise and interference in industrial and commercial power systems. Part of Corcom’s R Series product line, this filter is rated for 3A at 120/250V, 50-60Hz operation. The 3VR1 combines L-C filtering topology with two filter stages to provide reliable EMI/RFI suppression while maintaining compact panel-mount dimensions. This used, tested unit is suitable for retrofit applications requiring drop-in EMI filtering protection.
Key Features
- 2-stage EMI/RFI filtering — dual-stage LC network architecture for noise suppression
- 3A current rating — suitable for single-phase industrial loads
- 250VAC voltage rating — compatible with 120/250V dual-voltage systems
- Quick-connect terminals — 0.25″ spade lugs for standard panel mounting
- UL/CSA approved — designed and tested per major safety agency standards
- Compact panel-mount form factor — space-efficient integration into electrical enclosures
Technical Specifications
The Corcom 3VR1 delivers consistent filtering performance across standard industrial frequencies. All specifications are verified from distributor documentation.
Typical Applications
- Industrial control panel EMI suppression and power quality improvement
- General-purpose single-phase equipment noise filtering
- Retrofit installations requiring compact EMI filtering
- Power line conditioning for sensitive electronic equipment
- Compliance with industrial EMI emission standards (FCC, VDE, etc.)
Compatibility & Replacements
Compatible With
- Single-phase 120/250V AC power systems
- 50-60Hz standard industrial frequencies
- Panel-mount enclosures with standard rail space
- Quick-connect terminal blocks and busbar systems
- Standard electrical control cabinets and UPS systems
Replaces / Drop-In Replacement For
- Legacy Corcom 3VR1 units in retrofit applications
- Similar-rated Corcom R Series 3A filters (verify terminal configuration)
- Custom EMI filter solutions requiring 3A single-phase rating
Works With
- Corcom facility EMI filter product ecosystem
- Industrial panel-mount power distribution systems
- Electrical safety certification standards (UL 1283, IEC 60939)
- Standard 0.25″ spade-lug power entry modules
