Overview

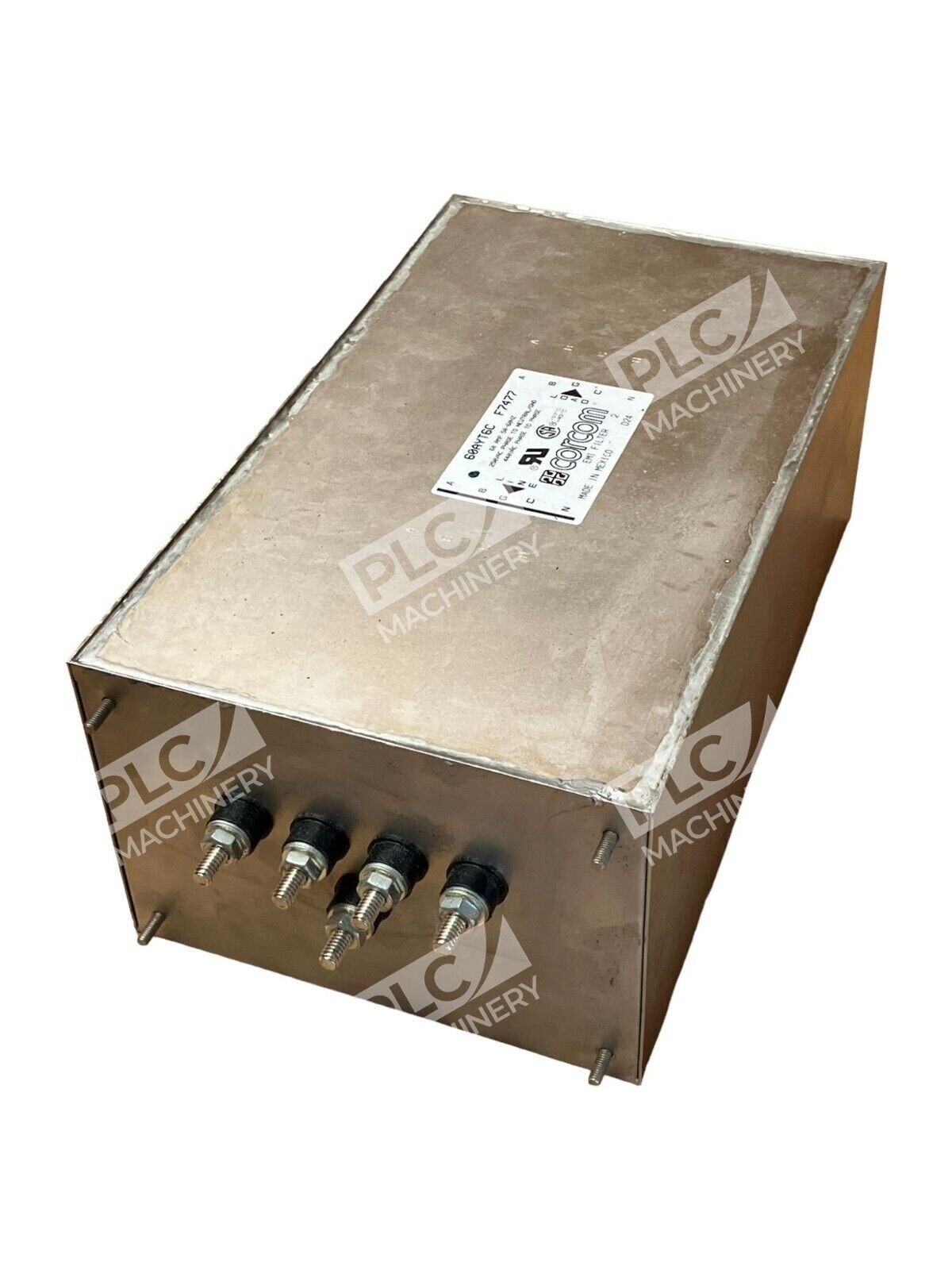

The Corcom 60AYT6C F7477 is a high-performance 60A three-phase RFI/EMI filter engineered for industrial power distribution and motor control systems. Manufactured by TE Connectivity, this Corcom filter is rated for four-wire WYE (star) connection configurations and delivers reliable electromagnetic interference suppression across a broad frequency range. The unit is particularly suited to control panels, drive systems, and facility power conditioning where line noise attenuation is critical for equipment reliability.
Key Features
- 60A Current Rating: Handles heavy industrial loads with adequate margin for three-phase AC applications
- Dual-Mode Suppression: Simultaneous common-mode and differential-mode noise rejection from 50 kHz to 30 MHz
- WYE Configuration: Filters all three power lines plus neutral and ground, ensuring comprehensive noise isolation
- Two-Stage Design: Multi-stage filtering architecture for enhanced attenuation across the EMI spectrum

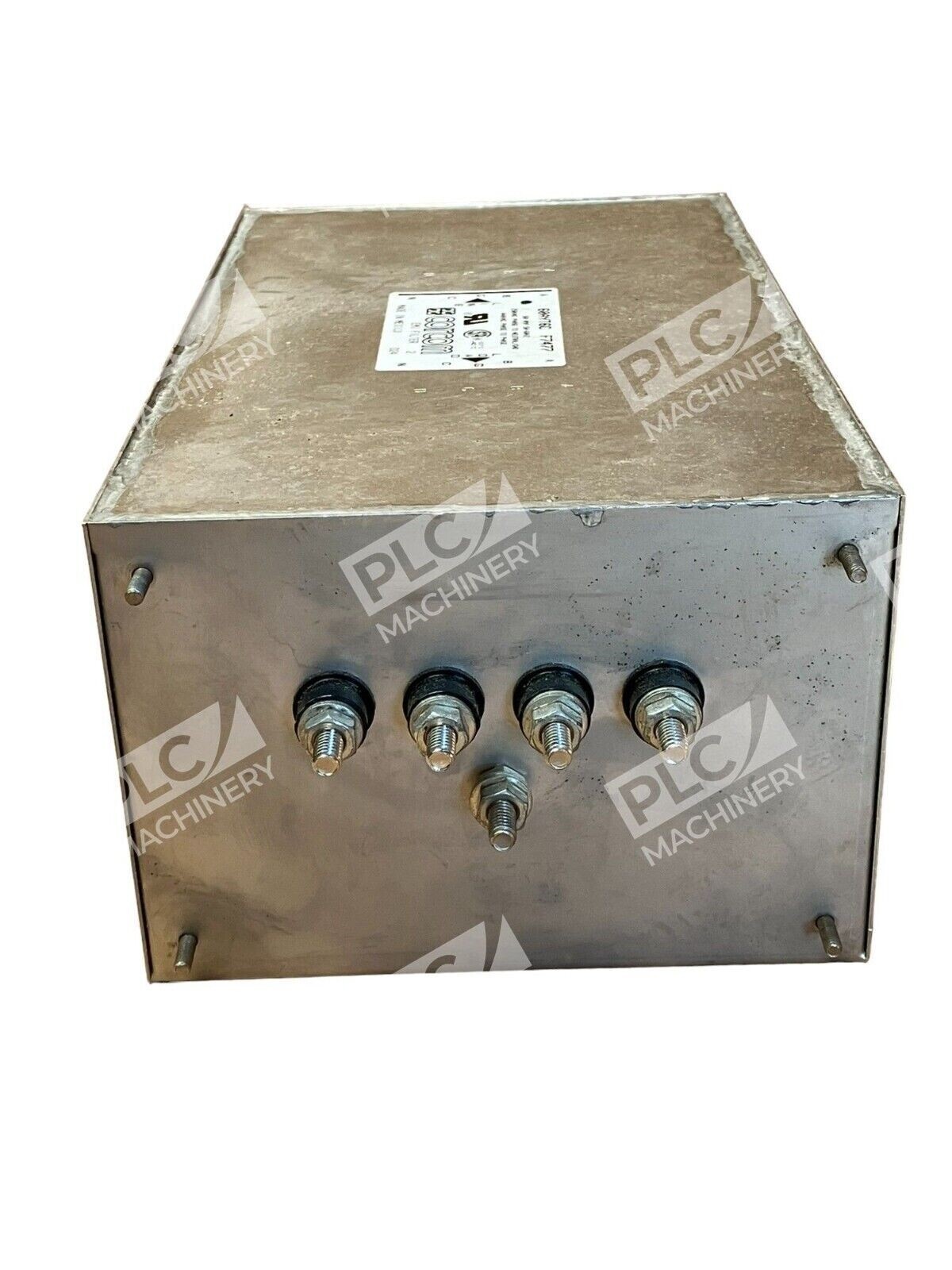

- Bulkhead Mount: Threaded post (1/4″-20) connection for secure panel or chassis installation
- Wide Operating Range: 50–60 Hz, −10 to +40°C operating temperature
Technical Specifications
- Rated Current: 60 A

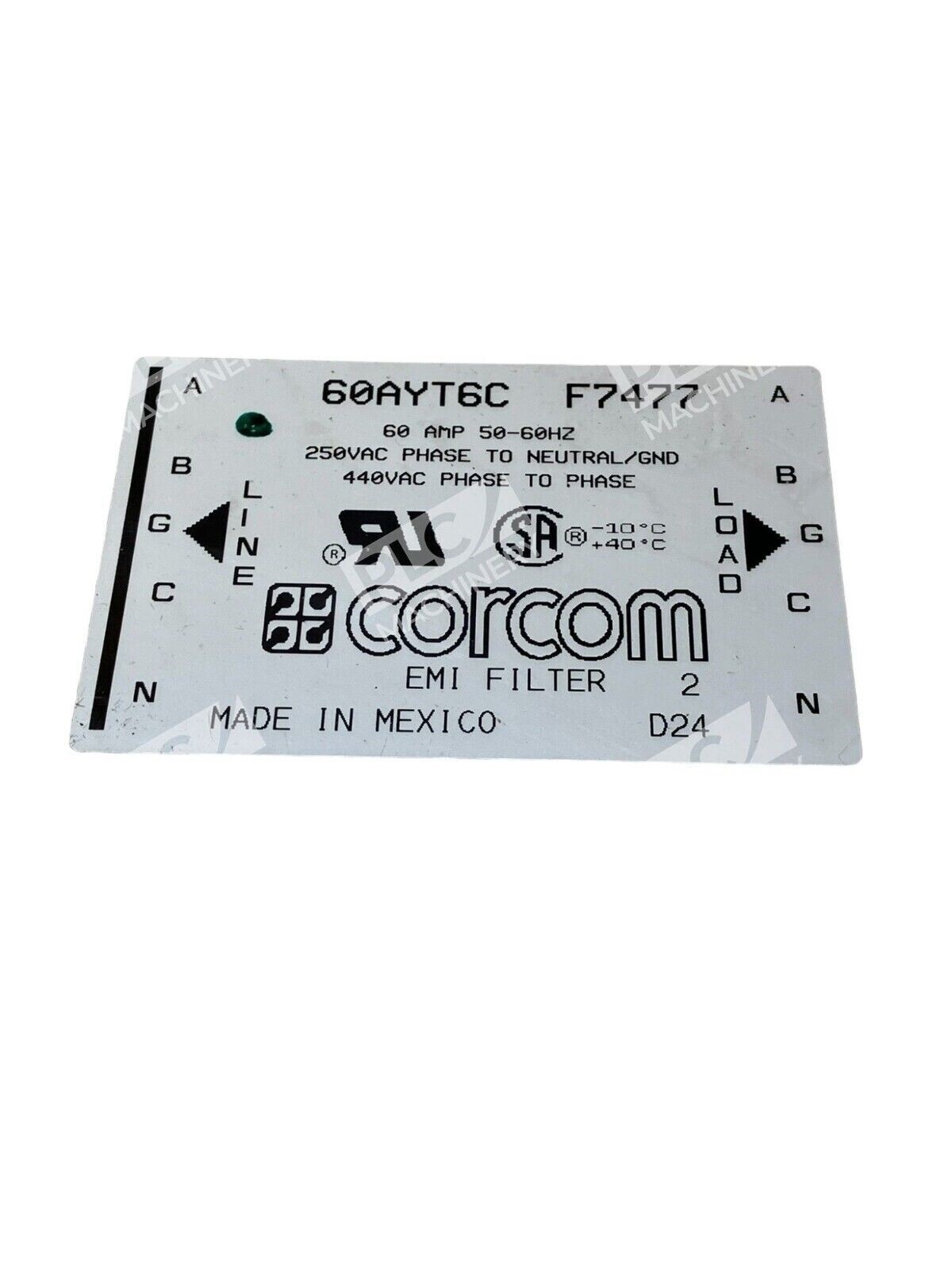

- Voltage Rating: 440 V phase-to-phase, 250 V phase-to-neutral
- Frequency: 50–60 Hz
- EMI Suppression: 50 kHz to 30 MHz (common and differential mode)
- Leakage Current: 1.4 mA @ 120 VAC, 60 Hz; 3.4 mA @ 250 VAC, 50 Hz
- Configuration: Three-phase WYE (four-wire)
- Mounting Style: Bulkhead with threaded post (1/4″-20)
- Operating Temperature: −10°C to +40°C
- Series: Corcom A Series (20–60 A)
- Manufacturer Part Number: 60AYT6C
- F-Series Designation: F7477
Typical Applications
- Industrial motor drive systems and variable frequency drive (VFD) installations
- Power distribution panels and electrical enclosures
- Facility-level harmonic and EMI mitigation
- Machine tool control cabinets and automation systems
- Data center and telecommunications equipment power conditioning
- Heavy industrial manufacturing and process control environments
Compatibility & Replacements
Compatible With
- Three-phase 440 V, 50–60 Hz power systems
- Four-wire WYE (star) electrical configurations
- Industrial control panels and motor starters
- Variable frequency drives (VFDs) and servo drive systems
- Power distribution units and facility UPS systems
Replaces / Drop-In Replacement For
- Other Corcom AYT-series 60A filters (verify exact F-series variant compatibility)
- Generic industrial 60A power line filters with WYE topology
Works With
- Allen-Bradley and other PLC/automation controllers drawing filtered AC power
- Siemens, ABB, and Mitsubishi industrial drives and motor controls
- EtherNet/IP, PROFINET, and other networked industrial devices sensitive to line noise
- IEC 61000-4-x EMC compliance testing and certification
