Overview

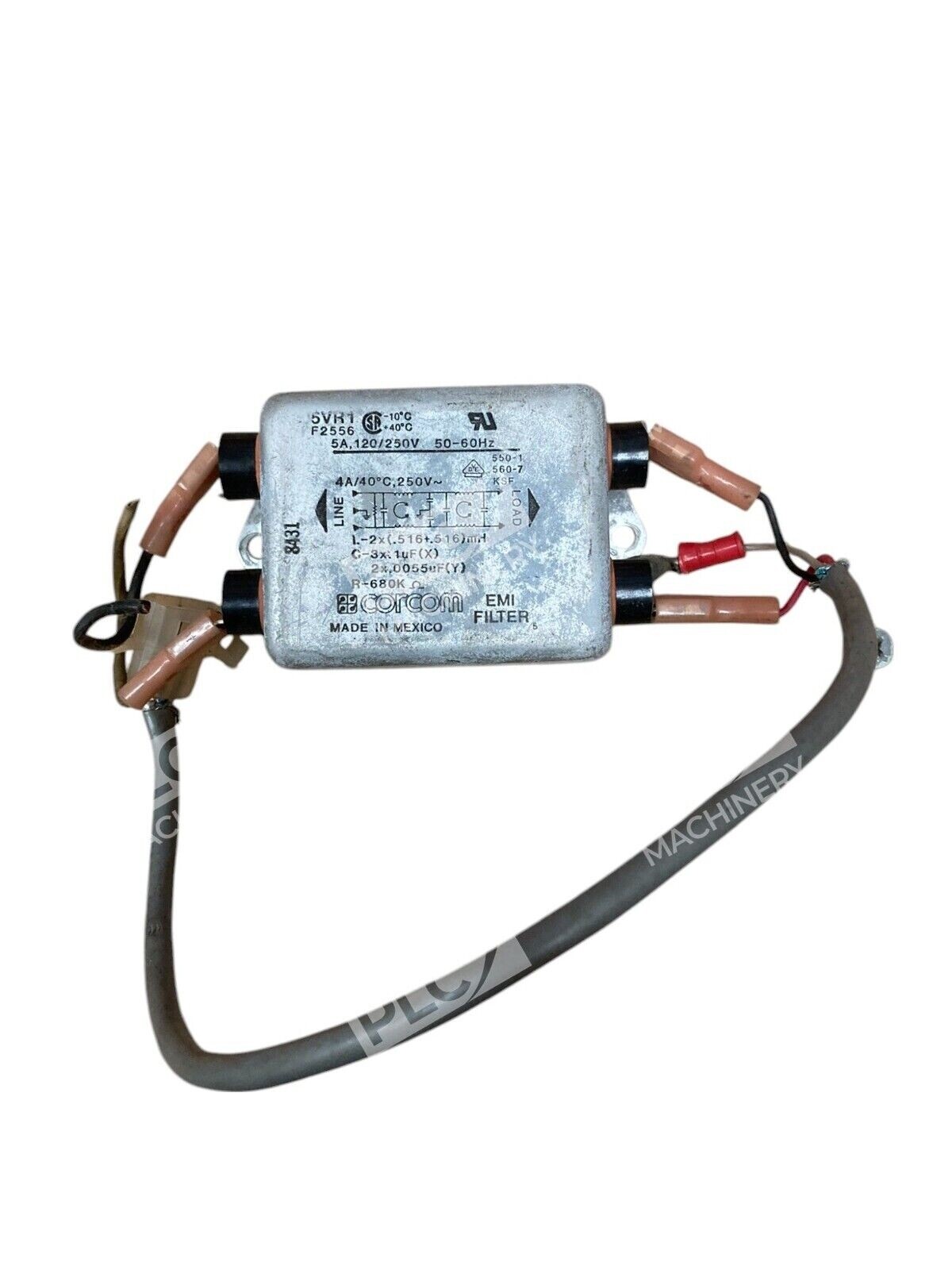

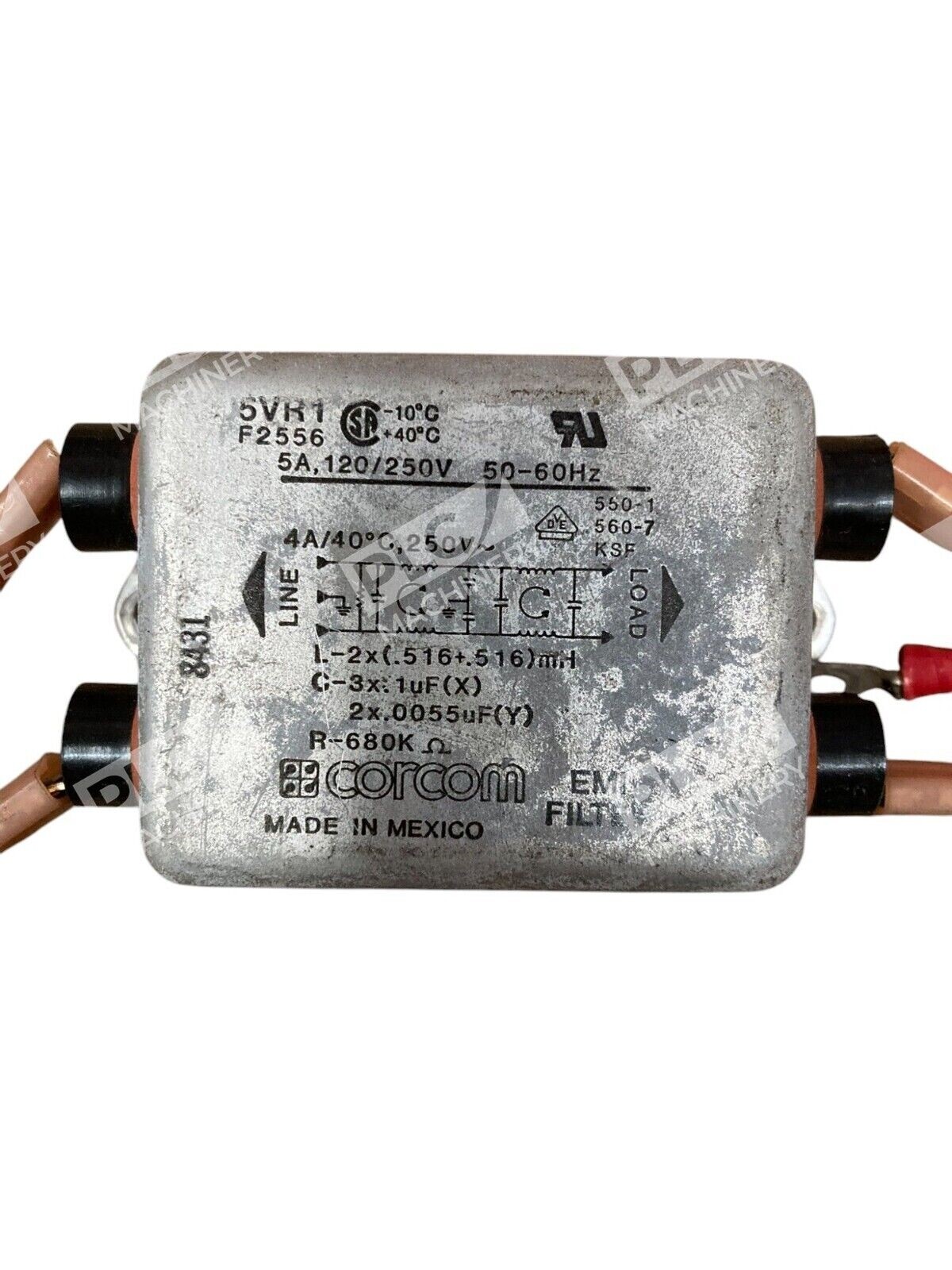

The Corcom 5VR1 is a single-phase, 2-stage power line filter engineered for EMI/RFI suppression in industrial and commercial equipment. This Corcom EMI filter is rated for 5A continuous current at 120–250V AC, 50–60Hz, and features quick connect terminals for rapid installation. Well suited for low impedance loads where noisy RFI environments are present, the 5VR1 delivers consistent noise attenuation across a broad frequency spectrum.
Key Features
- 1-phase 2-stage general purpose RFI filter for reliable EMI/RFI suppression
- Quick Connect terminals for tool-free, streamlined installation
- Controls pulsed, continuous and/or intermittent interference
- Chassis mount (flanged) design for secure panel integration
- Low leakage current (700µA max) suitable for sensitive applications
- RoHS compliant; part of the Corcom R Series lineup
Technical Specifications
The 5VR1 delivers repeatable performance across standard AC power distributions:
- Rated Current: 5A
- Input Voltage: 120–250V AC
- Frequency: 50–60Hz
- Stages: 2-stage LC design
- Inductance: 1.032 mH (minimum)
- Capacitance: 0.303 µF
- Leakage Current: 700 µA (maximum)
- Mounting Style: Chassis mount (flanged)
- Terminal Type: Quick Connect
- Series: Corcom R Series (General Purpose, 1–20 A range)
Typical Applications
The Corcom 5VR1 is deployed in:
- Industrial motor drives and VFD pre-filters
- Switching power supplies and DC converters
- Laboratory and test equipment
- Audio/video broadcast equipment
- Medical and instrumentation enclosures where EMI compliance is required
- Low-impedance, high-current switching environments
Compatibility & Replacements
Compatible With
- Single-phase AC power systems (120–250V, 50–60Hz)
- Equipment chassis and panel-mount installations
- Industrial control enclosures and power distribution panels
- TE Connectivity/Corcom ecosystem products
Replaces / Drop-In Replacement For
The 5VR1 is a discontinued product (manufacturer end-of-life). Direct replacements within the Corcom R Series should be verified with TE Connectivity or your system integrator, as newer models may have different footprints or terminal types. Verify compatibility with your system integrator before ordering.
Works With
- Standard AC mains circuits (50/60Hz)
- Quick-connect industry-standard terminal blocks
- Chassis-mount power entry modules
- Any low-impedance load rated ≤5A @ 120–250V AC
