Overview

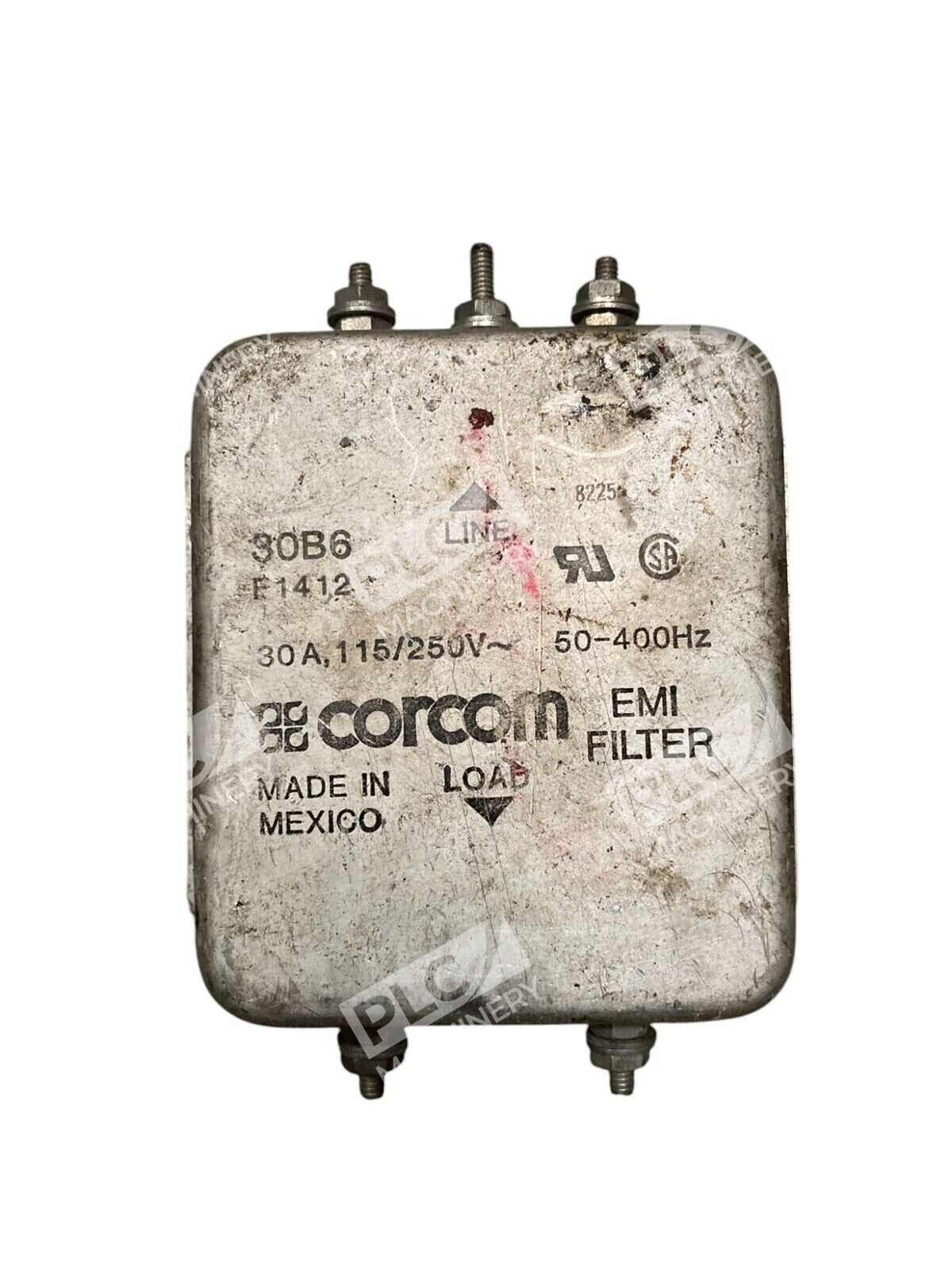

The Corcom 30B6 is a single-phase power line EMI/RFI filter designed to suppress electromagnetic interference in industrial electrical systems. Manufactured by TE Connectivity, this filter operates across a 115/250V range and supports frequencies from 50 to 400Hz, making it suitable for global applications. The 30A current rating accommodates medium-power equipment while maintaining effective noise attenuation.
Key Features
- 30A maximum current capacity
- Wide voltage range: 115/250V compatible
- Frequency range: 50–400Hz for multi-region deployment
- Single-phase design for standard power line applications
- Compact chassis-mount form factor
- Industry-standard EMI/RFI suppression performance
Technical Specifications
The Corcom 30B6 delivers reliable filtering with minimal leakage current. Key electrical characteristics include low-capacitance design for safety-critical applications and inductance tuning for broadband noise rejection across the specified frequency band.
Typical Applications
- Industrial control equipment and motor drives
- Laboratory and test instrumentation
- Power supplies and DC converters
- General industrial machinery requiring EMI compliance
- International equipment installations (50–400Hz support)
Compatibility & Replacements
Compatible With
- Standard industrial 115V/250V AC power systems
- Equipment requiring UL, CSA, and VDE-certified filtering
- Single-phase power input designs
- AC power distribution in manufacturing facilities
Replaces / Drop-In Replacement For
The Corcom 30B6 may replace or work alongside similar 30A single-phase EMI filters in the Corcom product family. Verify compatibility with your system integrator or original equipment documentation before ordering, as filter mounting and terminal configurations may vary across product series.
Works With
- Industrial control systems and PLCs
- Motor drives and soft starters
- Frequency inverters (50–400Hz compliance)
- Power factor correction circuits
- Standard AC power distribution networks
