Overview

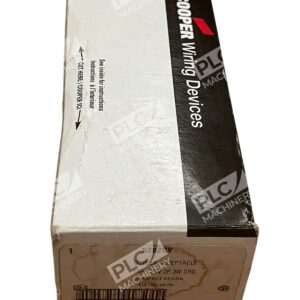

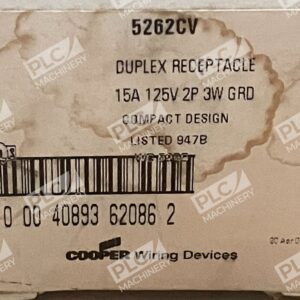

The Cooper 5262CV duplex receptacle is an industrial specification-grade outlet designed for demanding residential, commercial, and construction applications. This 15A 125V unit features NEMA 5-15R grounding configuration with a durable ivory nylon faceplate and robust mounting hardware for reliable, long-term performance.
Key Features
- 2-pole, 3-wire grounding configuration with NEMA 5-15R compatibility
- Triple-wipe brass line contacts (0.032") and 0.050" brass ground for excellent plug blade retention
- Screw-Catchâ„¢ mounting feature speeds wallplate installation and prevents cross-threading
- High-impact, chemical-resistant nylon faceplate rated UL 94 V2 for flammability
- Long, broad mounting strap accommodates large panel cutouts and ensures code compliance
- Back and side wire connection with conductor range 14–10 AWG
Technical Specifications
- Amperage: 15 Amp
- Voltage: 125 Volt
- Configuration: 2-Pole, 3-Wire Grounding
- NEMA Rating: 5-15R
- Conductor Size: 14–10 AWG (back wire); 10 AWG (side wire)
- Connection Type: Back and Side Wire
- Dielectric Strength: 2000 V
- Material: High-impact, chemical-resistant nylon
- Temperature Rating: –40°C to +60°C
- Color: Ivory
- Grade: Construction Specification Grade
- Certifications: UL Listed, CSA Certified, NOM Certified
Typical Applications
The Cooper 5262CV is ideal for:
- Residential construction and renovation projects
- Commercial and light industrial installations
- Temporary and permanent branch circuits rated 15A 125V
- Wall-mounted duplex outlet installations where code-compliant mounting and durability are required
- Building additions and facility maintenance where replacement or new outlet runs are needed
Compatibility & Replacements
Compatible With
- Standard 15A 125V electrical circuits (residential, commercial, industrial)
- NEMA 5-15P plugs and standard household/commercial appliances
- Wall switch loops and multi-outlet circuits with proper branch circuit protection
- Building wiring systems compliant with National Electrical Code (NEC) and CEC requirements
Replaces / Drop-In Replacement For
- Cooper 5262C series receptacles in other colors (5262CB, 5262CBK, 5262CGY, 5262CRD, 5262CW)
- Standard NEMA 5-15R duplex outlets from equivalent construction-grade manufacturers
- Verify compatibility with your system integrator or electrician before ordering for custom installations.
Works With
- 15A 125V branch circuits and panel breakers
- Standard electrical wiring (Romex, conduit, armored cable)
- Wall boxes and outlet plates (1-gang standard)
- Existing NEMA 5-15R grounding outlet infrastructure
