Overview

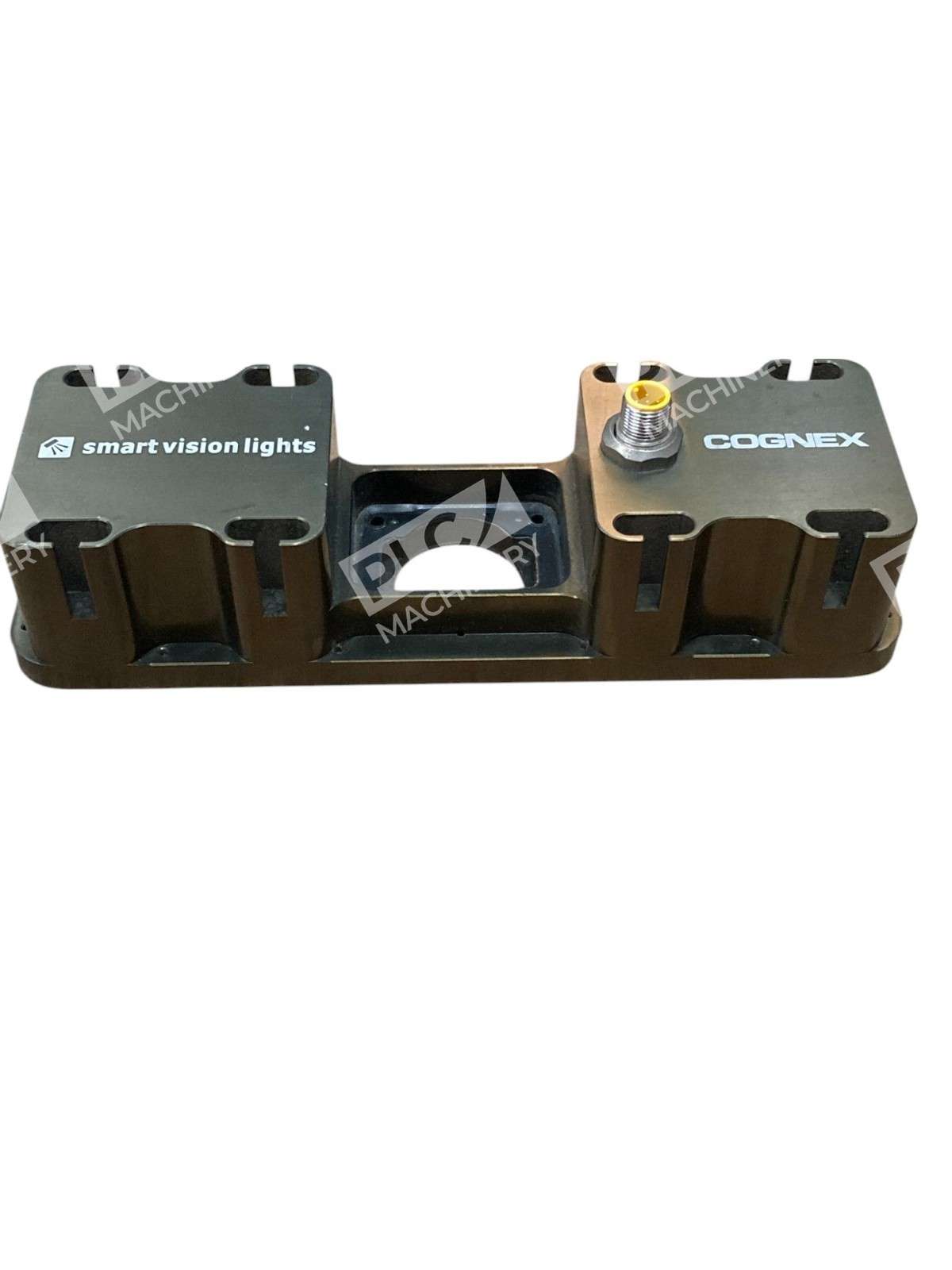

The Cognex ODDM-300-625 is a red (625nm) smart vision light module engineered for professional machine vision applications in industrial automation. This compact lighting accessory integrates directly with Cognex vision systems to provide consistent, controllable illumination for reliable image capture and inspection tasks. The module’s straightforward design and standard interface make it a practical choice for OEMs and system integrators seeking drop-in lighting solutions.
Key Features

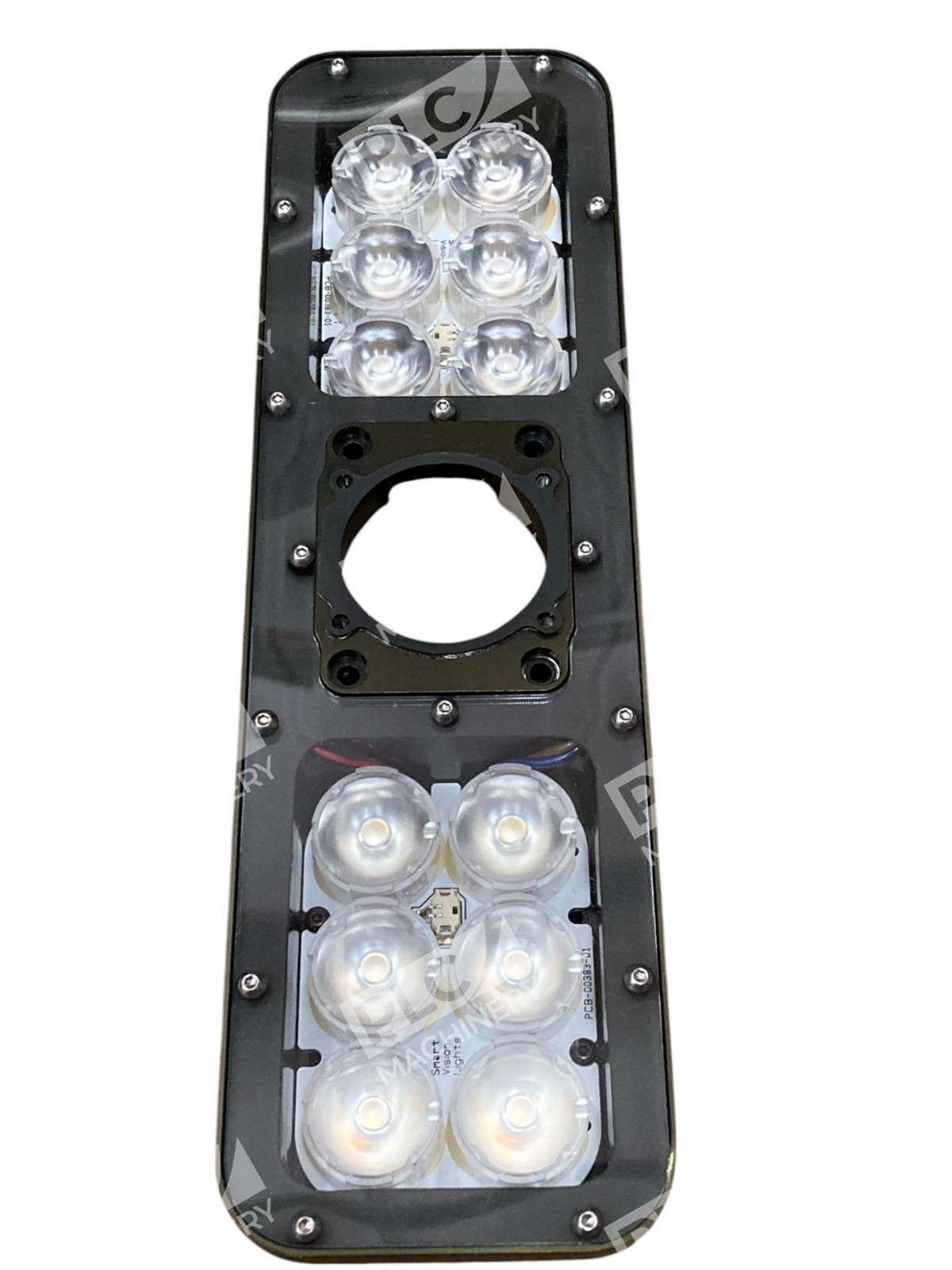

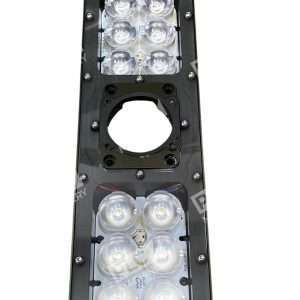

- 625nm red light wavelength for enhanced contrast in specific vision applications

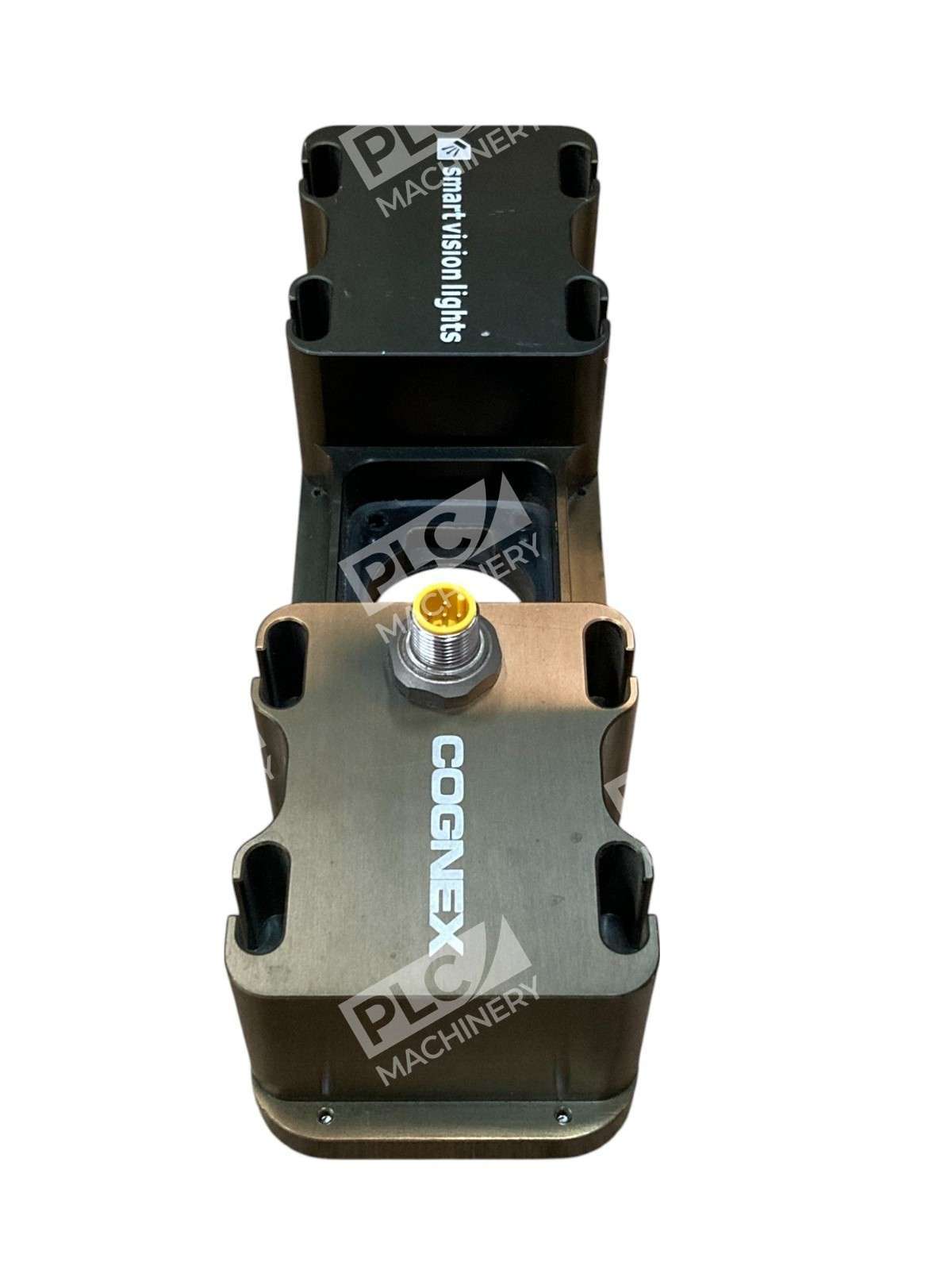

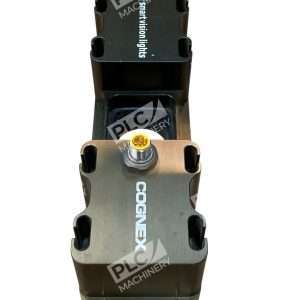

- M12 quick-disconnect connector for fast installation and replacement
- Mounts directly to Cognex DataMan and compatible camera series
- Smart driver capability for integrated light control
- Standard T-slot mounting interface for flexible positioning
- Supports optional laser aimer accessories for alignment and targeting
Technical Specifications
- Wavelength: 625nm (Red)
- Connector Type: 5-Pin M12 (Quick Disconnect)
- Power Supply: Via M12 connector from host camera
- Mounting: Standard T-slots and quick-mount interface
- Compatibility: Cognex DataMan 300 series, compatible vision systems

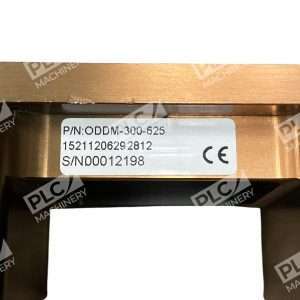

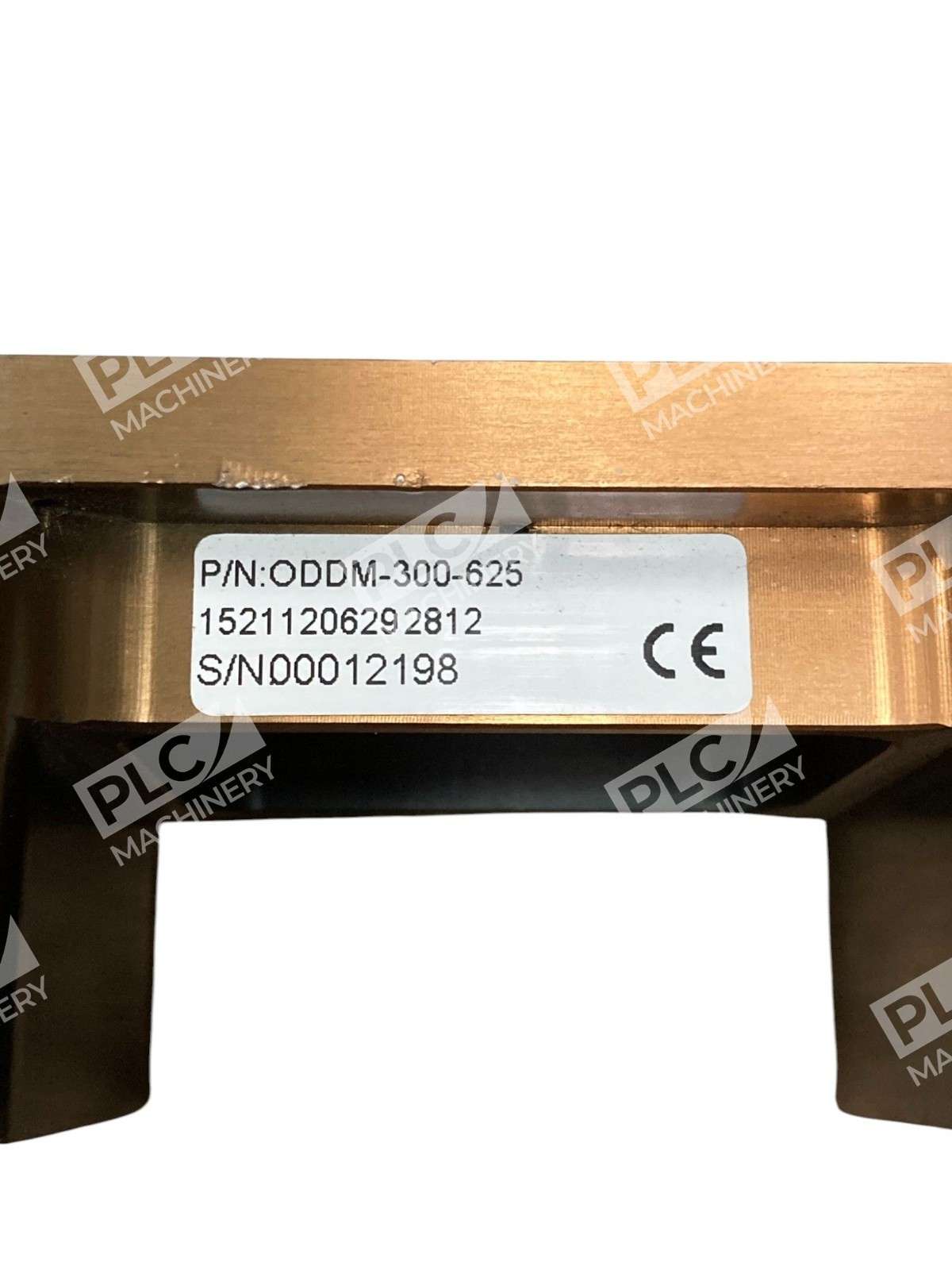

- Condition: New – No Box (fully functional, original packaging not included)
Typical Applications
The ODDM-300-625 excels in manufacturing and logistics environments requiring precise part identification, barcode reading, print quality inspection, and optical character recognition (OCR). Its red wavelength provides optimal illumination for contrast-sensitive inspection tasks where standard white light may prove insufficient. Common deployments include assembly line verification, package marking inspection, component sorting, and quality assurance checkpoints.
Compatibility & Replacements
Compatible With
- Cognex DataMan 300 series industrial fixed-mount readers
- Cognex In-Sight vision systems (where compatible)
- Cognex vision-guided robotic systems
- Systems supporting 5-pin M12 smart lighting connectors
Replaces / Drop-In Replacement For
- ODDM-300-625 (exact model – this is the primary specification)
- May serve as alternative to other Cognex 625nm modules in equivalent form factors
- Verify compatibility with your specific Cognex vision platform before ordering
Works With
- Cognex vision software and firmware supporting smart lighting control
- Industrial automation platforms with Cognex integration
- EtherNet/IP and traditional serial communication protocols (through host camera)
- Cognex DataMan command-line and GUI configuration tools
