Overview

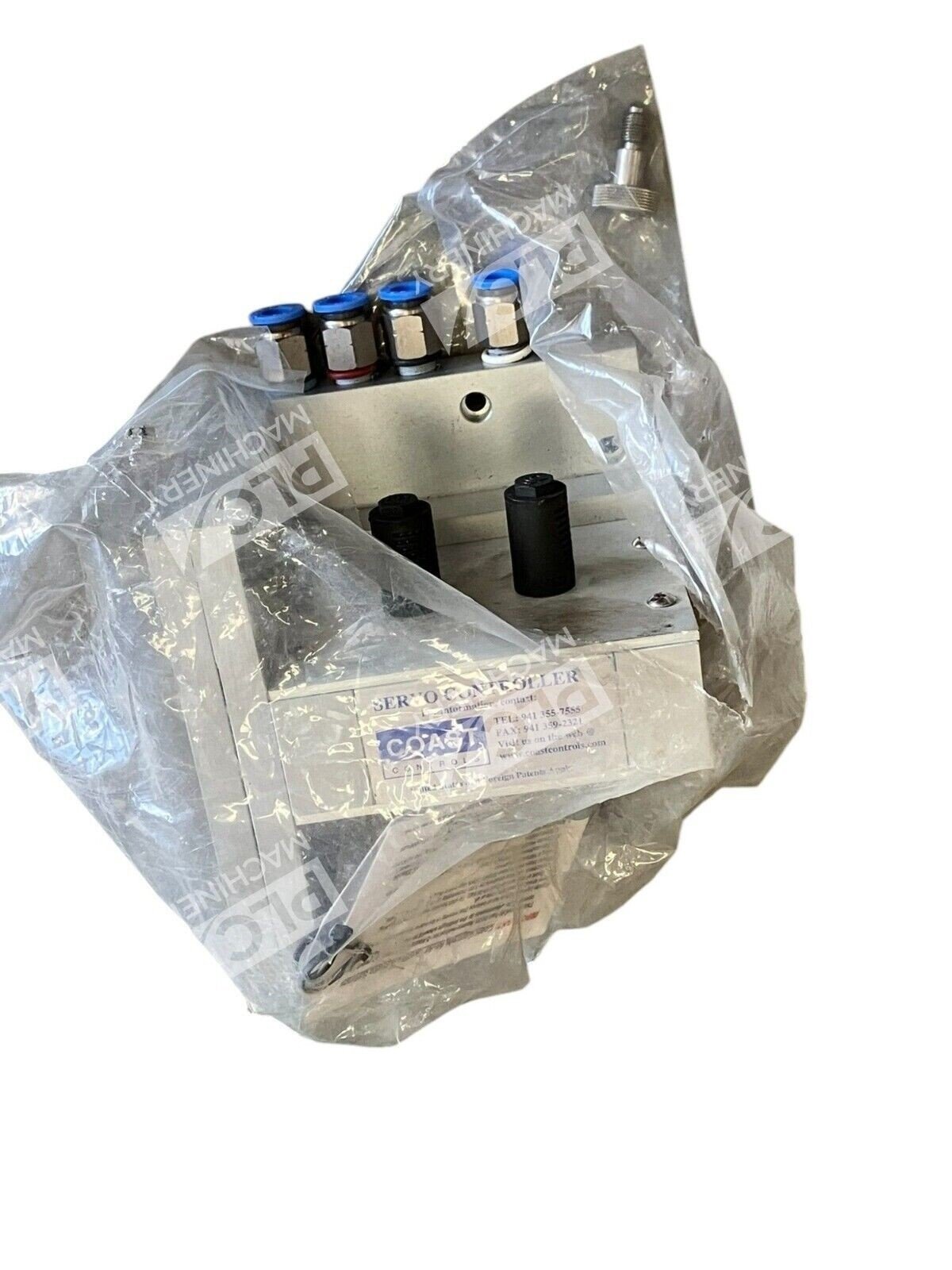

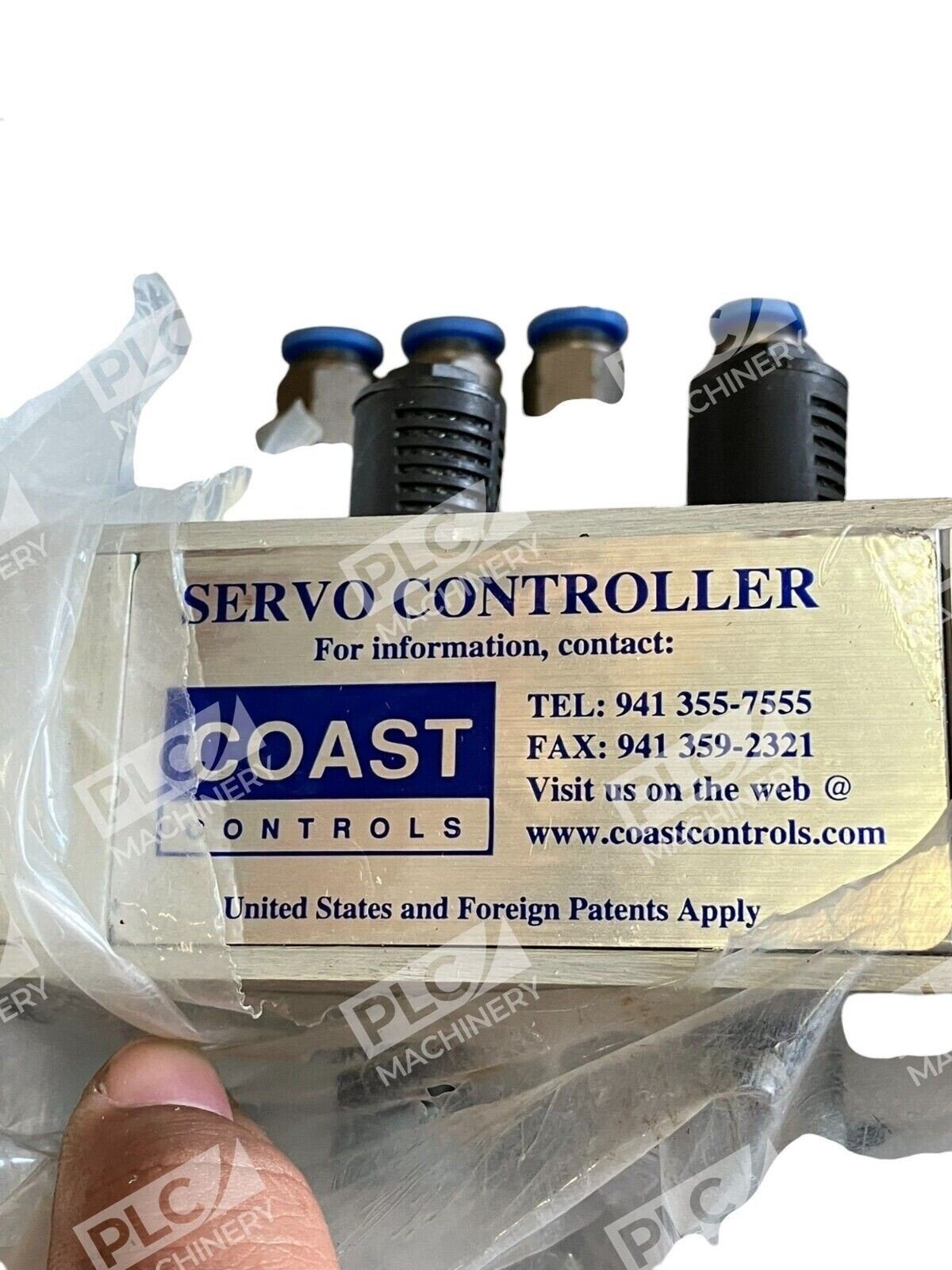

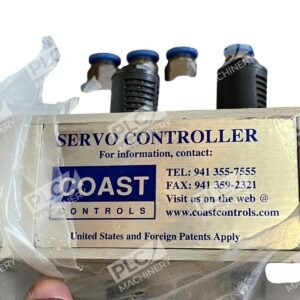

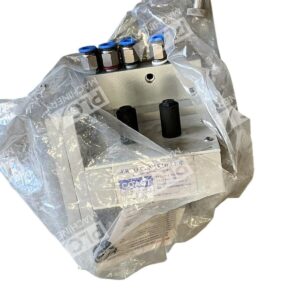

The Coast Controls SC10A servo controller is a pneumatic web guide controller engineered for precision pressure conversion in converting applications. This servo controller converts signals to higher actuator pressure between the Air-Flow Sensor and the Air Cylinder. One controller is required for each Coast Controls guide system, making it a critical component in edge guide and web tension control setups.
Key Features
- All Coast Controls Servo Controllers do not require any routine maintenance
- Compact pneumatic design for industrial web guide applications
- Manual adjustment controls for gain and bias settings
- Field-tunable for specific application requirements
- Low noise operation, especially when equipped with optional filters
Technical Specifications
The SC10A operates as a pneumatic signal converter with adjustable needle valve for flow control. The unit features manual bias and gain adjustment knobs for system tuning and is compatible with standard airline tubing and fittings.
Typical Applications
- Web guide edge guide systems in paper converting
- Plastic film and laminate web tension control
- Label stock and material guide control
- Custom web processing equipment
- Replacement units for existing Coast Controls systems
Compatibility & Replacements
Compatible With
- Coast Controls web guide systems
- Standard pneumatic air cylinders (3-6 inch bore)
- Air-flow sensors for edge detection
- 1/4-inch and 3/8-inch ID airline tubing
Replaces / Drop-In Replacement For
- Coast Controls Model 10A Servo Controller
- Existing SC10A units requiring replacement
Works With
- Coast Controls pneumatic web guide systems
- Air-operated edge sensing equipment
- Pressure-regulated supply systems
- Manual and automated guide controls
