Overview

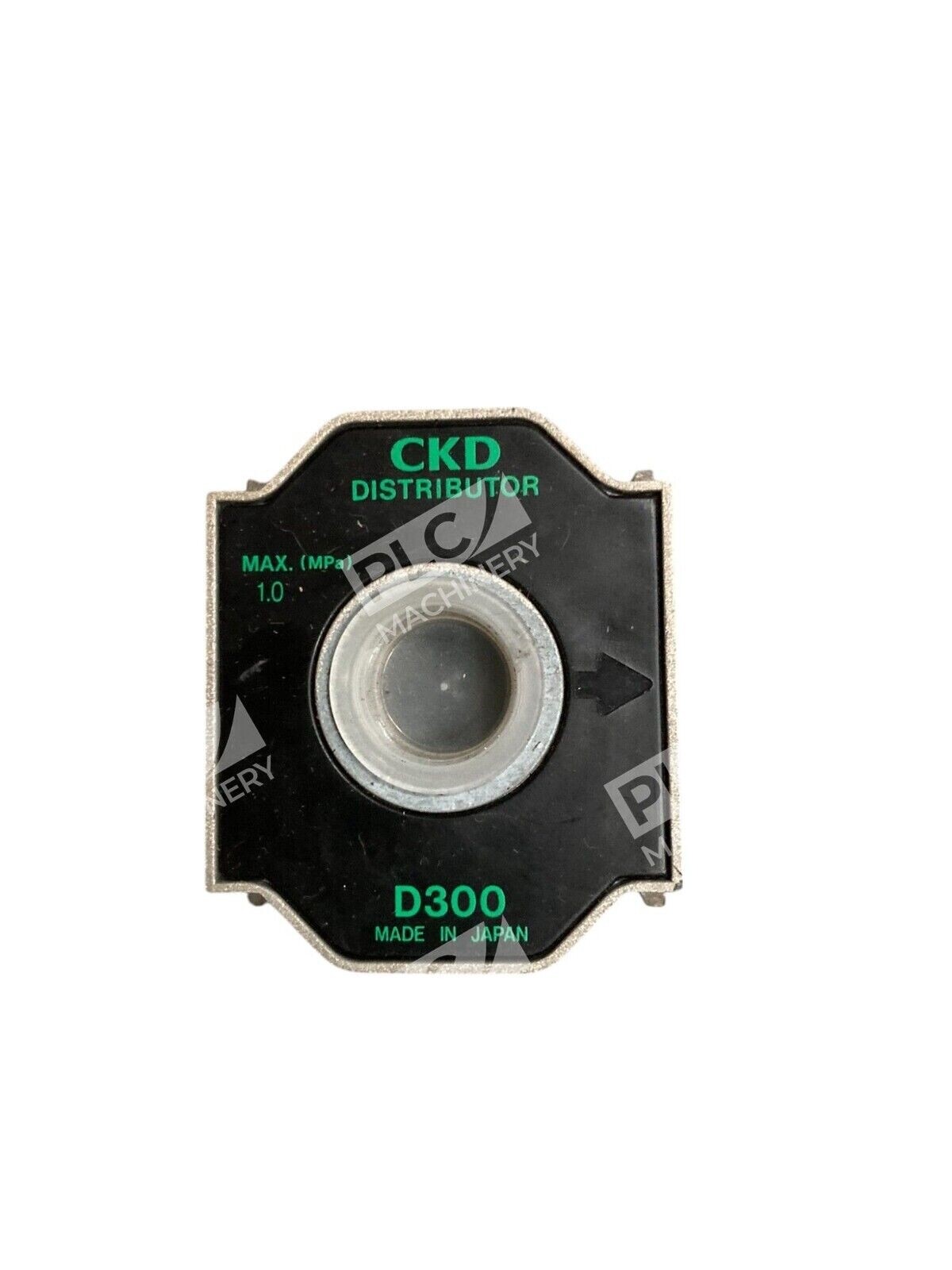

The CKD D300 distributor is a pneumatic branching component rated for 1.0MPa maximum pressure. This unit is designed to distribute pressurized air from a single input source to four separate output paths, making it ideal for multi-branch pneumatic control circuits. The D300 features a large effective sectional area to minimize pressure drop across the distribution network.
Key Features
- Four-way branching configuration for simultaneous multi-circuit distribution
- 1.0MPa maximum working pressure rating
- Large effective sectional area for efficient flow distribution
- Compact, modular design integrates with standard CKD FRL systems
- Used condition—fully inspected and functionally tested
- Drop-in replacement for pneumatic control panel upgrades
Technical Specifications
- Model: D300
- Maximum Pressure: 1.0MPa
- Configuration: 4-way distributor
- Application: Pneumatic piping branching
- Condition: Used
- Manufacturer: CKD Corporation
Typical Applications
The CKD D300 is commonly used in:
- Multi-actuator pneumatic control systems
- Robotic and automation equipment requiring distributed air supply
- Factory automation and assembly line equipment
- Modular FRL (Filter, Regulator, Lubricator) unit configurations
- Industrial machinery requiring branched pneumatic circuits
Compatibility & Replacements
Compatible With
- CKD FRL (Filter, Regulator, Lubricator) units and systems
- CKD modular pneumatic component series
- Standard industrial pneumatic control circuits
- ISO Rc port configurations
Replaces / Drop-In Replacement For
- CKD D300-10-W-Q
- CKD D300-10N-W
- Original equipment distributors in similar pneumatic branching applications
Works With
- CKD T-type bracket mounting systems
- Standard ISO pneumatic piping and fittings
- CKD pressure regulators and filters
- Industrial pneumatic control panels and manifold assemblies
