Overview

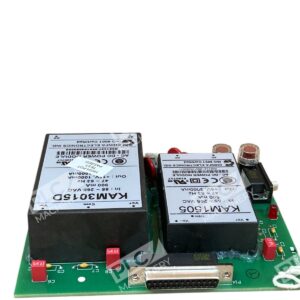

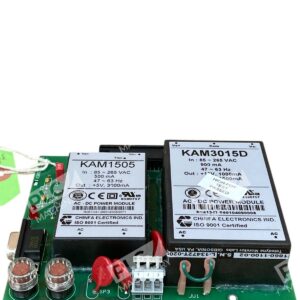

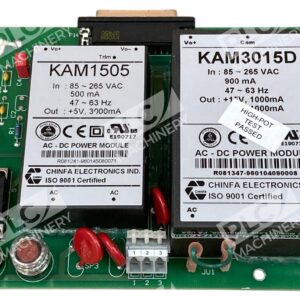

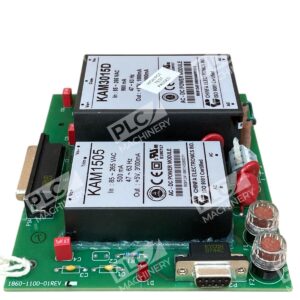

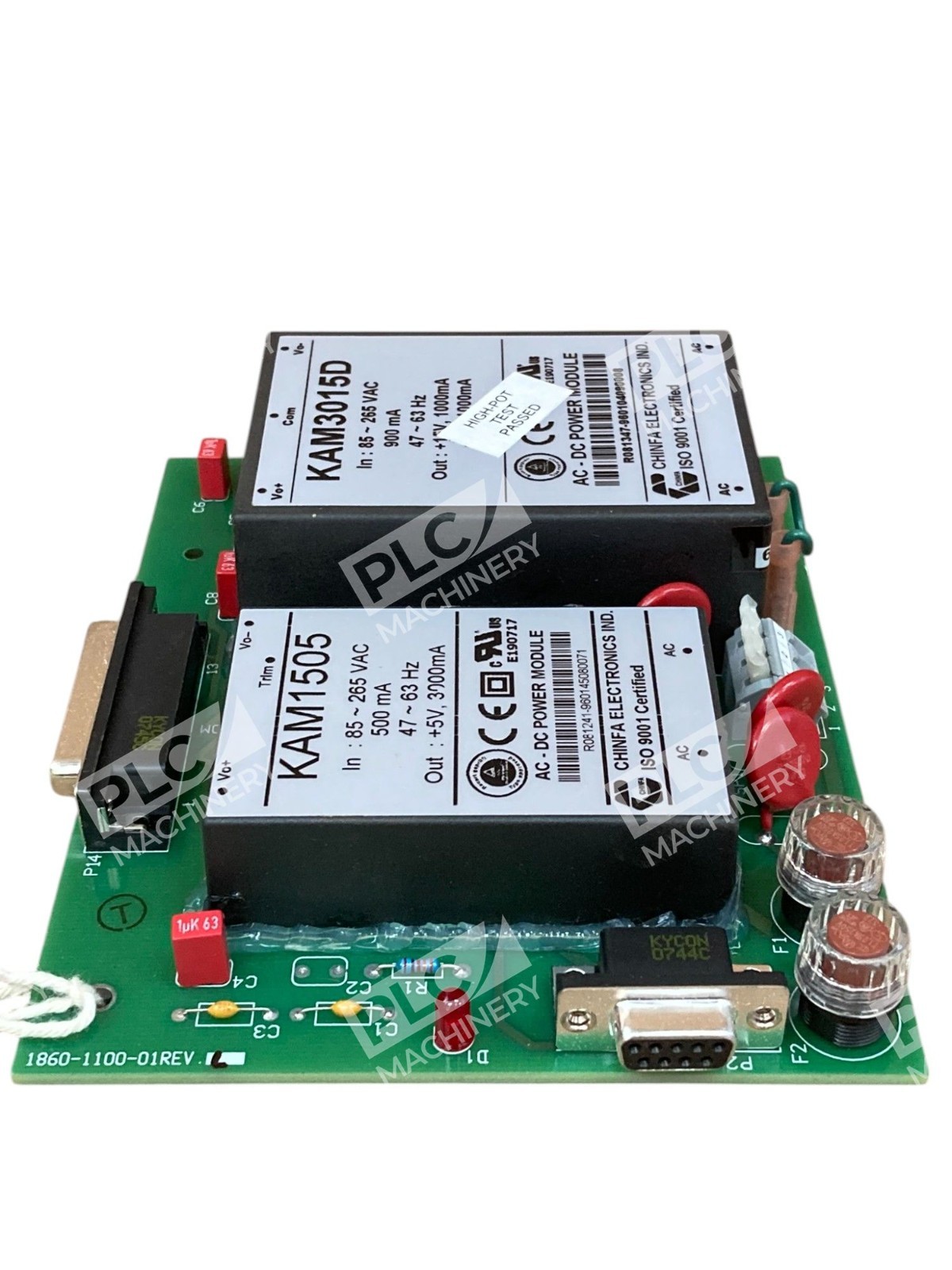

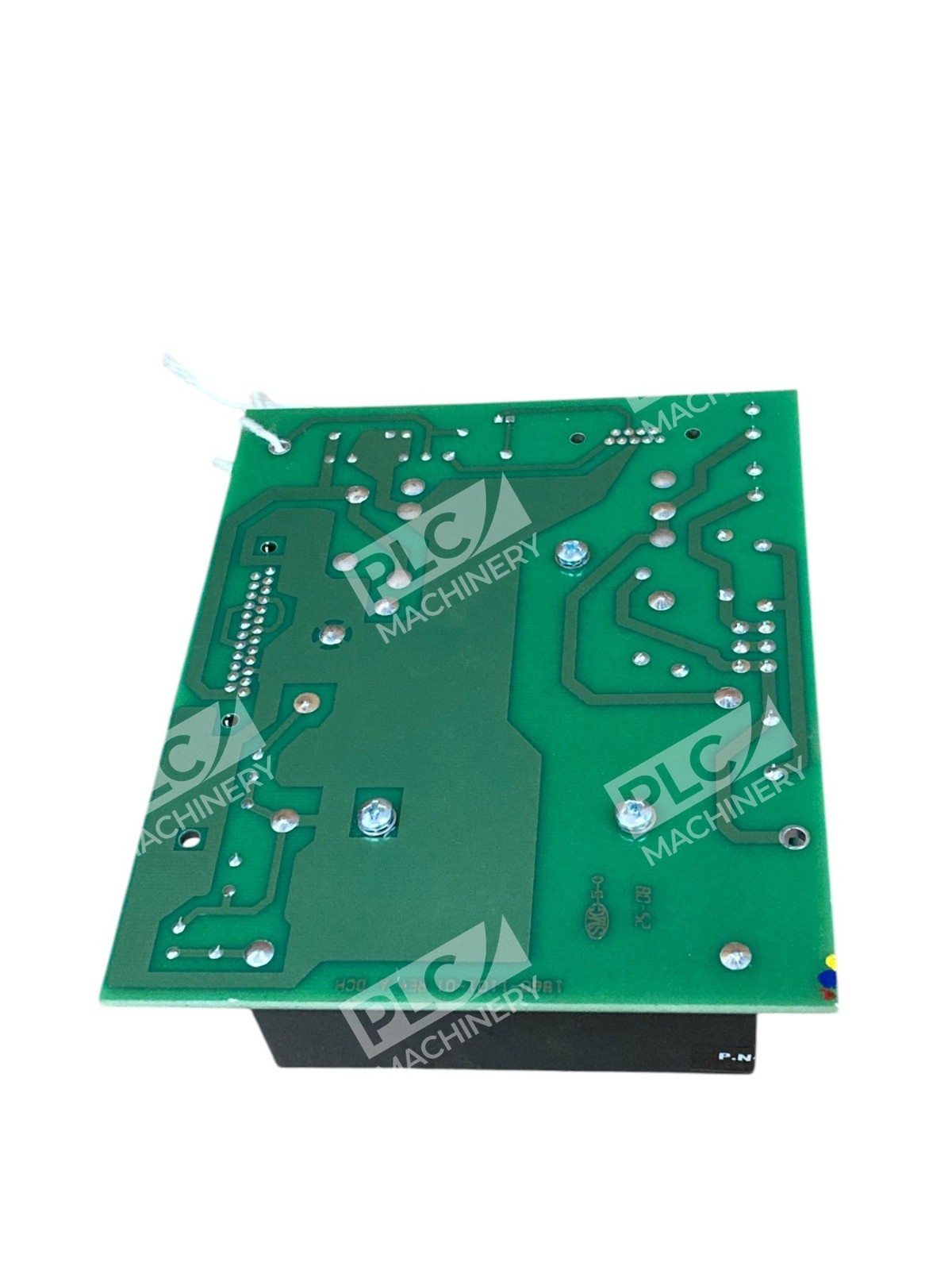

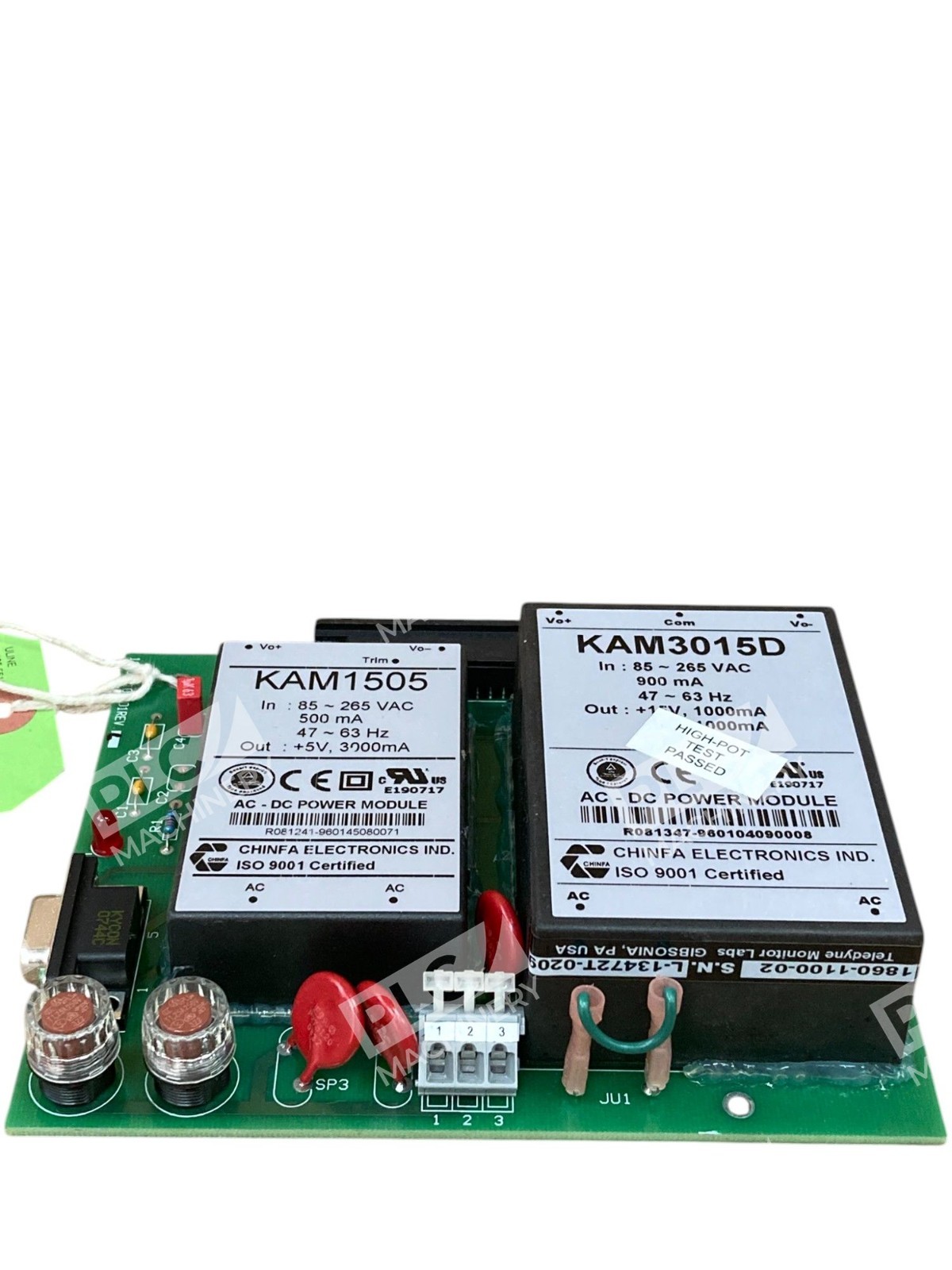

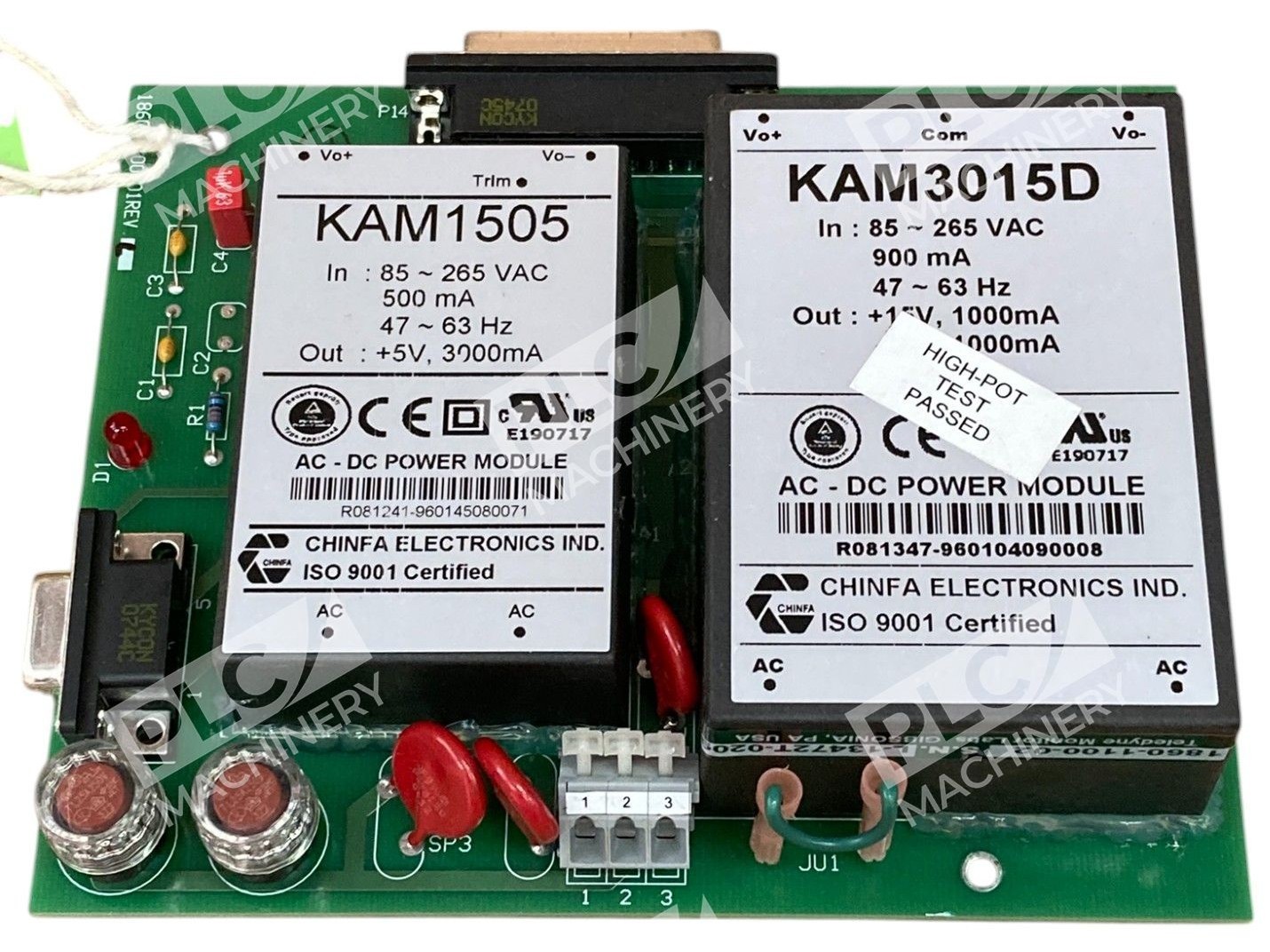

The Chinfa 1860-1100-01 power supply is a high-performance industrial AC-DC power conversion module manufactured by Chinfa Electronics (Teledyne subsidiary). This power supply is engineered to deliver stable, regulated power to programmable logic controller (PLC) systems, servo amplifiers, and motion control applications in factory automation environments. The 1860-1100-01 revision A variant (1860-1101-01) offers proven reliability across multiple industrial automation platforms.
Key Features
- AC-DC Conversion: Converts AC mains input to regulated DC output for reliable power delivery
- Industrial Grade: Designed for 24/7 operation in PLC and servo drive systems
- Compact Footprint: Efficient design suitable for panel mounting in control cabinets
- Multiple Revisions: Available in Rev A (1860-1101-01) and later revisions (Rev K, Rev L) for backward compatibility and upgrade flexibility
- Proven OEM Integration: Used in legacy and current-generation industrial control systems
Technical Specifications
Verify the following specifications with your system documentation or contact our technical team for model-specific details:
- Manufacturer: Chinfa Electronics / Teledyne
- Product Type: AC-DC Industrial Power Supply
- Application: PLC Systems, Servo Drives, Motion Control

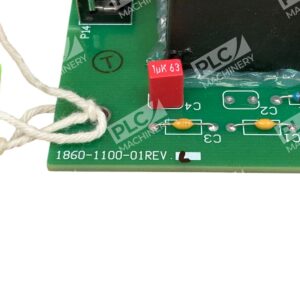

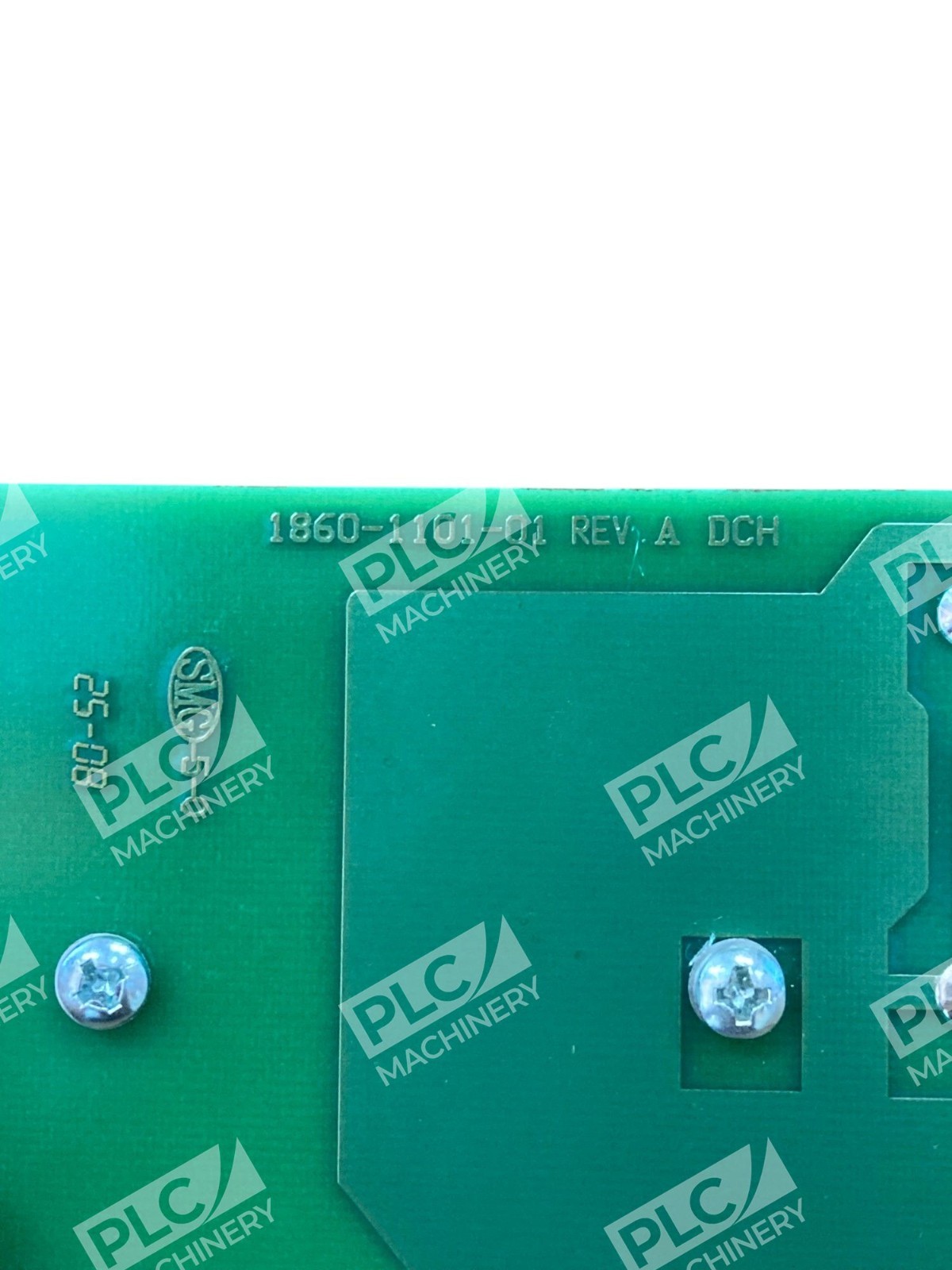

- Revision: Rev A (also identified as 1860-1101-01)
- Form Factor: Standard industrial DIN mount or panel mount configuration
- Status: New / No Box (Open Box condition)
Typical Applications
- Industrial PLC power supply modules
- Servo amplifier and drive power conditioning
- Motion control system power distribution
- Factory automation control cabinets
- Legacy system retrofit and maintenance
- Machinery and equipment control boards
Compatibility & Replacements
Compatible With
- Chinfa Electronics control and automation systems
- Standard industrial PLC platforms utilizing 24VDC or equivalent power architecture
- Servo drive systems requiring regulated DC supply input
- Industrial control cabinets with DIN rail or panel mounting infrastructure
- Verify specific voltage and current compatibility with your equipment before ordering
Replaces / Drop-In Replacement For
- 1860-1100-01 Rev L: Later revision of the same model line
- 1860-1100-01 Rev K: Compatible earlier revision
- Verify compatibility with your system integrator before ordering, as revision and voltage specifications must match your application.
Works With
- PLC automation control systems
- Industrial servo amplifiers and drives
- Motion control platforms
- Standard 24VDC automation architecture systems
- Industrial power distribution and UPS integration
