Overview

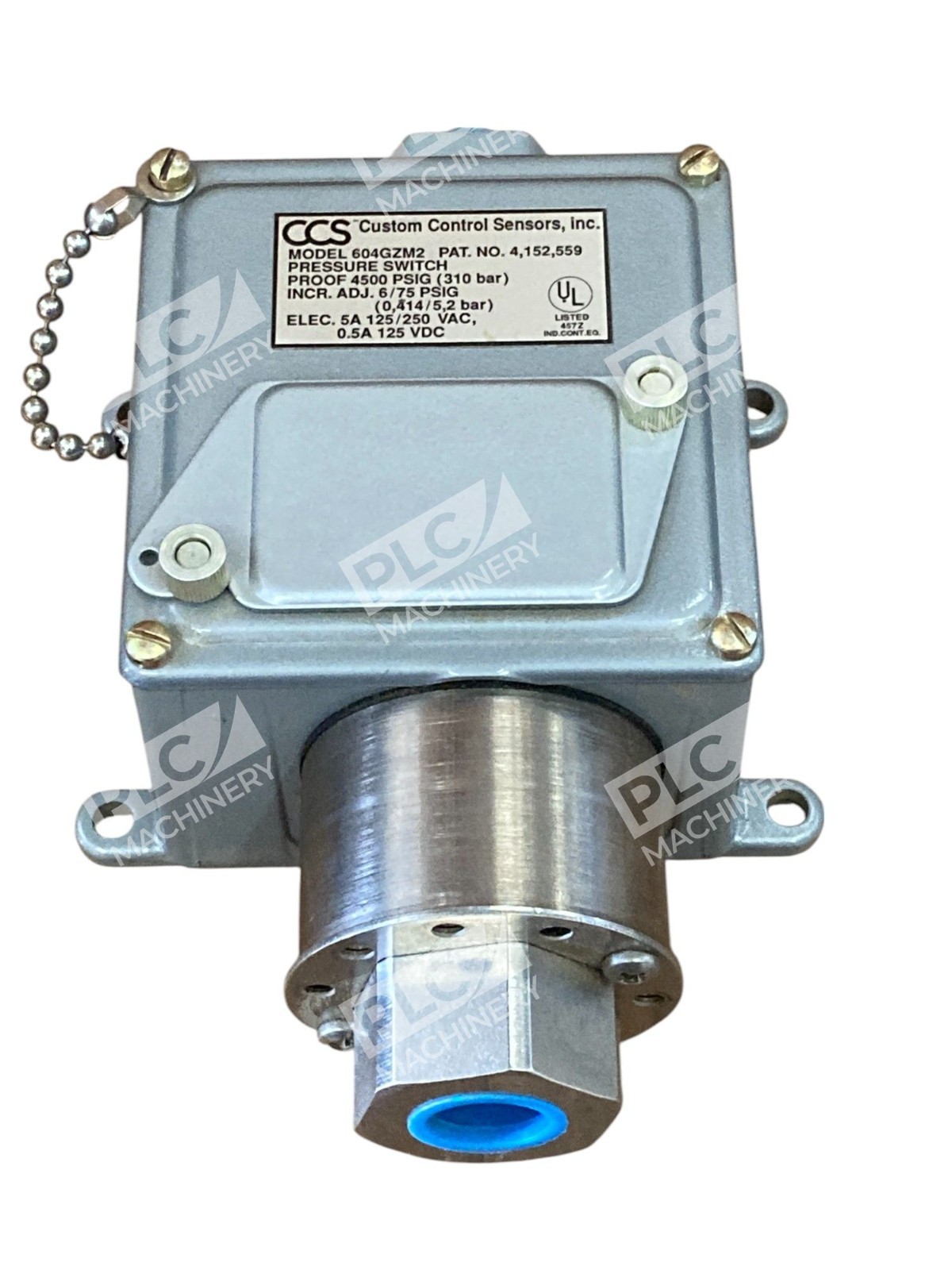

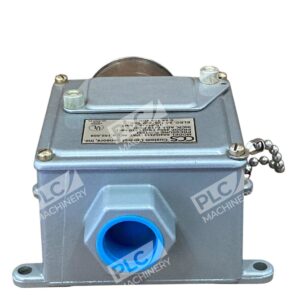

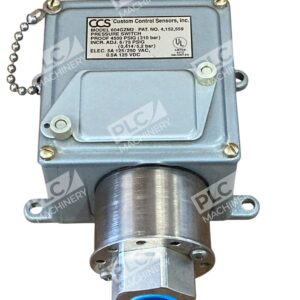

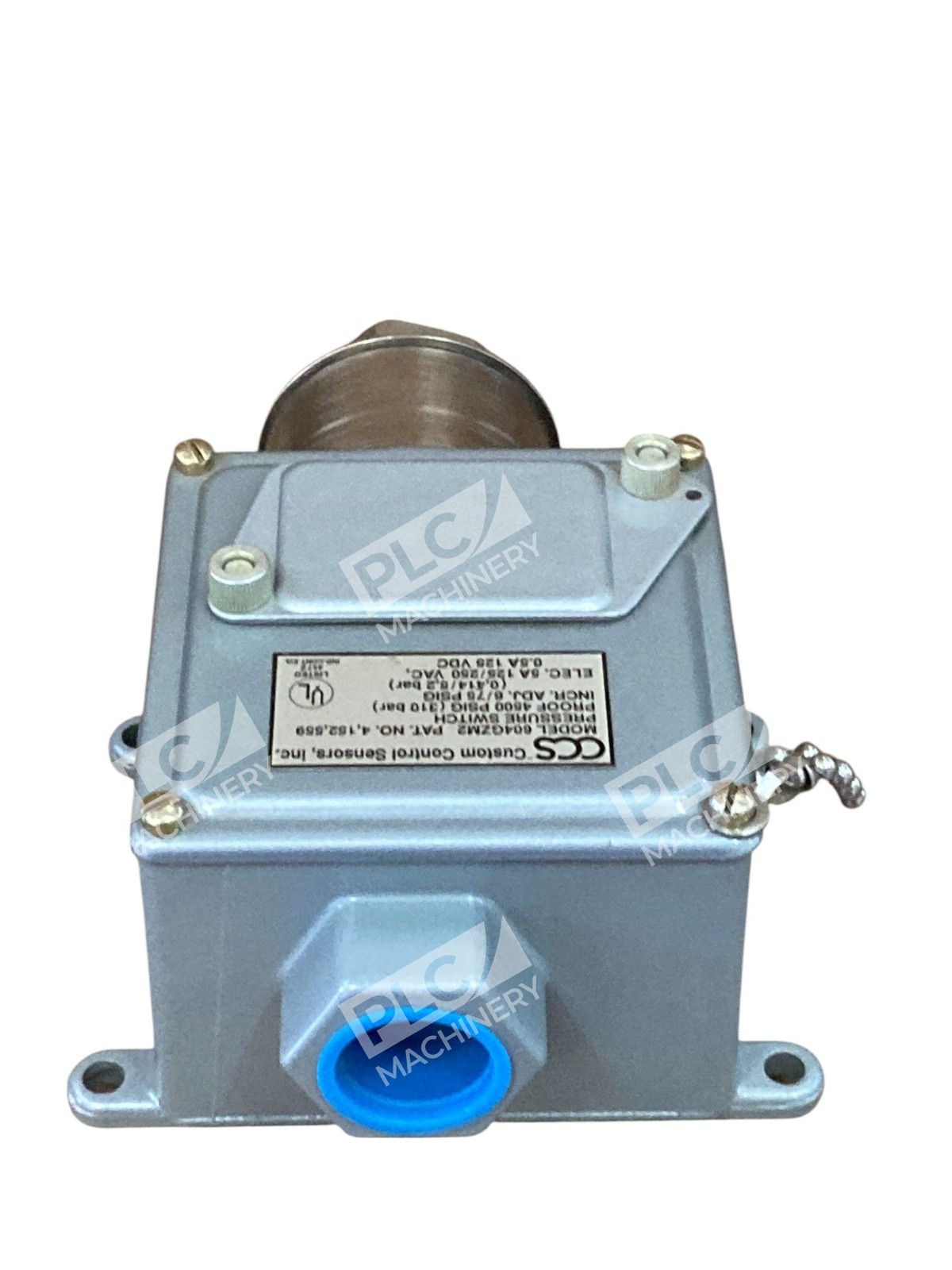

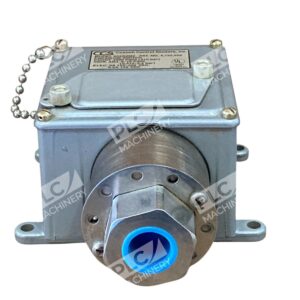

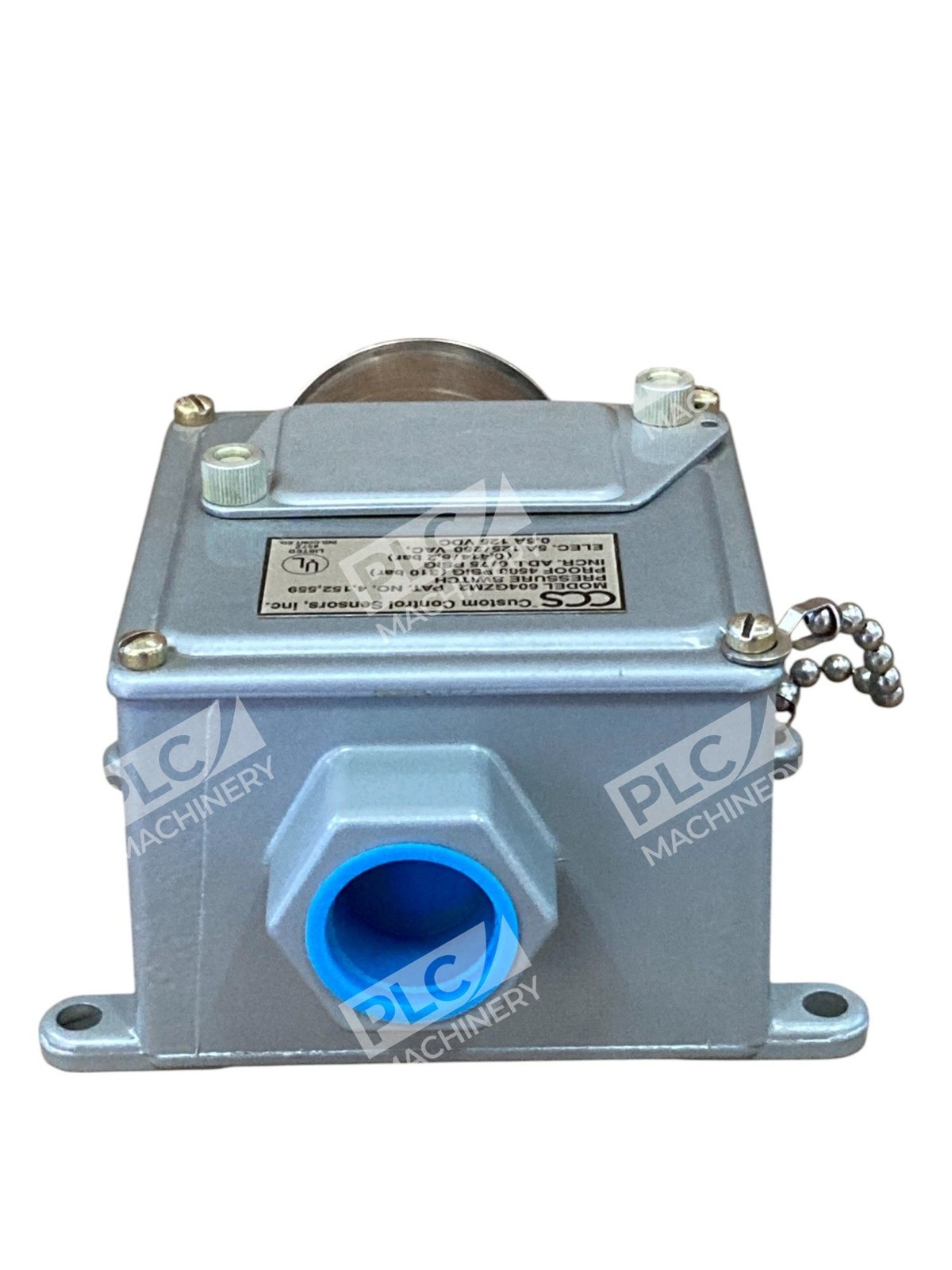

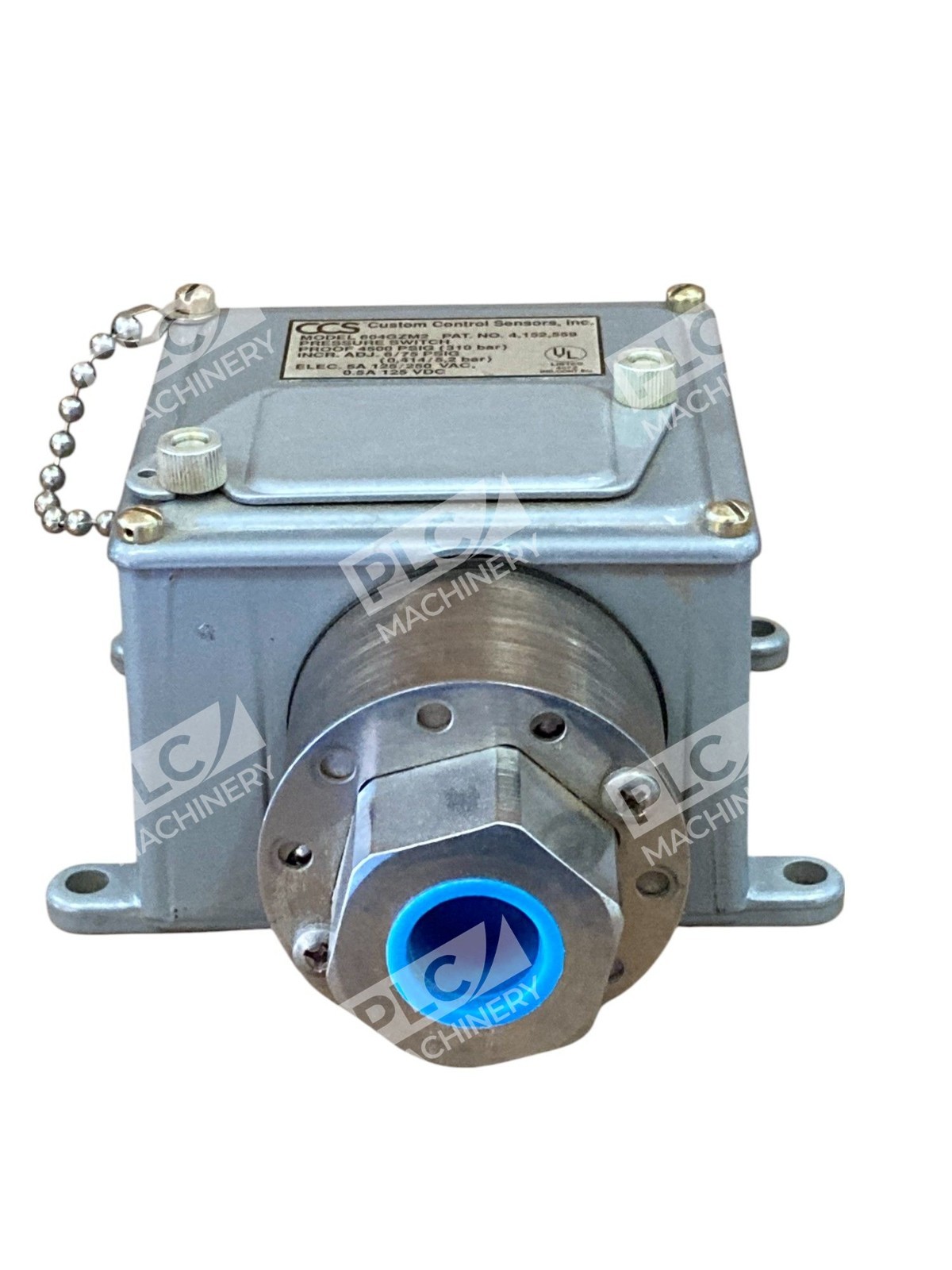

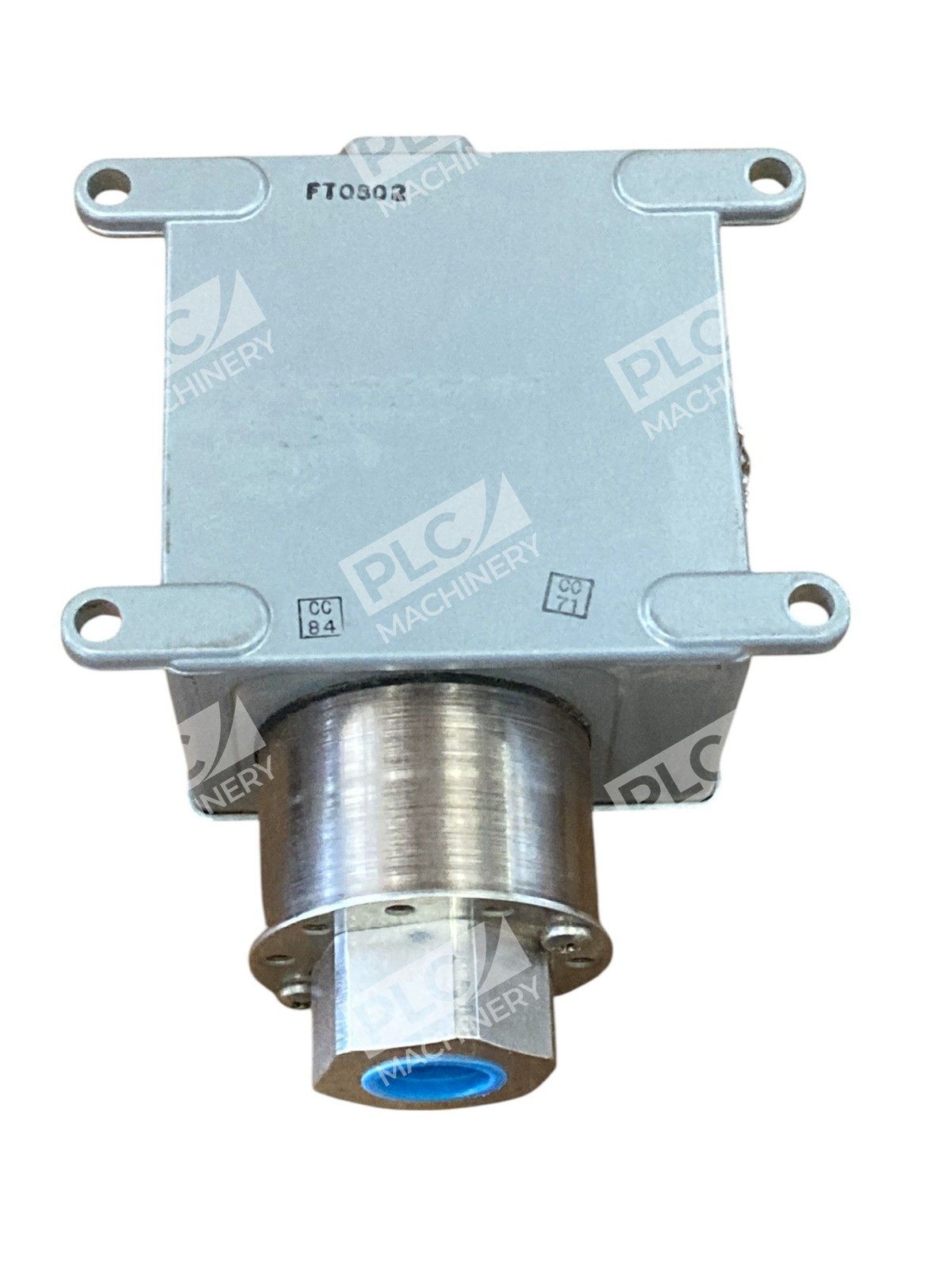

The CCS 604GZM2 is an adjustable diaphragm-type pressure switch engineered for industrial process control and monitoring. It combines Dual-Snap® disc spring technology with a robust design for applications demanding high reliability and vibration resistance. With a 4500 PSIG proof rating and field-adjustable setpoints from 6 to 75 PSIG, this switch delivers stable, repeatable performance across demanding environments.
Key Features
- Dual-Snap® Belleville disc spring mechanism: Pioneered by CCS, this technology ensures crisp switching action and extends cycle life by reducing premature wear.
- Field-adjustable pressure range: 6–75 PSIG setpoints with calibrated adjustment wheel for easy on-site commissioning.
- High proof rating: 4500 PSIG proof rating handles system spikes and transients.
- NEMA 4 / IP65 enclosure: UL-listed design protects against dust and water ingress, suitable for washdown and outdoor environments.
- Vibration and shock resistant: Integral design minimizes false switching from mechanical disturbance.
- High cycle life: Robust contacts and spring mechanism support extended operational life.

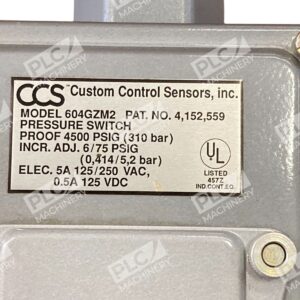

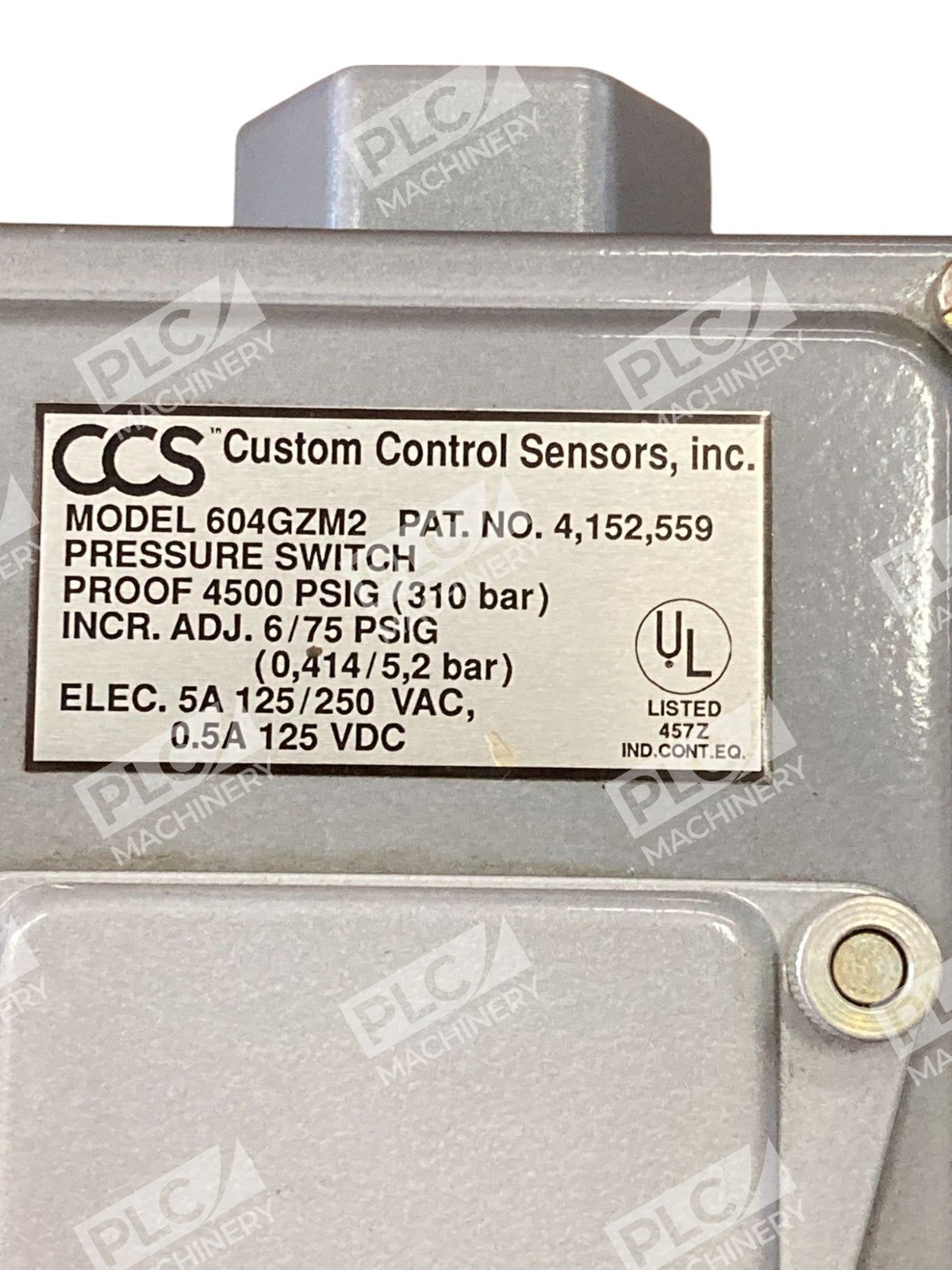

Technical Specifications
- Setpoint Range: 6–75 PSIG (adjustable)
- Proof Rating: 4500 PSIG
- Contact Rating: 5 A at 250 VAC / 0.5 A resistive load minimum
- Switch Type: SPDT (Single Pole Double Throw)
- Electrical Connection: Integral terminal box with screw terminals
- Port: Female 3/4″ NPT
- Sensor Type: Diaphragm (metal, non-conductive)
- Certifications: UL-listed (File No. E72038), NEMA 4, IP65
- Operating Temperature: −40 to +250 °F (O-ring dependent)
- Weight: Approximately 2–3 lbs
- Material (Wetted Parts): Stainless steel, aluminum, elastomers (Buna-N standard)
Typical Applications
- Pump discharge or suction pressure monitoring
- Hydraulic system pressure control and protection
- Air compressor unload and load control
- Industrial process pressure monitoring and alarm
- Equipment shutdown on overpressure condition
- Washdown and outdoor industrial environments (NEMA 4 / IP65 rating)
Compatibility & Replacements
Compatible With
- Industrial PLC and relay control systems (24 VDC to 250 VAC logic)
- Pneumatic and hydraulic systems operating 6–75 PSIG
- Panel-mount and field-mount installations via 3/4″ NPT port
- Standard industrial electrical enclosures (screw-terminal wiring)
Replaces / Drop-In Replacement For
- CCS 604G and 604G2 variants in similar pressure ranges
- Other CCS 604-series diaphragm pressure switches with matching 6–75 PSIG setpoint
- Legacy diaphragm switches in equivalent 4500 PSIG proof-rated applications
Works With
- Industrial SCADA and DCS systems via discrete 24 VDC / 120 VAC logic inputs
- Pneumatic control circuits (pilot-operated and direct-acting regulators)
- Hydraulic manifolds with standard NPT porting
- Hardwired relay and contactor circuits (not fieldbus—discrete switching only)
