Overview

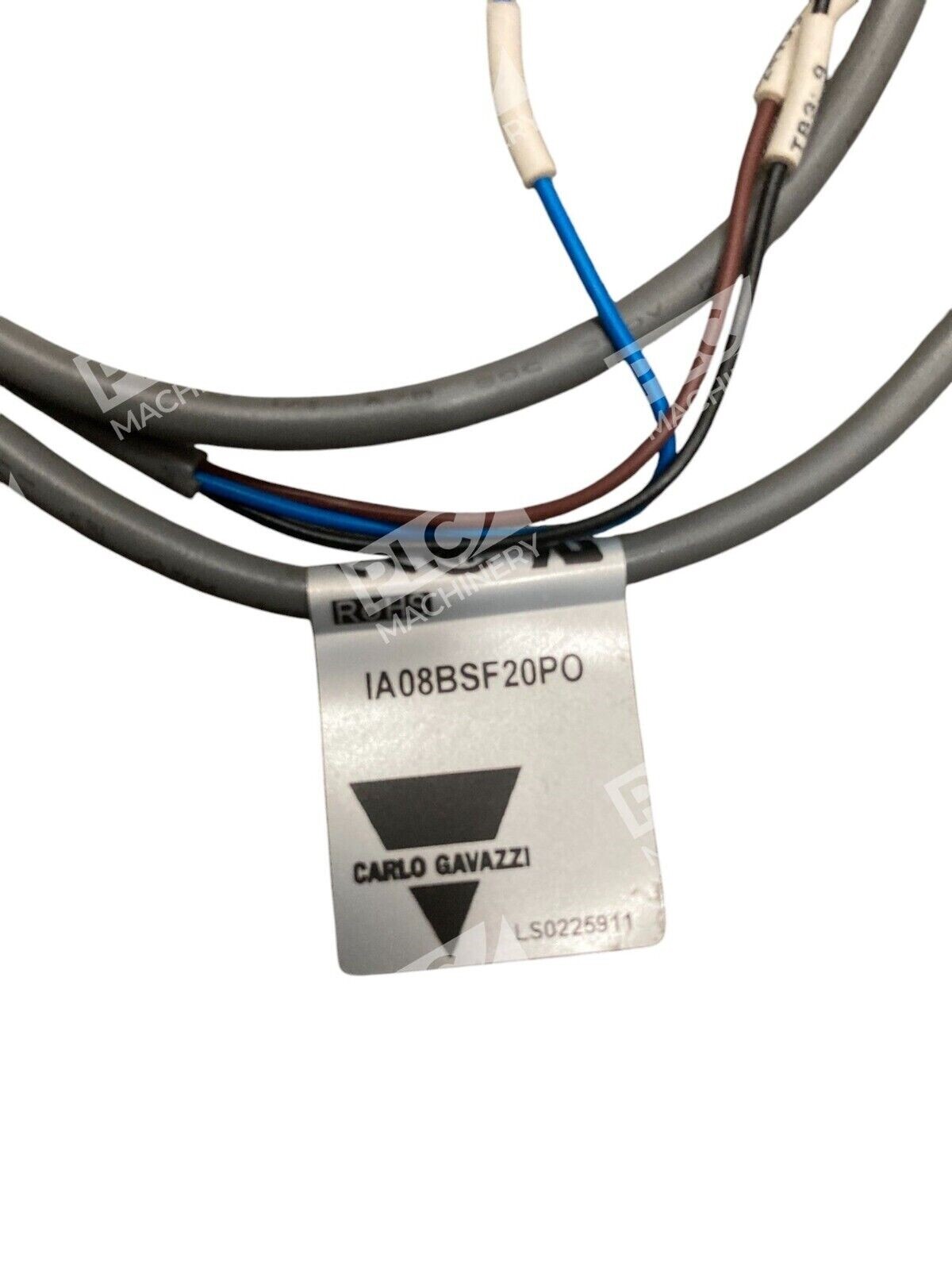

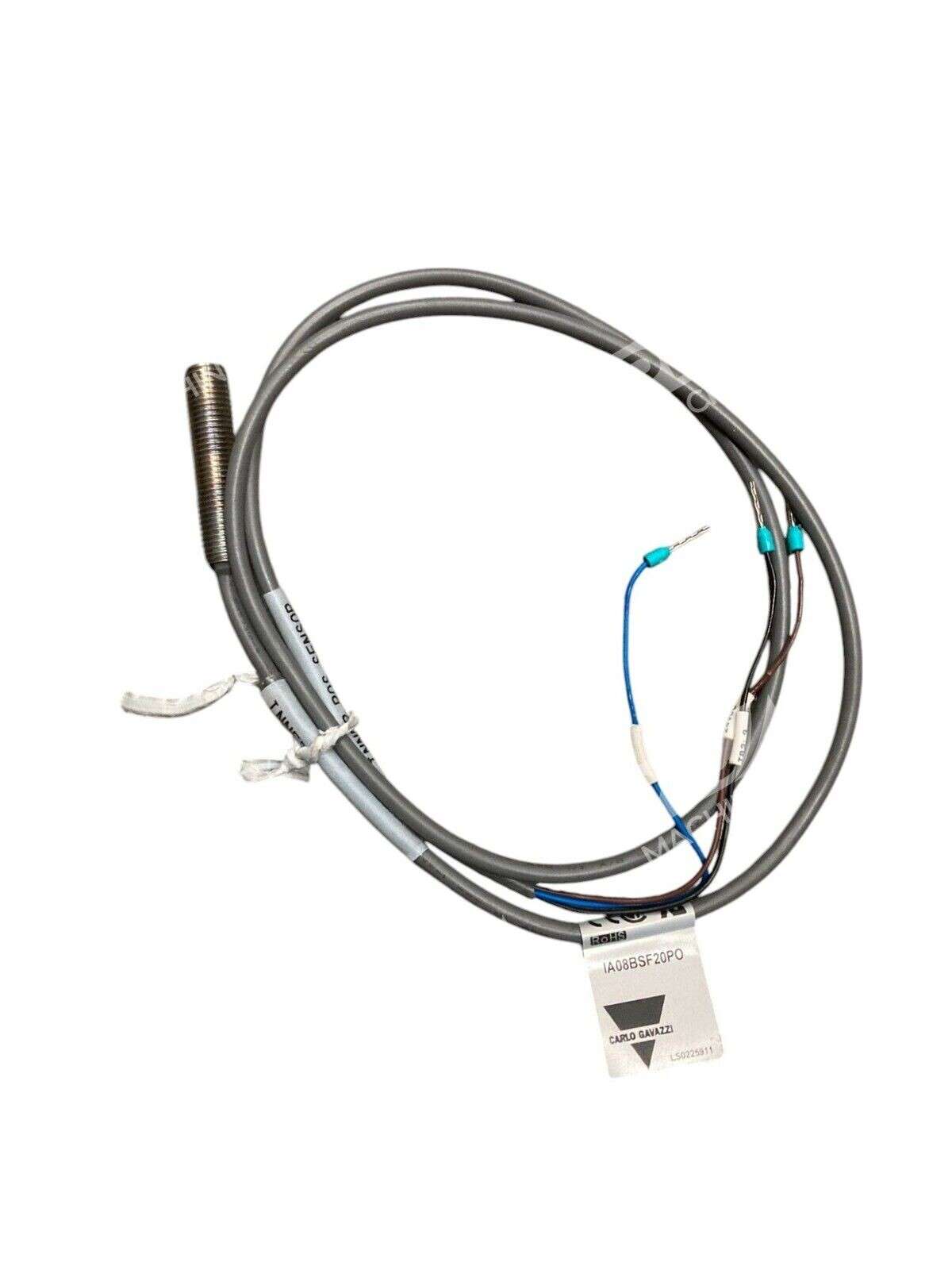

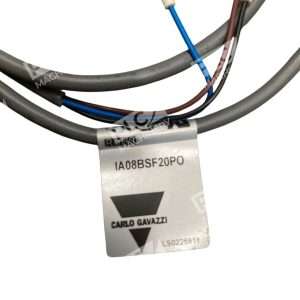

The Carlo Gavazzi IA08BSF20PO is a short body inductive proximity sensor designed for industrial automation and control applications. Inductive proximity sensors detect metallic objects (both ferrous and non-ferrous metals) by creating a magnetic field that is disrupted by the presence of metal, which is detected by the evaluation circuit. The IA08 series delivers contactless metal detection essential for machinery position monitoring, part counting, and safety interlock applications.
Key Features
- M8 stainless steel housing with integral PVC cable connection
- Output configurations include NPN/PNP transistor with both NO (normally open) and NC (normally closed) options
- RoHS-compliant for environmentally responsible manufacturing
- IP67 rated for protection against dust and washdown spray
- Compact short-body design for tight mounting spaces
- Designed to withstand the rigours of demanding industrial applications with over 40 years of engineering experience
Technical Specifications
The Carlo Gavazzi IA08BSF20PO proximity sensor operates across a wide industrial voltage range with high-speed switching capabilities suitable for modern automated systems.
Typical Applications
- Machinery position detection and end-of-stroke monitoring
- Part presence/absence detection in conveyor and assembly systems
- Automated process control and sequencing
- Safety interlocks and gate position sensing
- Pneumatic and hydraulic cylinder position feedback
- Material handling equipment and robotics
Compatibility & Replacements
Compatible With
- PLC and controller discrete input modules (24 VDC, 5-24 VDC common systems)
- Industrial automation networks requiring contact-free sensing
- Motor starter and relay control systems
- Safety control systems and emergency stop circuits
- Automated machinery control cabinets
Replaces / Drop-In Replacement For
The Carlo Gavazzi IA08 series serves as a direct replacement for other M8 inductive sensors with matching voltage/output specifications. Verify exact model compatibility with your system integrator before ordering, as output type (NPN/PNP) and function (NO/NC) must match your controller configuration.
Works With
- Allen-Bradley PLCs and discrete I/O modules
- Siemens SIMATIC controllers and input terminals
- Mitsubishi, Omron, and other industrial PLC platforms
- Standard 24 VDC control power supplies
- Safety-rated control circuits (where applicable)
- Hardwired relay logic and conventional motor control
