Overview

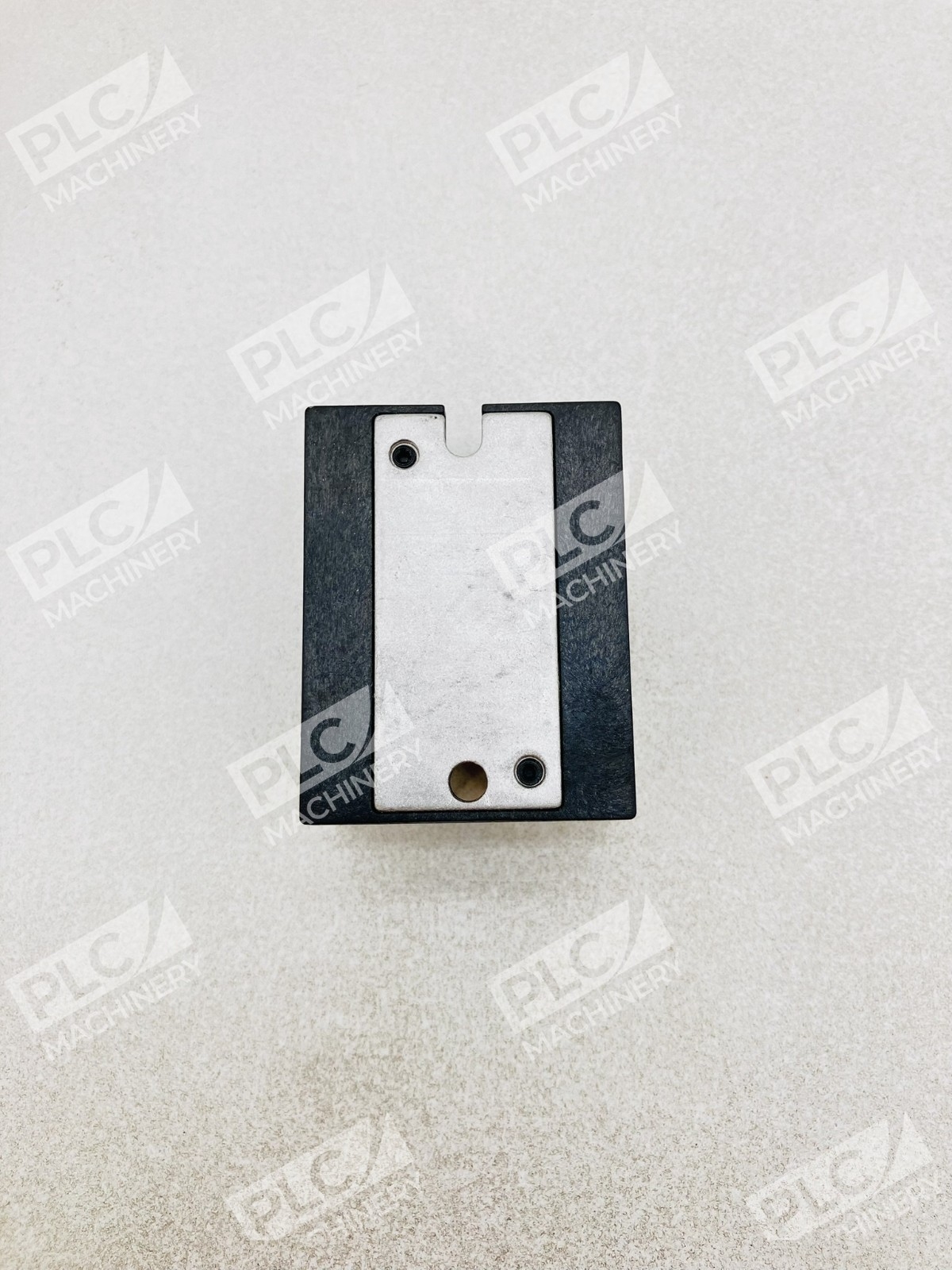

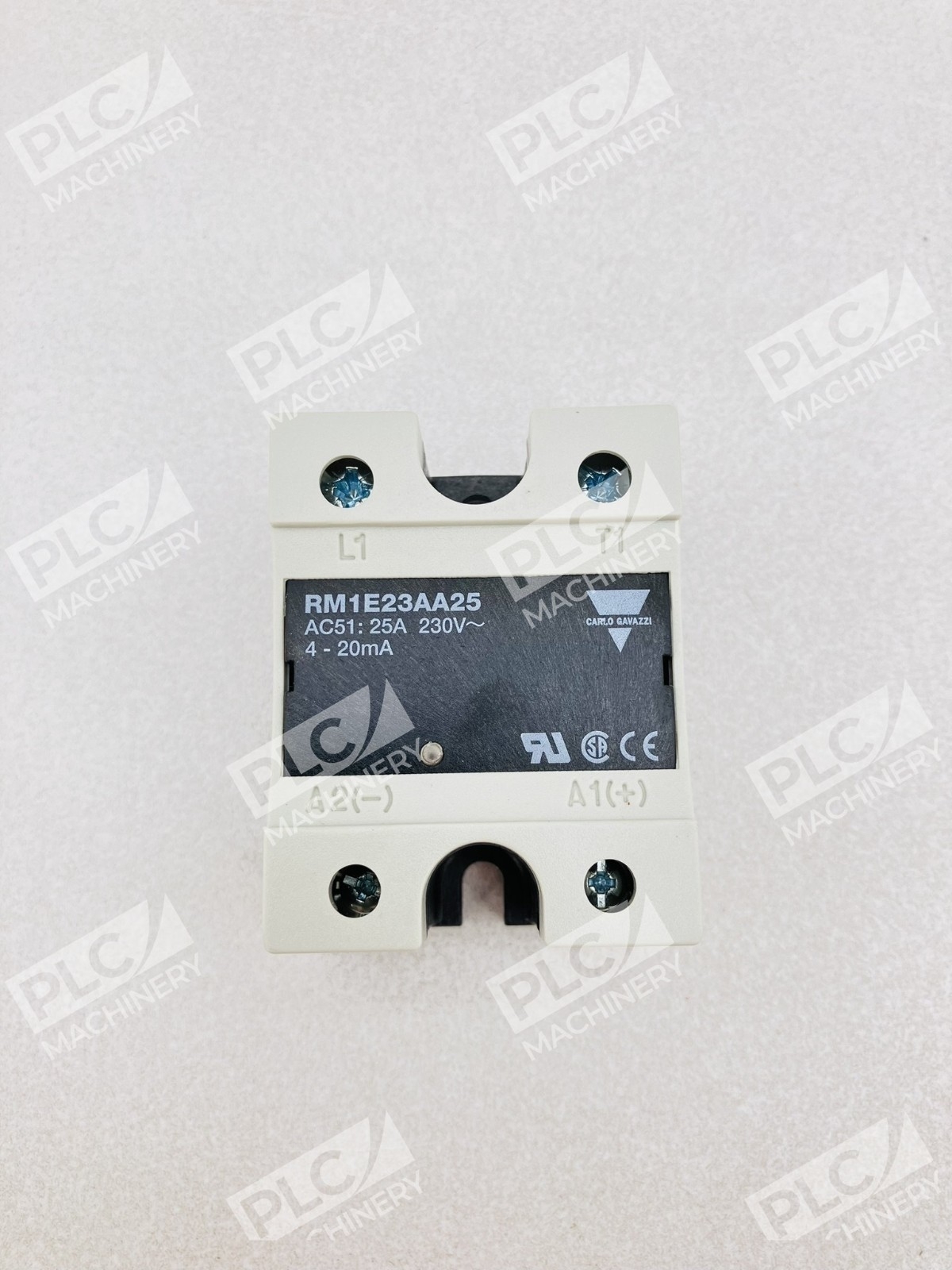

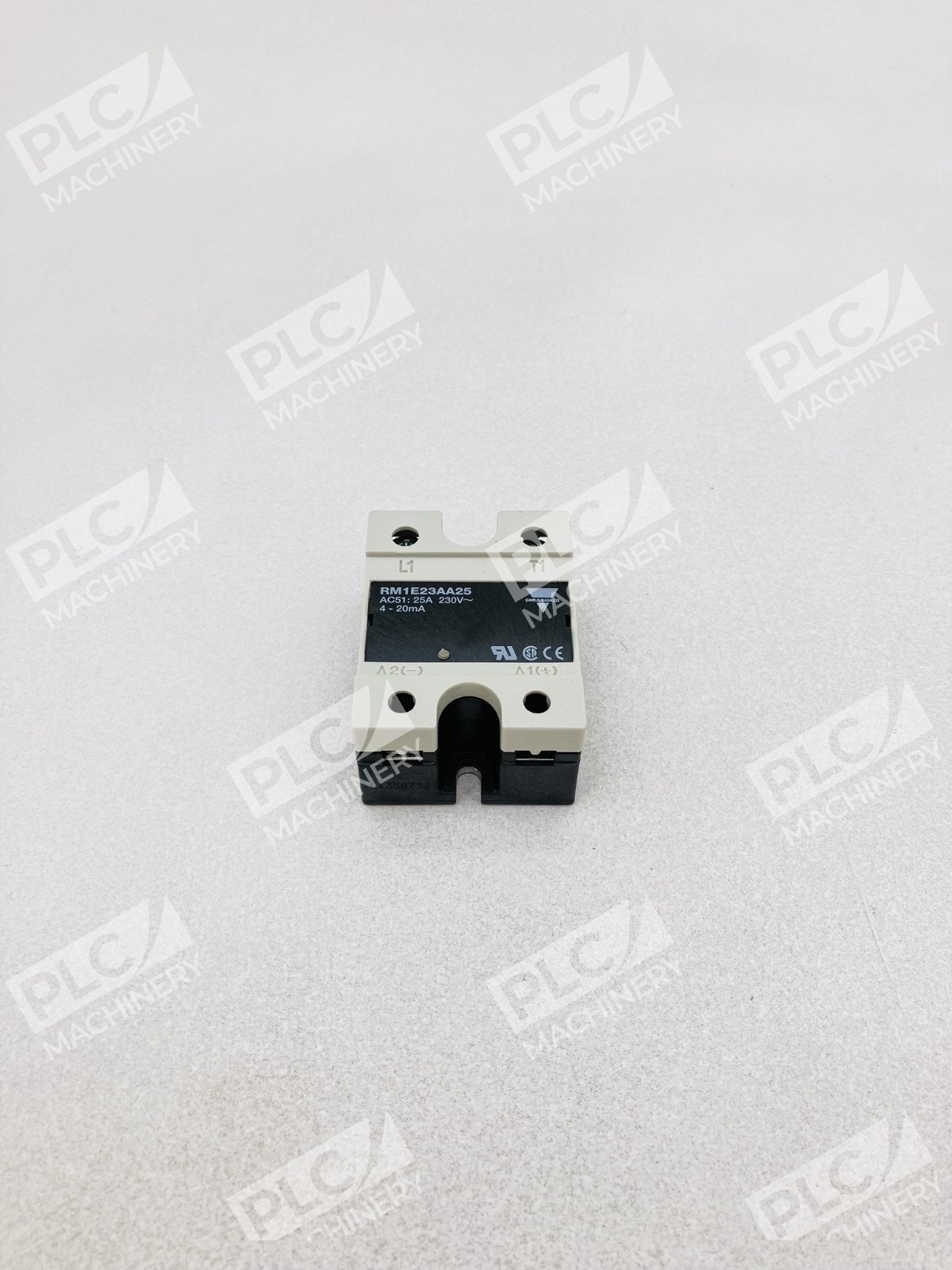

The Carlo Gavazzi RM1E23AA25 is a 1-pole, panel-mount analog switching solid state relay designed for proportional load control in industrial automation and process control applications. Operating voltage ranges from 90–280 VAC, with a rated current of 25 A AC and 4–20 mAdc analog input. This SSR employs phase-angle control technology to deliver smooth, variable power modulation without mechanical contact bounce or wear.
Key Features
- 1-pole AC solid-state relay in the RM series
- Analogue switching via phase angle control principle; output switching point depends on control input (4–20mA or 0–10VDC)
- 4mA or 0VDC corresponds to zero output power; 20mA or 10VDC corresponds to full output power with near-linear response
- Integral snubber network and polarized lockable control connector for safe connection in voltage-controlled version
- Built-in overvoltage protection

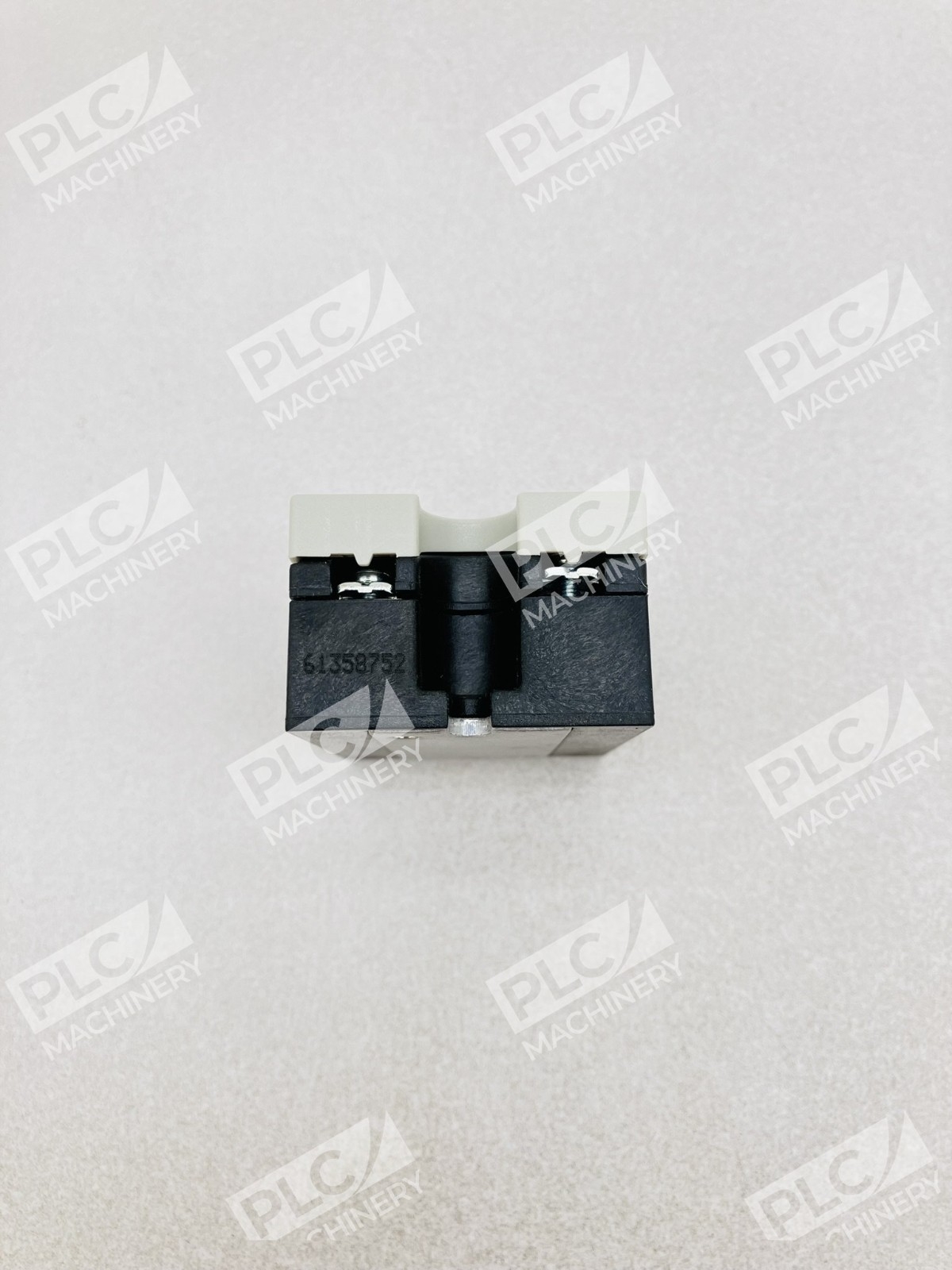

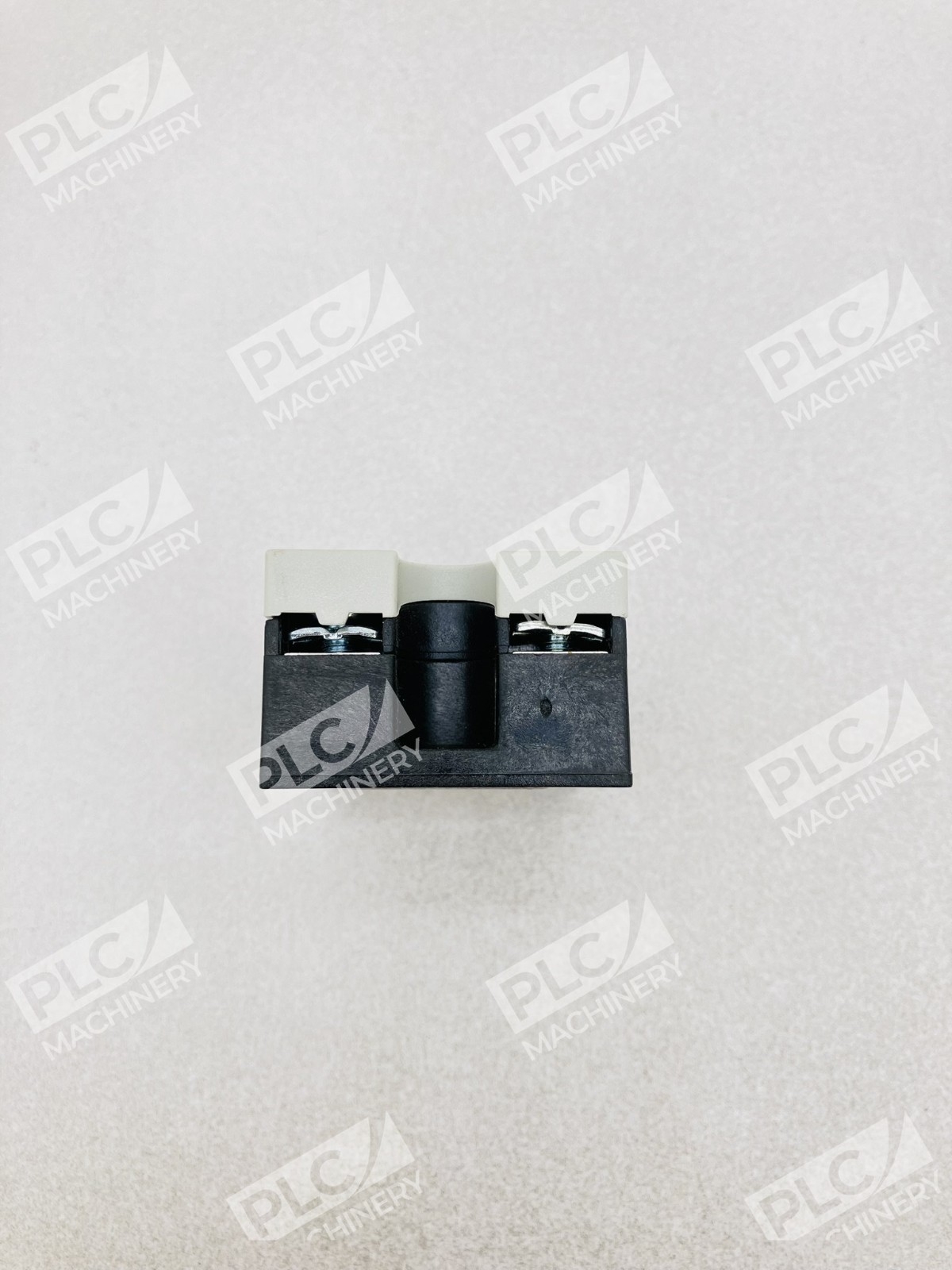

- Panel-mount design with screw-type power terminals
Technical Specifications
- Rated Output Current: 25 A AC
- Operating Voltage: 90–280 VAC (650 Vp peak)
- Control Input: 4–20 mAdc
- Switching Mode: Phase angle control (analogue/proportional)
- Contact Configuration: SPST (Single Pole Single Throw)
- Mounting: Panel mount
- Power Terminals: Screw with captive clamp
- Control Connector: Polarized lockable type
- Internal Protection: Integral snubber network and overvoltage protection
- Weight: 77.16 g
Typical Applications
These relays offer analog switching (phase-angle control) for resistive and slightly inductive load applications. Common uses include:
- Heaters, lighting, and slightly inductive loads such as small fans
- Soft turn-on of high-power incandescent lamps
- Process temperature control
- Power regulation and load dimming
- Industrial HVAC and thermal equipment
Compatibility & Replacements
Compatible With
- Industrial PLC analog control outputs (0–10VDC or 4–20mA)
- Variable frequency drives and soft starters
- Temperature controllers with analog 4–20mA or 0–10VDC outputs
- Motion control systems requiring proportional load switching
- Building automation and HVAC control systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The RM1E23AA25 is part of the Carlo Gavazzi RM1E series and may directly replace other 25A phase-angle analog SSRs in similar form factors; however, always confirm pin configuration and control voltage specifications with the original equipment documentation.
Works With
- Allen-Bradley CompactLogix, ControlLogix (with analog output modules)
- Siemens S7-1200, S7-1500 (with analog output cards)
- Mitsubishi FX and Q series PLCs
- Omron CP1L, CJ2M controllers
- Any PLC or controller with 4–20mA or 0–10VDC analog outputs
- Industrial process control and data acquisition systems
