Overview

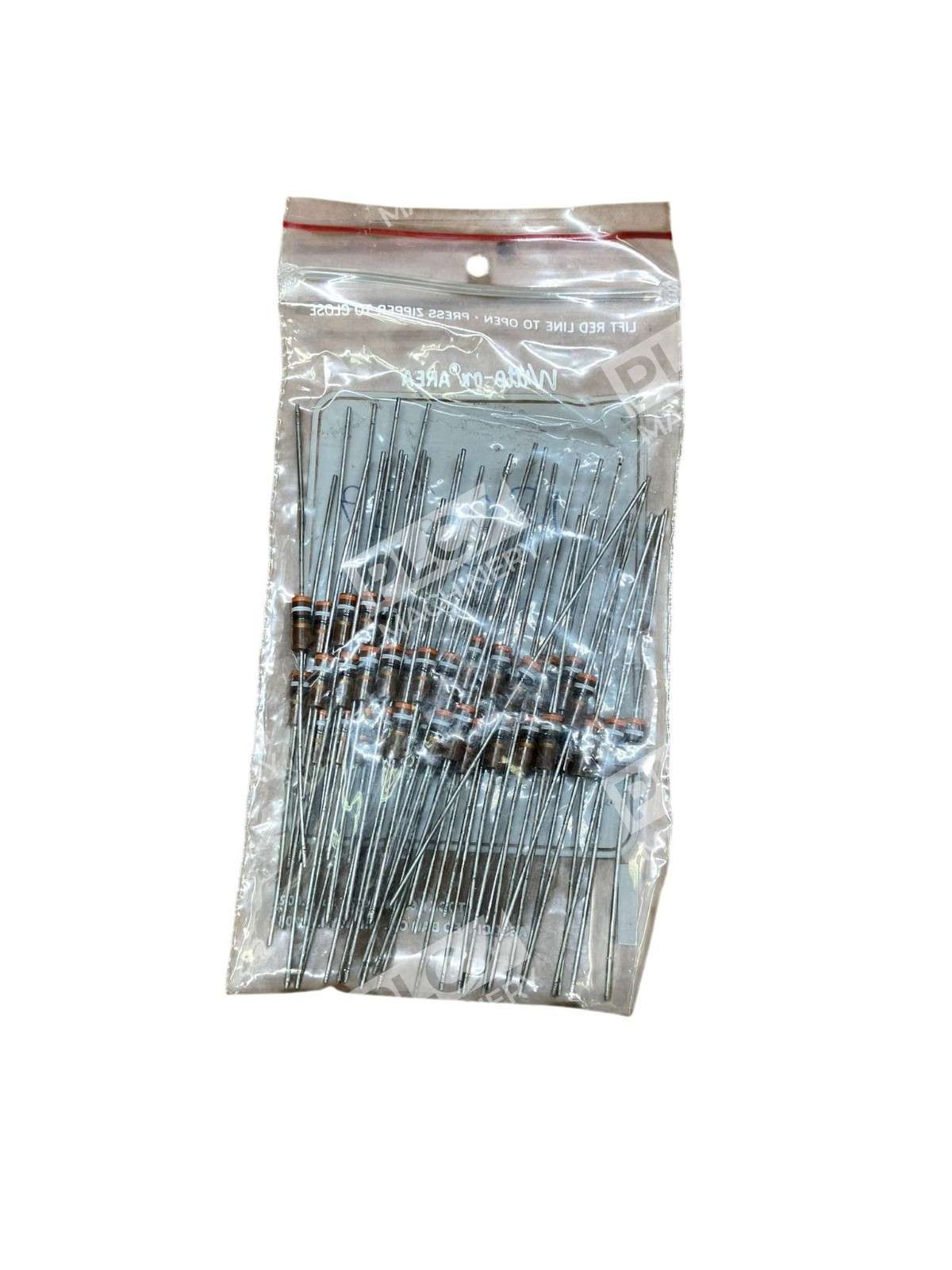

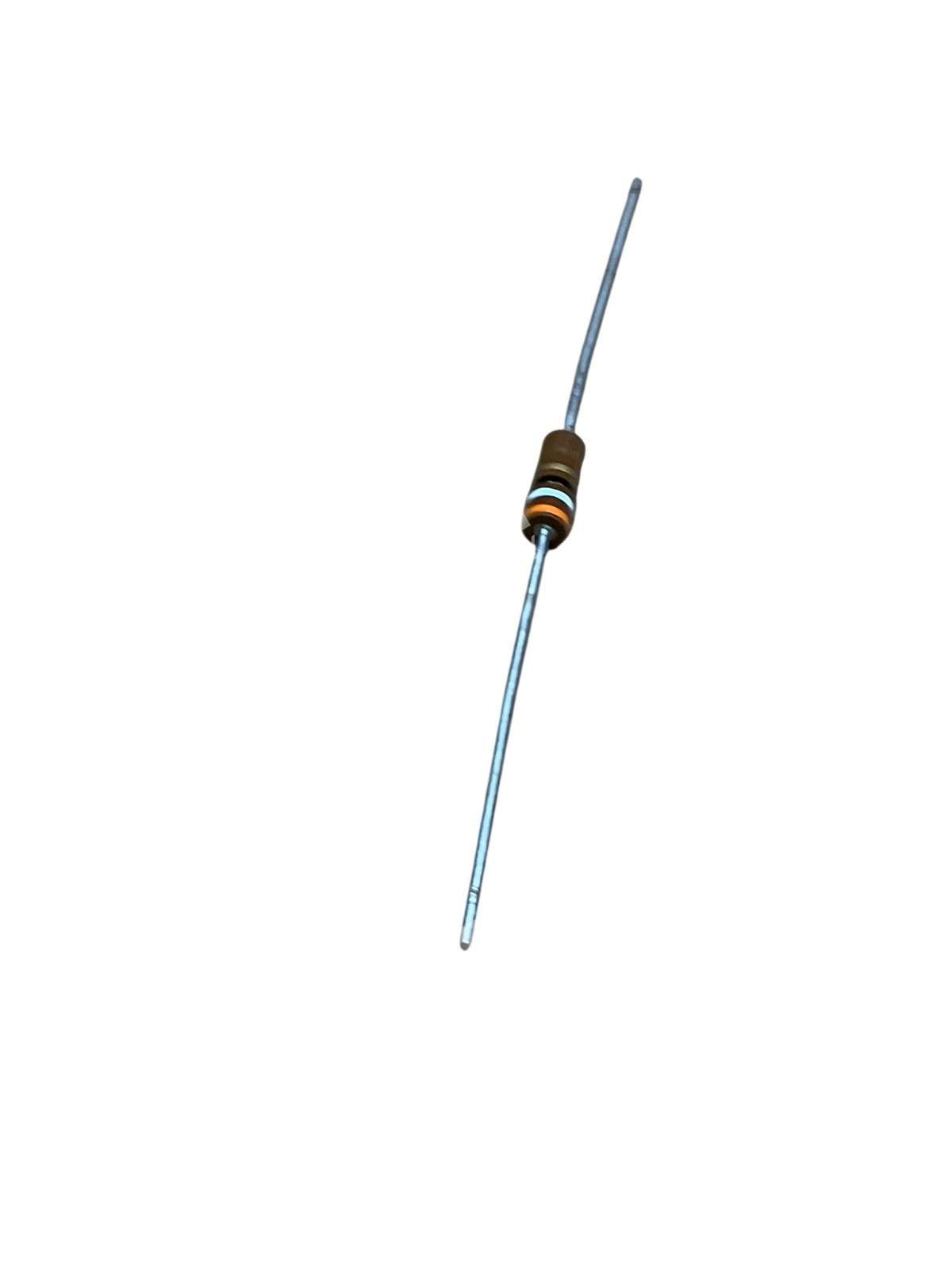

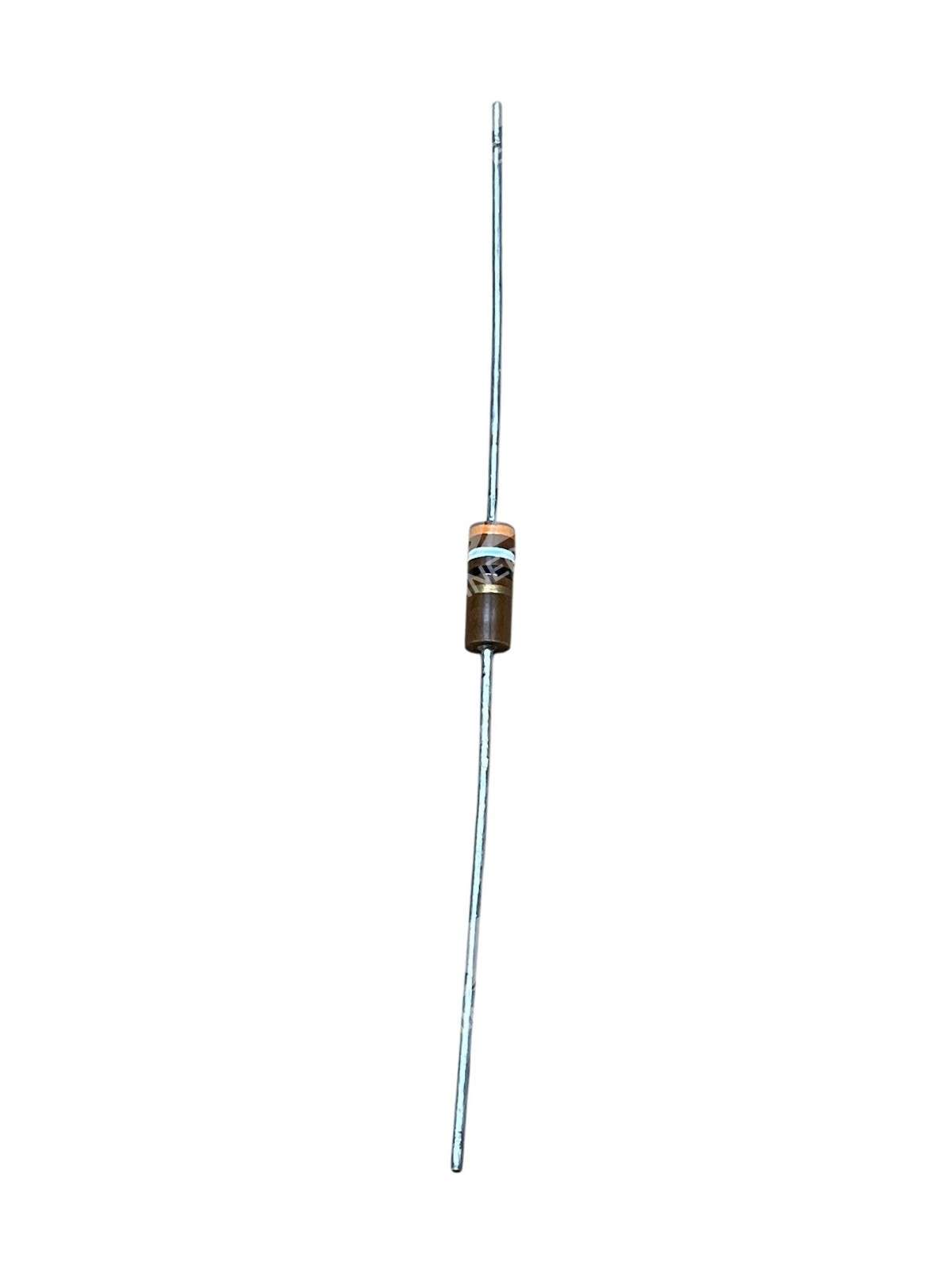

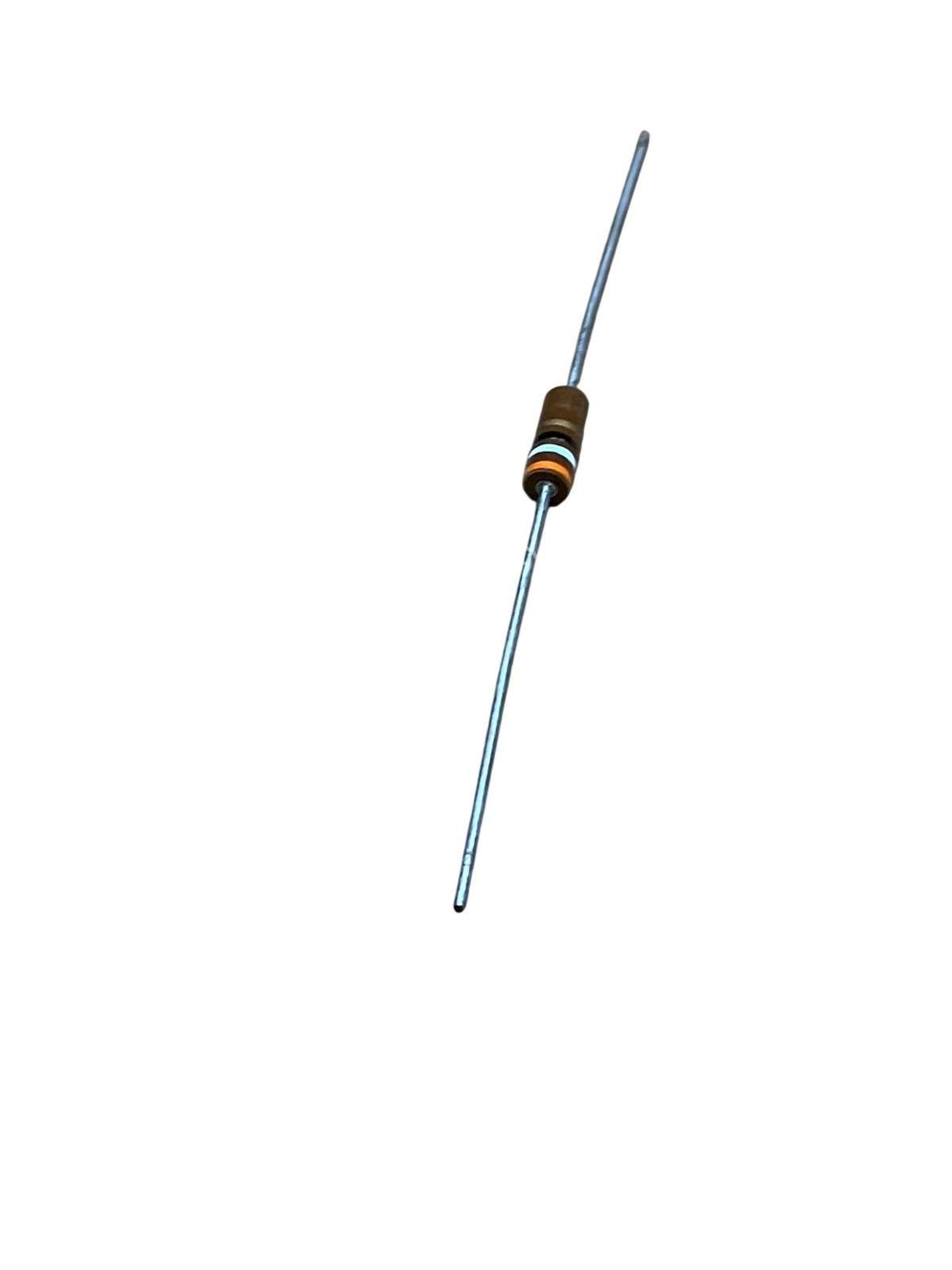

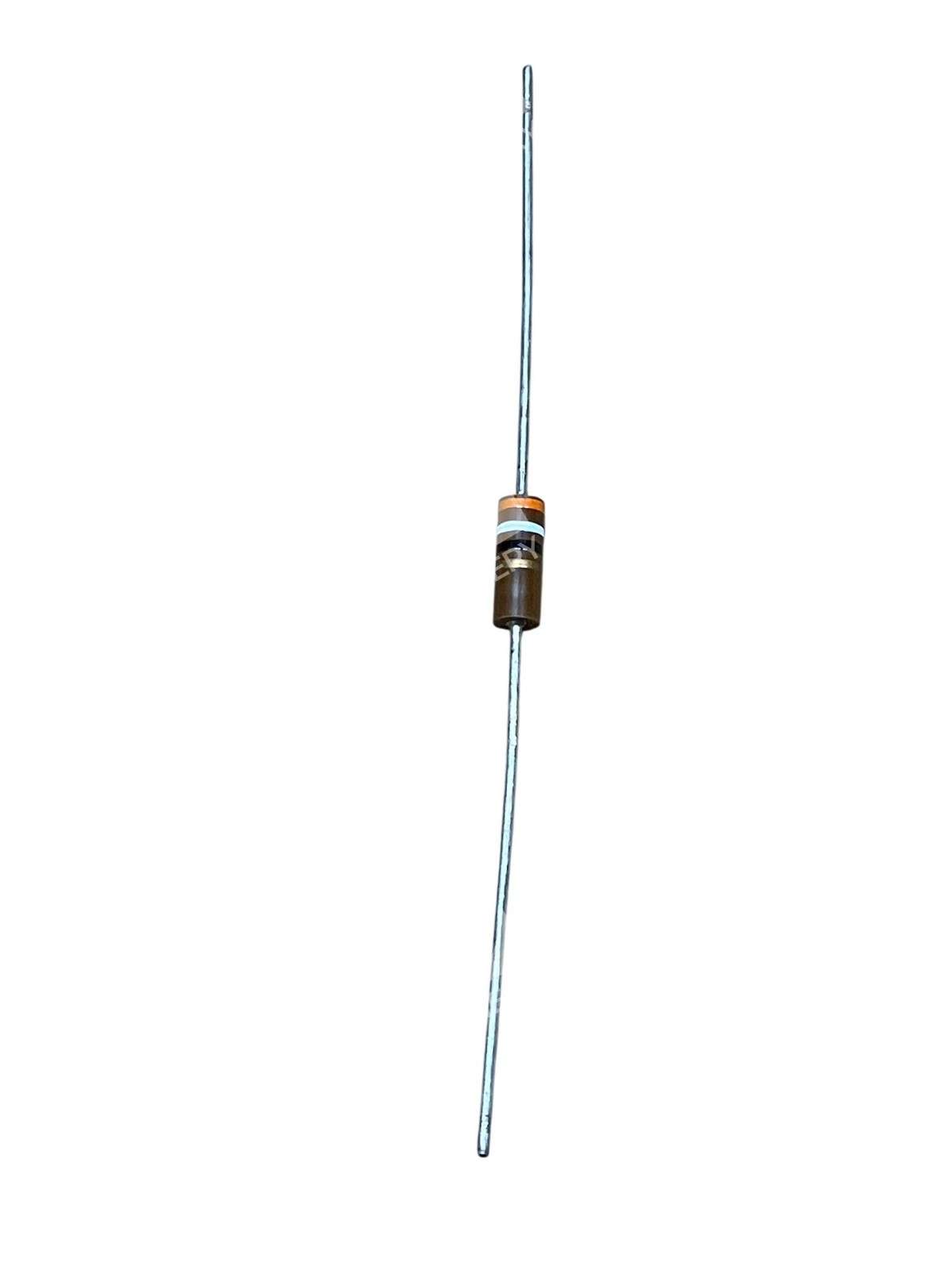

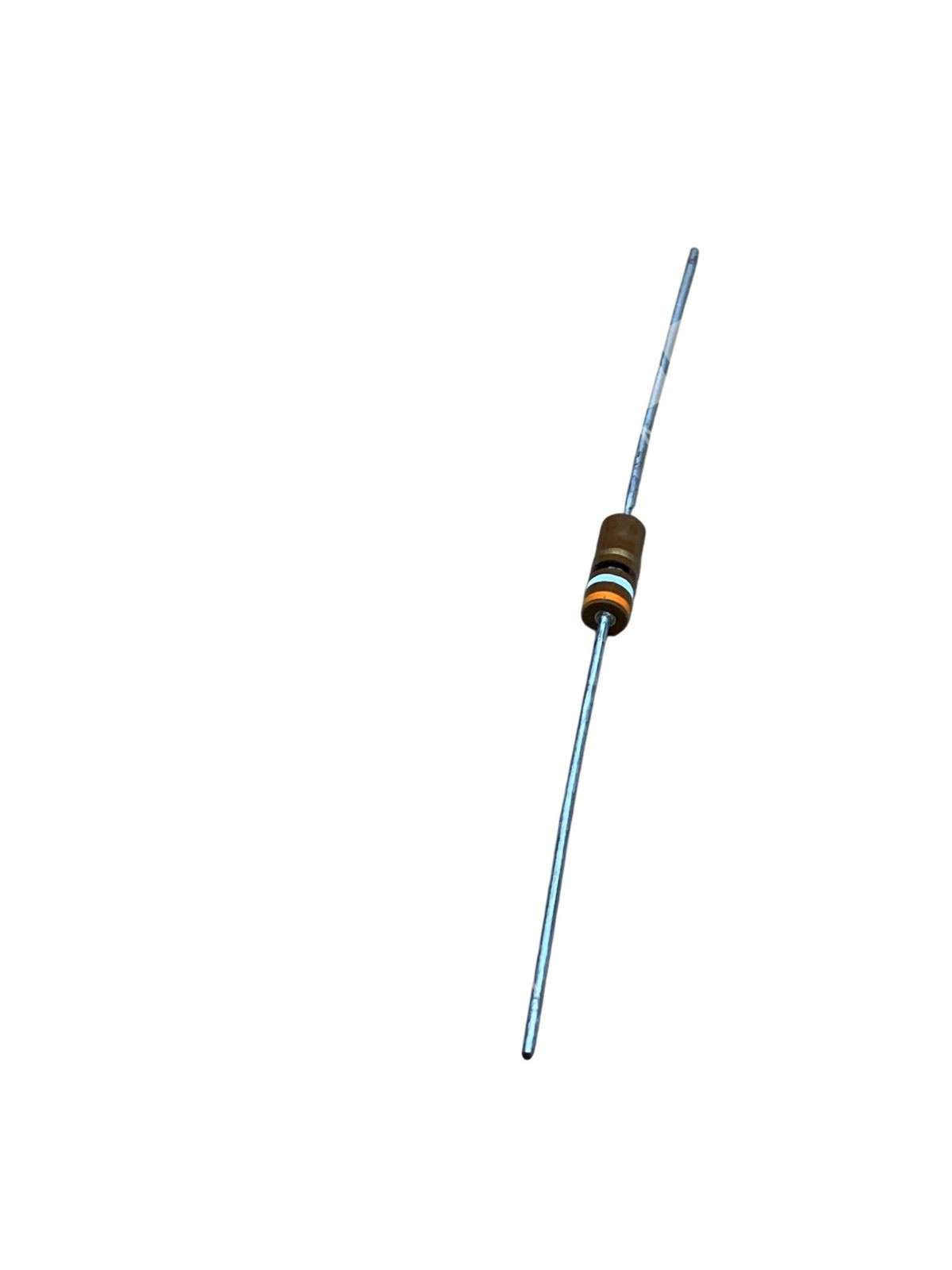

The carbon comp resistors 130-239 ohm pack contains 13 fixed passive components suitable for a wide range of electronic applications. Carbon composition resistors (CCR) are fixed value resistors made out of fine carbon particles mixed with a binder such as clay. This pack provides coverage across the low-ohm range (130–239Ω), commonly used in analog circuits, audio amplification, and equipment requiring surge or pulse protection.
Key Features
- Pack of 13 resistors covering 130–239 ohm resistance values
- High capability to withstand high energy pulses; the entire carbon composition body conducts the energy, resulting in higher thermal mass and higher energy capability
- Axial through-hole design for circuit board mounting
- Passive component requiring no power supply or configuration
- Suitable for audio circuits and legacy electronics restoration
Technical Specifications
Standard carbon composition resistors in the 130–239 ohm range typically conform to the following specifications:
- Resistance Range: 130–239 ohms (nominal)
- Type: Carbon Composition (CCR)
- Tolerance: ±5% to ±10% (typical for carbon comp)
- Maximum voltage: 150 V for 0.25 W and 500 V for 0.5 W ratings
- Operating temperature range: approximately −40 to 150 °C
- Package: Axial leaded (through-hole)
- Mounting: PCB through-hole, point-to-point wiring
Typical Applications
- Audio amplifiers and vintage tube equipment
- Surge and discharge protection circuits
- Current limiting and biasing networks
- Legacy electronics repair and restoration
- High-energy pulse protection (medical, industrial)
- Power supply circuits requiring pulse tolerance
Compatibility & Replacements
Compatible With
- Analog audio circuits
- Vacuum tube amplifier designs
- Industrial and test equipment
- Point-to-point and PCB-based circuits
- Legacy equipment restoration projects
Replaces / Drop-In Replacement For
Carbon composition resistors in the 130–239 ohm range can replace equivalent fixed resistor values in the same resistance band. Verify the exact ohm value and wattage rating before ordering. Consult the bill of materials or schematic for your specific equipment.
Works With
- Standard through-hole PCB layouts
- Point-to-point wiring harnesses
- Industrial audio and RF circuits
- Surge protection and filtering networks
