Overview

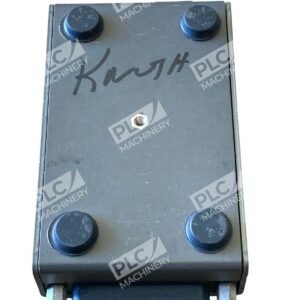

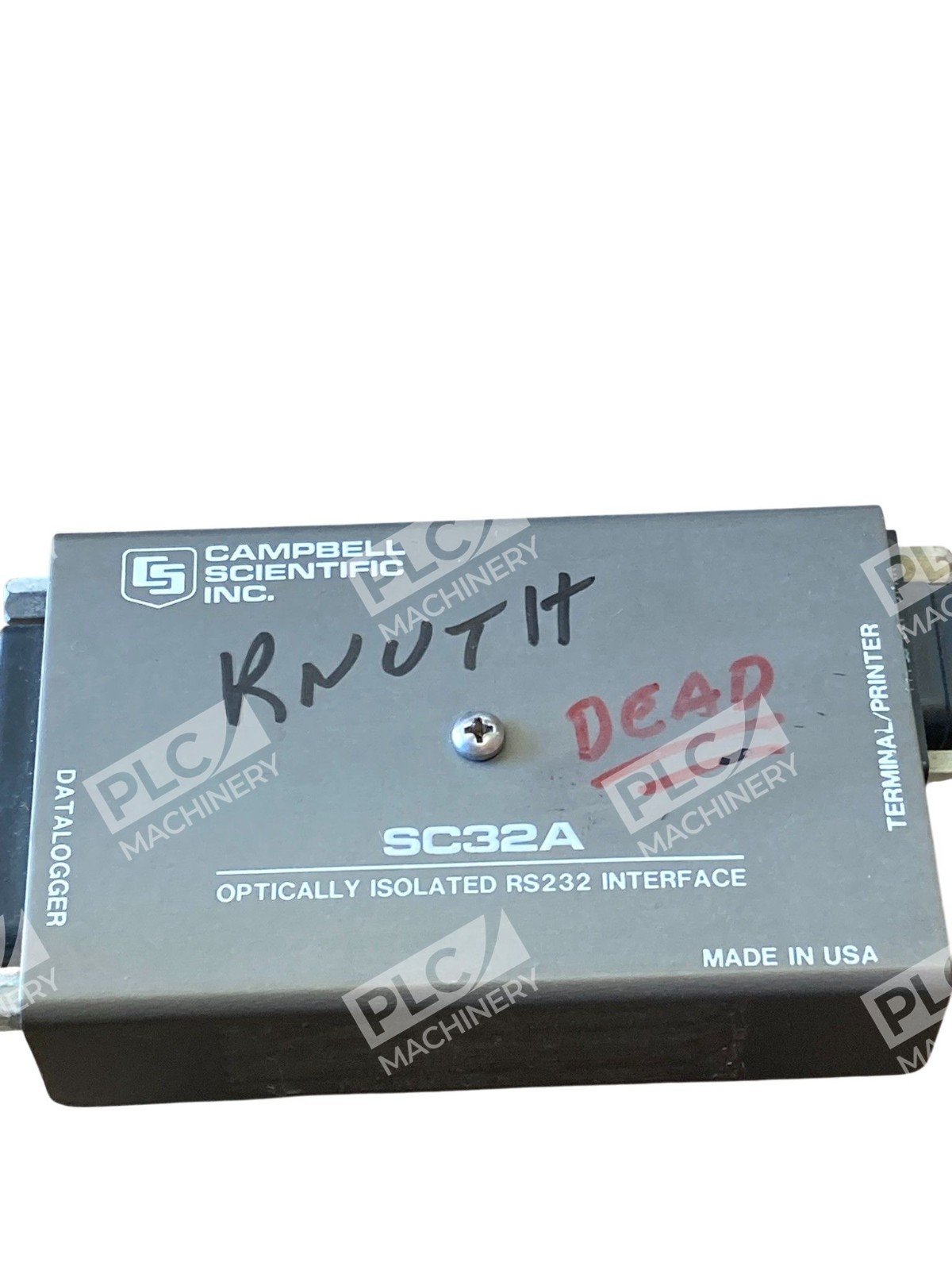

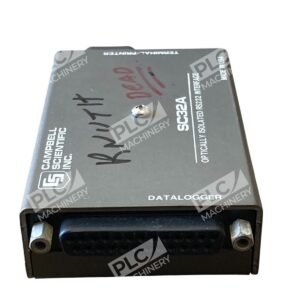

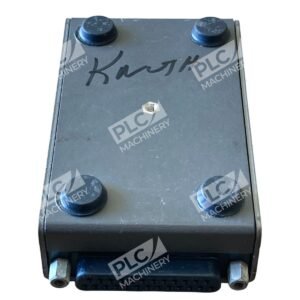

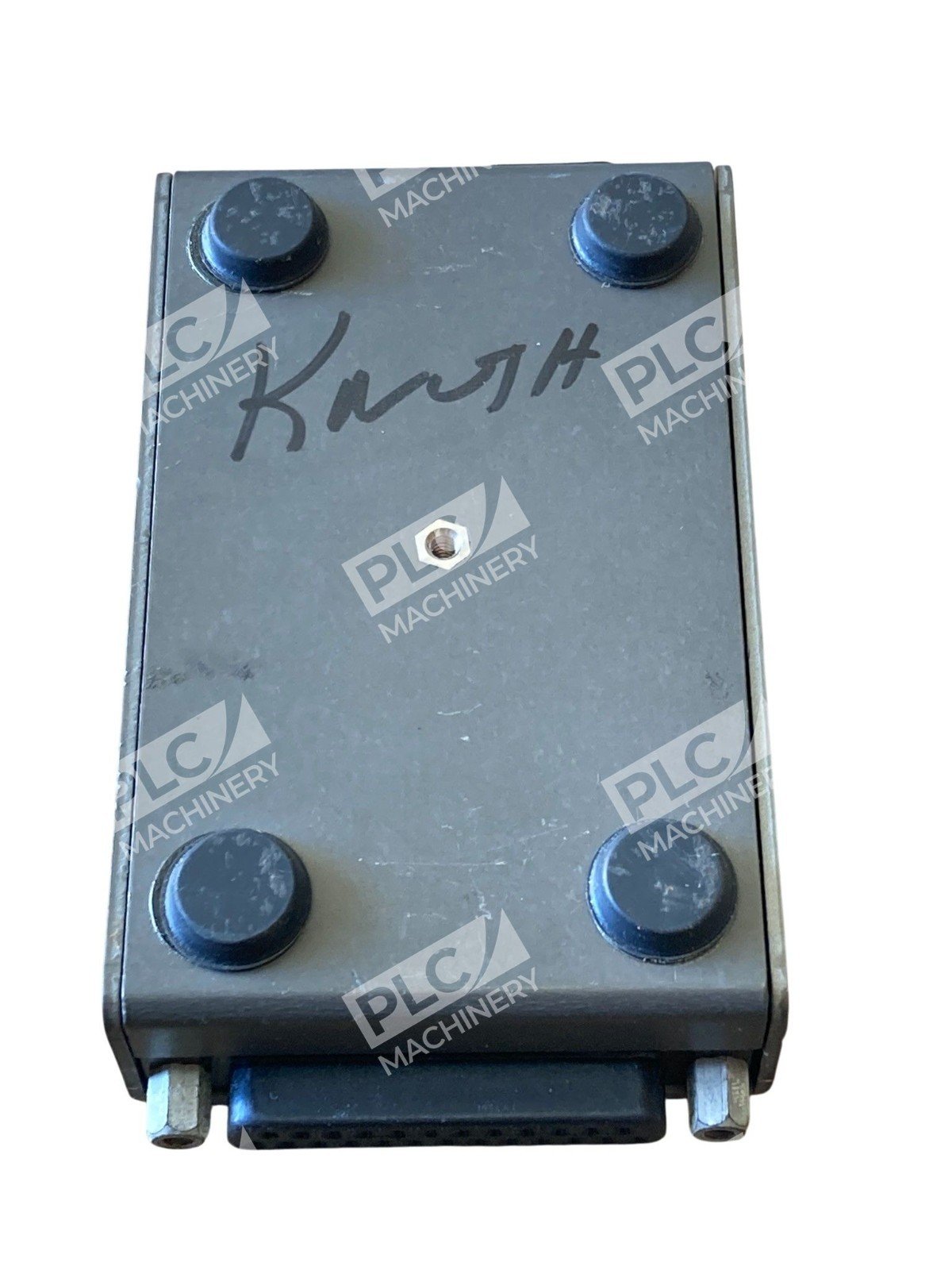

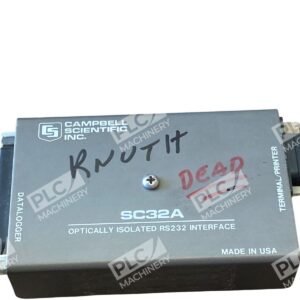

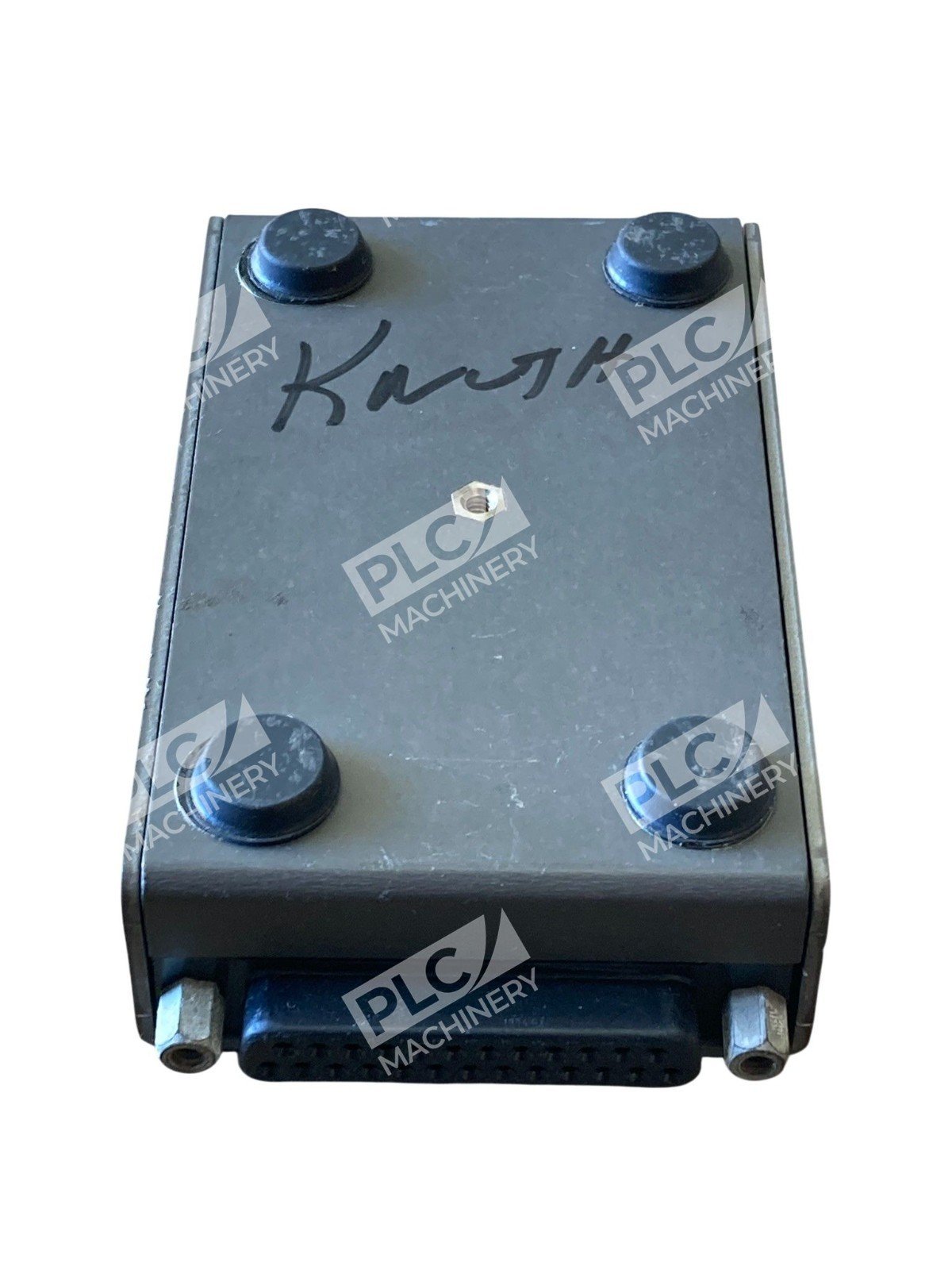

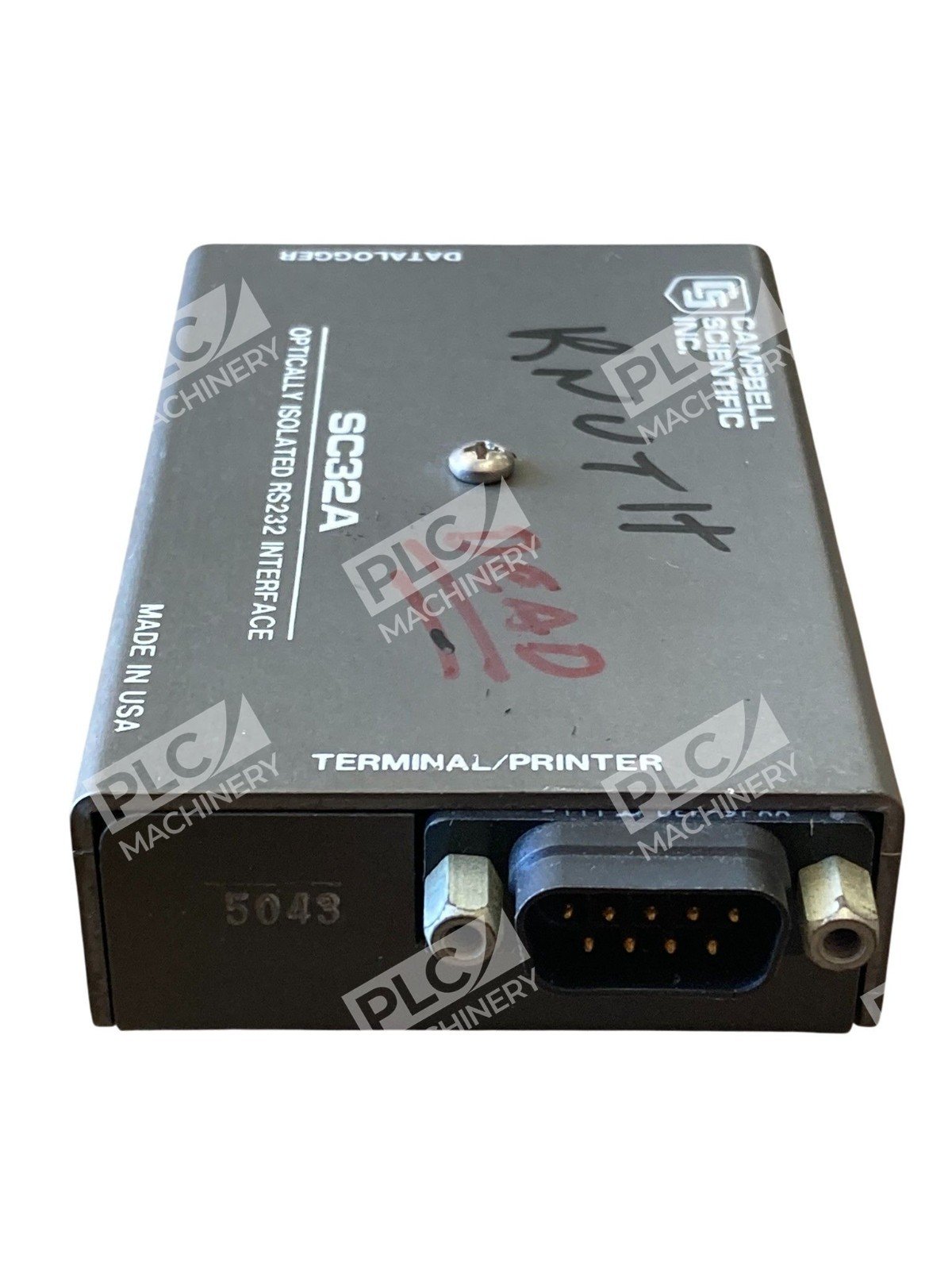

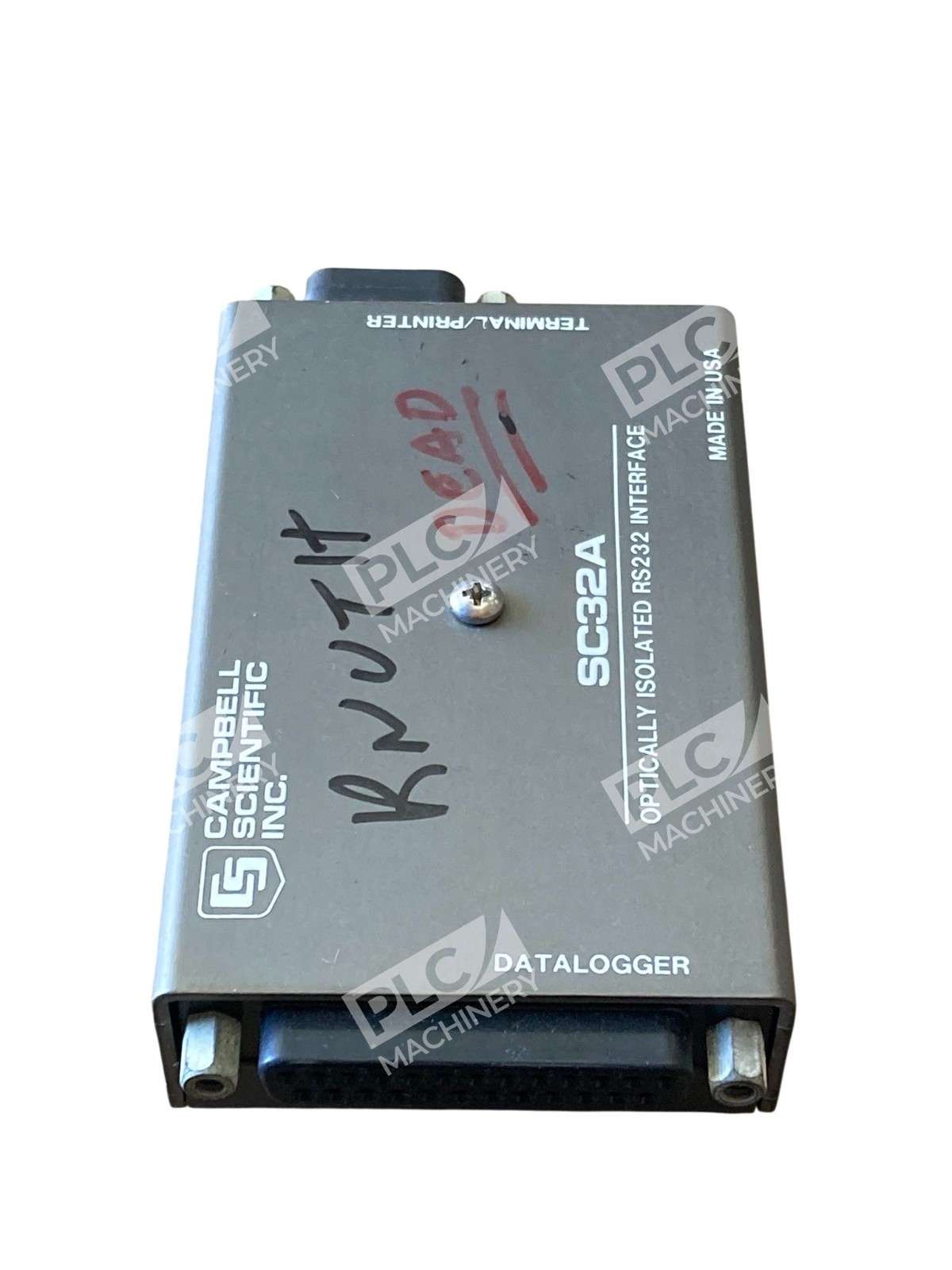

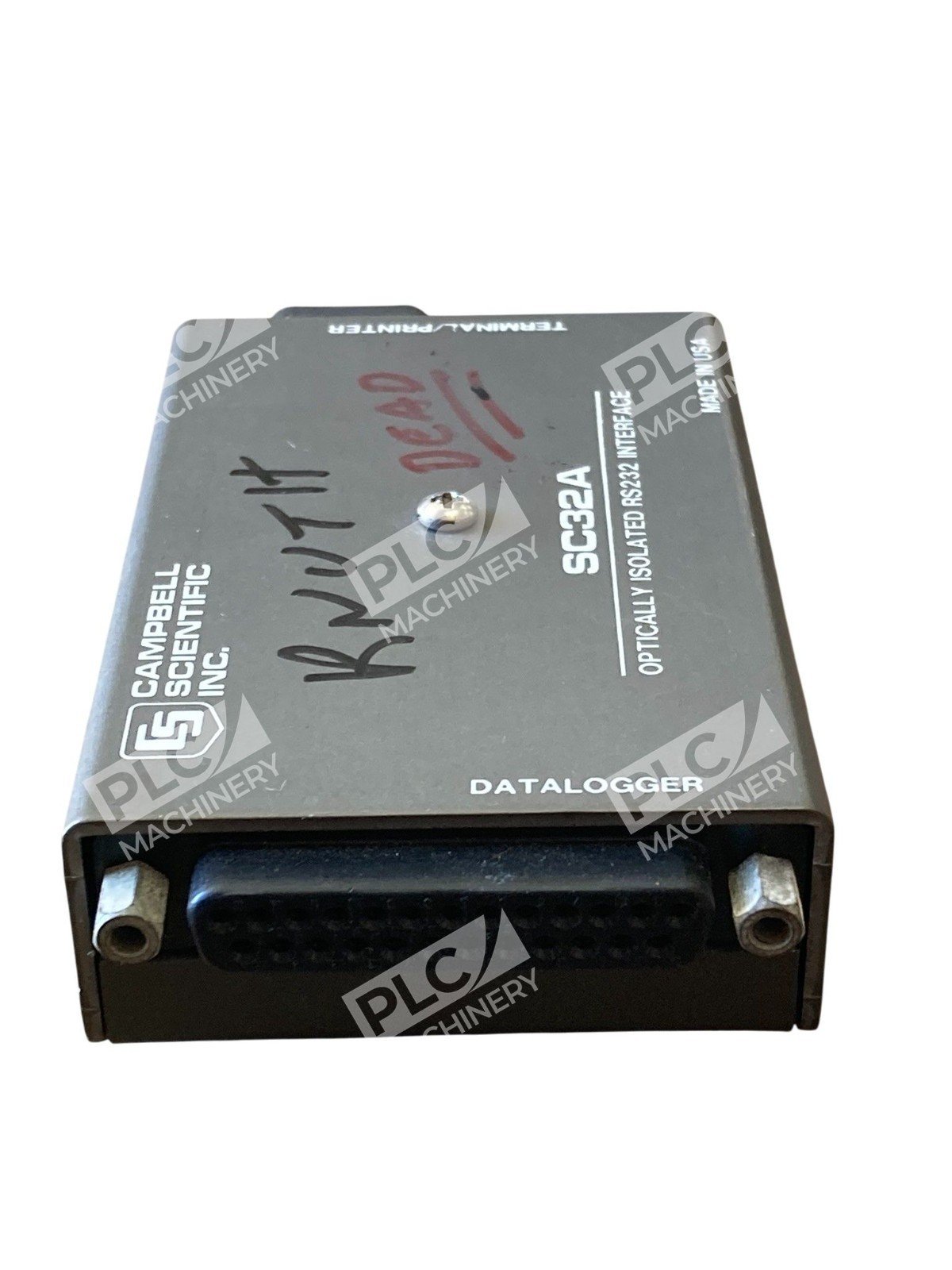

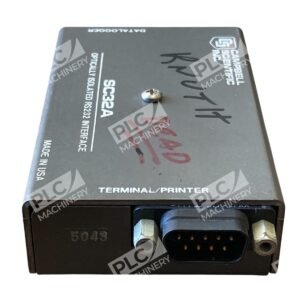

The Campbell Scientific SC32A is an optically isolated RS-232 interface module designed to bridge Campbell Scientific dataloggers with RS-232 serial ports on computers and peripherals. This interface converts the CMOS logic levels of a datalogger’s serial I/O port to the RS-232 levels of a computer. It supports RS-232 cable lengths of up to 50 feet. The optical isolation architecture protects connected equipment against ground loops, static discharge, and noise interference.
Key Features
- Optical Isolation: Separates the datalogger and RS-232 sections into electrically independent circuits, protecting against ground loops, static discharge and noise.
- Logic Level Conversion: Converts CMOS-level signals from datalogger I/O ports to standard RS-232 voltage levels for computer connectivity.
- Extended Cable Support: Supports RS-232 cable lengths of up to 50 feet.
- Dual Port Configuration: 25-pin socket port configured as DCE plus 9-pin CS I/O connector for datalogger interface.
- Peripheral Control: Internal jumper enables blocking of synchronous CR10 data transmission to the RS-232 peripheral.
Technical Specifications
- Datalogger Connection: 9-pin CS I/O port via SC12 or SC12R-6 cable
- Computer Connection: 25-pin RS-232 DCE port or 9-pin configuration
- Logic Levels (Datalogger Side): 5V supply on pin 1 of datalogger I/O port; communication logic levels range from 0 to slightly less than 5V.
- Cable Length Support: Up to 50 feet
- Power Source: 5V supply from datalogger I/O port pin 1
- Dimensions: 2.25 x 1.0 x 3.5 inches
- Weight: 0.25 lbs
- Connector Types: 25-pin and 9-pin ports
- Isolation Type: Optically isolated
Typical Applications
The SC32A connects to the datalogger’s 9-pin CS I/O port via an SC12 or SC12R-6 cable for applications including:
- Remote data retrieval from Campbell Scientific dataloggers (21X, CR7, CR10, CR200 series)
- Connecting dataloggers to desktop and laptop computers via RS-232 serial ports
- Integration with legacy peripheral equipment requiring RS-232 communication
- Environmental and meteorological data logging systems
- Industrial monitoring and control data acquisition
- Phone-based telecommunications data transmission
Compatibility & Replacements
Compatible With
- Campbell Scientific 21X datalogger
- Campbell Scientific CR7 datalogger
- Campbell Scientific CR10 datalogger
- Campbell Scientific CR200 series dataloggers
- Any computer or peripheral with RS-232 serial port
- SC12 and SC12R-6 datalogger connection cables
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering, as the SC32A is legacy equipment. Consult Campbell Scientific technical documentation for specific model equivalencies.
Works With
- RS-232 serial communication protocol
- Campbell Scientific datalogger software packages
- Standard terminal emulation software
- Legacy data acquisition and retrieval systems
- SC25 and SC25AT RS-232 cables from Campbell Scientific
