Overview

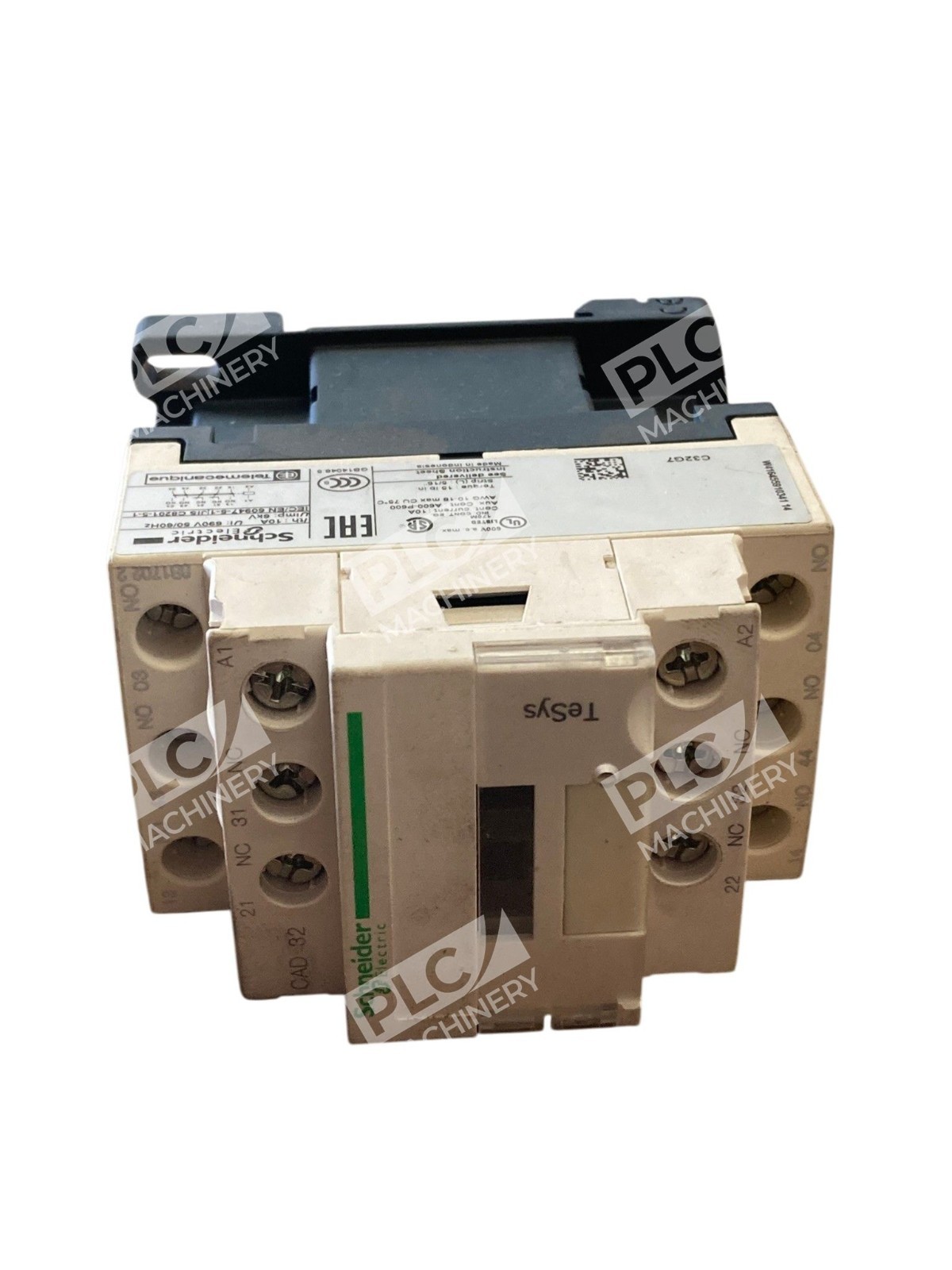

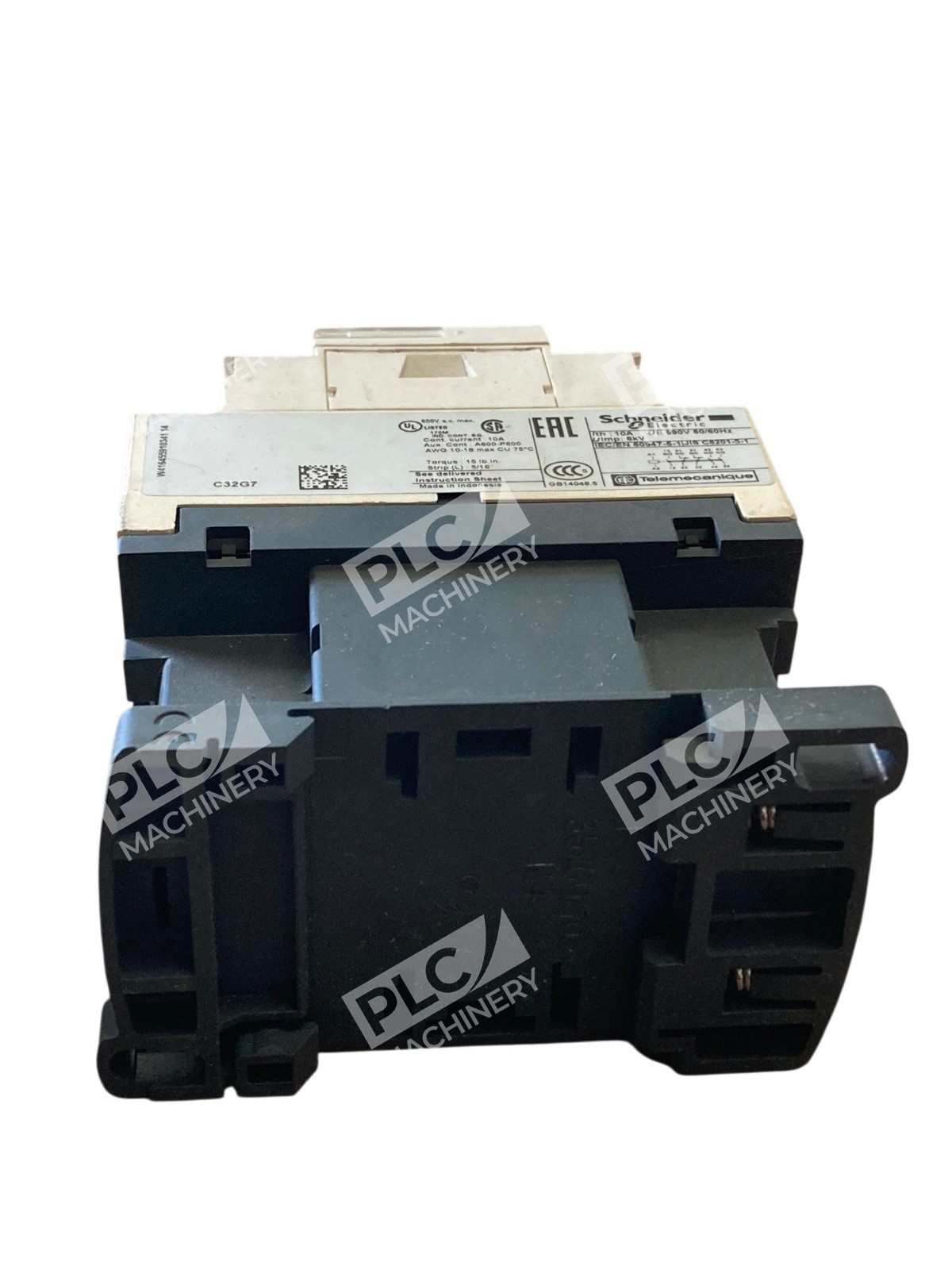

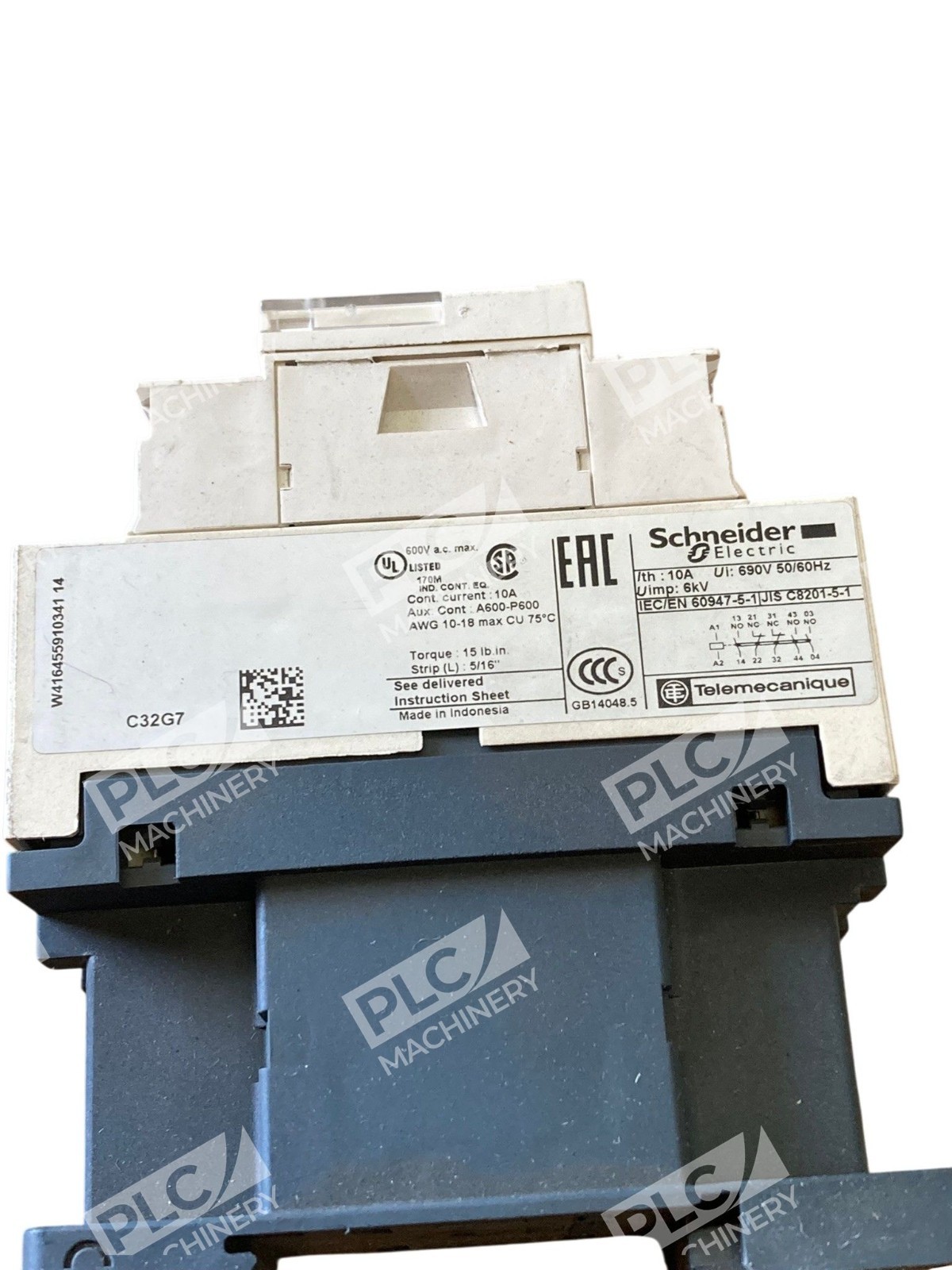

The CAD32G7 Schneider Electric is a TeSys D control relay designed for multi-pole switching applications in industrial automation and machinery control. It features 3 normally open (NO) and 2 normally closed (NC) contacts rated up to 690V, powered by a 120VAC 50/60 Hz coil. With compact design and proven durability, this relay integrates seamlessly into control circuits requiring AC-15 and DC-13 utilization categories.
Key Features
- 5-contact configuration: 3 NO + 2 NC poles for flexible control logic
- 690V rated contacts with 10A carrying capacity and NEMA A600/Q600 compliance
- Compact 45mm width for efficient DIN rail or direct panel mounting
- Mechanical durability rated for 30 million operations at no load
- Expandable design supports up to 11 total contacts with auxiliary blocks
- IP2X protection rating; RoHS and REACH compliant (Green Premium product)
- Multi-standard certified: IEC 60947, UL, CSA, CCC, EAC, Marine
Technical Specifications
- Contact Configuration: 3 NO + 2 NC (5 pole)
- Coil Voltage: 120 VAC, 50/60 Hz
- Load Voltage Rating: 690 VAC maximum
- Contact Rating: 10A at 690VAC; 0.2A at 240VDC
- Utilization Category: AC-14, AC-15, DC-13
- Mounting: 35 mm DIN rail or direct screw panel mount
- Terminals: Screw clamp, accepts #10 to #18 AWG wire
- Operating Temperature: −40°C to +60°C
- Mechanical Durability: 30,000,000 operations (no load)
- Dimensions: 3.03 in (H) × 1.77 in (W) × 3.66 in (D)
- Enclosure Rating: IP2X front face
- Certifications: IEC 60947, UL, CSA, CCC, EAC, Marine; RoHS/REACH
Typical Applications
- Machine tool interlocking and logic control circuits
- Motor starter auxiliary and permissive circuits
- Pilot relay circuits for solenoid valve or pump control
- Industrial automation control panels and distributed control systems
- Batch processes requiring multi-state switching logic
- Equipment protection and sequencing in manufacturing environments
Compatibility & Replacements
Compatible With
- TeSys D contactors, starters, and motor-control assemblies
- Standard 35 mm DIN rail mounting systems
- TeSys CAD series auxiliary contact blocks and timer modules
- Transient voltage surge suppressors and interface modules
- Schneider Electric control circuits and panel designs
Replaces / Drop-In Replacement For
- Legacy Telemecanique control relays with equivalent contact/voltage ratings
- Other 5-contact 690V relays requiring 3 NO + 2 NC configuration
- Standard industrial control relays in existing TeSys D assemblies
Works With
- TeSys D motor starters and power contactors
- IEC 60947 compliant automation systems
- Auxiliary contact blocks for contact expansion (up to 11 poles total)
- Pneumatic and electronic timer attachments
- Mechanical latching and solenoid coil options
