Overview

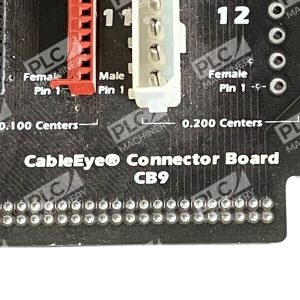

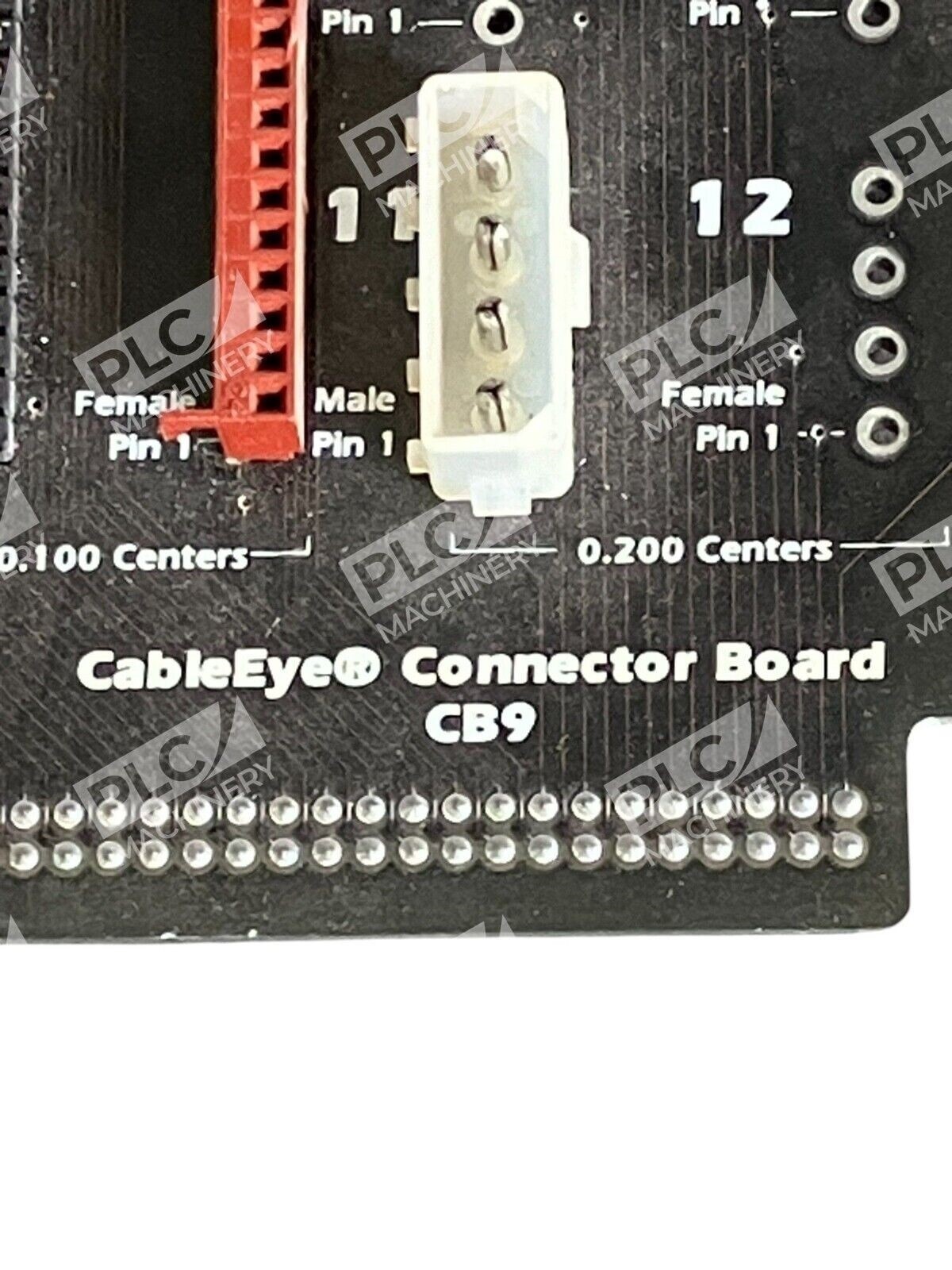

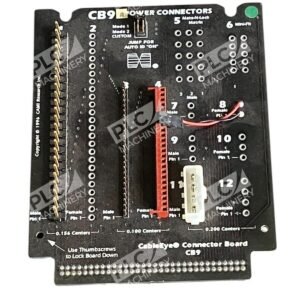

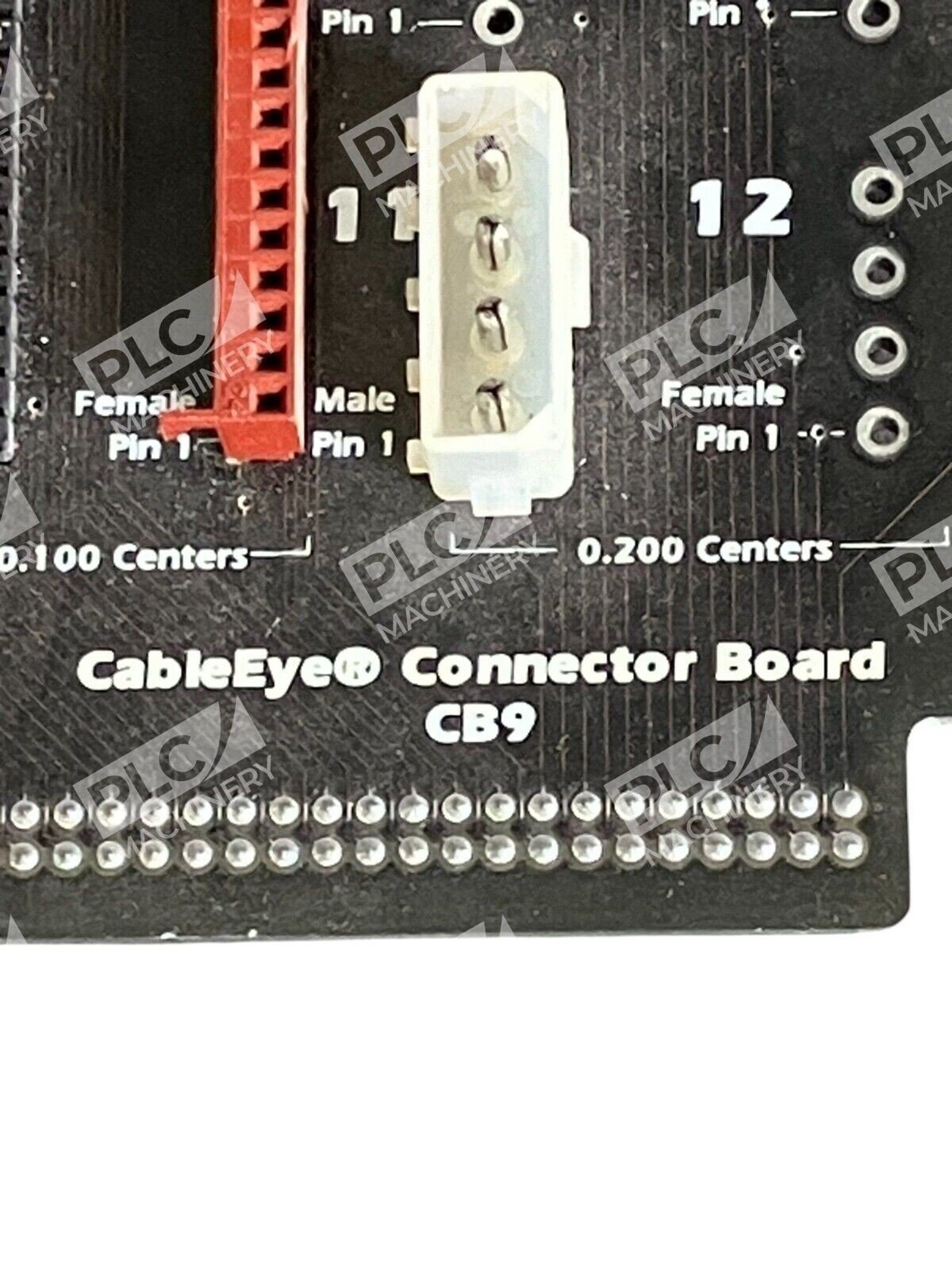

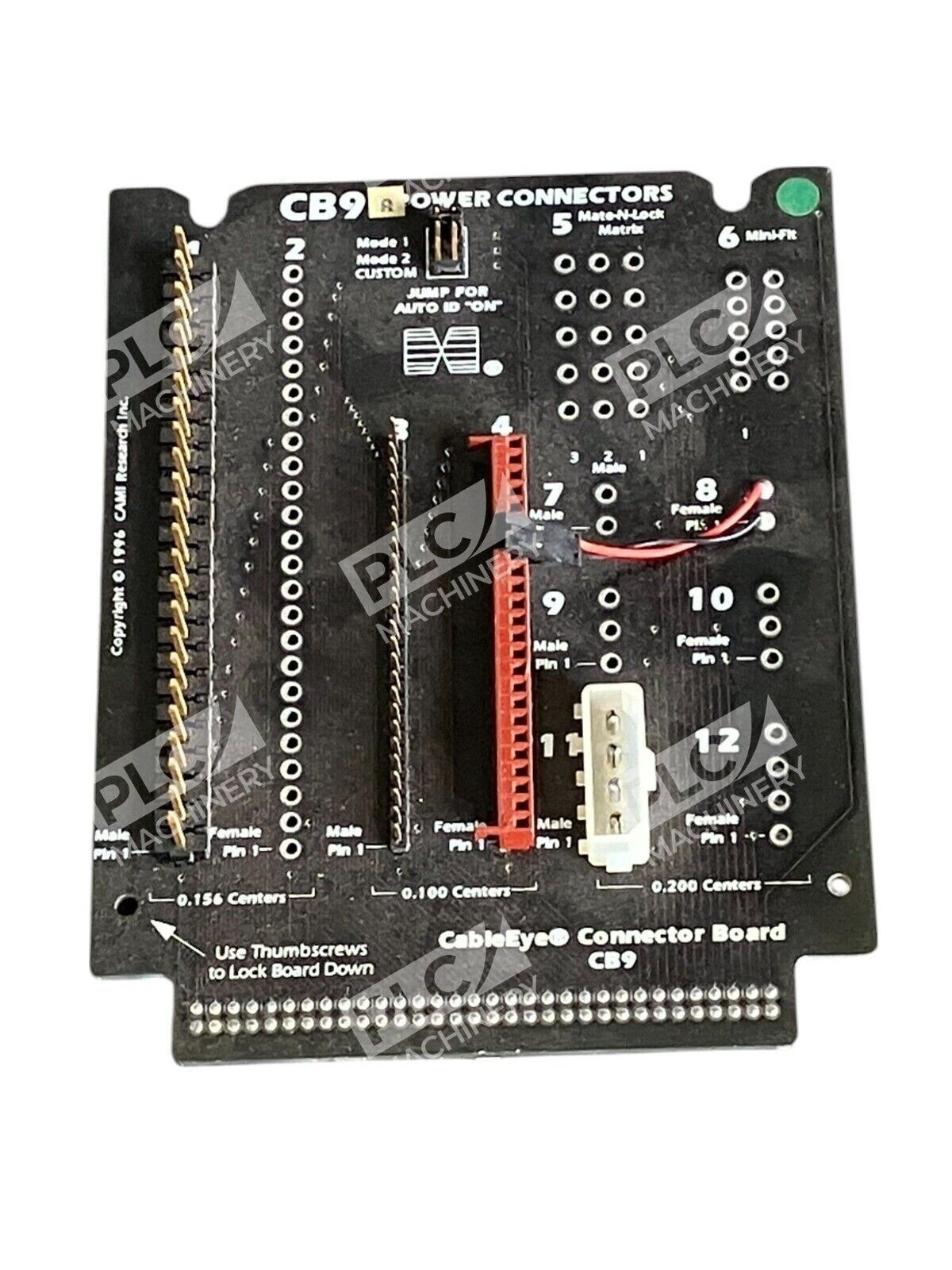

The CableEye CB9 connector board is a modular test interface fixture engineered by CAMI Research for power and control cable harness testing. This board includes connector positions for Molex strip headers and sockets (both 0.156″ and 0.100″ centers) up to 25 pins, AMP MATE-N-LOK® connectors (2-, 3-, and 4-pin male and female), AMP MATE-N-LOK® Matrix connectors (male, up to 15-pin), and Molex Mini-Fitâ„¢ (male, up to 10-pin). The CB9 provides technicians and engineers with a standard platform for quick connector configuration and automated cable continuity, resistance, and insulation testing.
Key Features
- Configurable connector layout: Connectors are provided unsoldered in a separate package so you may configure the board to suit your needs, including Molex 24-pin and 25-pin breakaway header strips, header sockets, and MATE-N-LOK® male connector headers
- Multi-connector support: Accommodates Molex Dupoint headers, AMP MATE-N-LOK® power connectors, and Molex Mini-Fit™ connectors in one fixture
- Universal compatibility: Physically mates with all models of CableEye® testers and the CableEye QuickMount™ Housing
- Standard voltage rating: Rated to operate at 500Vdc/ac unless otherwise specified
- Auto-detected interface: Software for connector graphics self-adjusts to measured wiring
Technical Specifications
The CB9 board delivers robust performance across power connector testing applications:
- Board type: Modular test interface connector board
- Primary connectors: Molex headers (strip and socket), AMP MATE-N-LOK® (male/female), Molex Mini-Fit™
- Maximum pin count: 25-pin (Molex headers), 15-pin (MATE-N-LOK® Matrix), 10-pin (Mini-Fit™)
- Header spacing: 0.156″ and 0.100″ centers
- Voltage rating: 500Vdc/ac standard
- Compatible testers: CableEye M2, M3/M3Z, M4, M4Z, HVX-series systems
- Expansion capable: Works with expander cables for high pin-count connectors
- Manufacturer: CAMI Research Inc., Acton, MA, USA
- Catalog part number: 739
Typical Applications
The CableEye CB9 is widely deployed in manufacturing and service environments for:
- Industrial power cable harness assembly testing and quality control
- Control system connector verification before deployment
- Field service diagnostics on power distribution cables
- Automotive power distribution and load management harness testing
- Rework and repair verification of power cables and connectors
- Custom test fixture development using CAMI’s modular connector library
Compatibility & Replacements
Compatible With
- CableEye M2 cable tester
- CableEye M3/M3Z cable tester
- CableEye M4/M4Z cable tester
- CableEye HVX-series high-voltage test systems
- CableEye QuickMountâ„¢ Housing
- PinMapâ„¢ fixture editor software (Item 708)
- CableEye connector library and custom test fixture platforms
Replaces / Drop-In Replacement For
The CB9 is a standard product line item. Verify compatibility with your specific CableEye tester model and connector requirements with your system integrator or CAMI Research before ordering to ensure the fixture meets your application needs.
Works With
- CableEye cable test software (all versions compatible with your tester)
- Molex Dupoint connector ecosystem
- AMP MATE-N-LOK® and MATE-N-LOK® Matrix connector families
- Molex Mini-Fitâ„¢ power connector line
- Expander cables and high pin-count extensions
- CAMI PinMapâ„¢ custom fixture design software
