Overview

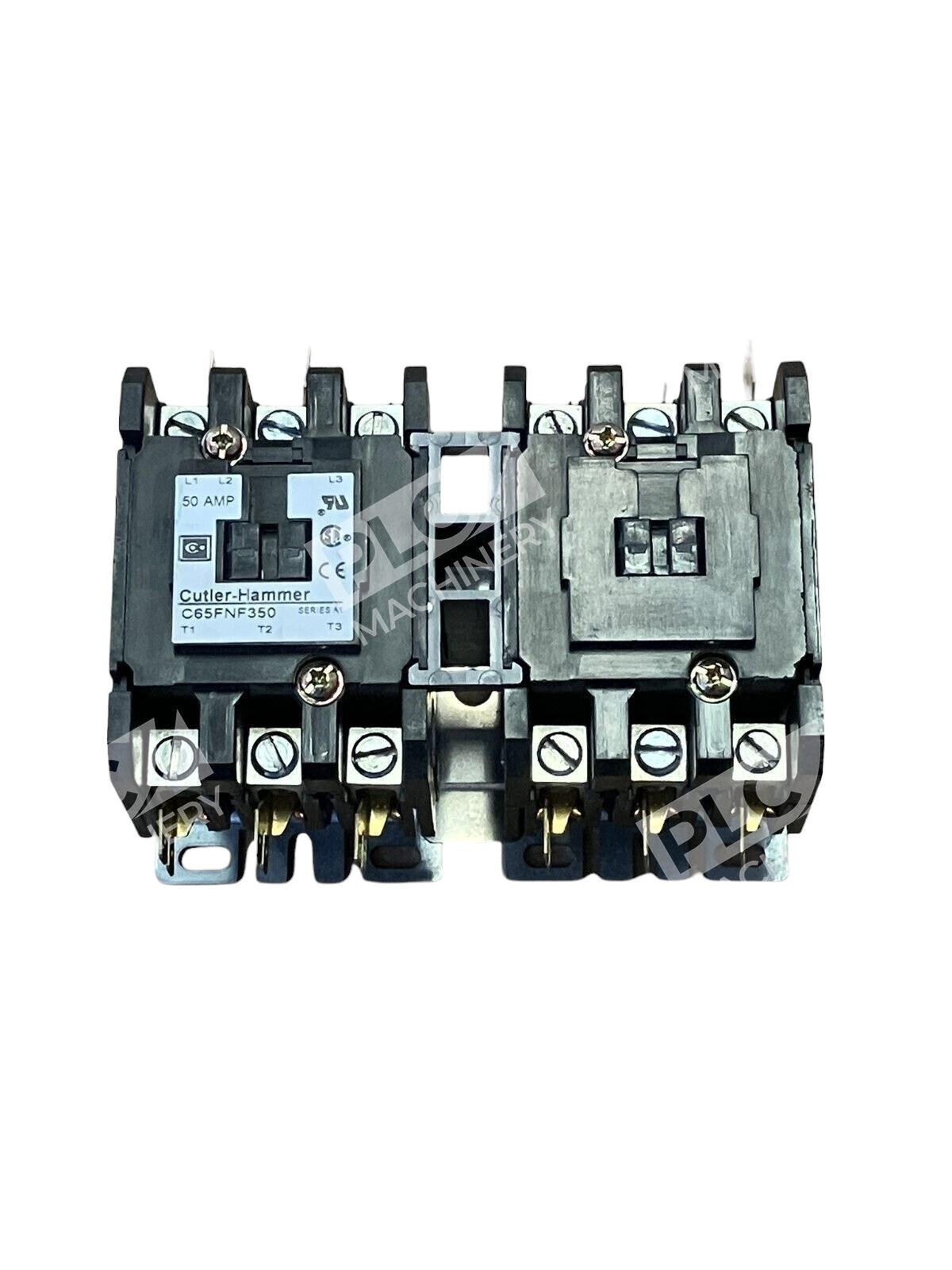

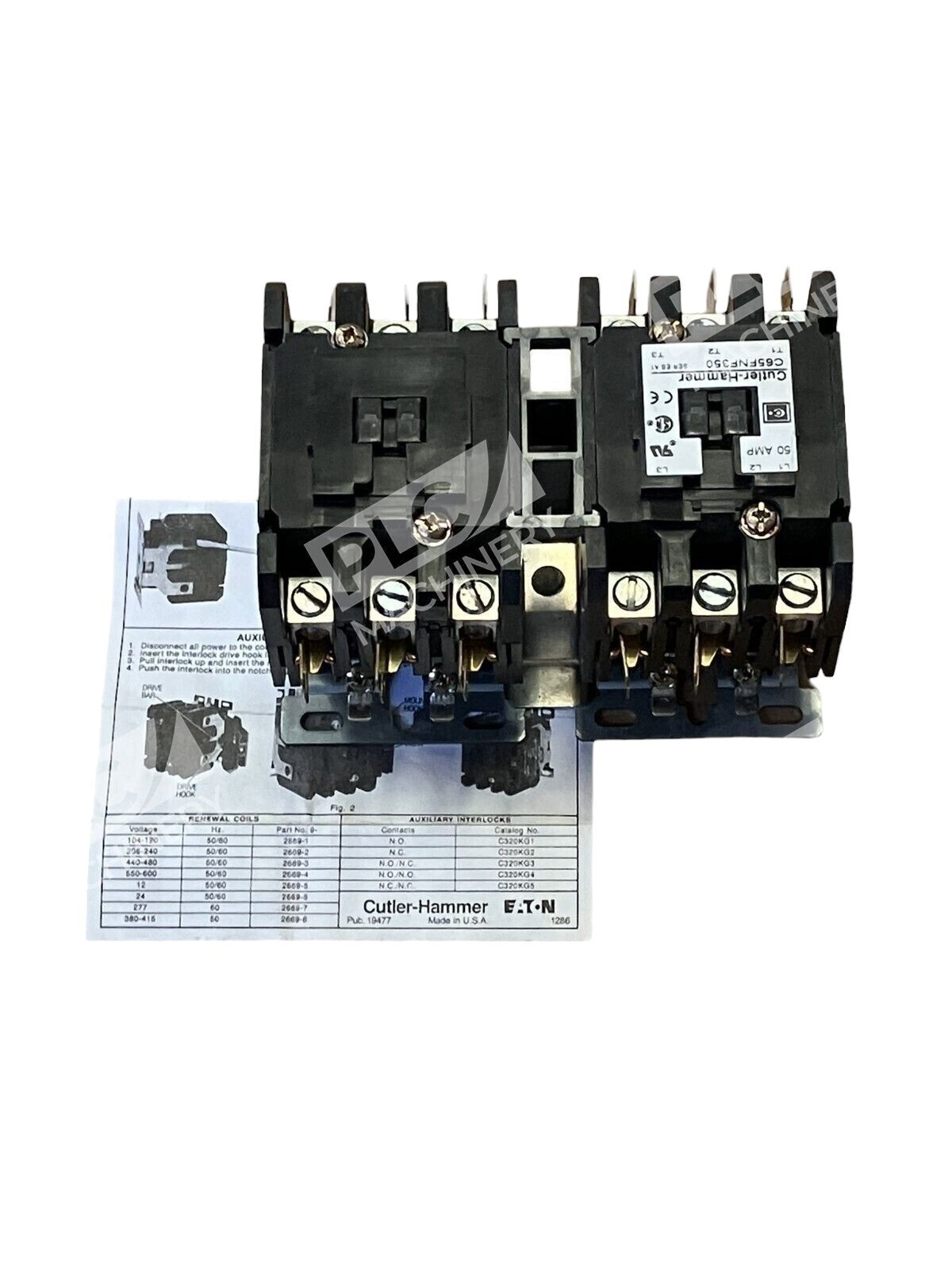

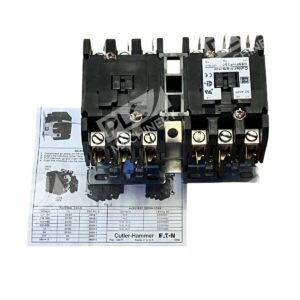

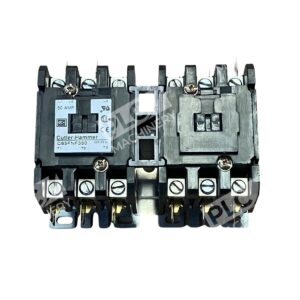

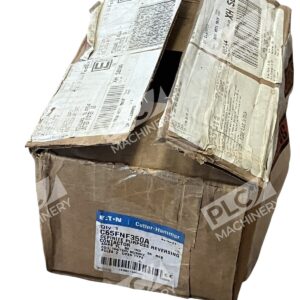

The Eaton C65FNF350A is a definite purpose reversing contactor engineered for heating, ventilation, air conditioning, and refrigeration (HVACR) applications. This three-pole unit carries a 50-amp inductive rating and operates on 120V AC at 50/60 Hz. The reversing design enables bi-directional motor control, making it ideal for applications requiring forward-reverse motor operation such as reversible compressors or heat pump systems.
Key Features
- Three-pole reversing configuration for forward/reverse motor control
- 50-amp inductive load rating (65-amp resistive rating available)
- 110–120V AC coil voltage, 50/60 Hz rated
- Quick-connect terminals and box lugs for flexible wiring
- Open frame with metal mounting plate for panel installation
- Compact definite purpose design optimized for HVACR
Technical Specifications
- Manufacturer: Eaton (Cutler-Hammer Division)

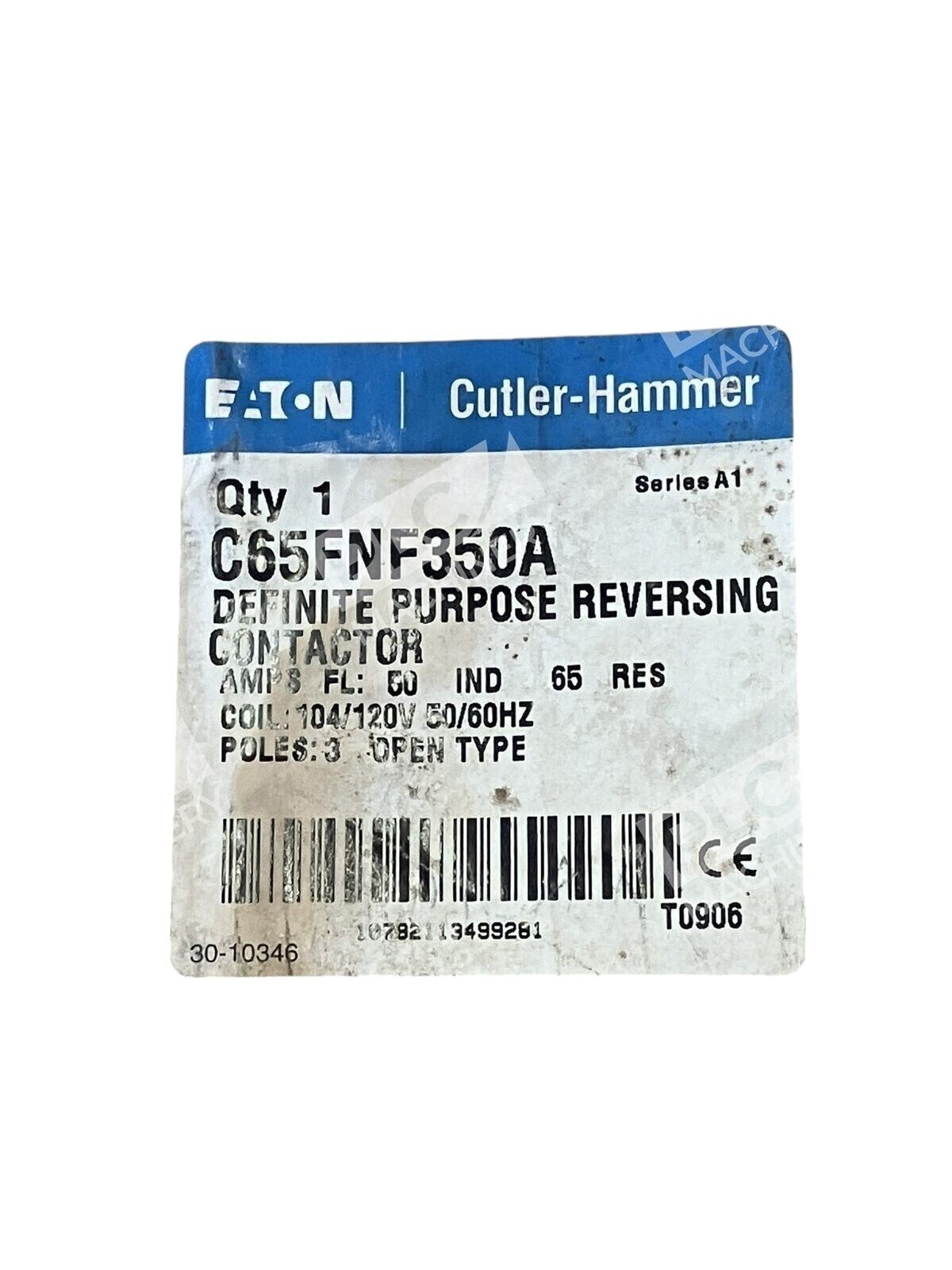

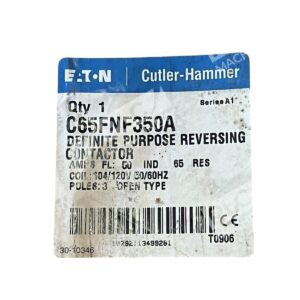

- Part Number: C65FNF350A
- Type: Definite Purpose Reversing Contactor
- Poles: 3
- Inductive Rating: 50 A @ 120V AC
- Resistive Rating: 65 A @ 120V AC
- Coil Voltage: 110–120V AC
- Frequency: 50/60 Hz
- Terminal Type: Quick-connect terminals and box lugs
- Mounting: Panel mount with metal mounting plate
- Enclosure Type: Open frame
- Operating Temperature: -20°C to +60°C
- Compliance: UL listed, CSA certified
Typical Applications
- Heat pump systems requiring reversible operation
- HVAC compressor motor control with forward-reverse capability
- Refrigeration unit motor starting and reversing
- Fan motor switching and reversing in ventilation systems
- Custom OEM control panel integration
Compatibility & Replacements
Compatible With
- Eaton/Cutler-Hammer C-series contactor assemblies and enclosures
- HVACR control systems requiring definite purpose contactors
- Standard 120V AC industrial control circuits
- Reversible motor circuits rated 30 hp or less at 120V
Replaces / Drop-In Replacement For
- Previous generation C65 series reversing contactors
- Equivalent definite purpose reversing contactors with matching specs
- Verify specific model compatibility with your system integrator before ordering
Works With
- HVACR system control boards and modules
- Manual and automatic reversing circuits
- Standard industrial 120V AC power supplies
- Eaton auxiliary contacts and mechanical interlocks (optional)
