Overview

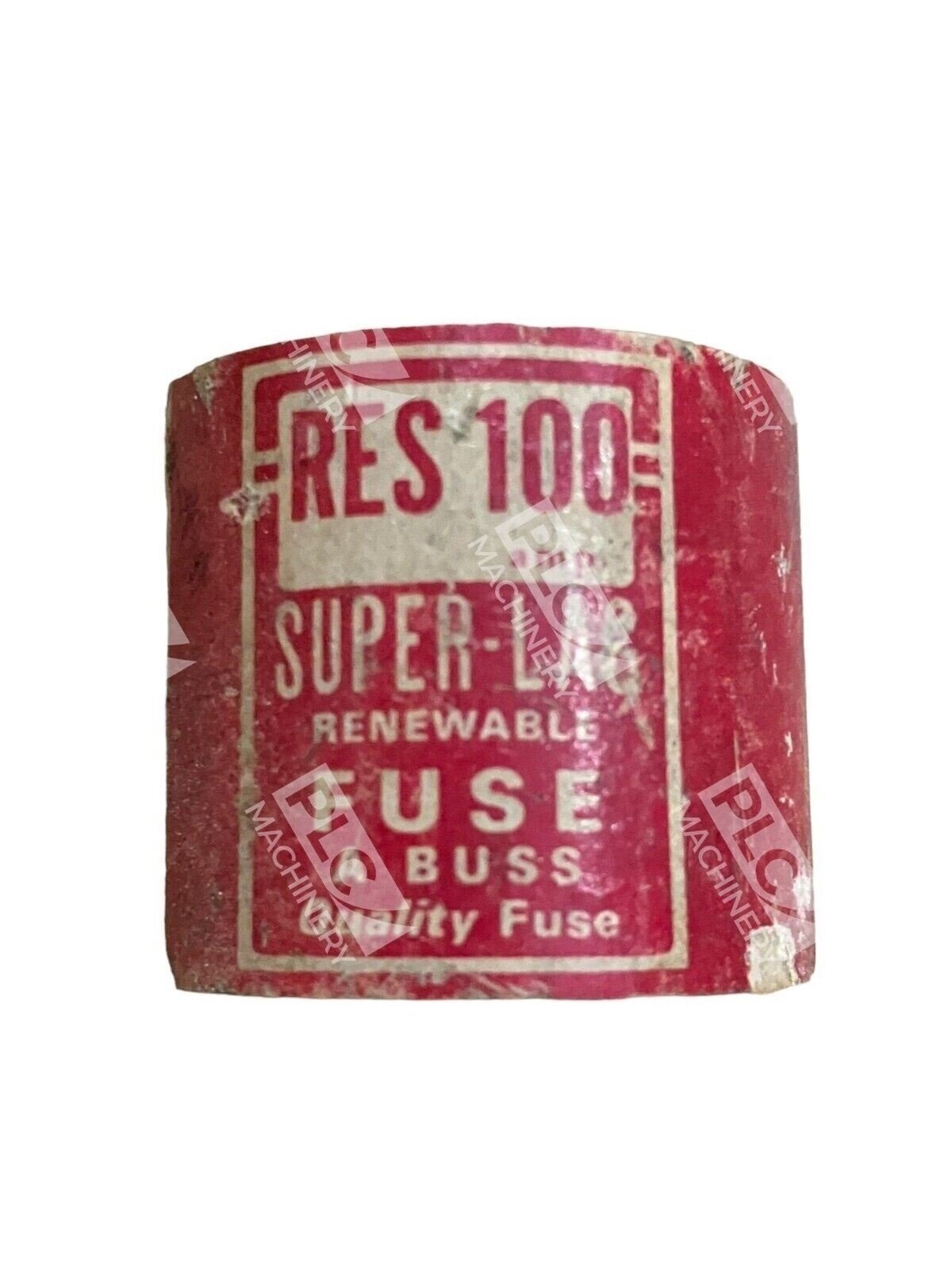

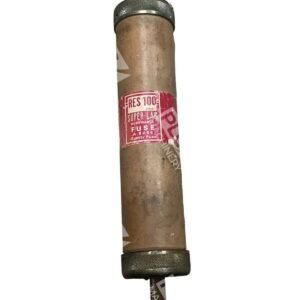

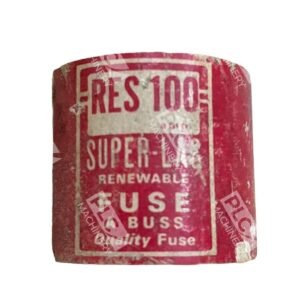

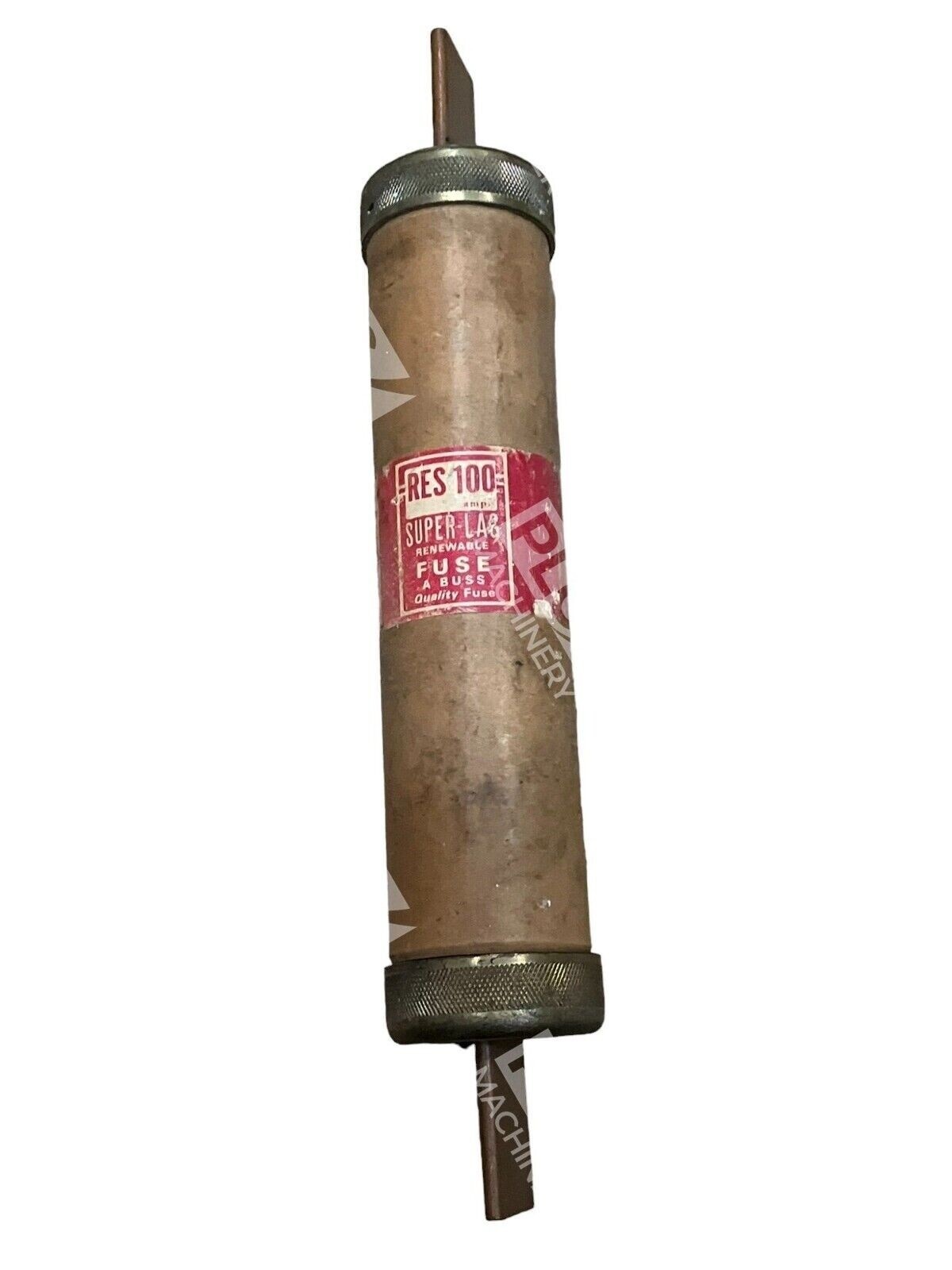

The Bussmann RES-100 100A is a renewable Class H cartridge fuse designed for general-purpose electrical protection in systems with available fault current below 10,000 amps. This time-delay (slow-blow) fuse allows temporary inrush currents while protecting against sustained overloads, making it suitable for motor circuits and other inductive loads in industrial and commercial settings.
Key Features
- Non-current-limiting renewable design — lower cost per operation compared to single-use fuses
- Class H time-delay characteristics — permits safe startup inrush without nuisance trips
- 600VAC rated for use in standard industrial power distribution panels
- 10kA interrupting rating — suitable for systems with moderate fault capacity

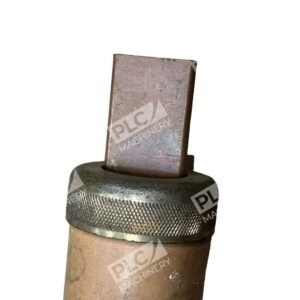

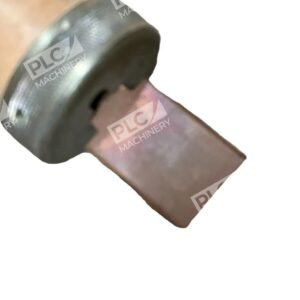

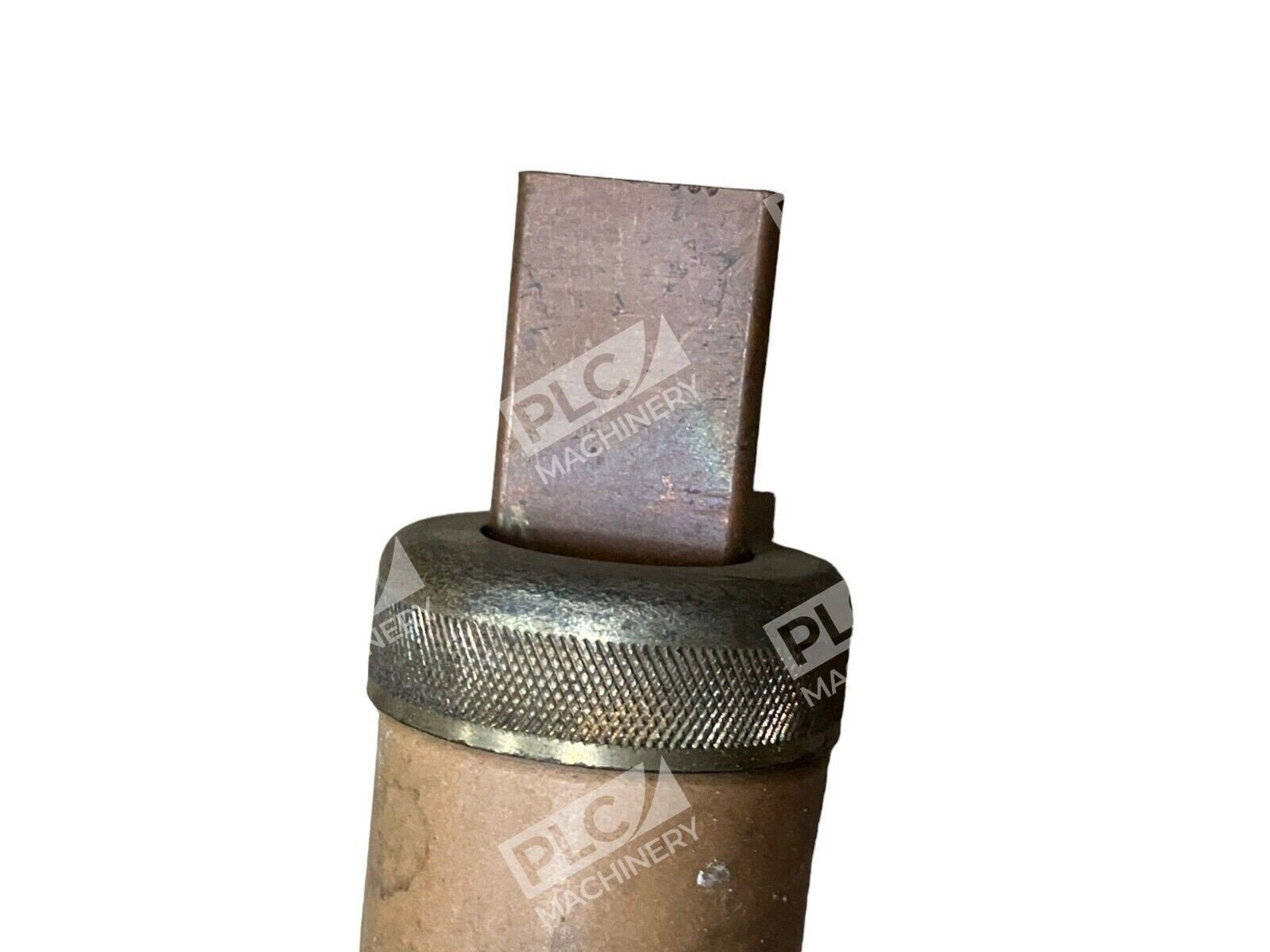

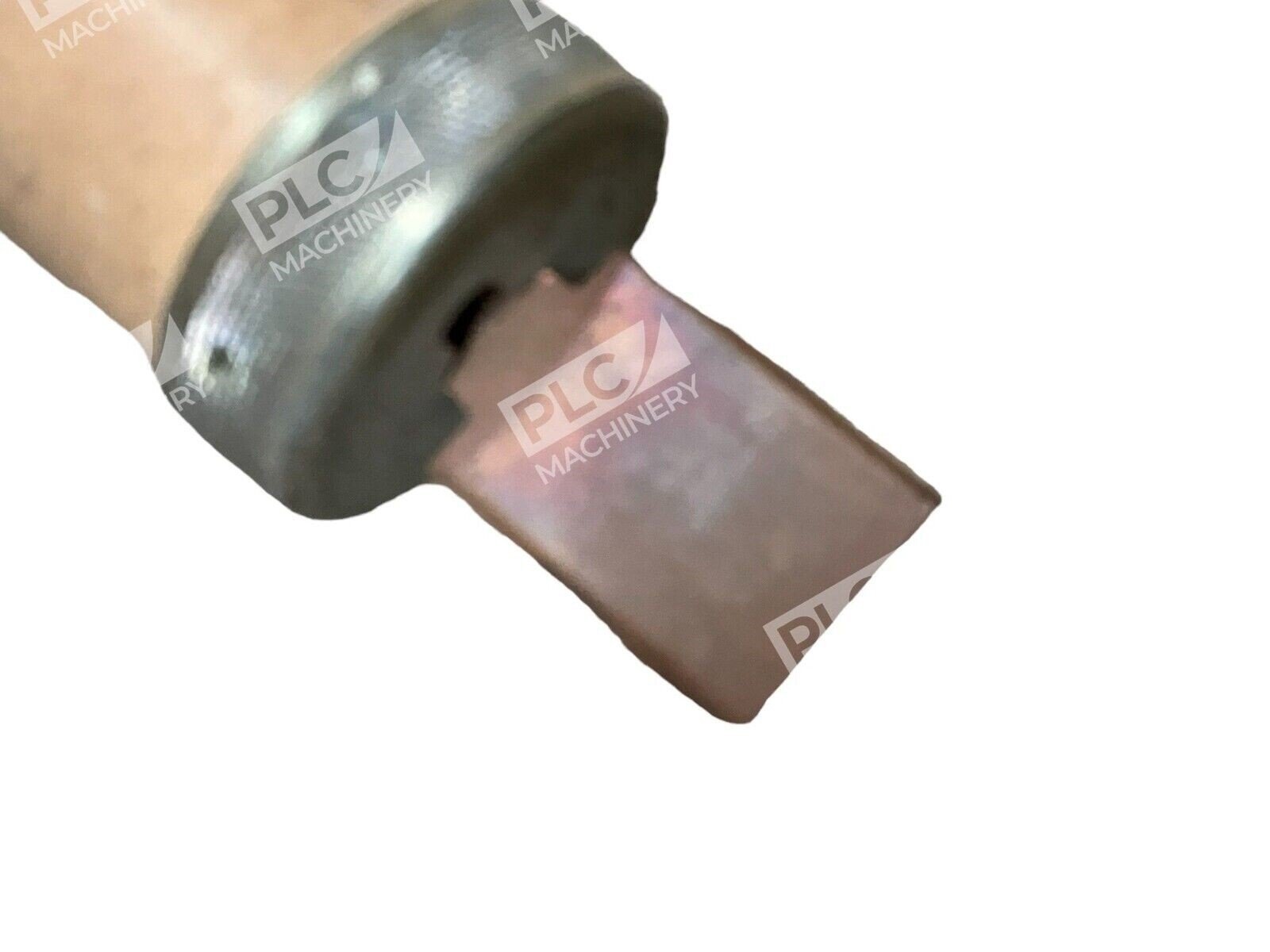

- Blade terminal construction for quick installation in standard fuseholders
Technical Specifications
- Rated Current: 100A
- Voltage Rating: 600VAC
- Class: Class H
- Type: Time Delay / Slow Blow
- Interrupting Rating: 10,000A (symmetrical)
- Length: 7.875 inches
- Diameter: 1.312 inches
- Design: Non-current-limiting, renewable
- Approval: UL Listed
Typical Applications
- Motor branch circuits and motor control centers
- Feeder protection in industrial power distribution
- General-purpose circuit protection in manufacturing facilities
- Equipment protection in HVAC and pump systems
- Maintenance replacement in existing Class H fuse installations
Compatibility & Replacements
Compatible With
- Standard Class H cartridge fuseholders with blade terminals
- Industrial electrical panels rated for 600VAC operation
- Motor control circuits and distribution equipment
Replaces / Drop-In Replacement For
- Eaton RES-100
- Cooper Bussmann RES-100
- Legacy RES100 and RES 100A variants
Works With
- Class H cartridge fuse standards and specifications
- 600VAC industrial electrical systems
- Standard mechanical fuse pullers and cartridge holders
