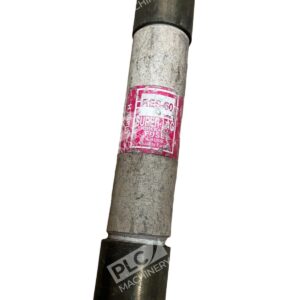

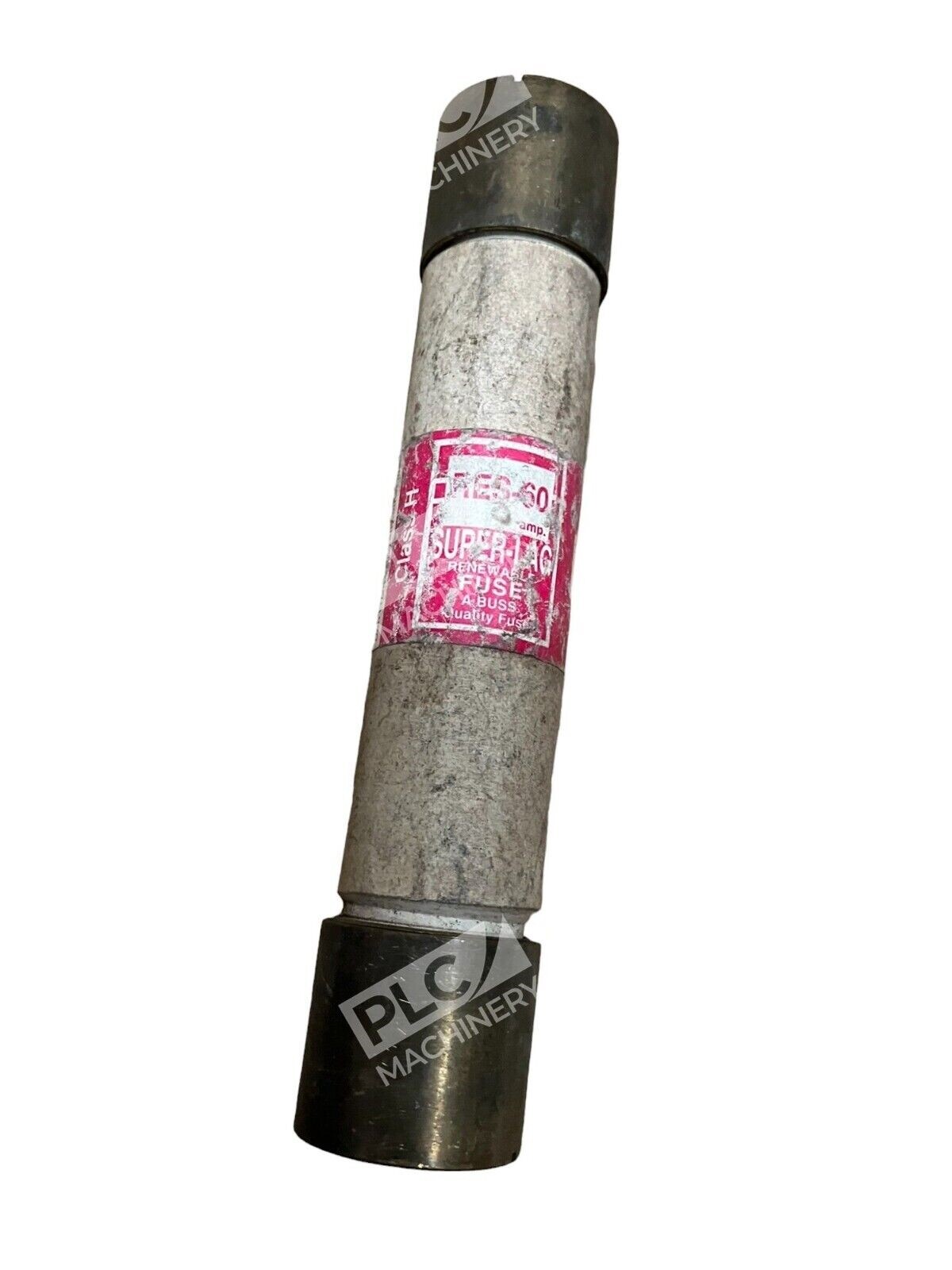

Overview
The Bussmann RES-60 is a time-delay renewable fuse designed for 600V three-phase and single-phase industrial circuits. These non-current-limiting Class H fuses are ideal for applications where frequent service interruptions justify the economy of renewable (replaceable) elements rather than one-time fuses. This lot contains 5 individual units ready for immediate installation or stocking.
Key Features
- 600V AC rated for industrial and commercial panel protection
- 60A continuous current rating with time-delay (Super Lag) response
- Renewable element design—replace the internal link instead of the entire fuse body
- Ferrule-end configuration for standard Class H fuse blocks
- 10 kA interrupting rating at 250 VAC per UL 248
- Non-current-limiting type suitable for circuits with fault current under 10,000 amps
Technical Specifications

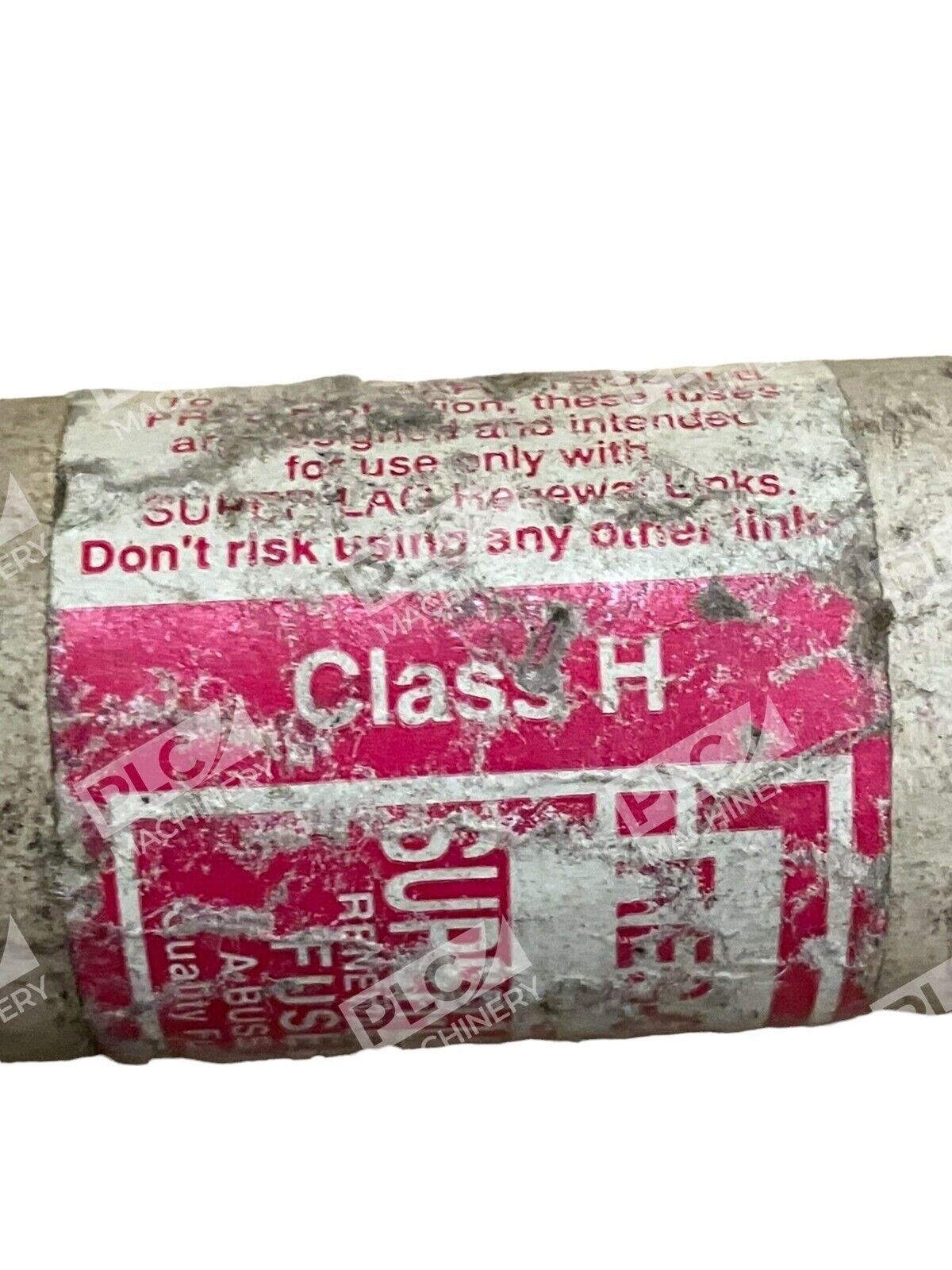

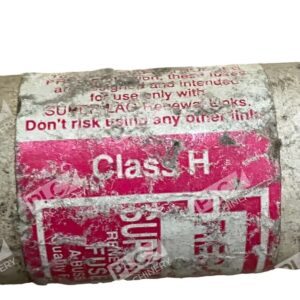

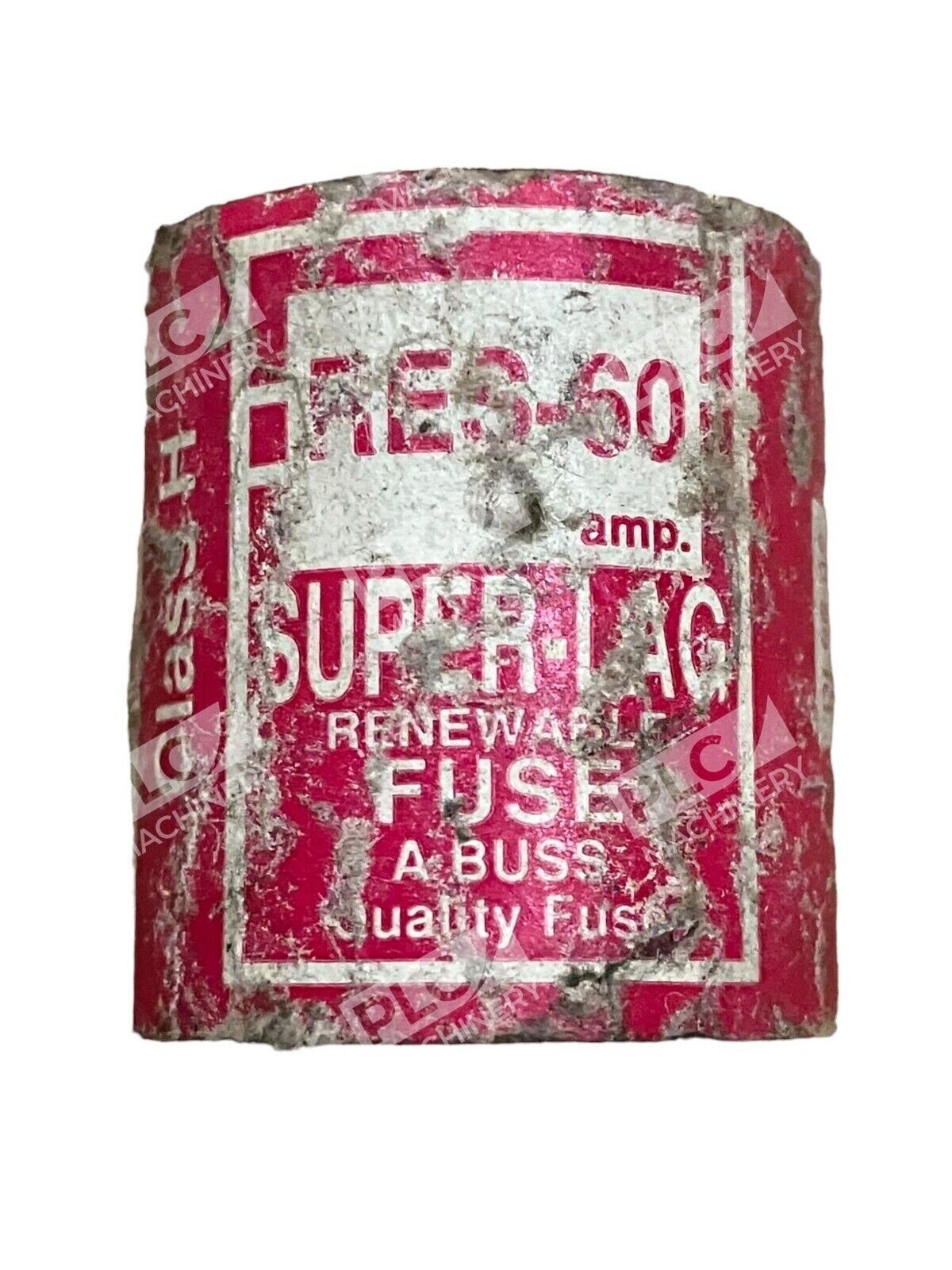

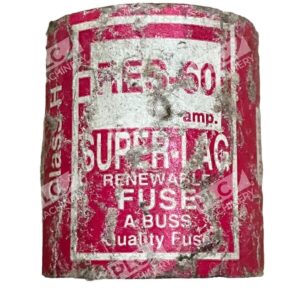

| Voltage Rating | 600 VAC |
| Ampere Rating | 60A |
| Fuse Class | Class H |
| Type | Renewable, Time-Delay (Super Lag) |
| Interrupting Rating | 10 kA @ 250 VAC |
| End Configuration | Ferrule × Ferrule |
| Dimensions | 0.81″ Dia × 5.5″ L (20.57 × 139.7 mm) |
| Current Limiting | Non-current-limiting |
| UL Listing | UL 248-9 |

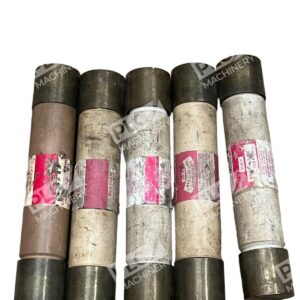

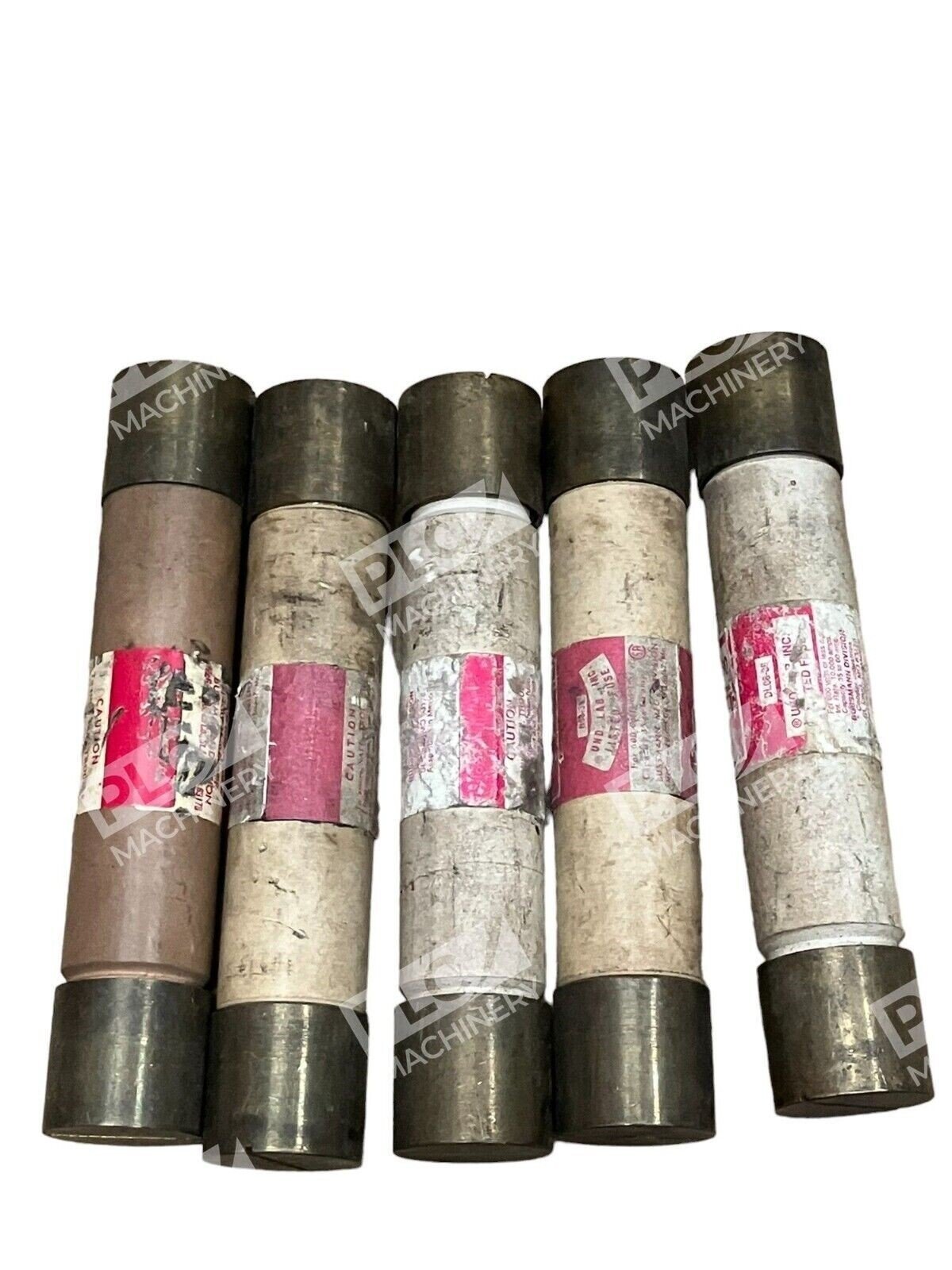

| Quantity | 5 units per lot |
Typical Applications
- Main and branch circuit protection in industrial control panels
- Motor branch circuits (sized at 300% for motor protection per UL guidelines)
- Commercial HVAC systems and refrigeration circuits
- Industrial machinery and production line feeders
- Renewable fuse applications where operational economy justifies frequent element replacement
Compatibility & Replacements
Compatible With
- Standard Class H 600V fuse blocks with ferrule-end slots
- Single-pole and multi-pole industrial disconnect switches rated 600V 60A
- Industrial control panels and motor control centers (MCCs) using Class H fuses
- Power distribution equipment in facilities rated 600V, 3-phase or single-phase
Replaces / Drop-In Replacement For
- Original Bussmann RES-60 fuses in field installations
- OEM-specified RES-60 renewable fuse elements in existing fuse blocks
- LKS-60 fuse links (for use with compatible Class H blocks)
Works With
- Bussmann HM600 600V fuse blocks (30 and 60A 1-, 2-, and 3-pole configurations)
- Standard Class H ferrule fuse holders and disconnect switches
- Industrial electrical systems and control circuits per NFPA 70 (NEC) standards
