Overview

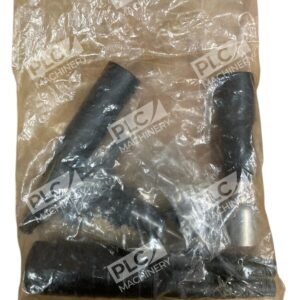

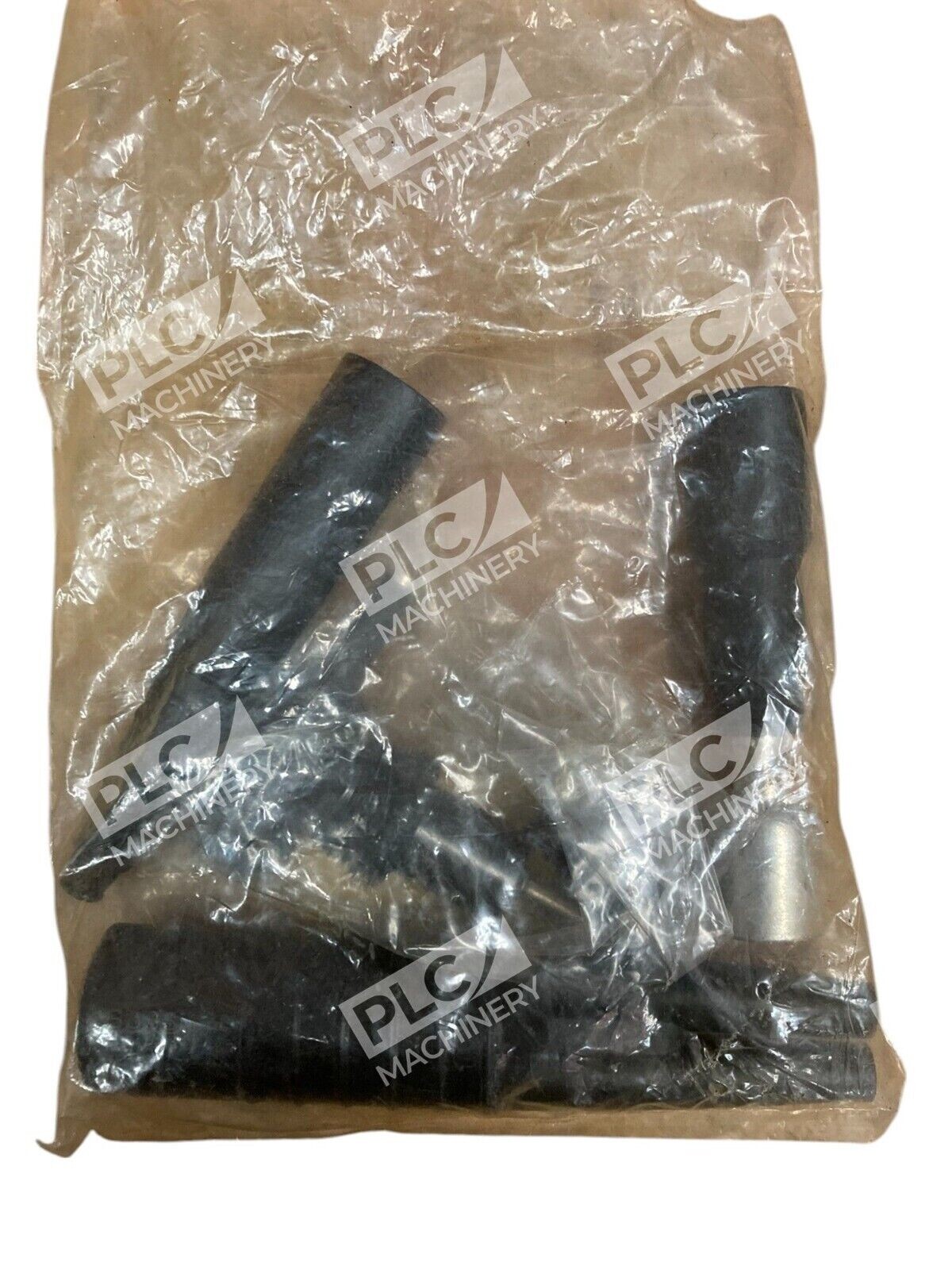

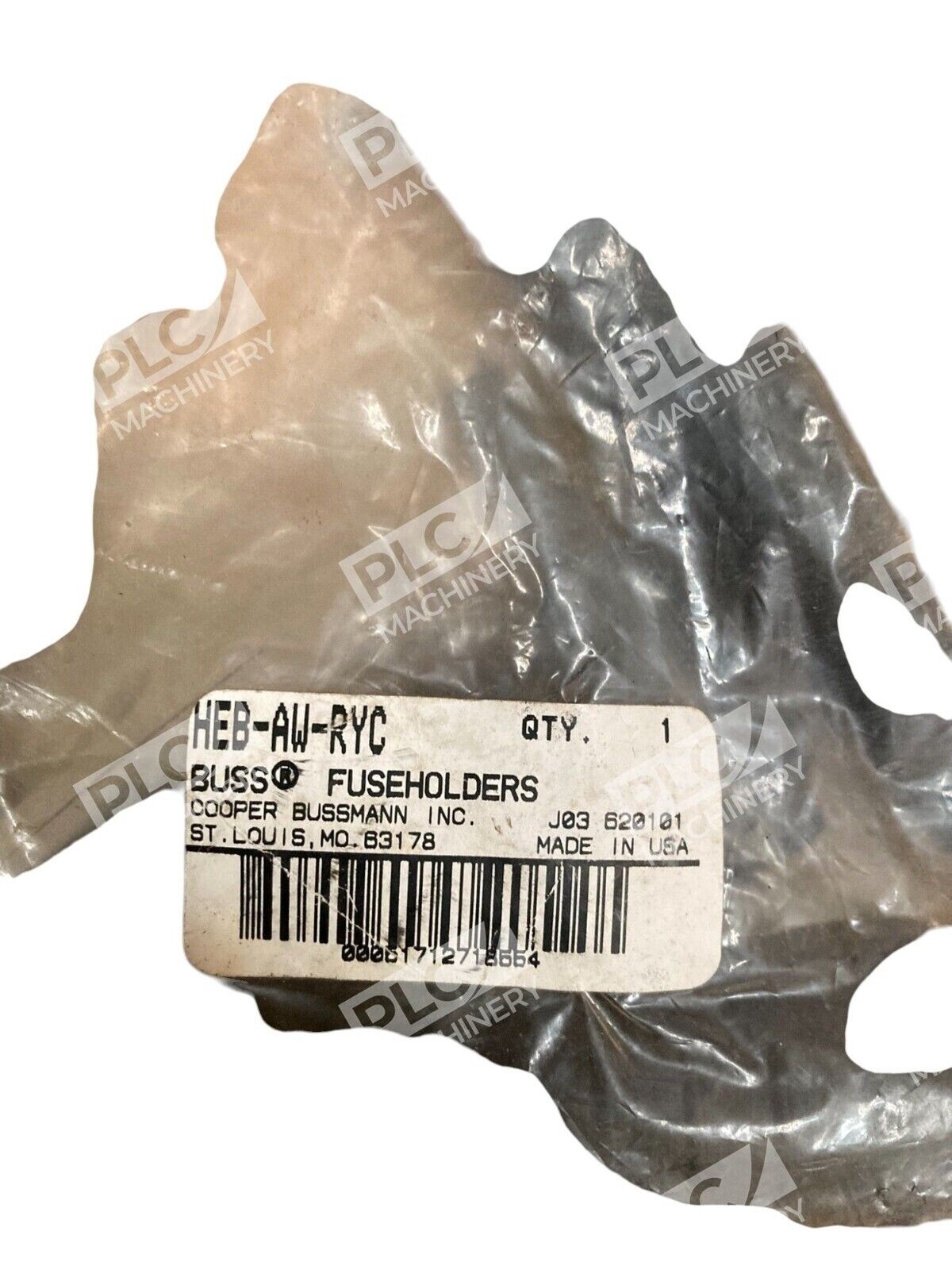

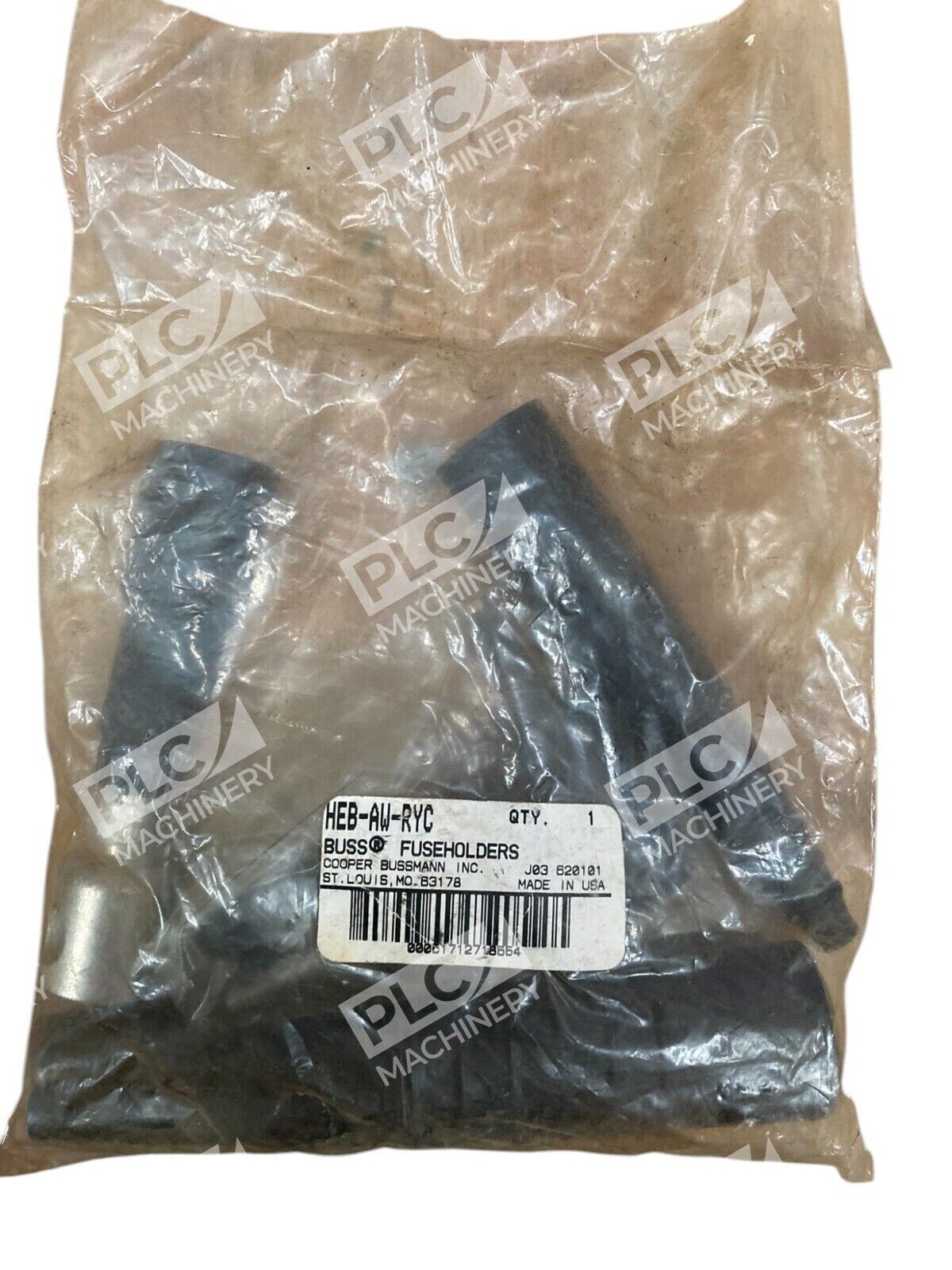

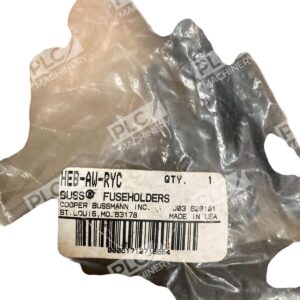

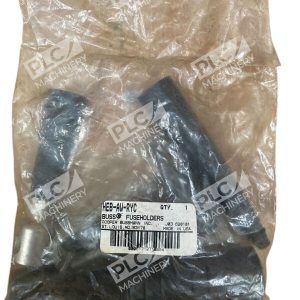

The Bussmann HEB-AW-RYC is a breakaway inline fuse holder engineered for reliable electrical circuit protection in industrial and factory environments. This single-pole fuseholder supports 30A at 600V and features copper terminal connections—setscrew on the line side and crimp on the load side—making it suitable for stationary machinery and equipment requiring robust fuse management.
Key Features
- Breakaway design reduces operator contact with live terminals during fuse replacement
- Single-pole configuration for streamlined circuit protection
- 200 kAIC (kilowatt amperes @ 600V) interrupt rating
- Copper setscrew connection on line side: (2) #2-12 AWG
- Copper crimp connection on load side: #8-16 and (2) #12-16 AWG
- Compact dimensions: 10-3/8″ length, 13/32″ diameter x 1-1/2″ fuse cavity
- Operating temperature range: -40°F to 221°F
Technical Specifications
- Part Number: HEB-AW-RYC
- Manufacturer: Eaton Bussmann Series
- Amperage Rating: 30 A
- Voltage Rating: 600 V AC/DC
- Fuse Size: 13/32″ x 1-1/2″ (cartridge)
- Number of Poles: 1
- Interrupt Rating: 200 kAIC
- Line-Side Connection: Copper setscrew (2) #2-12 AWG
- Load-Side Connection: Copper crimp #8-16 and (2) #12-16 AWG
- Overall Length: 10-3/8″
- Operating Temperature: -40°F to 221°F (-40°C to 105°C)
- Holder Type: Breakaway In-line
- Enclosure Material: Stainless Steel
Typical Applications
The HEB-AW-RYC is commonly deployed in:
- Stationary machinery and factory robotics
- Industrial equipment control circuits
- Machine tool electrical protection
- Modular power distribution systems
- Panel-mount fuse protection for 30A circuits
Compatibility & Replacements
Compatible With
- Bussmann BAF, FNM, FNQ, and KTK Series fuses (13/32″ x 1-1/2″)
- Standard 30A cartridge fuses rated 600V
- Factory robotics and stationary machinery control systems
- Industrial electrical distribution panels
- Machine tool control circuits
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or original equipment manufacturer before ordering. Common HEB series alternatives include HEB-JW-RYC (setscrew on both sides) for different terminal configurations.
Works With
- Bussmann series catalog #1007 (complete product documentation available)
- Standard 600V industrial control systems
- IEC and North American fuse standards
- Modular panel-mount electrical protection schemes
