Overview

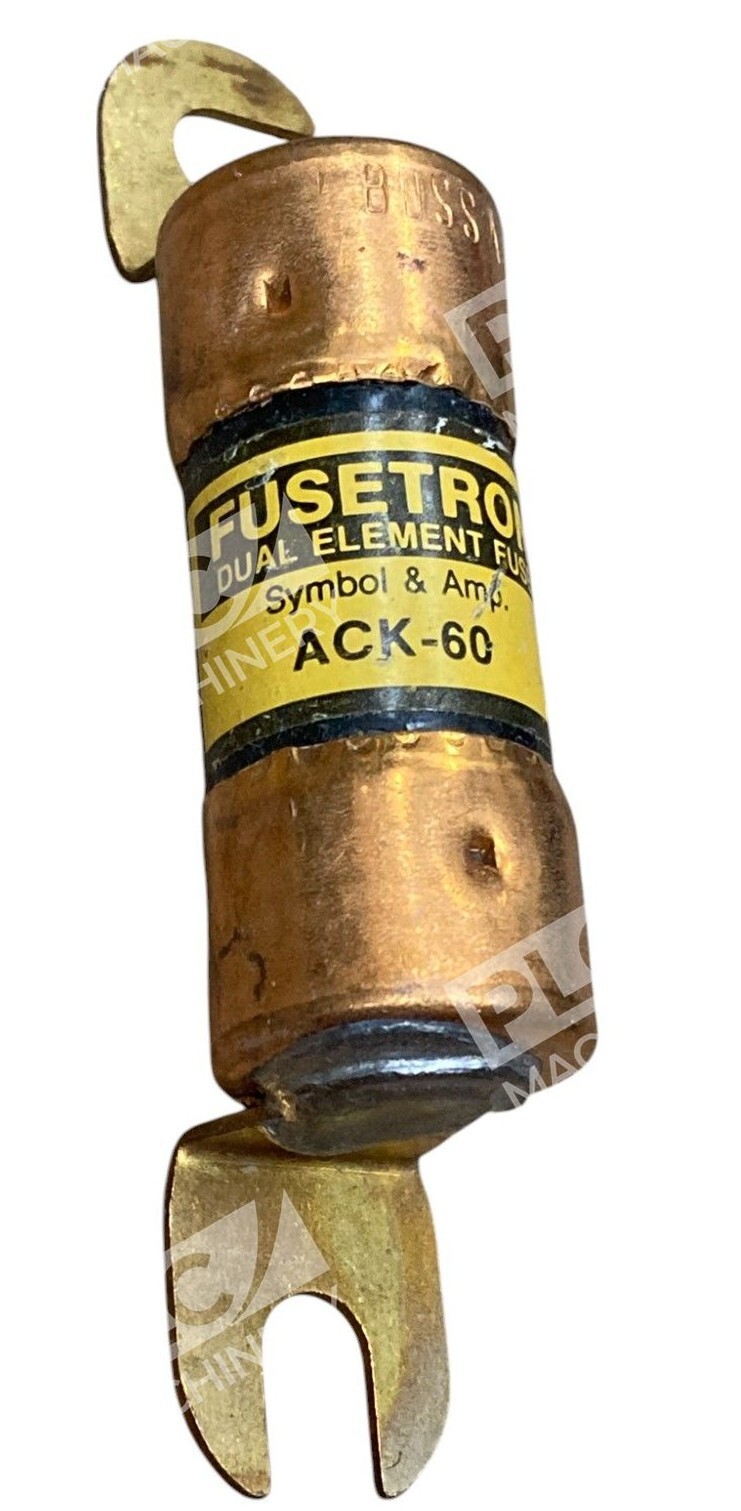

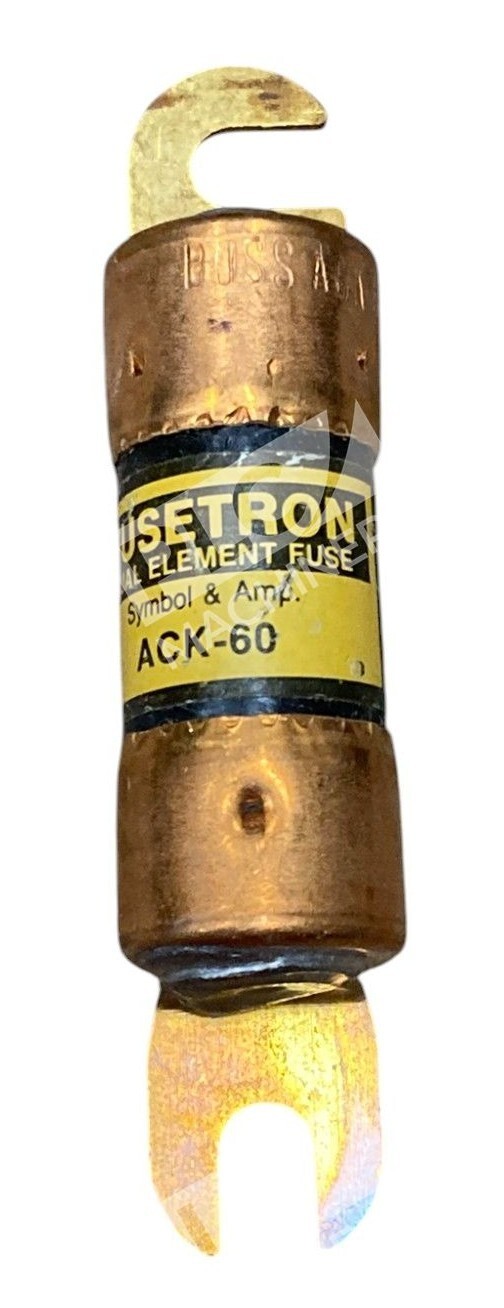

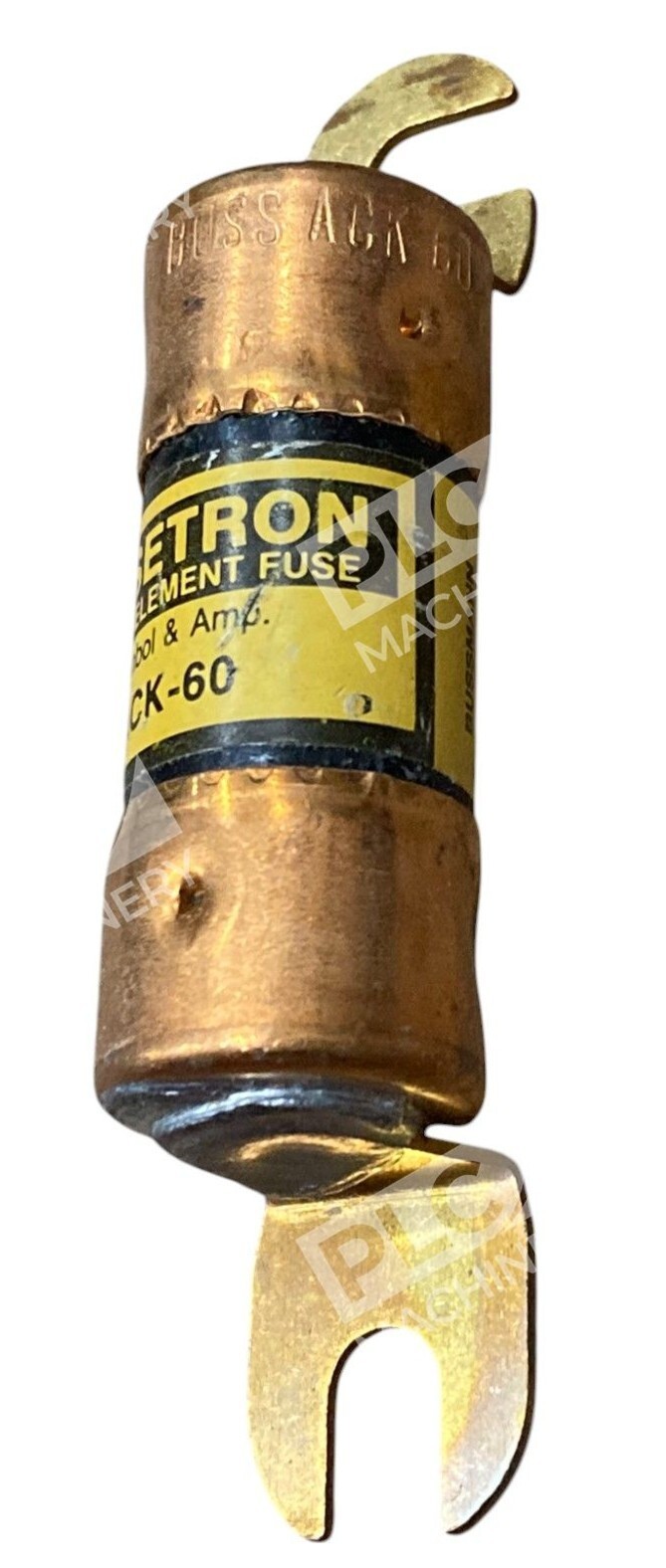

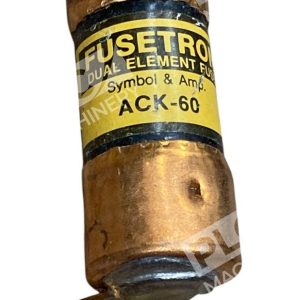

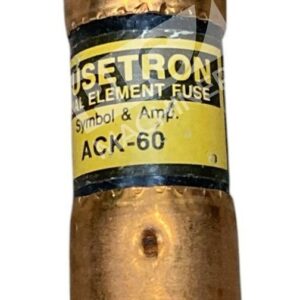

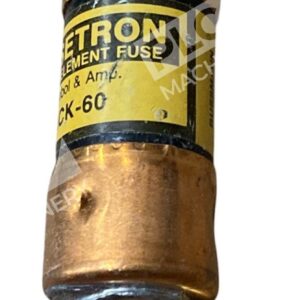

The Bussmann ACK-60 is a time-delay (slow-blow) stud-mounted fuse engineered for DC circuit protection in material handling and battery charging equipment. Rated at 60 amperes and 130 Vdc, this Fusetron dual-element fuse is designed to tolerate brief starting currents and motor inrush surges while protecting against genuine overloads and short-circuits. The ACK-60 is widely used in fork lift truck charging systems, battery chargers, and other DC applications where nuisance trips must be avoided.
Key Features
- 60A Current Rating: Suitable for circuits requiring 60 ampere protection
- Dual Element Design: Provides time-delay protection for surge-tolerant applications
- 130 Vdc Rating: Optimized for DC battery and charger circuits
- Long Time-Lag: Survives temporary starting currents and surge transients without nuisance opening
- Brass Terminals: Corrosion-resistant connections for reliable stud-mount installation
- UL Approved: Meets industry safety standards for electrical circuit protection
Technical Specifications
- Amperage Rating: 60 A
- Voltage Rating: 130 Vdc
- Time-Delay Performance: 100 sec at 200% overload, 35 sec at 300%, 13 sec at 500%
- Fuse Type: Dual element, time-delay (slow-blow)
- Mounting Style: Stud-mount (bolt-on)
- Terminal Material: Brass
- Dimensions: 0.5625 in × 2 in
- Interrupt Rating: 10 kA
- Series: Eaton Bussmann ACK
- Certifications: UL listed
Typical Applications
The Bussmann ACK-60 is the standard protective device for:
- Fork lift truck battery charging circuits
- Industrial battery charger power supplies
- DC motor starter circuits with high inrush currents
- Material handling equipment power distribution
- Welding equipment and portable power tools
- Any 130 Vdc circuit requiring selective coordination and overload protection
Compatibility & Replacements
Compatible With
- Eaton Bussmann stud-mount fuseholder systems
- 130 Vdc DC power circuits and battery charger applications
- Fork lift truck electrical systems
- Any standard stud-mount fuse housing rated for 60A and 130 Vdc
Replaces / Drop-In Replacement For
- ACK60 (alternate part number format)
- Other Bussmann 60A stud-mount time-delay fuses with matching voltage rating
Works With
- Eaton Bussmann ACK series fuseholder blocks
- OEM equipment from major fork lift and material handling manufacturers
- Legacy and current industrial DC power distribution equipment
