Overview

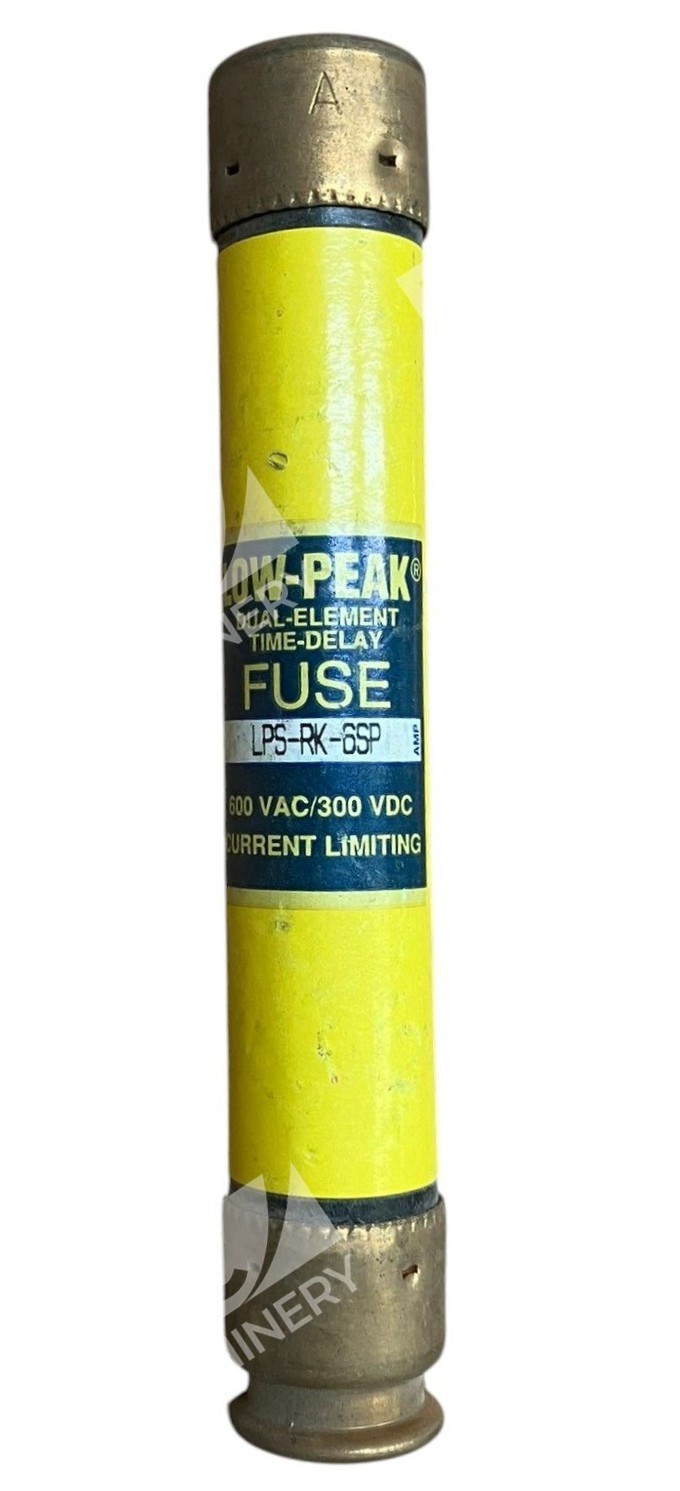

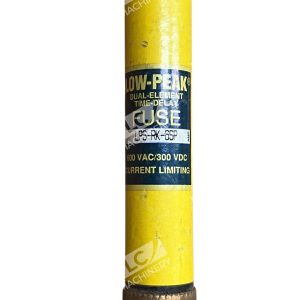

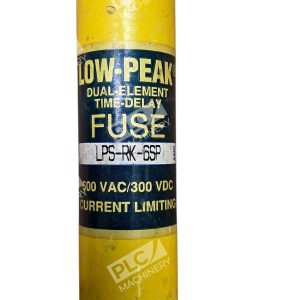

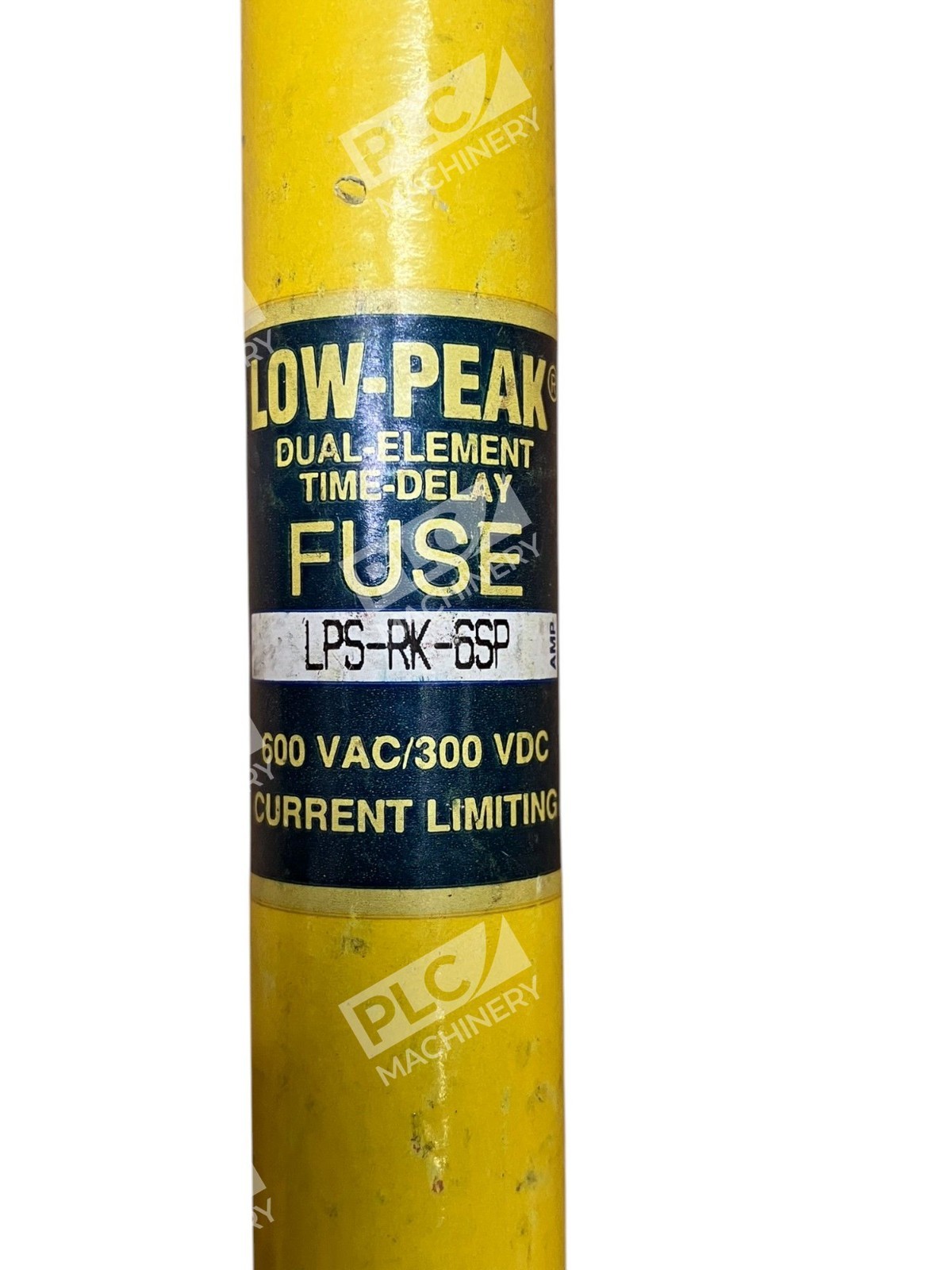

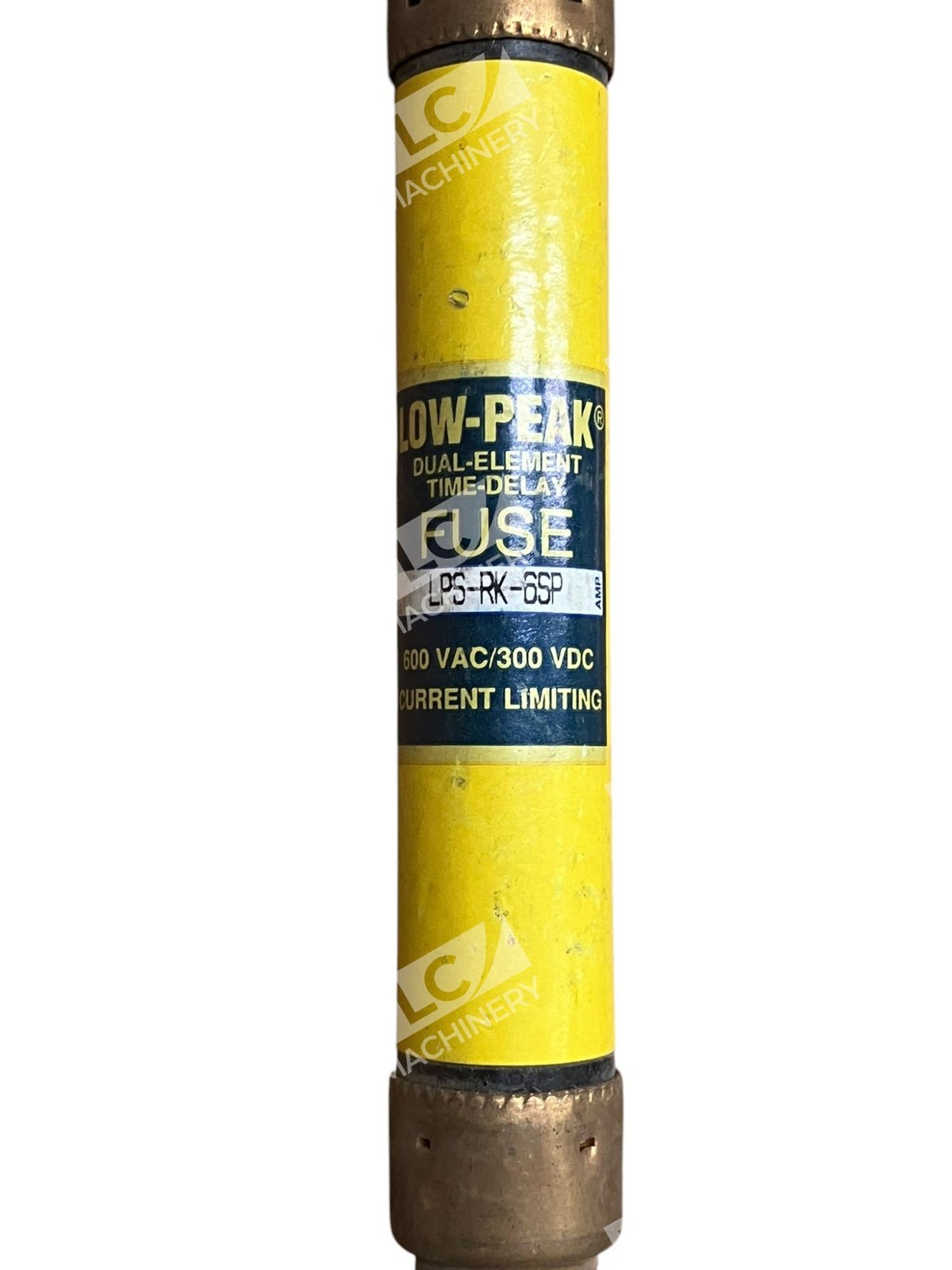

The Bussmann LPS-RK-6SP is an industrial-grade Class RK1 dual element time delay fuse designed for reliable circuit protection in 600VAC and 300VDC applications. This time-delay, dual-element, current limiting fuse has a 6A rating and non-indicating design with interrupting ratings of 300 kA at 600 Vac and 100 kA at 300 Vdc. The dual element construction provides coordinated protection against overloads and short circuits while minimizing nuisance trips in equipment with inrush currents.
Key Features
- Class RK1 fuse with 300 kAIC interrupt rating at 600 Vac and 100 kAIC at 300 Vdc
- Dual element design with 10 second response time at 500% for coordinated branch and feeder circuit protection
- Ferrule-end construction for standard bayonet or screw-based fuse holders
- Current-limiting action reduces fault damage and equipment stress
- Non-indicating fuse with electrically isolated end cap
- Suitable for motors, transformers, solenoids, and general industrial circuits
Technical Specifications
- Amperage Rating: 6A
- Voltage Rating: 600VAC, 300VDC
- Interrupt Rating: 300 kAIC at 600 Vac; 100 kAIC at 300 Vdc
- Fuse Class: Class RK1
- Type: Dual Element, Time Delay (Slow Blow)
- Design: Current-Limiting
- Connection: Ferrule end × ferrule end
- Indication: Non-indicating
- Product Dimensions: 5 in length × 0.81 in height × 0.81 in width
- Product Weight: 1.6 lb

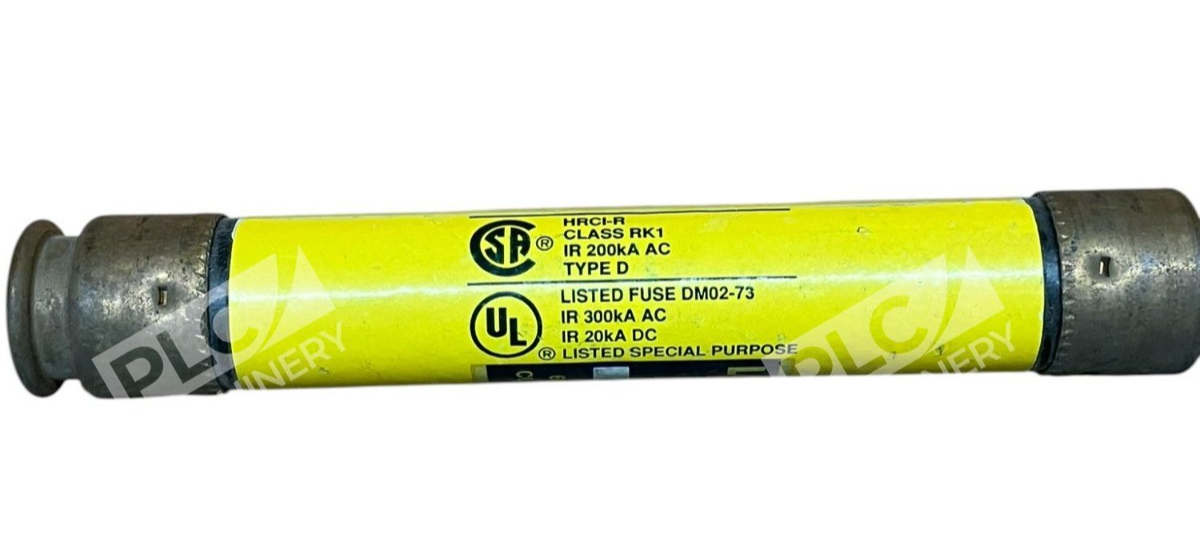

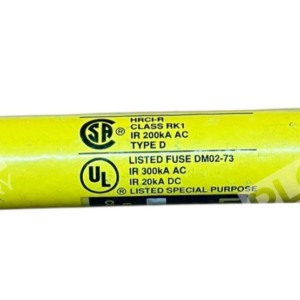

- Certifications: CE Marked, UL/CSA approved
- Series: Bussmann LPS-RK (Low-Peak 600V)
Typical Applications
Typical applications include feeder and branch circuits, transformers, motors, solenoids, and general purpose circuits. The time delay characteristic makes the LPS-RK-6SP ideal for equipment with motor starting inrush currents. Industries commonly served include manufacturing, HVAC, process control, and general electrical distribution.
Compatibility & Replacements
Compatible With
- 600VAC electrical systems and equipment with 6A rated circuits
- 300VDC DC power systems and controls
- Standard 2-pole and 3-pole power distribution panels
- Industrial control circuits and motor feeders
- Transformer protection circuits
- Relay circuits and solenoid protection
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering. The LPS-RK-6SP is the non-indicating version; verify if your system requires the LPS-RK-6SPI (with indicator).
Works With
- Class RK1-rated fuse holders and bayonet/ferrule-end holders
- All standard AC and DC industrial control systems
- Eaton Bussmann Low-Peak fuse systems and protection schemes
- UL 489 and IEC 60947-4-1 compliant electrical systems
