Overview

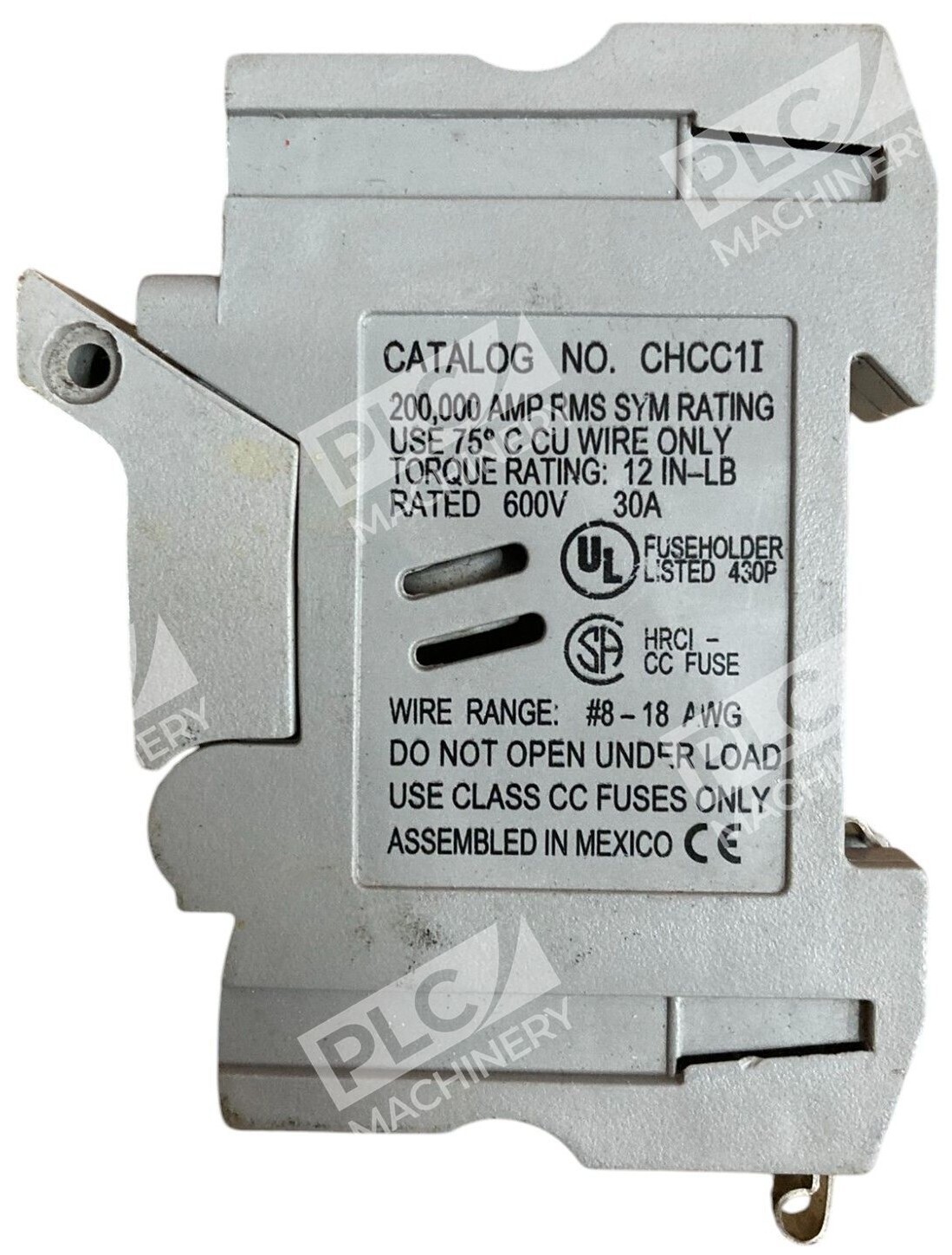

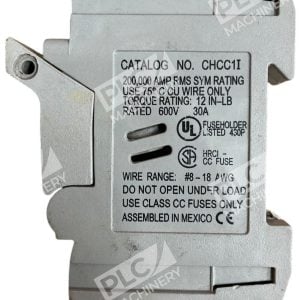

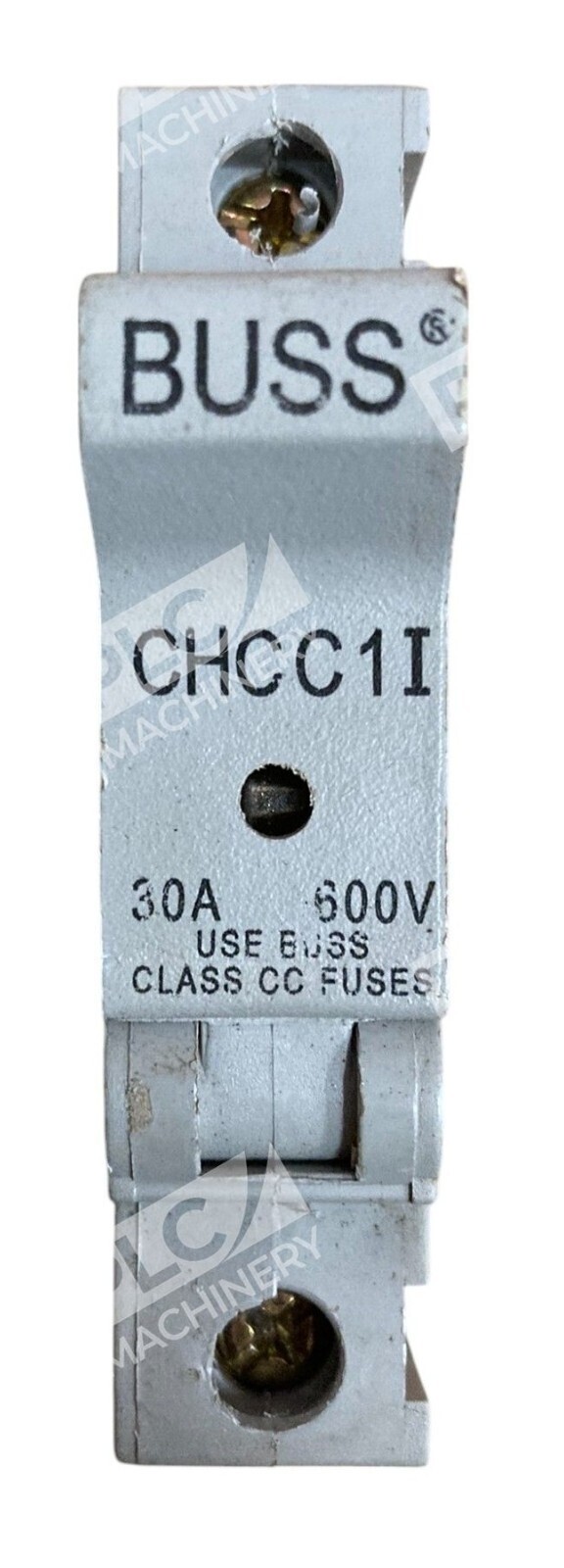

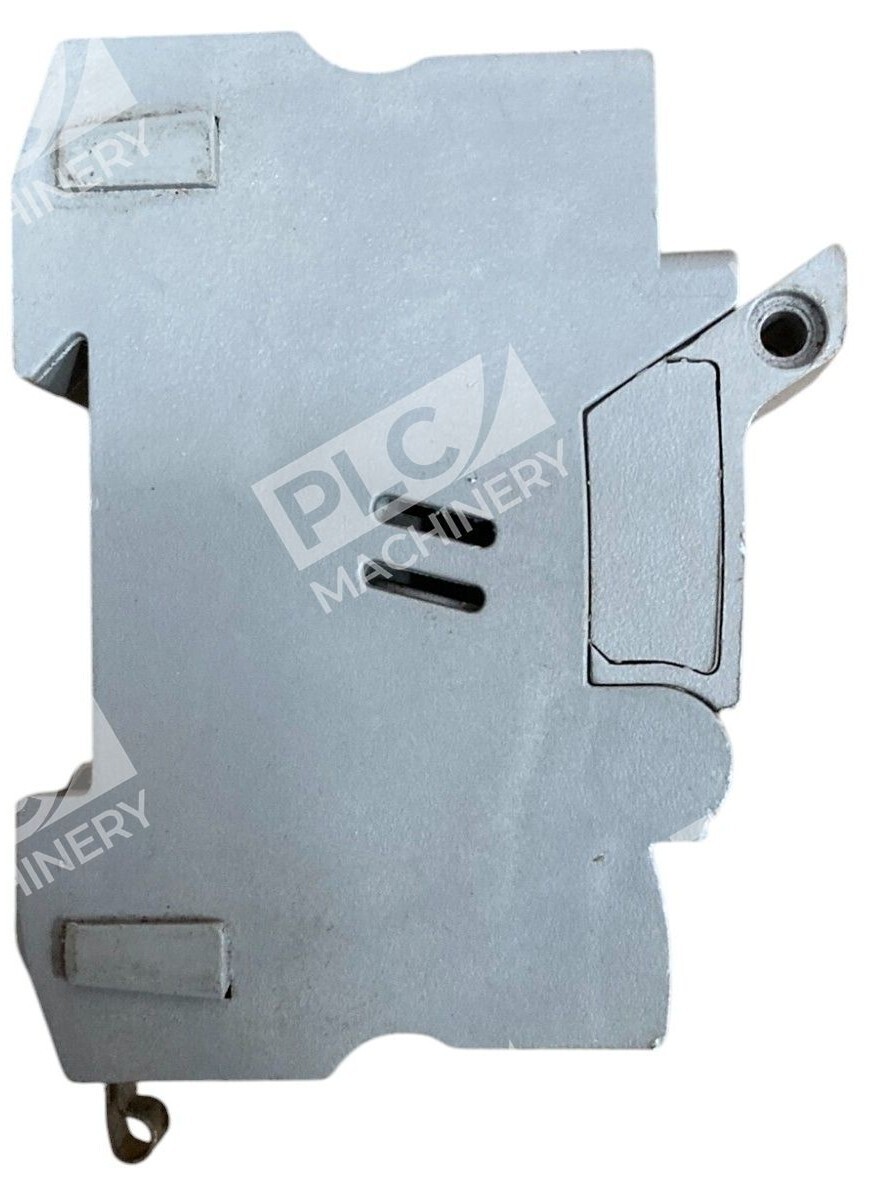

The Bussmann CHCC1I is an industrial-grade Class CC fuse holder designed for 600V, 30A circuits. This modular DIN rail fuse holder combines compact size with visual fault indication, making it ideal for distributed circuit protection in control panels and electrical enclosures. The CHCC1I accommodates standard Class CC 10x38mm fuses with a 200,000A interrupt rating (IR), delivering reliable overcurrent and short-circuit protection in the smallest possible package.
Key Features
- 1-pole modular design for DIN rail mounting (35mm standard track)
- Integrated visual fault indicator for immediate fuse status confirmation
- IP20 finger-safe design—secure access in occupied enclosures
- 200,000A short-circuit current rating (SCCR) for Class CC fuses
- Compact profile—stackable for multi-pole applications
- UL and CSA certified for North American applications
Technical Specifications
- Voltage Rating: 600V AC/DC
- Current Rating: 30A
- Fuse Type: Class CC (IEC 10x38mm)
- Number of Poles: 1
- Mounting: DIN rail 35mm modular
- Indication: Visual fault indicator (LED or mechanical window)
- Material: Polyester (UL 90-VO rated)
- Operating Temperature: −25°C to +50°C
- Certifications: UL E14853, UL E348242, CSA 47235, CCC
- Series: Bussmann CH modular
Typical Applications
- Industrial control panels and PLC input/output modules
- Motor control centers and variable frequency drive circuits
- Photovoltaic (PV) inverter DC branch circuits
- Lighting protection circuits and dimmer control
- Distributed power distribution in automated manufacturing equipment
- HVAC and refrigeration circuit protection
Compatibility & Replacements
Compatible With
- All Class CC fuses rated for 30A, 600V (e.g., Bussmann LP-CC Low Peak, KTK-R Limitron, FNQ-R time-delay fuses)
- IEC 10x38mm supplemental fuses and midget fuses
- DIN rail systems rated for 35mm modular holders
- Industrial electrical enclosures and control cabinets
- Multi-pole arrays (multiple CHCC1I units can be ganged on single rail)
Replaces / Drop-In Replacement For
- CHCC1DI (similar 1-pole holder without indication or with different indicator style)
- CHCC1DIU (1-pole with indicator for 48Vdc applications)
- Legacy Cooper Bussmann Class CC in-line holders (with DIN rail adapter)
Works With
- Eaton/Bussmann series CH modular fuse block accessories and mounting hardware
- Class CC fuse links and accessories from major manufacturers (Littelfuse, Phoenix Contact, Schneider Electric)
- Standard 35mm DIN rail systems per IEC 60715
- Any control circuit requiring 600V, 30A overcurrent protection
