Overview

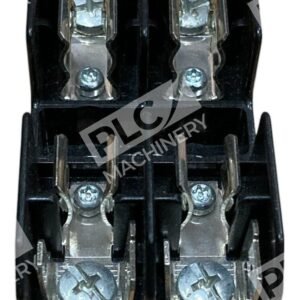

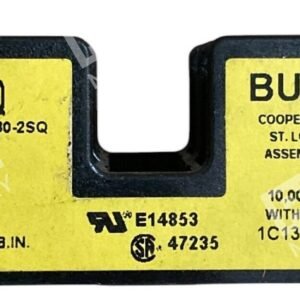

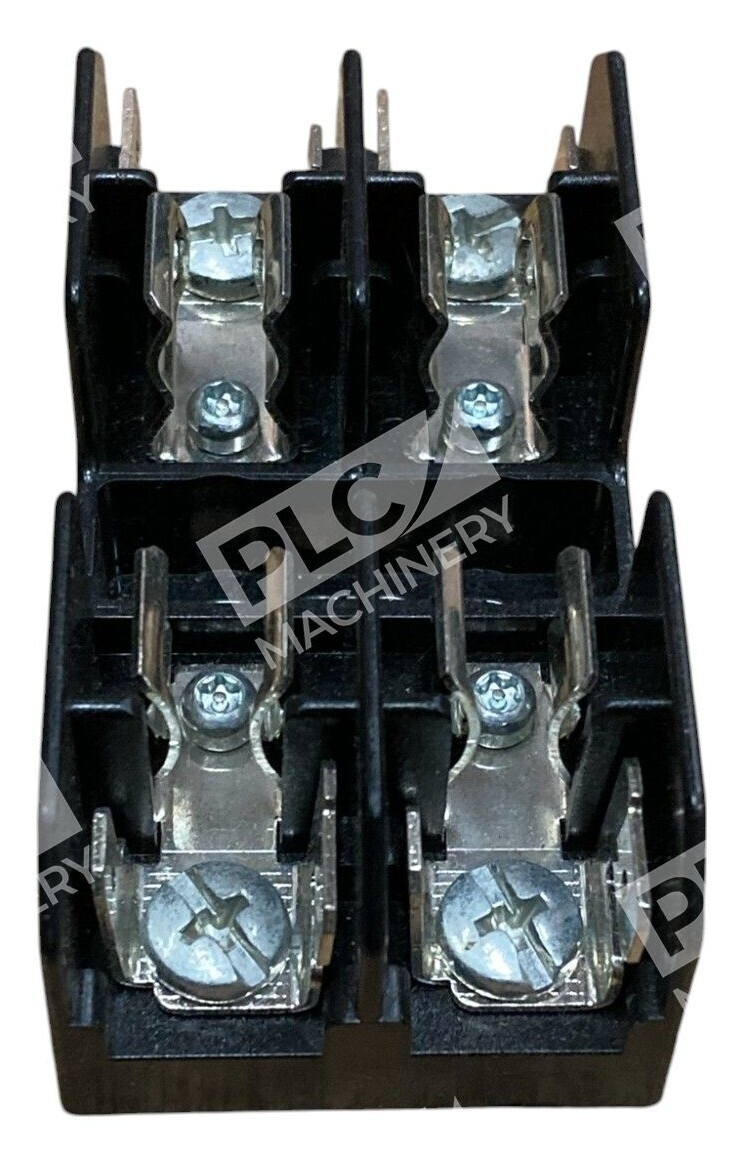

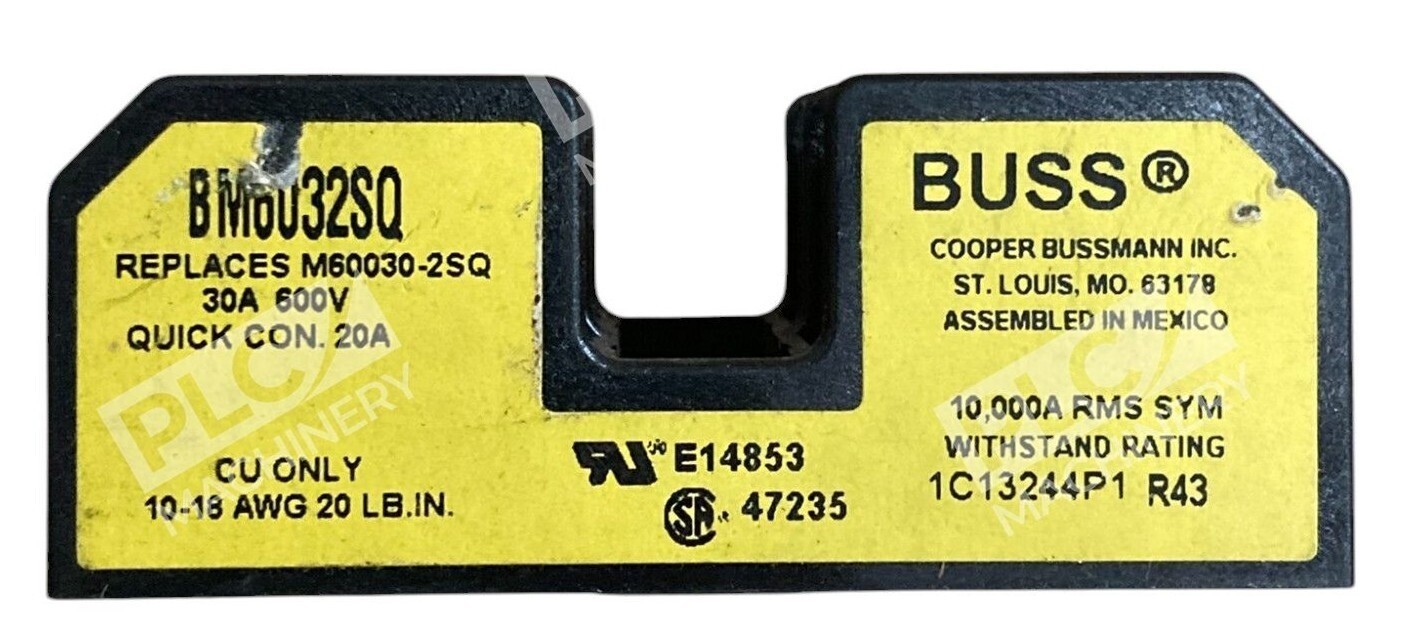

The Bussmann BM6032SQ is a robust 2-pole midget fuse block designed for industrial power distribution and circuit protection. Rated at 600V AC/DC with a current range of 1/10 to 20 amperes, this fuse block holder accommodates 13/32″ × 1-1/2″ cartridge fuses and features both screw and 1/4″ quick-connect terminals for flexible wiring configurations. Manufactured by Eaton’s Bussmann division, this unit meets UL 512, CE, and CSA C22.2 standards, making it suitable for demanding industrial automation environments.
Key Features
- 2-pole configuration for dual-circuit protection in a single compact module
- Screw and quick-connect terminal options eliminate wiring compatibility concerns
- DIN rail mounting provides standard industrial installation compatibility
- Thermoplastic housing ensures durability and electrical isolation
- Spring clip design holds fuses securely with positive engagement
- Supplementary fuse classification (Class M) suitable for control and low-power applications
Technical Specifications
- Voltage Rating: 600 VAC/VDC
- Current Range: 1/10 to 20 amperes
- Number of Poles: 2
- Fuse Type: Midget cartridge (13/32″ × 1-1/2″)
- Fuse Class: 5AG/AB (supplementary)
- Terminal Type: Screw with 1/4″ quick-connect
- Wire Size: 18 to 10 AWG (copper)
- Mounting: DIN rail
- Dimensions: 3.0″ L × 1.625″ W × 1.210″ H
- Material: Thermoplastic
- Approvals: UL 512, CE, CSA C22.2
Typical Applications
The Bussmann BM6032SQ is widely deployed in:
- Industrial motor control centers and control panels
- PLC and automation system input/output power distribution
- Machine tool control circuits
- Lighting circuits in factory and facility automation
- Low-voltage power distribution systems up to 600V
- OEM equipment protection modules requiring compact fuse blocks
Compatibility & Replacements
Compatible With
- DIN rail mounting systems (standard 35mm DIN profile)
- 13/32″ × 1-1/2″ midget cartridge fuses (Class 5AG/AB)
- Industrial control circuits rated 600V or lower
- Screw or quick-connect terminal wiring methods
Replaces / Drop-In Replacement For
- Cooper Bussmann model 2810 (legacy equivalent)
- Other 2-pole, 600V/30A midget fuse blocks with identical footprint and terminal configuration
Works With
- Industrial automation platforms requiring NFPA 70 (National Electrical Code) compliant overcurrent protection
- Bussmann midget cartridge fuse products in 5AG/AB classification
- Standard DIN rail-mounted control systems and enclosures
