Overview

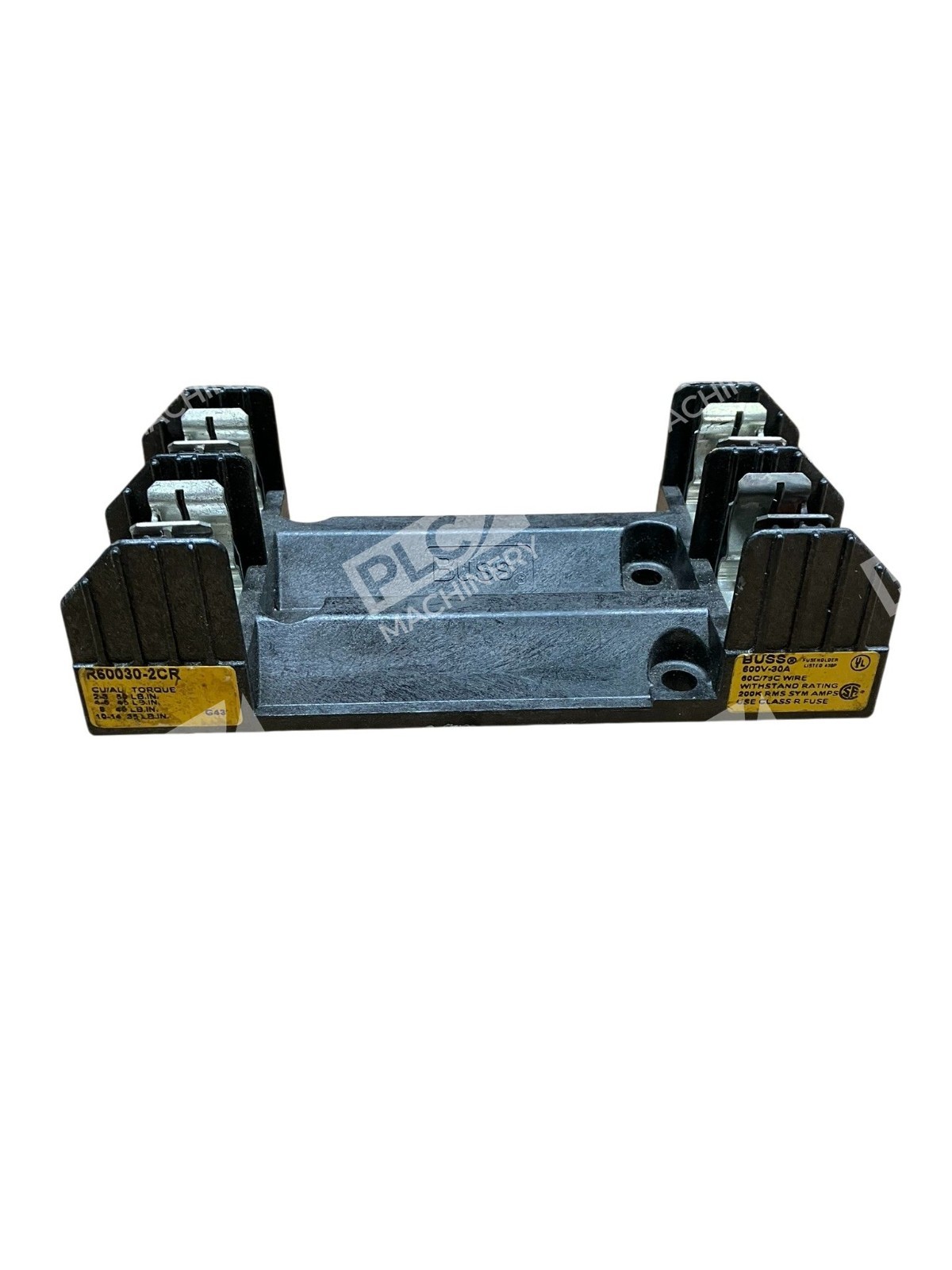

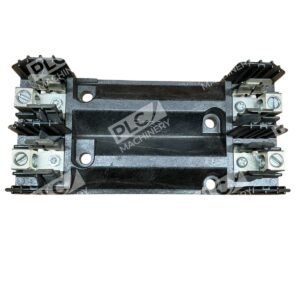

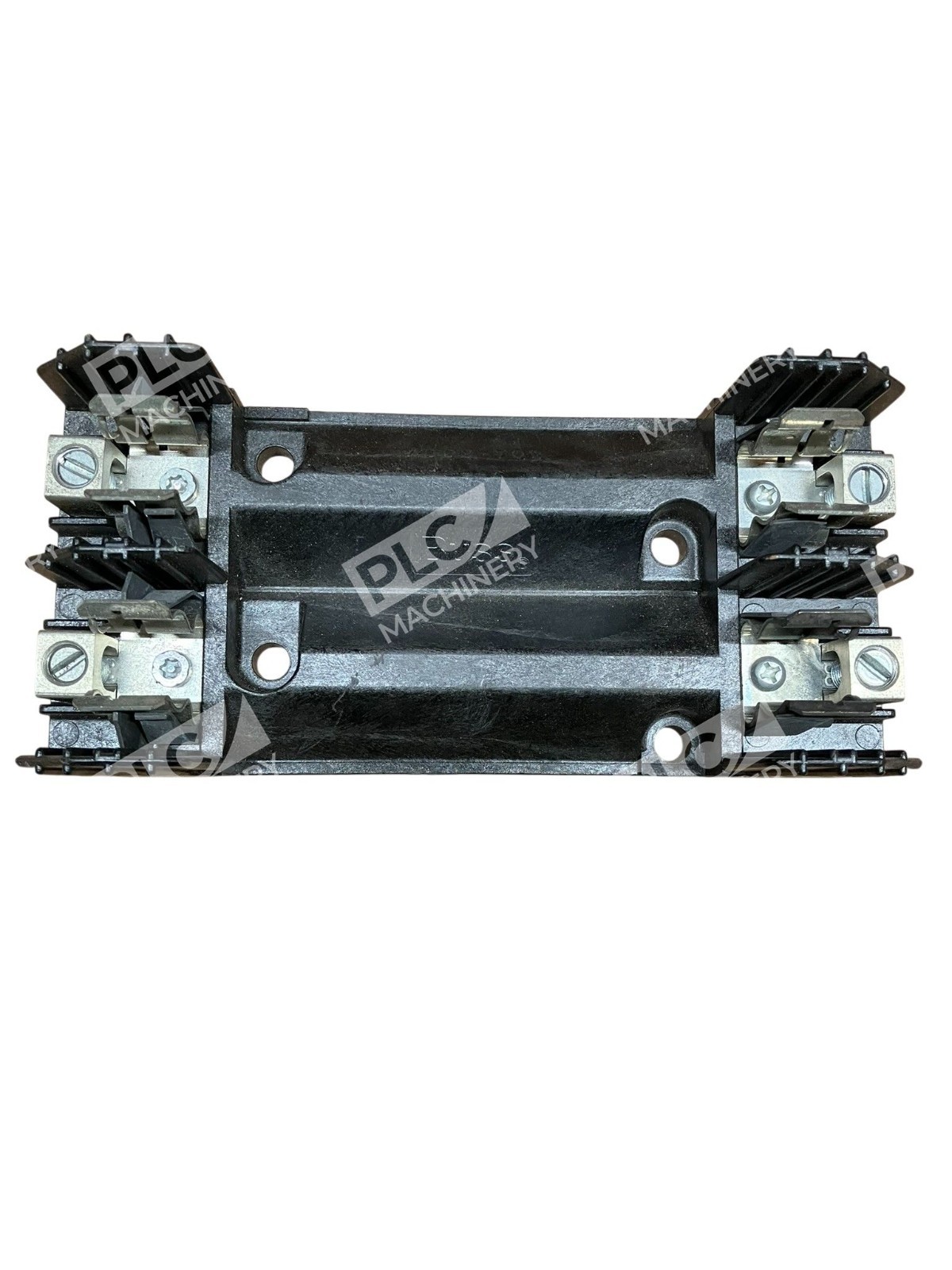

The Bussmann R60030-2CR is a robust 2-pole Class R fuse block engineered for industrial and commercial electrical systems requiring dual-pole protection at 600V, 30A. Manufactured by Eaton’s Bussmann Series, this fuseholder provides reliable circuit protection and is designed to safely hold and secure Class R cartridge fuses in demanding applications.
Key Features
- 2-pole configuration for dual-circuit protection
- Class R fuse compatibility with rejection rib design
- Box lug termination for secure wire connection
- 600V AC rated voltage with 30A maximum current
- UL 512 and CSA certified for North American compliance
- Thermoplastic housing for durability and safety
Technical Specifications
- Voltage Rating: 600V AC
- Current Rating: 30A
- Number of Poles: 2
- Fuse Type: Class R Cartridge
- Fuse Length: 5 inches
- Termination Style: Box Lug
- Wire Size: 14 to 2 AWG (Copper), 12 to 2 AWG (Aluminum)
- Certifications: UL 512, CSA
- Housing Material: Thermoplastic
- Mounting Type: Bolt-down
Typical Applications
The R60030-2CR is ideal for circuit protection in:
- Industrial machinery control panels
- Commercial HVAC systems requiring 600V dual-phase protection
- Power distribution systems in manufacturing facilities
- Motor control centers and switchboards
- Three-phase equipment branch circuit protection
Compatibility & Replacements
Compatible With
- Class R cartridge fuses (0.1 to 30A, 600V rated)
- Industrial control systems and motor control centers
- Three-phase power distribution networks
- DIN rail and bolt-down mounting installations
- Eaton/Bussmann R600 series fuse block ecosystem
Replaces / Drop-In Replacement For
- Eaton Bussmann RM60030-2CR (modular equivalent)
- Eaton Bussmann HM60030-2CR (alternate housing style)
Works With
- Class R IEC and UL-listed cartridge fuses
- Standard industrial circuit protection practices (UL 512)
- Three-phase power systems and dual-circuit configurations
- Bolt-down and DIN rail mounting assemblies
