Overview

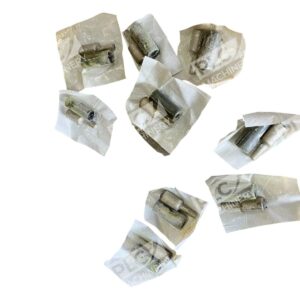

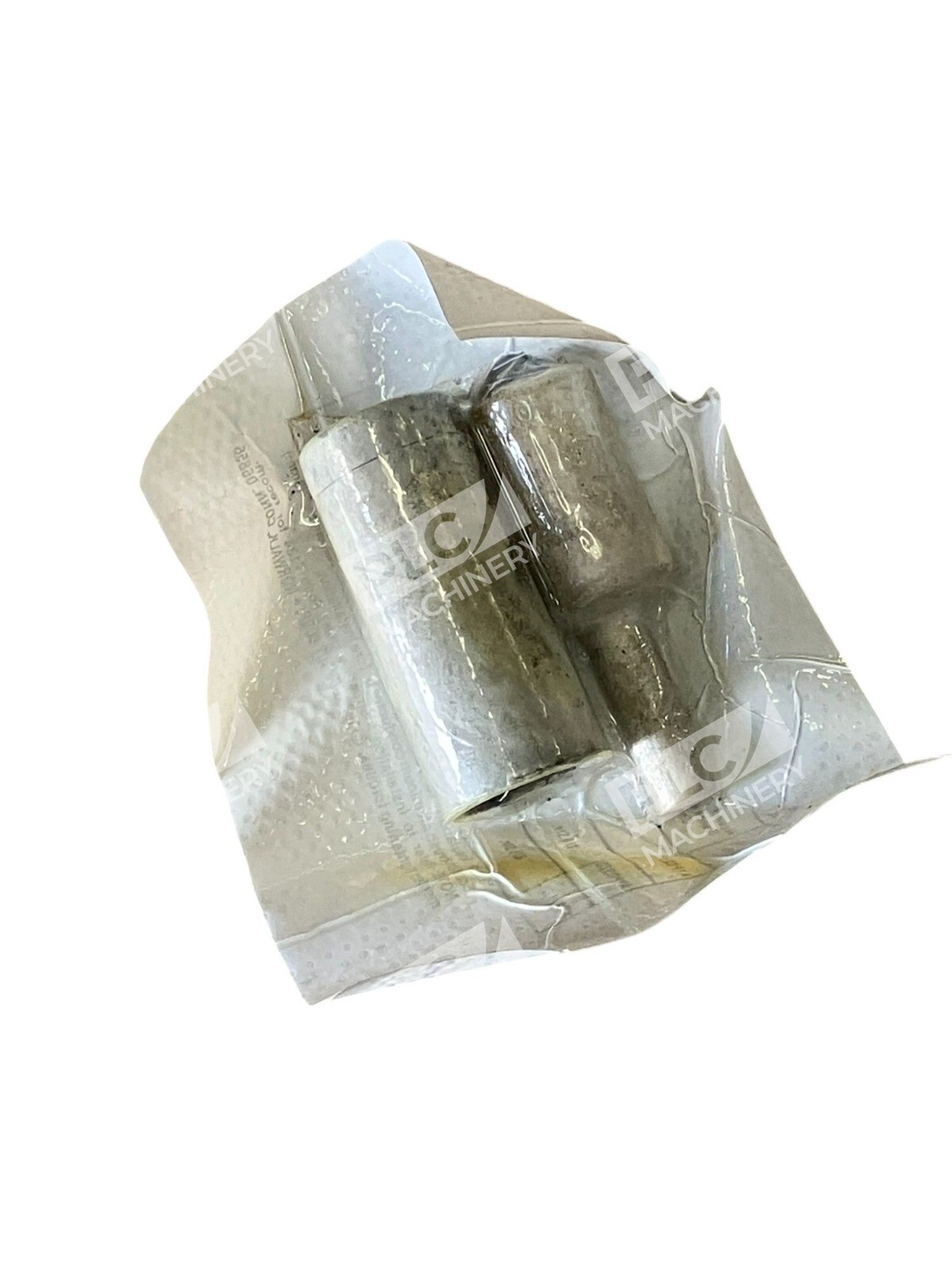

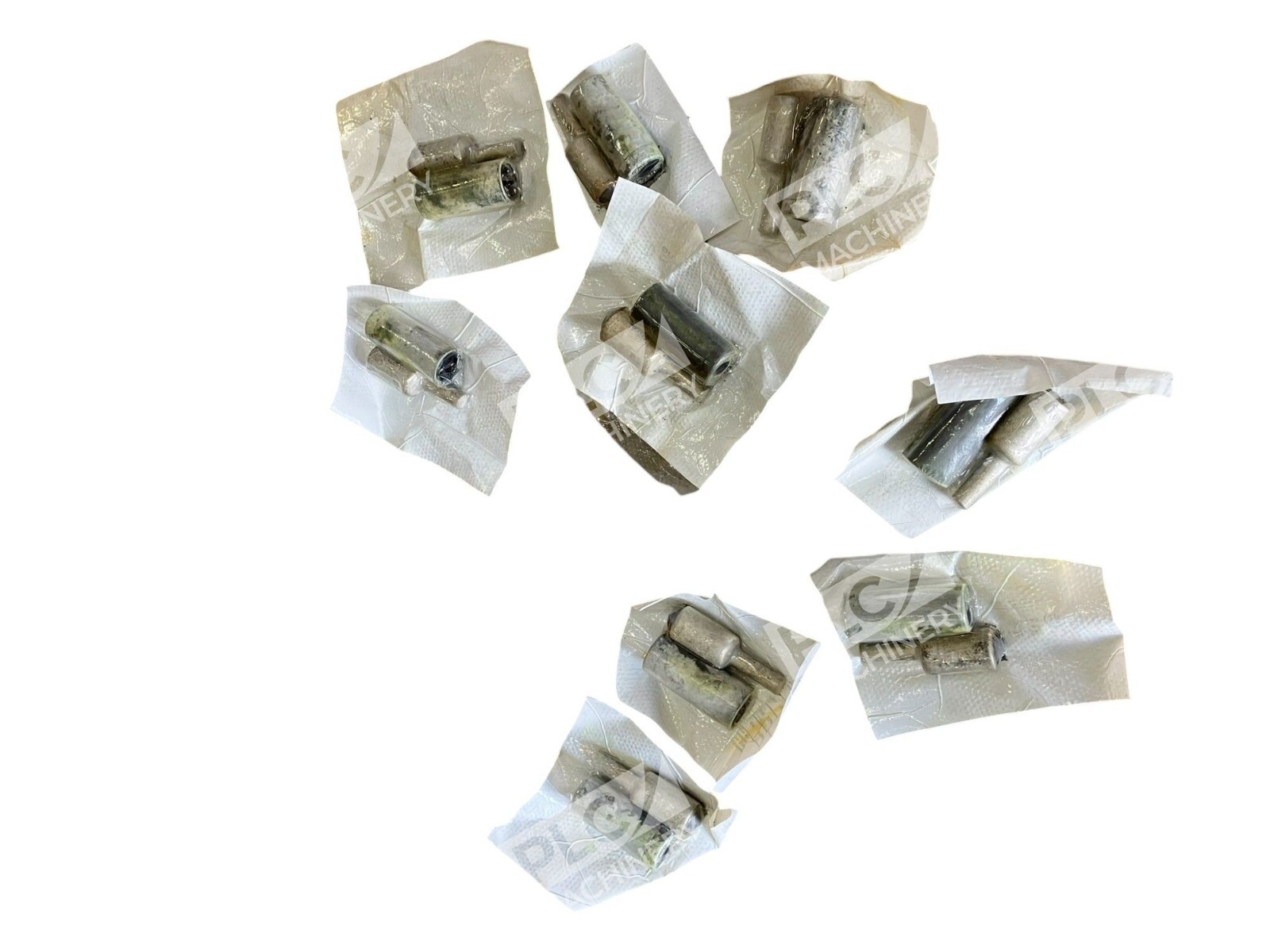

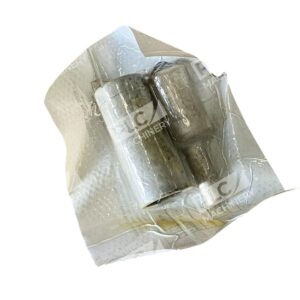

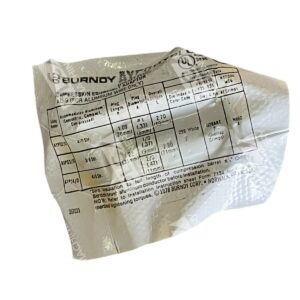

The Burndy Hyplug AYP0 compression pin adapter is an aluminum electro-tin plated connector designed for high-voltage power distribution. This lot of 9 units provides offset-style pin adapters in sizes ranging from 2/0 to 4/0 AWG, suitable for equipment in electrical distribution, circuit breakers, panel boards, and meter sockets. Each connector includes a factory-supplied EPDM rubber cover rated for 600 VAC service.
Key Features
- Aluminum electro-tin plated design — eliminates bi-metallic corrosion and provides superior conductivity
- Offset plug configuration — permits easy installation in equipment with limited working space while eliminating conductor interference
- Factory pre-filled with oxide-inhibiting compound — penetrates aluminum oxide between strands to form airtight connections
- Voltage rated 600–35,000 VAC — suitable for utility and industrial power applications
- EPDM cover supplied — rated for 600 VAC, eliminating the need for additional taping
- New in box condition — full lot of 9 units ready for immediate deployment
Technical Specifications
- Conductor Size: 2/0, 3/0, and 4/0 AWG (mixed lot)
- Pin Diameter: 0.33–0.42 inches (varies by size)
- Material: Aluminum, tin-electro plated
- Voltage Rating: 600–35,000 VAC
- Temperature Rating: 194°F (90°C)
- Cover Type: EPDM rubber, 600 VAC rated
- Barrel Length: 1-1/8 inches (standard)
- Die Code: 298 Element A (white color code)
- Plating: Tin-electro plated
- Quantity: 9 units per lot
Typical Applications
Burndy Hyplug AYP0 compression adapters are widely used in:
- Electrical utility substations and power distribution networks
- Industrial circuit breaker cabinets and switchgear
- Utility meter sockets and metering equipment
- Panel boards and control centers rated for medium to high voltage
- Motor control equipment and power terminals
Compatibility & Replacements
Compatible With
- Burndy compression crimping tools (W-Die sets, U-Die sets)
- Electrical utility metering and distribution equipment
- Industrial panel boards and switchgear
- Circuit breaker installations (480V, 600V, and higher)
- Equipment requiring NEC-compliant compression connections
Replaces / Drop-In Replacement For

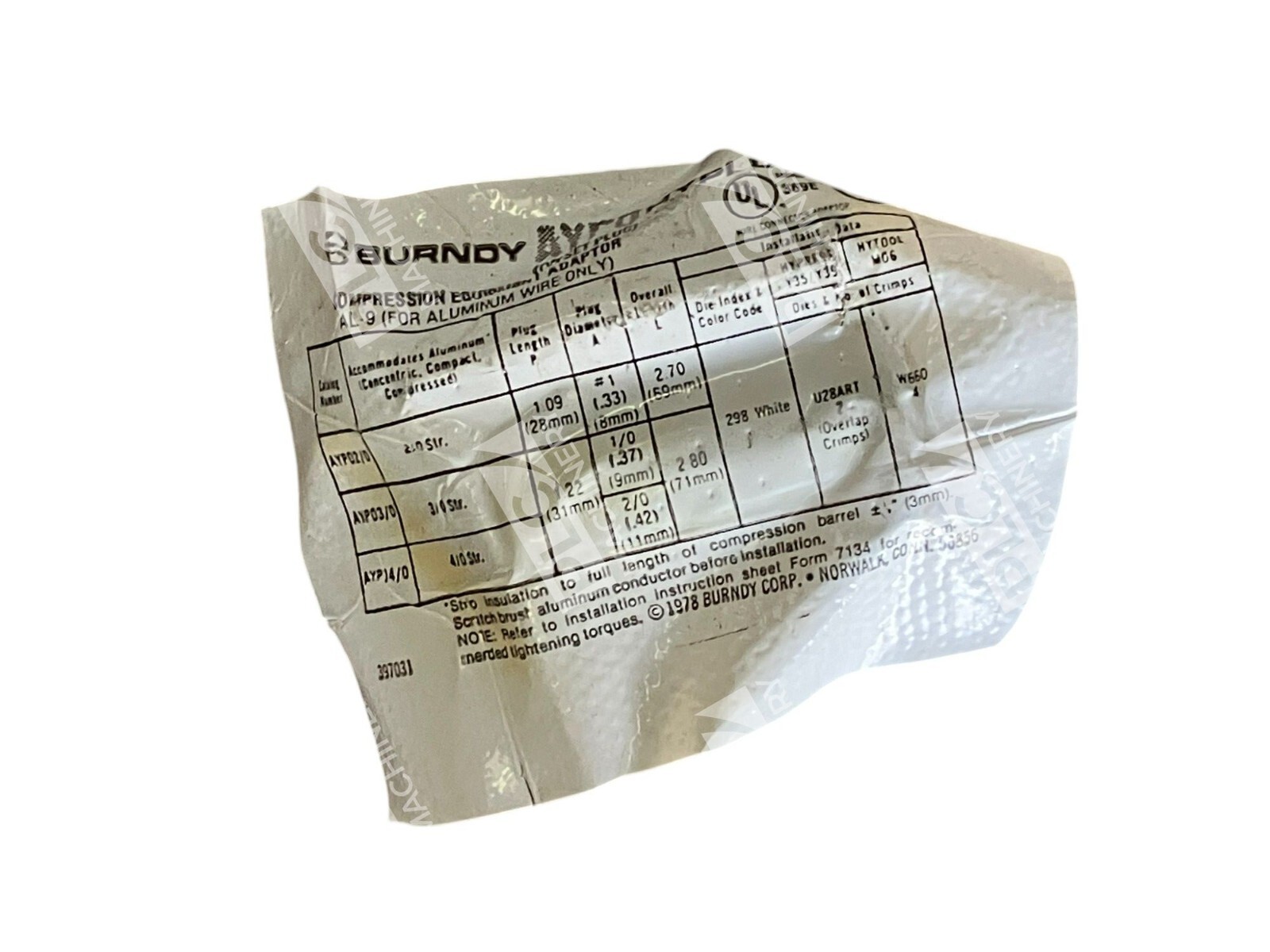

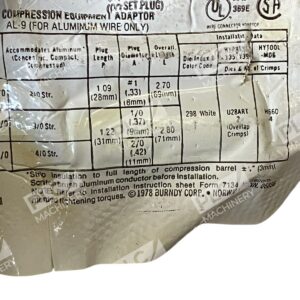

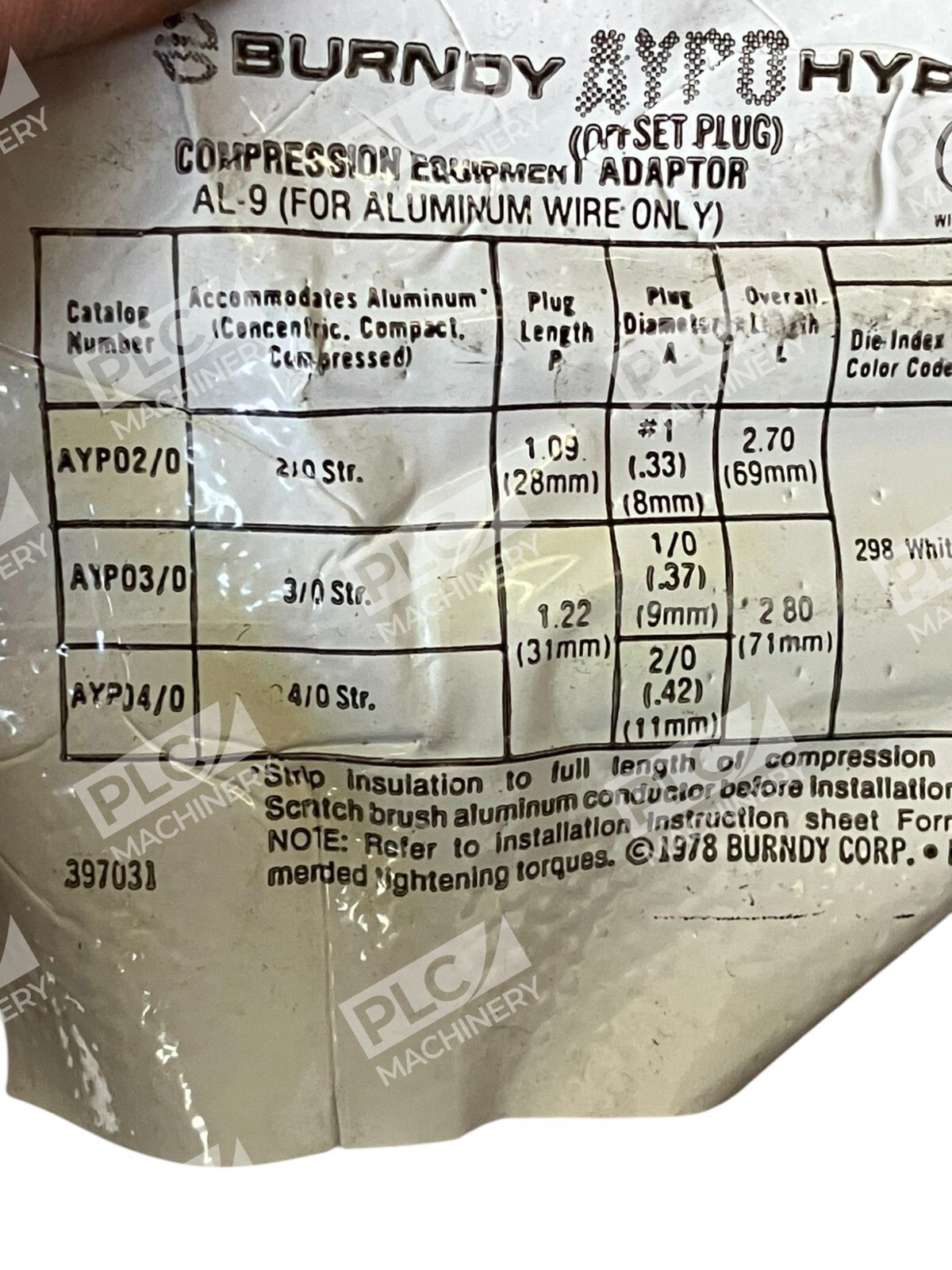

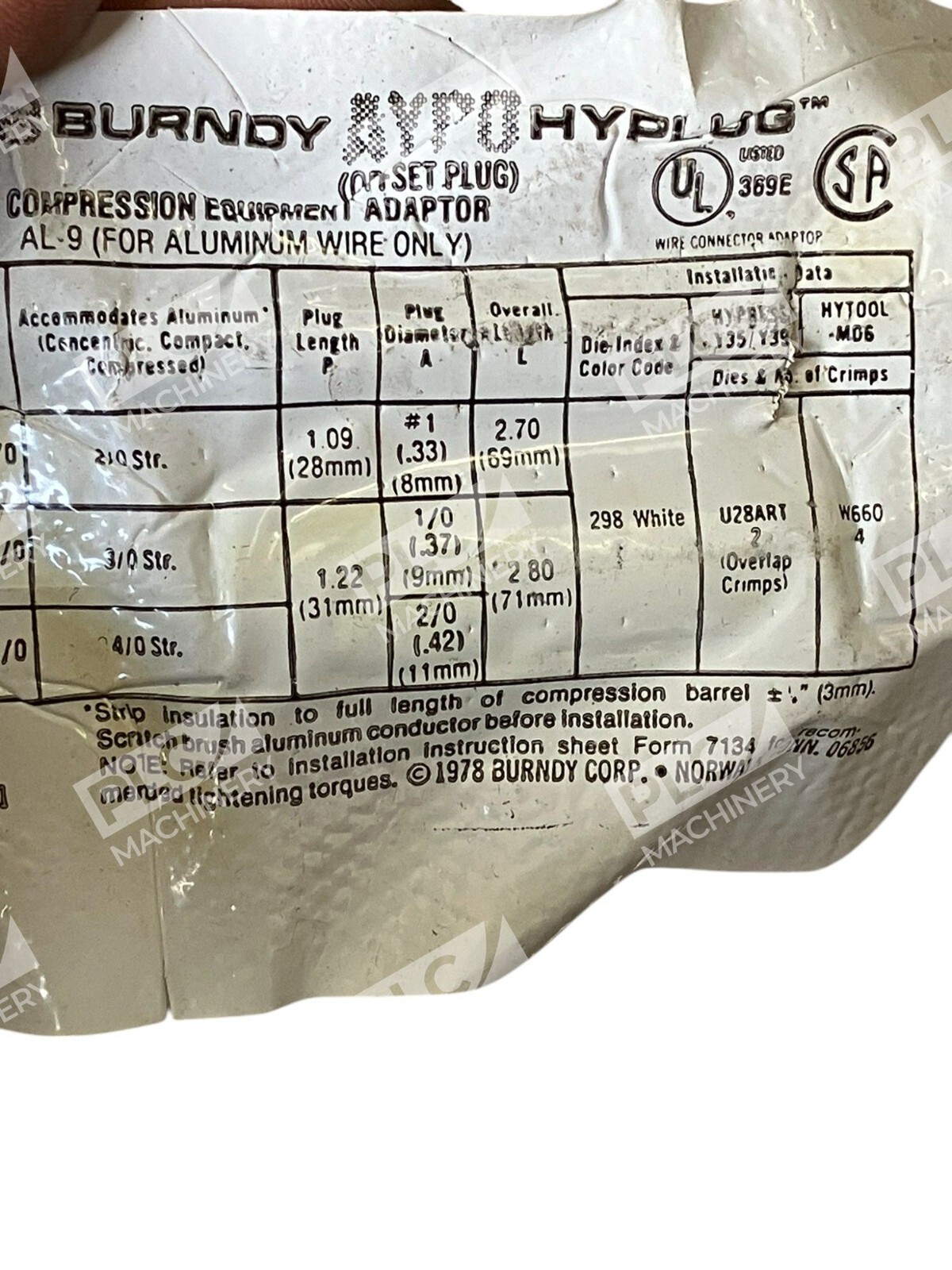

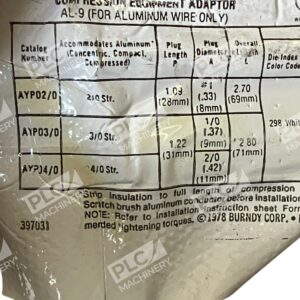

Verify compatibility with your system integrator before ordering. This lot includes AYP02/0, AYP03/0, and AYP04/0 variants; confirm the specific sizes required for your application.
Works With
- Burndy PENETROX oxide-inhibiting compound (pre-filled in connectors)
- Burndy die sets: W-BG (1 AWG copper), U3CRT (3/0 AWG copper), and other 12-ton U-Die tools
- Standard hand and hydraulic crimping tools rated for aluminum conductors
- NEC-compliant electrical installations and utility metering systems
