Overview

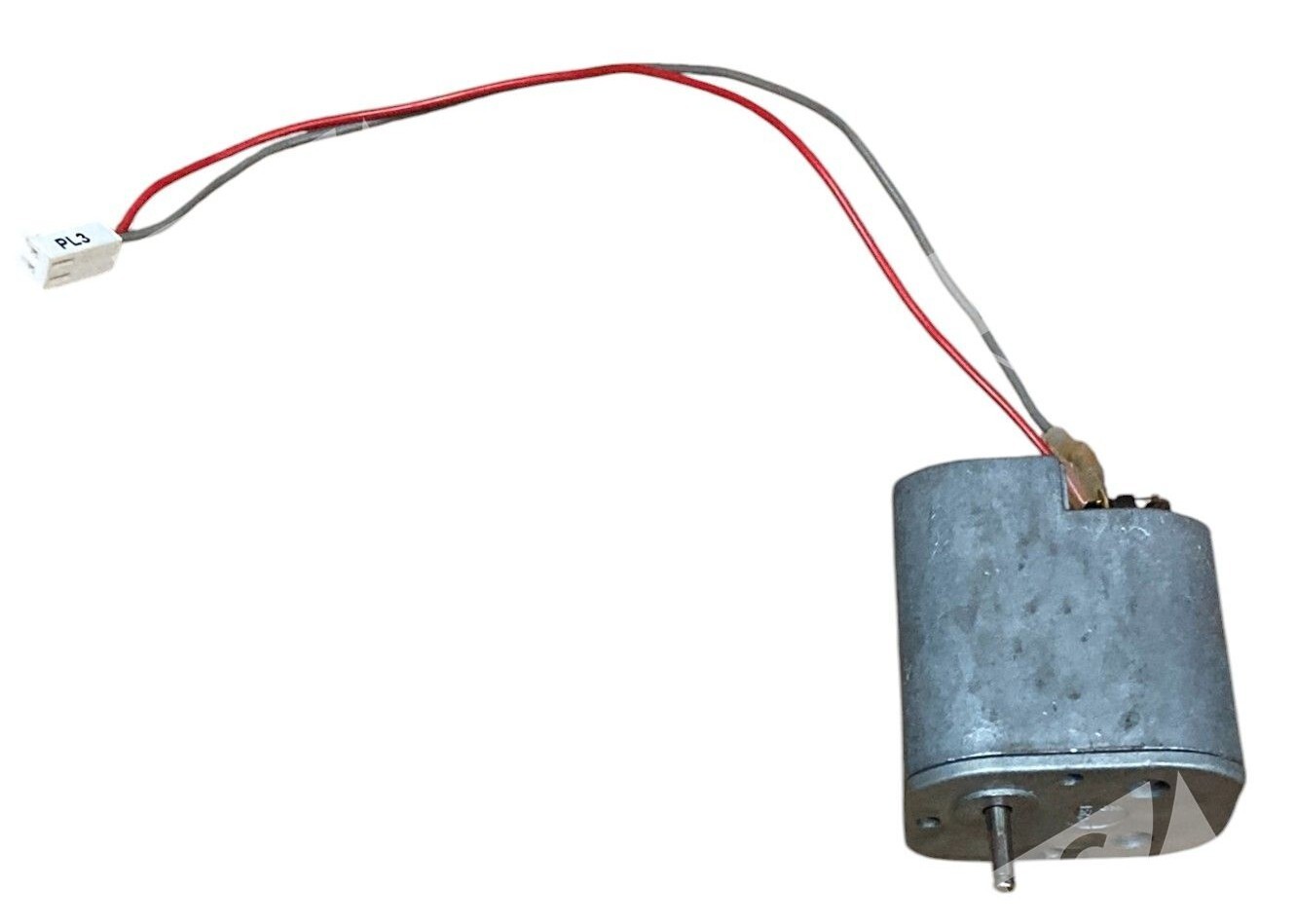

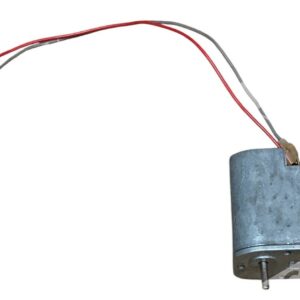

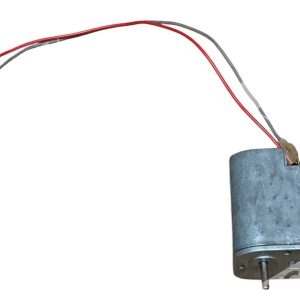

The Bühler Motor 1.61.065.463 is an industrial-grade 24VDC parallel-shaft spur gear motor designed for precision positioning, light-duty mechanical drives, and automation equipment. With a rated output torque of 4.5 Ncm and shaft speed of 147 min⁻¹, this brushed DC motor delivers reliable, cost-effective performance in compact applications. The unit operates at 90mA nominal current, making it suitable for battery-powered and low-current systems.
Key Features
- 24V DC operation — direct integration with 24V industrial control systems and power supplies
- 4.5 Ncm continuous torque — adequate for light mechanical loads, tape drives, and actuators
- 147 rpm output speed — precise speed control for synchronous applications
- 90mA rated current draw — low power consumption for energy-efficient designs
- Parallel-shaft spur gear design — robust, low-backlash transmission ideal for industrial duty
- Standard Bühler construction — proven reliability in automation and equipment manufacturing

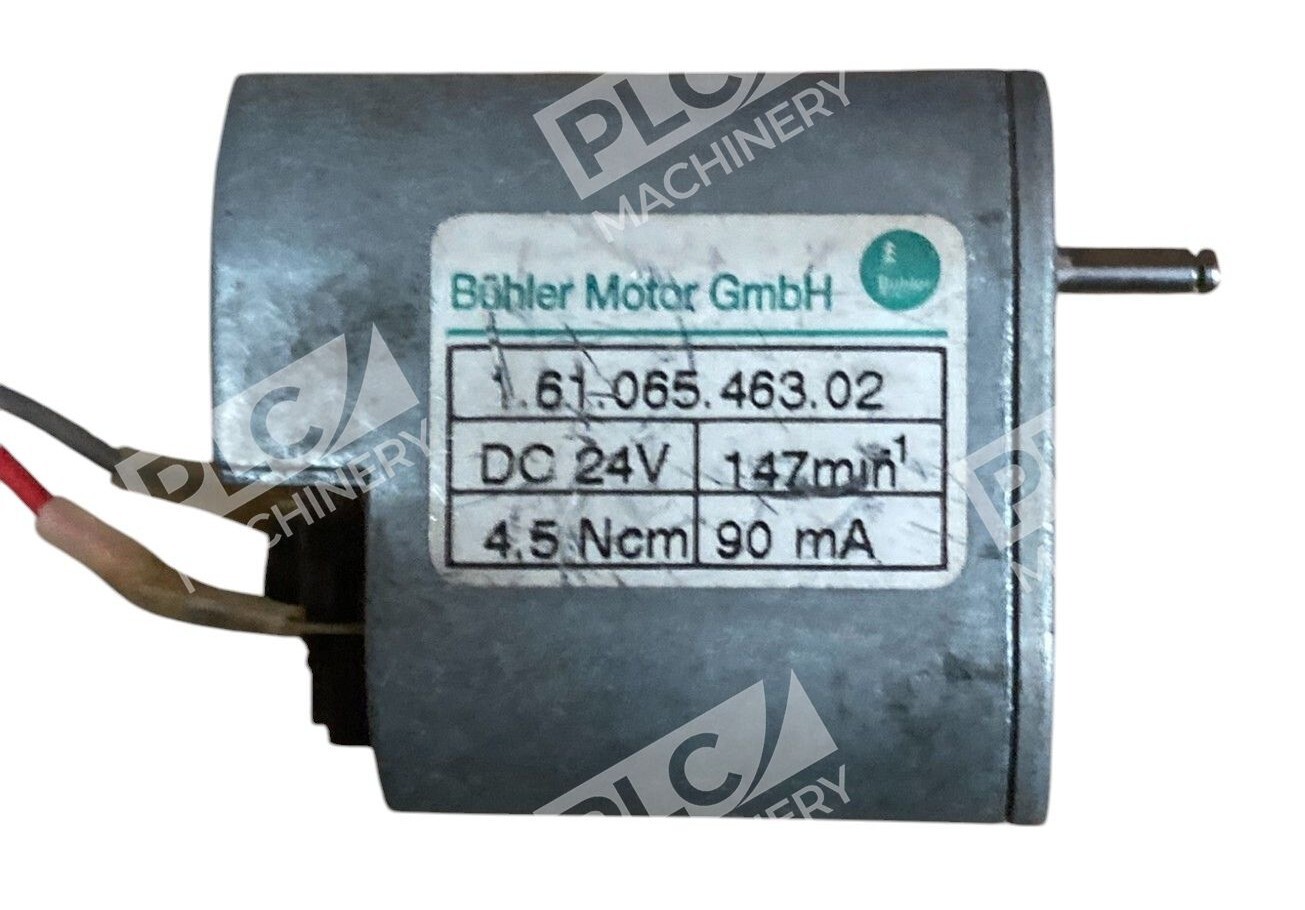

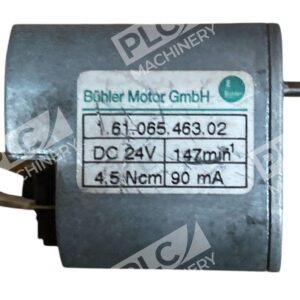

Technical Specifications
- Supply Voltage: 24 VDC
- Output Speed: 147 min⁻¹ (rpm)
- Continuous Torque: 4.5 Ncm
- Nominal Current: 90 mA
- Motor Type: Brushed DC with integral spur gearhead
- Gear Configuration: Parallel-shaft / spur gear
- Shaft Output: Round pinion shaft (standard Bühler type)
- Operating Principle: Continuous duty
Typical Applications
- Printer mechanism drives (Datacard, label, and document printers)
- Postal equipment and mail sorting systems
- Light-duty actuator and conveyor applications
- Tape drive and document feeder mechanisms
- Precision positioning in laboratory and office automation
- Low-speed auxiliary drive systems in manufacturing equipment
Compatibility & Replacements
Compatible With
- Any 24VDC industrial control system or power supply
- PWM speed controllers and DC motor speed regulators
- Gear-coupled mechanical loads requiring 4.5 Ncm or less
- Standard shaft-mount couplings and pulleys compatible with pinion shaft diameter
- Bühler Motor accessory kits and mounting brackets
Replaces / Drop-In Replacement For
- OEM equipment applications where 1.61.065.463 was originally specified
- Datacard SP35, SP55, SP75 printer subsystems (where motor type matches)
- Other light-duty 24V 4.5Ncm gear motor positions within equipment
Works With
- Standard 24VDC industrial power supplies and uninterruptible power supplies (UPS)
- DC motor control modules and PWM regulators
- PLC/automation systems with 24V discrete outputs
- Manual DC speed controllers and rheostats
- Mechanical load couplings, belt drives, and chain sprockets
