Overview

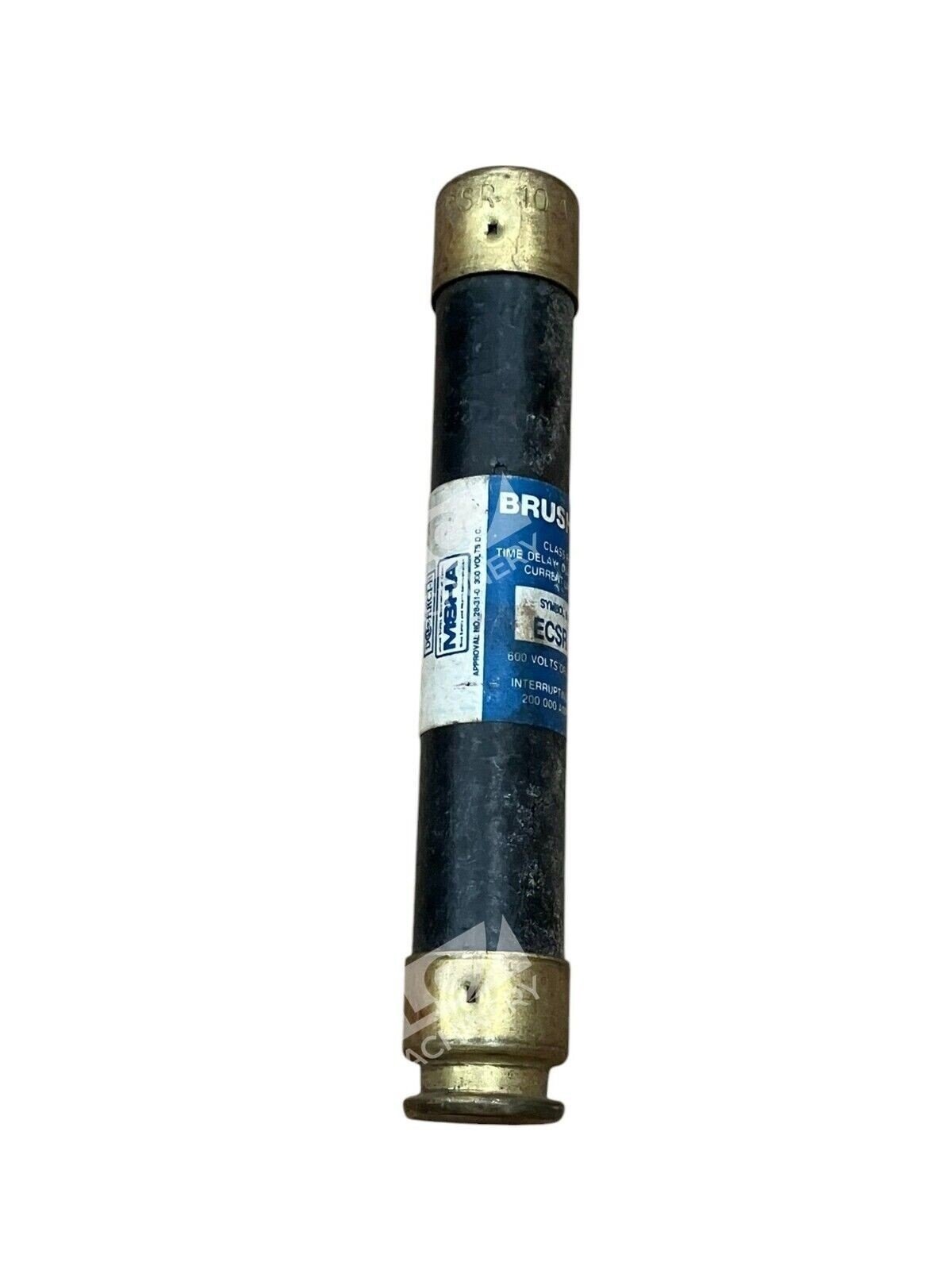

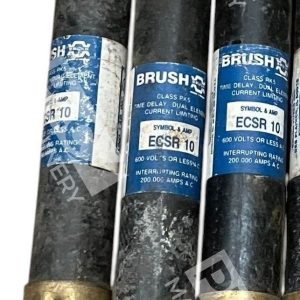

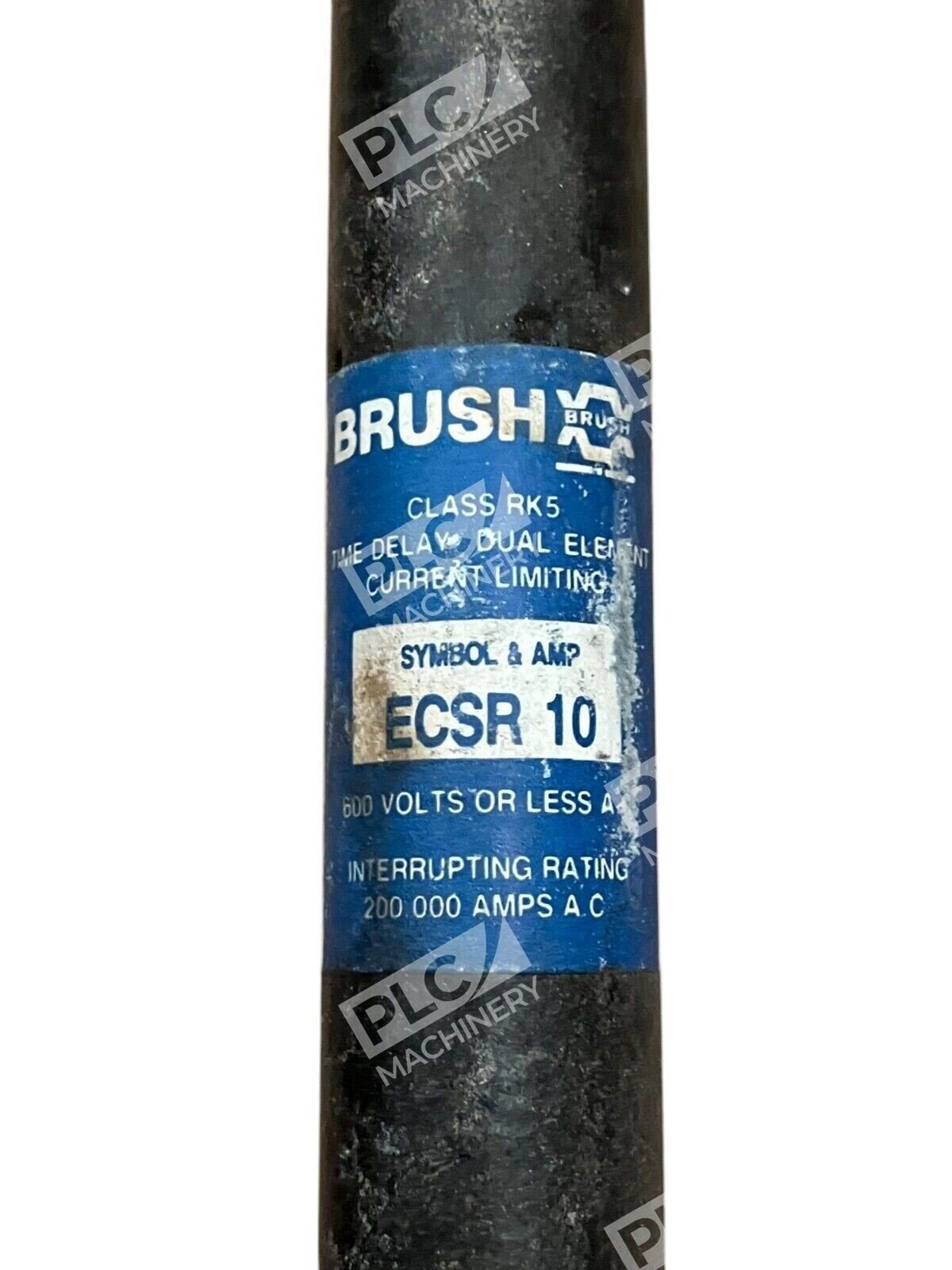

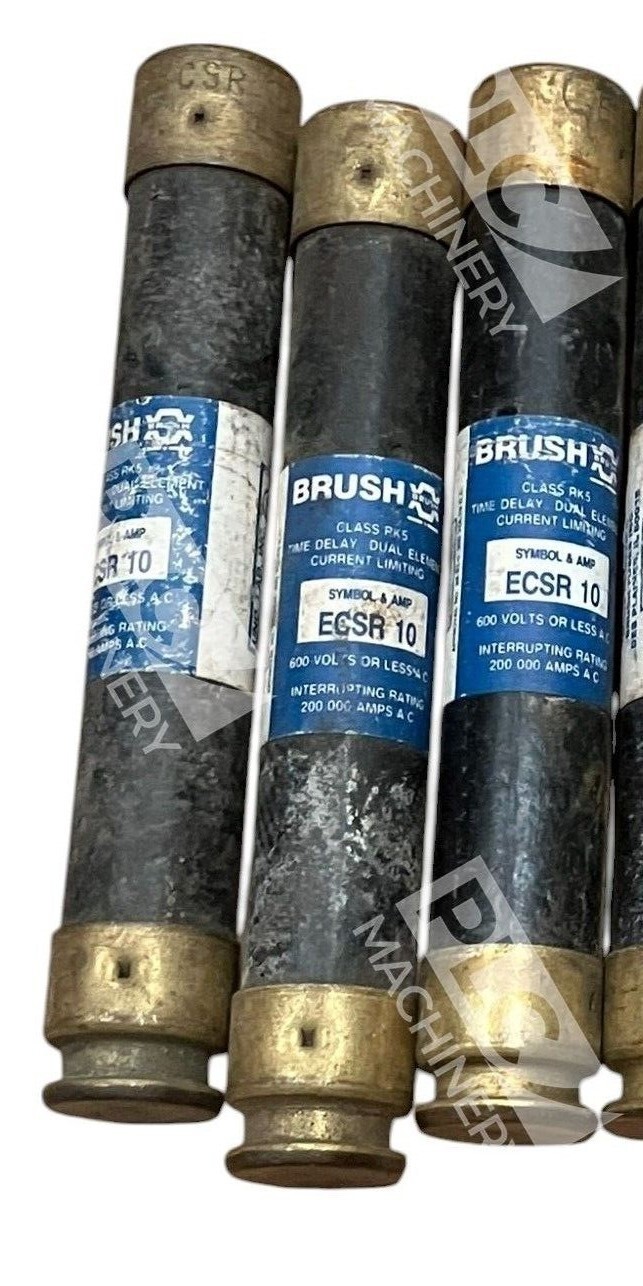

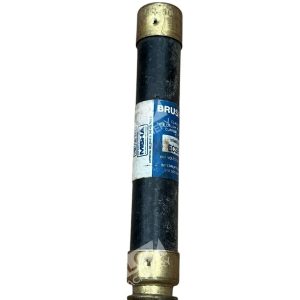

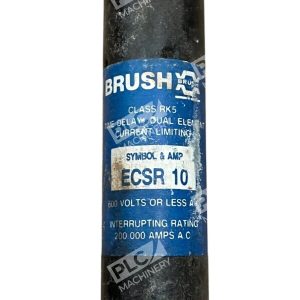

The Edison ECSR10 10A 600V is a Class RK5 time-delay dual-element current-limiting fuse designed for AC power distribution systems. This lot includes 3 units of the ECSR10, ideal for facilities requiring motor overload, ground fault, and short-circuit protection in feeder, branch, and mains circuits.
Key Features
- Class RK5 current-limiting fuse with superior overload and cycling capabilities
- Dual-element, time-delay design—10 second delay at 500% of rating
- Ferrule-end construction for secure holder mounting
- 200 kAIC (kiloampere interrupting capacity) rating
- Sized for motor and transformer loads with minimal nuisance trips
- Compliant with industry standards for AC distribution protection
Technical Specifications
The ECSR10 meets exacting electrical and mechanical standards:
| Current Rating | 10 A |
| Voltage Rating | 600 VAC |
| Fuse Class | RK5 |
| Element Type | Dual-Element (Time-Delay) |
| Speed | Time-Delay / Slow Blow (10 sec @ 500%) |
| Interrupt Rating | 200 kA @ 600 VAC |
| End Connection | Ferrule End x Ferrule End |
| Diameter | 0.81 inches |
| Overall Length | 5.0 inches |
| Weight (per unit) | 0.40 lbs |
| Visual Indication | Non-Indicating |
| Body Style | Cylindrical |
| Part Number | ECSR10 |
| Manufacturer | Edison / Eaton Bussmann |
| Quantity in Lot | 3 units |
Typical Applications
The ECSR10 is recommended for AC power distribution systems protecting circuits with:
- Inductive loads: Motors, transformers, and compressors—where inrush current may exceed steady-state amperage
- Non-inductive loads: Lighting, heating, and resistive equipment
- Feeder and mains protection: Primary and secondary distribution circuits rated up to 600 VAC
- Short-circuit current capacity: Systems rated to 200 kA RMS symmetrical amperes (200,000 A)
The time-delay characteristic allows the fuse to coordinate with motor soft starters and allows temporary surge currents without nuisance openings, reducing downtime and replacement costs.
Compatibility & Replacements
Compatible With
- AC power distribution panels rated 600 VAC
- Class RK5 fuse holders and cartridge clips (ferrule-end style)
- Motor control centers (MCCs)
- Feeder, branch, and mains circuit protection schemes
- Industrial, commercial, and institutional electrical systems
Replaces / Drop-In Replacement For
- Original Edison ECSR10 units
- Earlier production runs with identical voltage and amperage ratings
Works With
- Any 600 VAC AC distribution system supporting Class RK5 fuses
- Electrical panelboards, disconnects, and fused equipment rated for 600 VAC service
- Facility power management and protective coordination schemes
