Overview

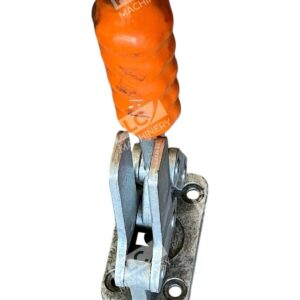

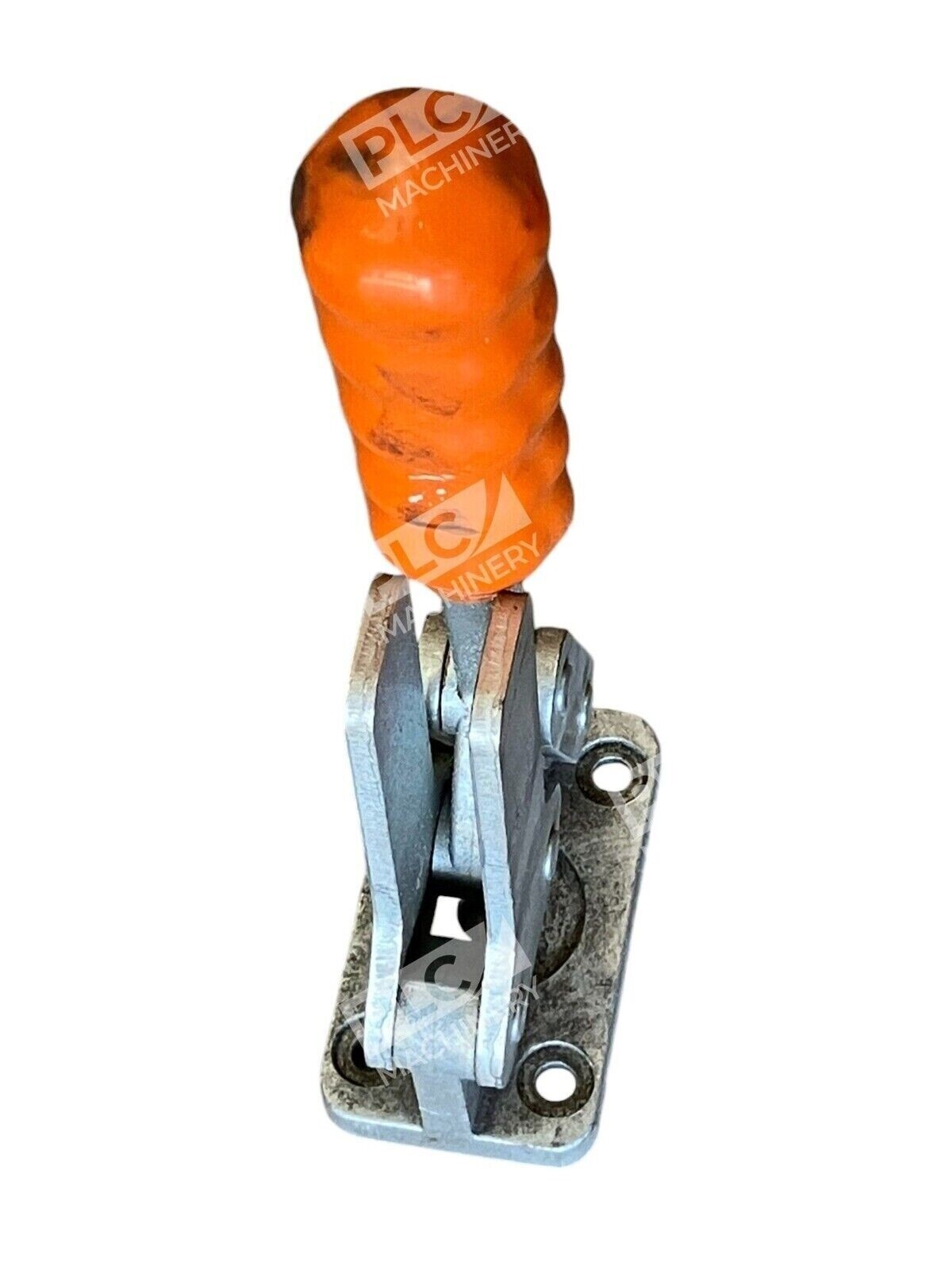

The Brauer H700 toggle clamp is a horizontal manual toggle clamp with flanged base mounting and an adjustable arm spindle. This workholding solution is engineered for metalworking, fabrication, and assembly applications requiring secure, repeatable clamping of workpieces. The adjustable spindle design allows operators to accommodate varying workpiece heights and geometries while maintaining consistent holding force across the working range.
Key Features
- Flanged base mounting for secure installation on work tables and fixtures
- Adjustable arm with spindle for variable workpiece accommodation
- Horizontal toggle clamp design for quick engage/disengage operation
- Durable steel construction for industrial workholding applications
- Nominal holding force with adjustment at mid-reach position
- Self-arresting toggle mechanism maintains lock under cutting loads
Technical Specifications

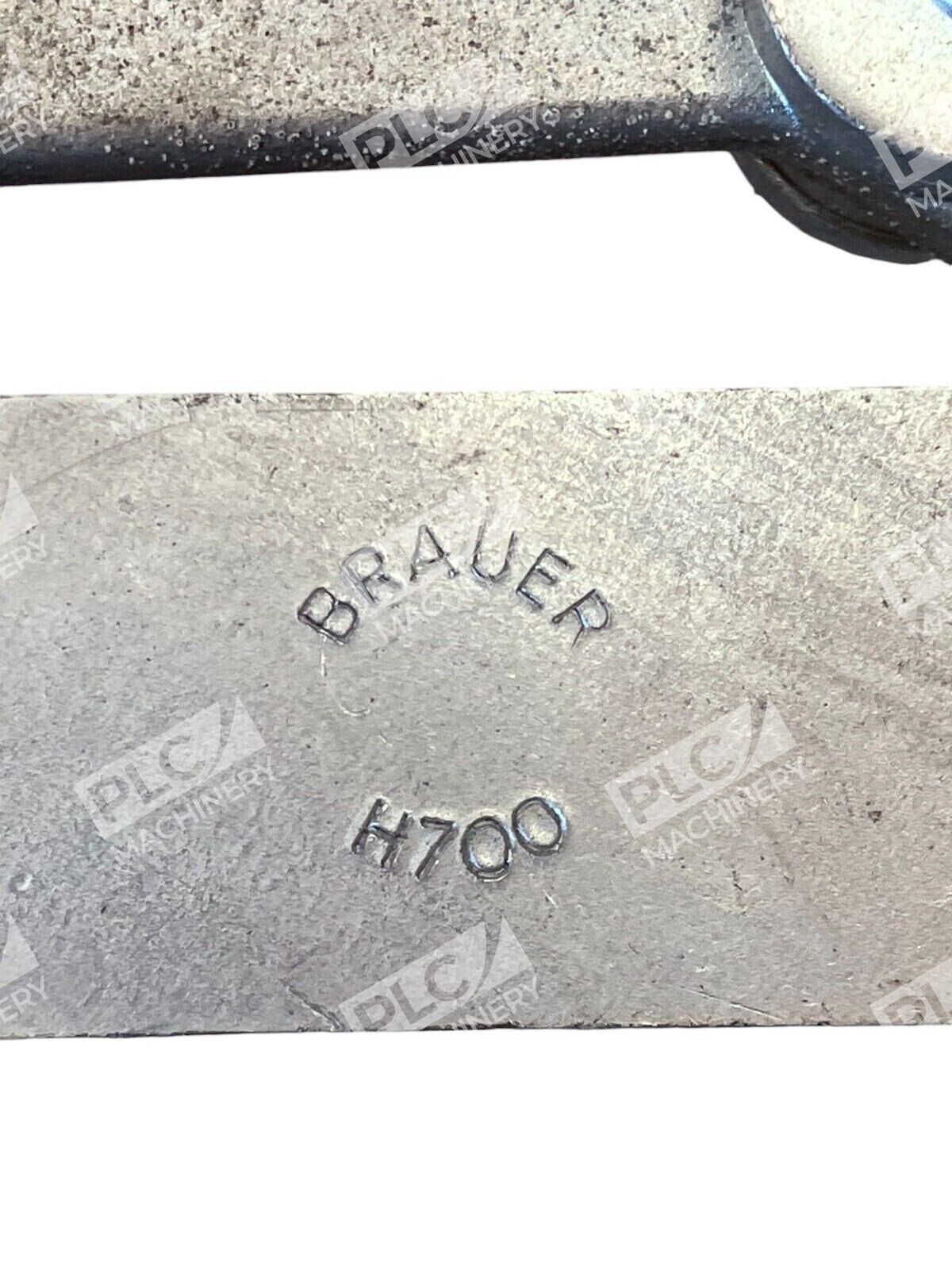

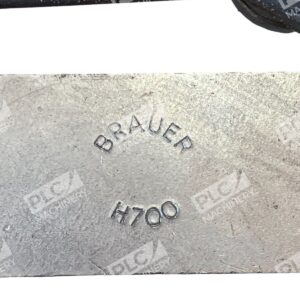

- Model: H700
- Type: Horizontal Manual Toggle Clamp
- Base Style: Flanged
- Arm Configuration: Adjustable Spindle
- Operation: Manual Toggle
- Material: Steel
- Application Class: Normal Duty Workholding
Typical Applications
- CNC and manual milling machine fixture work
- Welding fixture clamping and positioning
- Drill press and assembly line workholding
- Metalworking and fabrication shops
- Custom fixture design and assembly
- Production runs requiring repeatable clamping
Compatibility & Replacements
Compatible With
- Standard work tables and mounting plates with 4-bolt flanged base pattern
- Fixture plates and sub-plates with corresponding bolt hole spacing
- Manual and CNC machine tool work surfaces
- Custom welded and fabricated fixture assemblies
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or equipment supplier before ordering. Other Brauer horizontal flanged base toggle clamps in the H-series may share mounting patterns; consult the technical drawing or contact Brauer Ltd for exact interchange information.
Works With
- Brauer quick-change coupling systems and adapter plates
- Standard 4-bolt flanged base mounting systems
- T-slot and angle iron fixture frameworks
- Pneumatic and manual control systems
