Overview

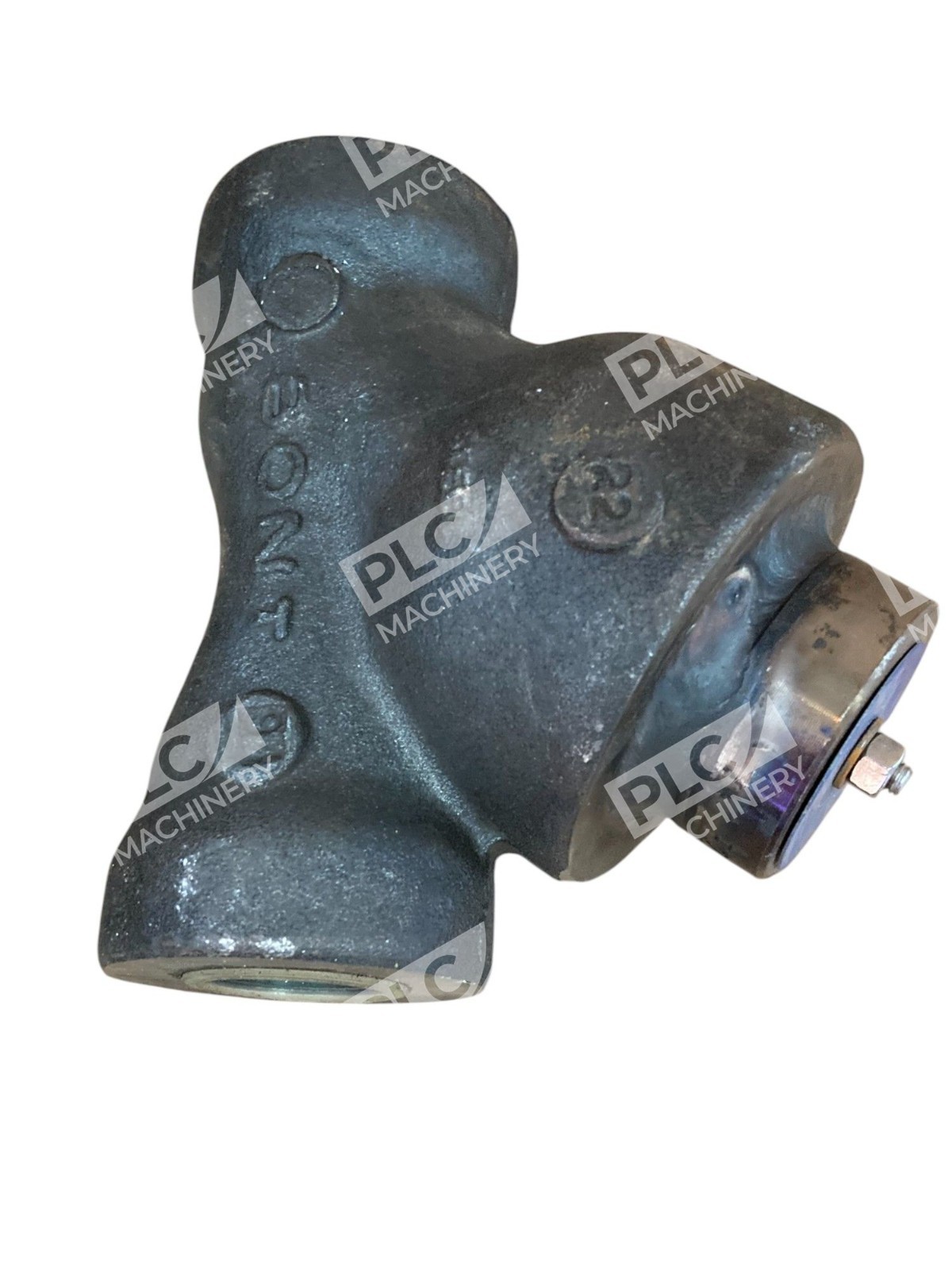

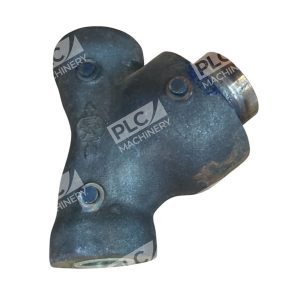

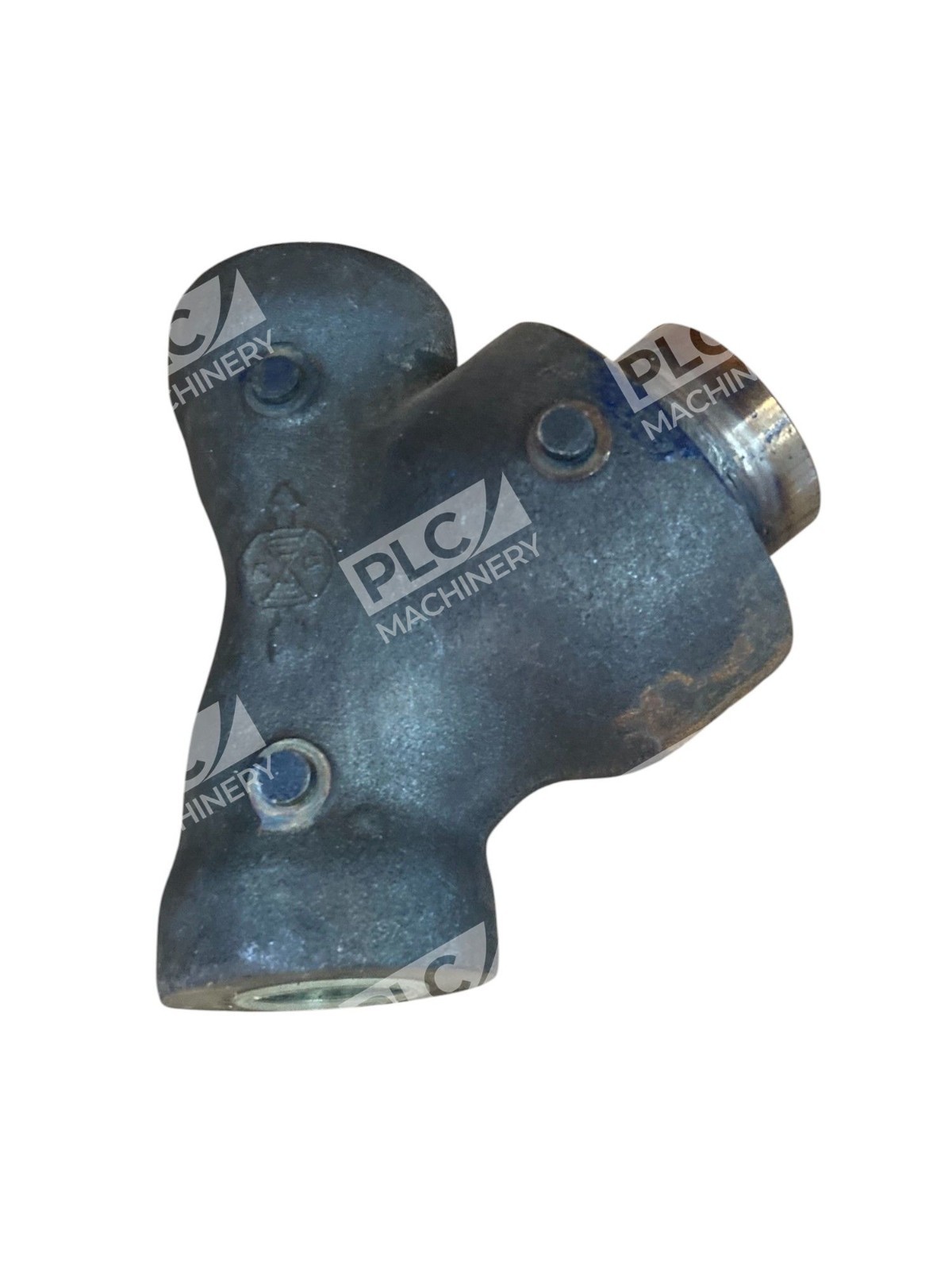

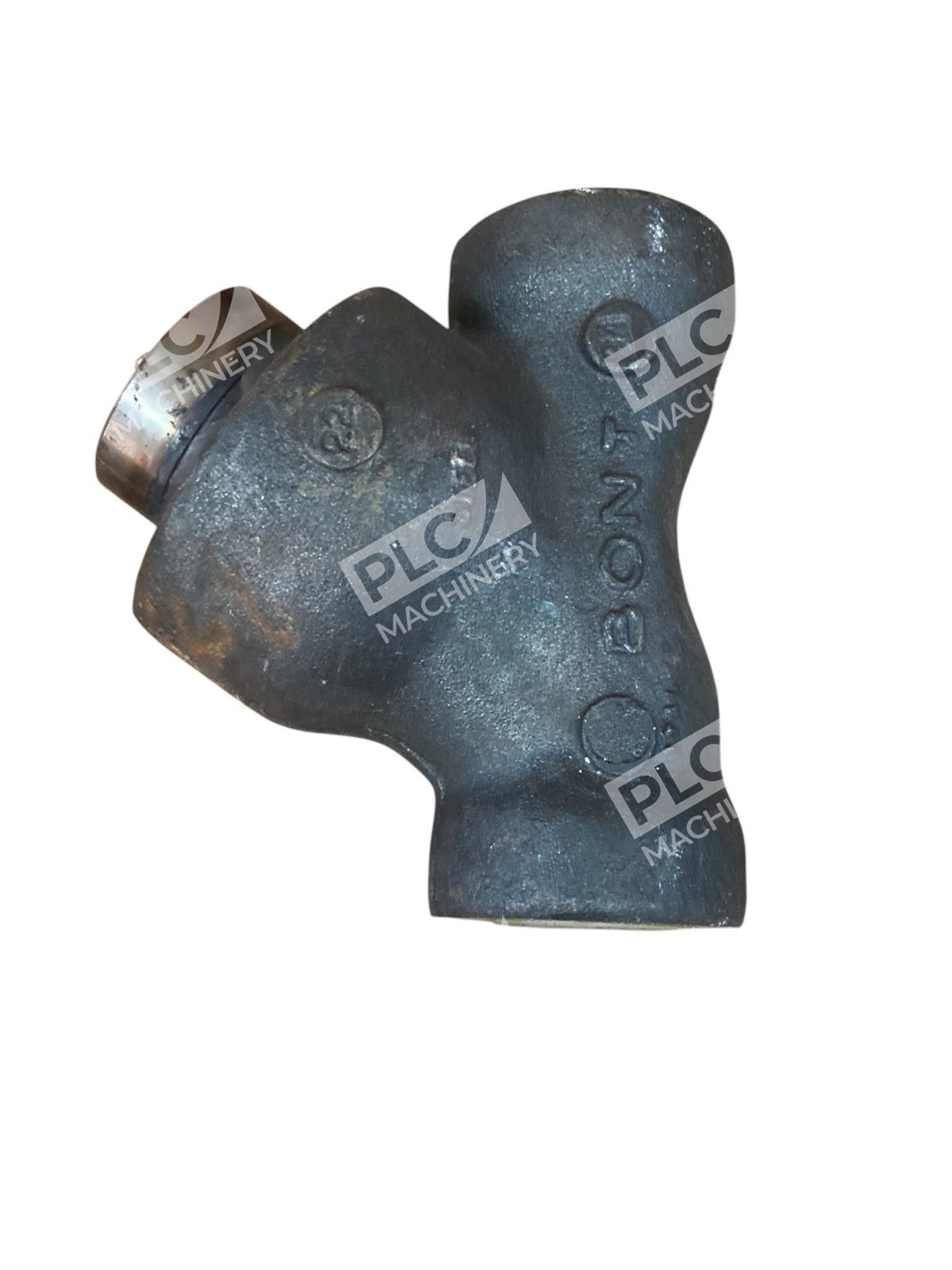

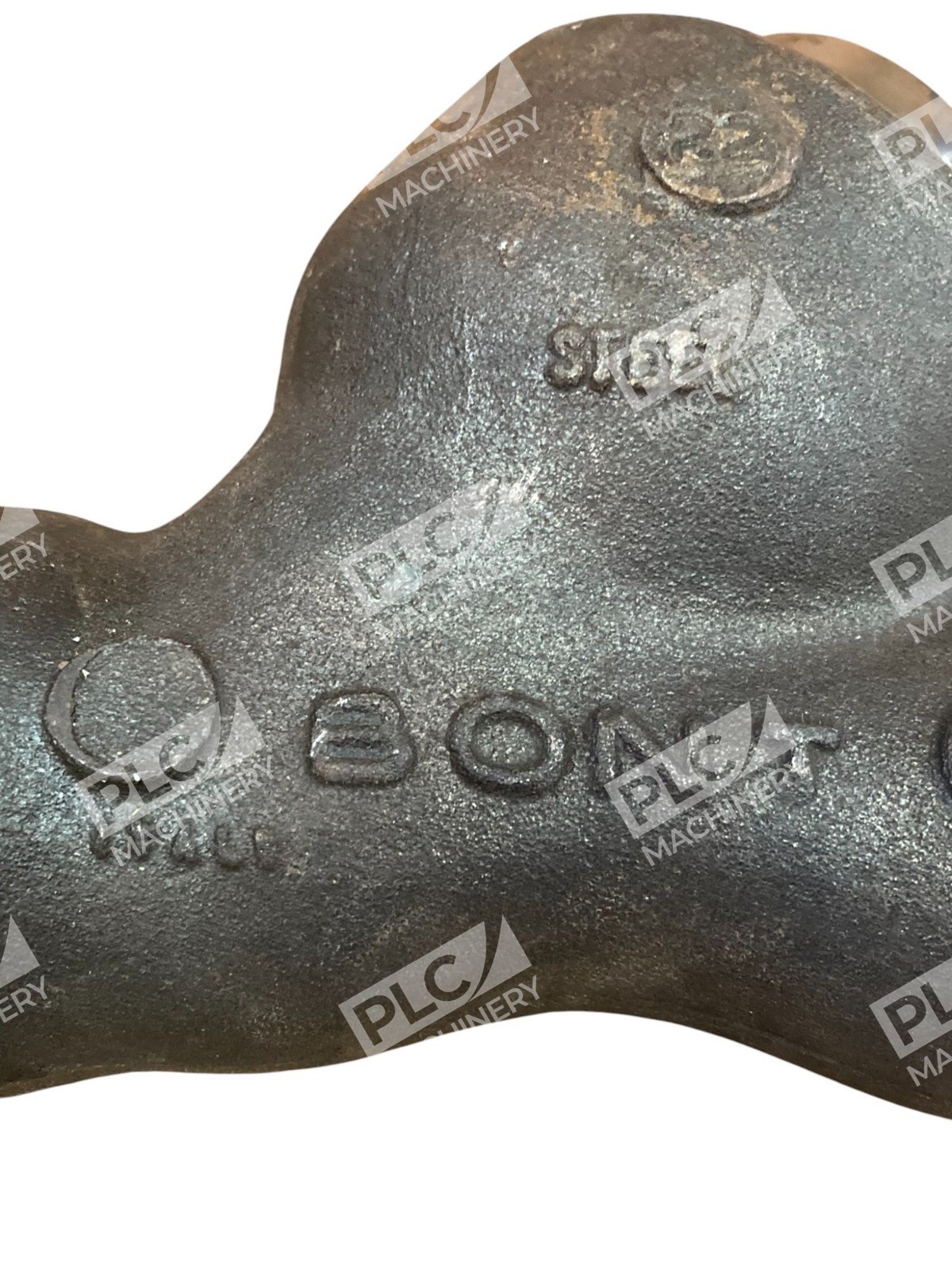

The Bonetti 6042 piston check valve is a precision-engineered forged steel valve designed for high-pressure fluid control applications. Manufactured to ASTM A182 F22 material specifications, this valve combines durability with reliable performance in demanding industrial environments. With ASME B16.34 and API 602 design compliance, the Bonetti 6042 delivers the dependability required for critical fluid handling systems.
Key Features

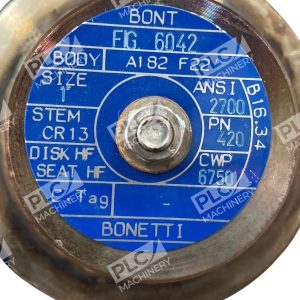

- Forged steel construction using ASTM A182 F22 chromium-molybdenum alloy, rated for service from −20°F to 1100°F

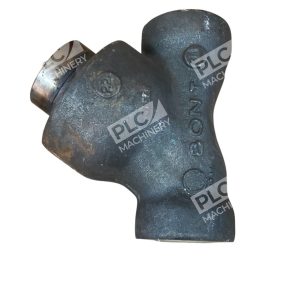

- Full-bore design with low-turbulence Y-pattern body geometry to minimize pressure drop
- Piston-type check mechanism for precise flow control and positive shutoff at zero pressure

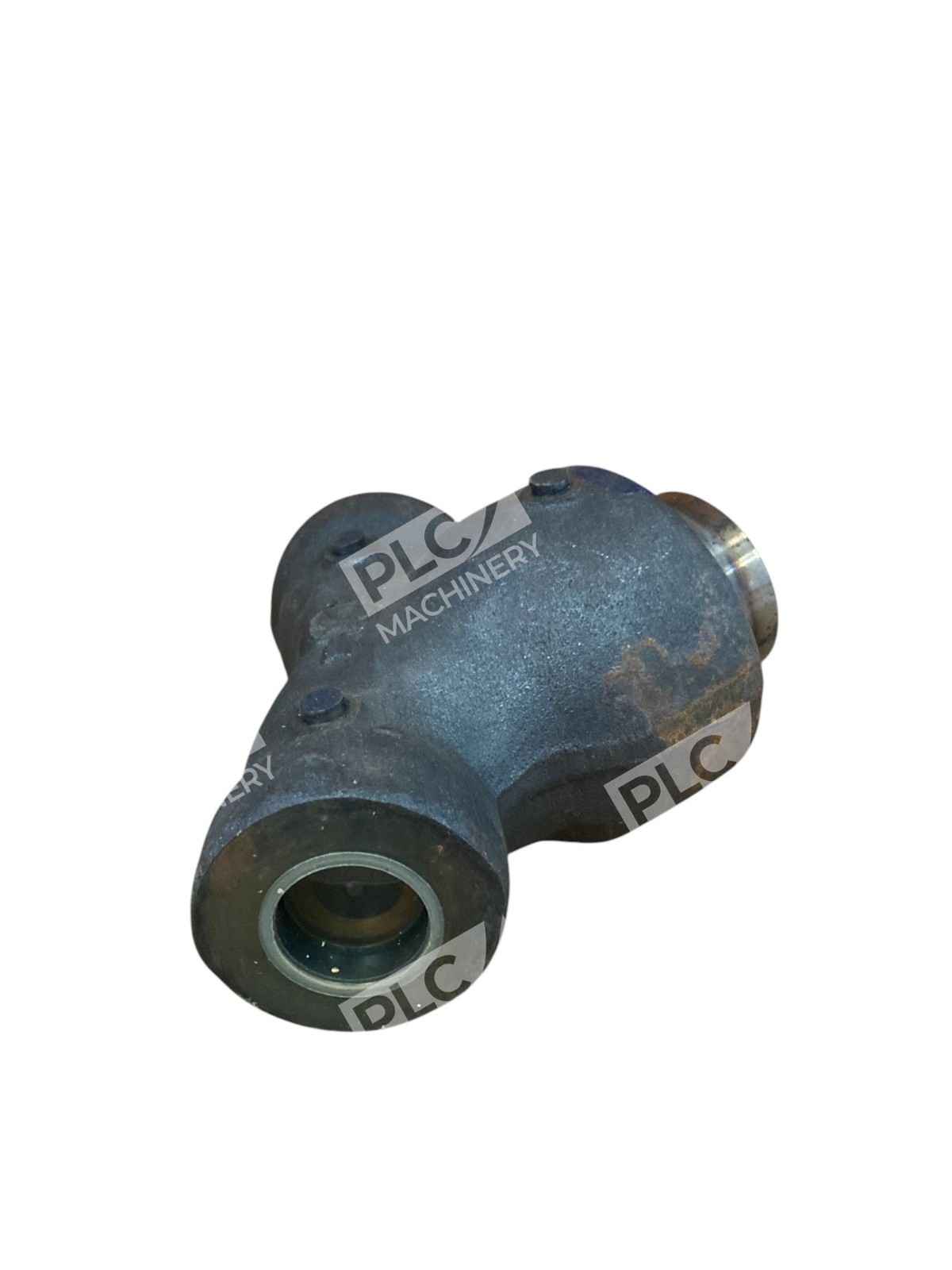

- 1″ NPT (National Pipe Thread) end connections for standard pipeline integration
- Class 2700 LB pressure rating (PN420 metric equivalent)
- Stellite Grade 6 overlay on disc and seating surfaces for superior wear and corrosion resistance
Technical Specifications

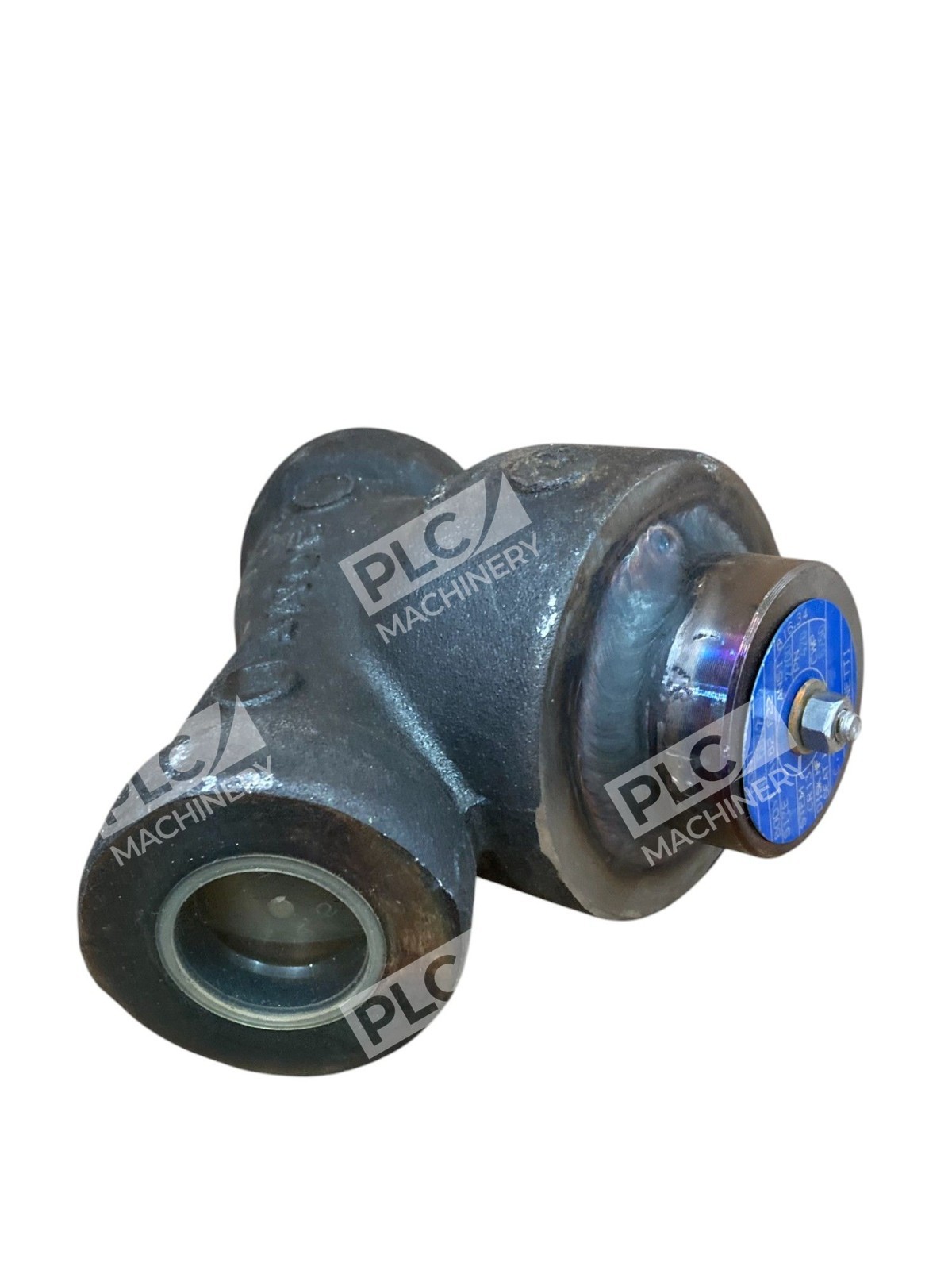

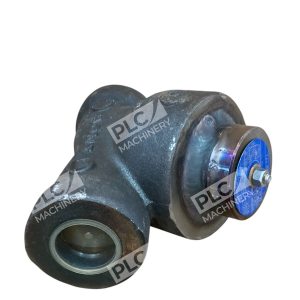

The valve features a compact, streamlined body design that reduces fluid turbulence and maintains high flow coefficients. All internal components are precision-machined and guided to ensure efficient automatic shutoff with tight sealing. The pressure-sealed bonnet design eliminates body-to-bonnet leakage paths, critical for high-pressure applications.
Typical Applications
Bonetti piston check valves are widely used in:
- Hydrocarbon processing and refinery systems
- High-pressure gas and liquid service lines
- Water treatment and power generation plants
- Thermal and pressure vessels requiring positive reverse-flow prevention
- Compressor discharge lines and pump outlet protection
Compatibility & Replacements
Compatible With
- ASME Class 2700 LB rated piping systems
- Standard NPT threaded connections (1″ female)
- Forged steel valve assemblies per API 602 specifications
- Systems designed for −20°F to 1100°F operating temperature range
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or engineering team before ordering. The Bonetti 6042 (Figure 6042) is a specific design configuration; confirm with original equipment specifications before substituting.
Works With
- ASME B16.34 certified piping and valve systems
- API 602 standard pump and compressor discharge applications
- ANSI B16.5 flanged and ANSI B16.11 socket-weld adapter configurations
- Standard pressure testing per API 598 protocols
