Overview

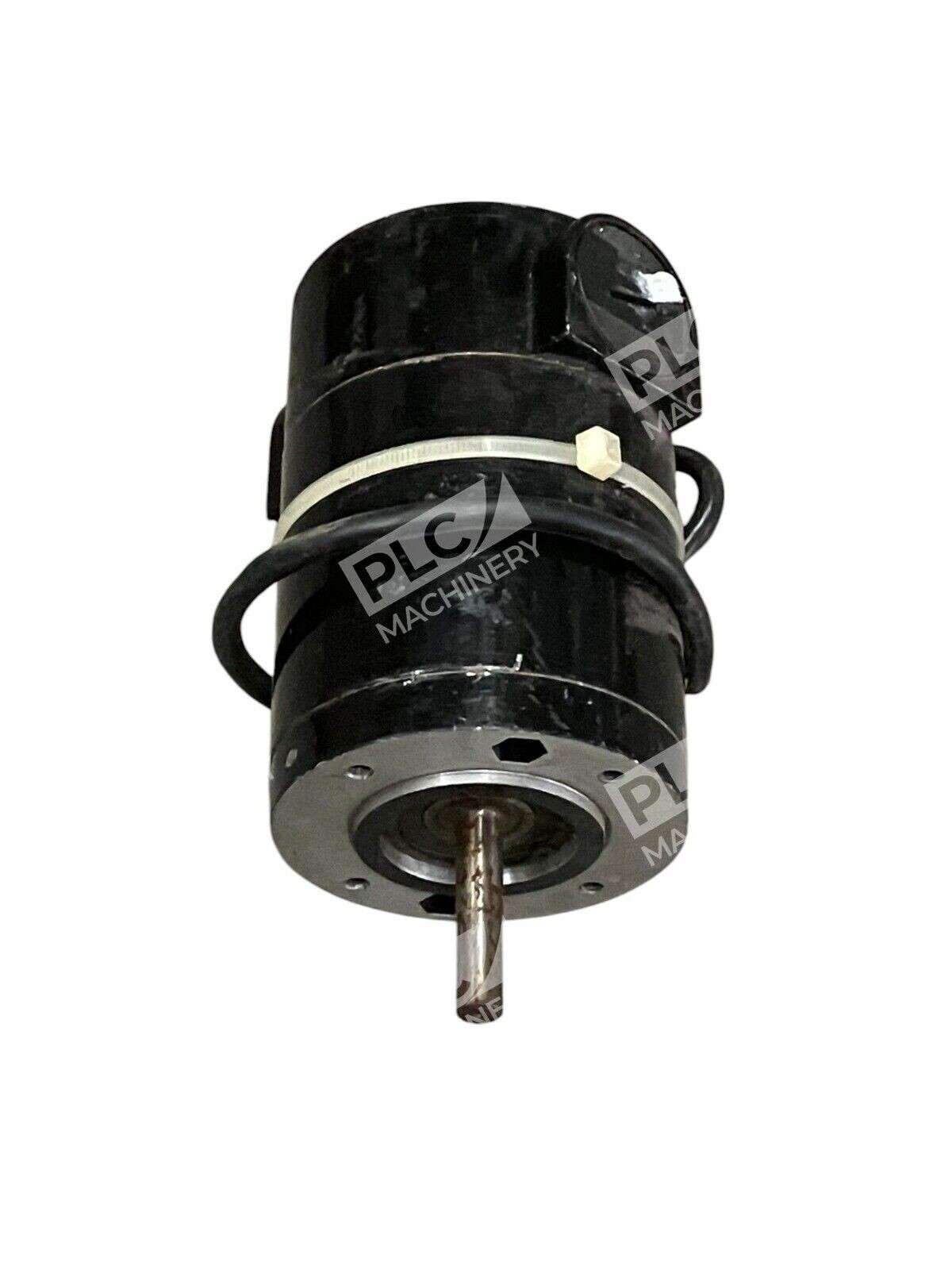

The Bodine 32A3BEPM is a small permanent magnet DC motor engineered for reliable operation in compact automation and equipment control applications. Operating at 130V nominal input with a base speed of 2500 RPM, this motor provides consistent torque delivery and supports reversible rotation for bidirectional load control.
Key Features
- Permanent magnet DC stator for efficient, stable operation
- Reversible rotation capability for flexible application design
- Fully rated at 0.71A full-load current with 1/12HP power output
- Insulation class A, rated to 221°F maximum operating temperature
- Made in the USA by Bodine Electric Company

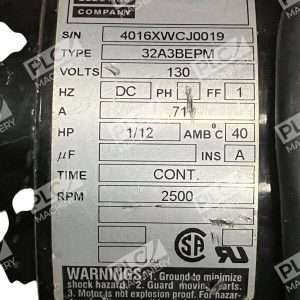

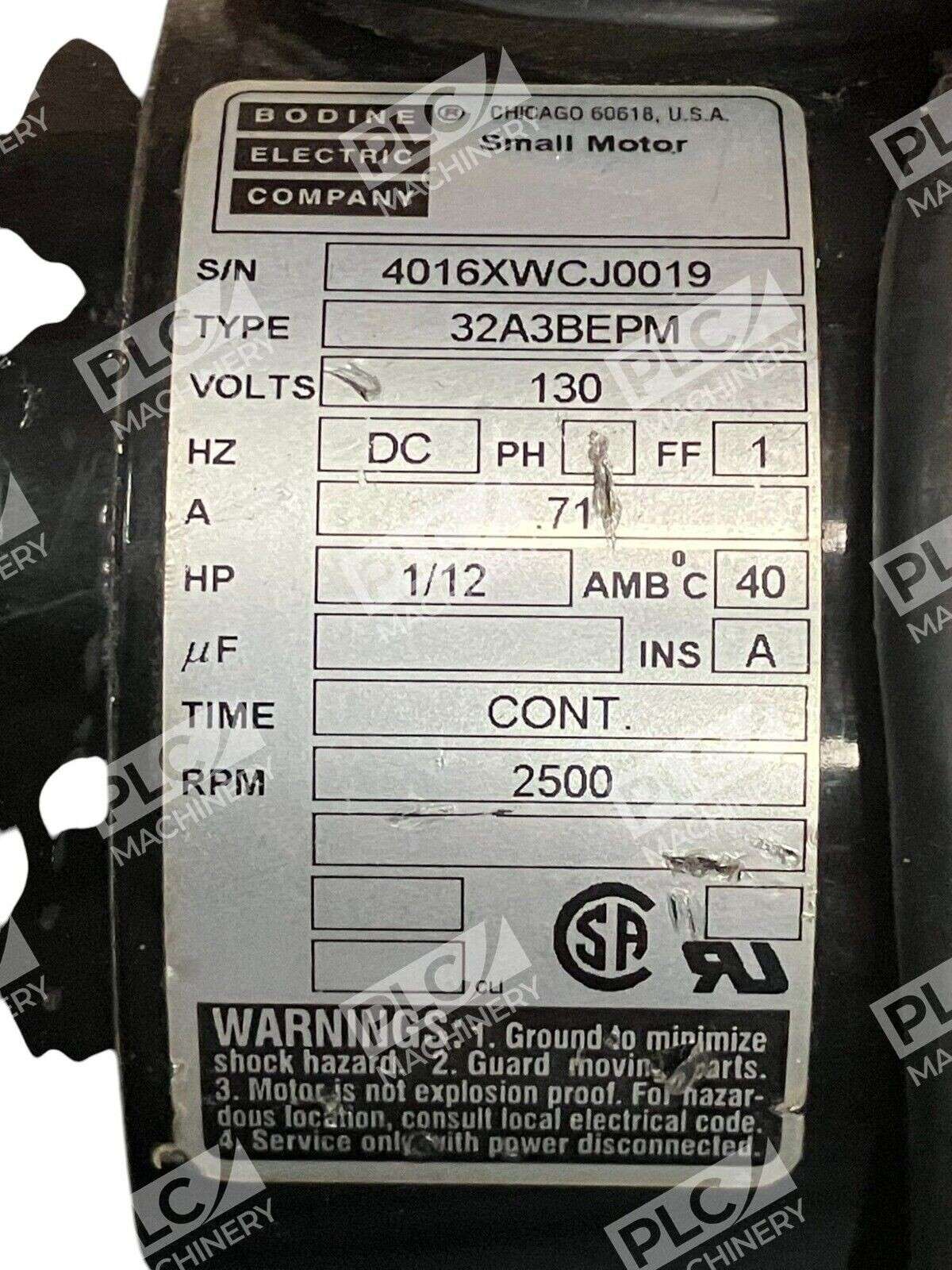

Technical Specifications
- Horsepower Rating: 1/12 HP
- Motor Type: Permanent Magnet DC (PMDC)
- Nominal Rated Input Voltage: 130 VDC
- Full Load Current: 0.71 A
- Base Speed: 2500 RPM
- Shaft Type: Keyed
- Shaft Diameter: 3/4 inch
- Insulation Class: A (max 221°F)
- Rotation: Reversible
- Enclosure: Totally enclosed non-ventilated (IP-40)
Typical Applications
The 32A3BEPM excels in applications requiring compact, low-power DC motor control including laboratory equipment, medical devices, automation control panels, and precision machinery. Its reversible-operation capability makes it suitable for applications needing bidirectional load positioning and its Class A insulation ensures reliability in standard industrial temperature ranges.
Compatibility & Replacements
Compatible With
- 130V DC power supplies and motion control systems
- Bodine DC motor speed controls and electronic switches
- Standard industrial DC circuits with keyed shaft coupling systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Similar Bodine PMDC motors in the 32A and 33A series may have overlapping footprints; consult model history and dimensional drawings for exact replacement confirmation.
Works With
- Bodine Brushless DC Controls (130V rated)
- Standard industrial 130V DC power distribution systems
- Keyed shaft load couplings and power transmission equipment
