Overview

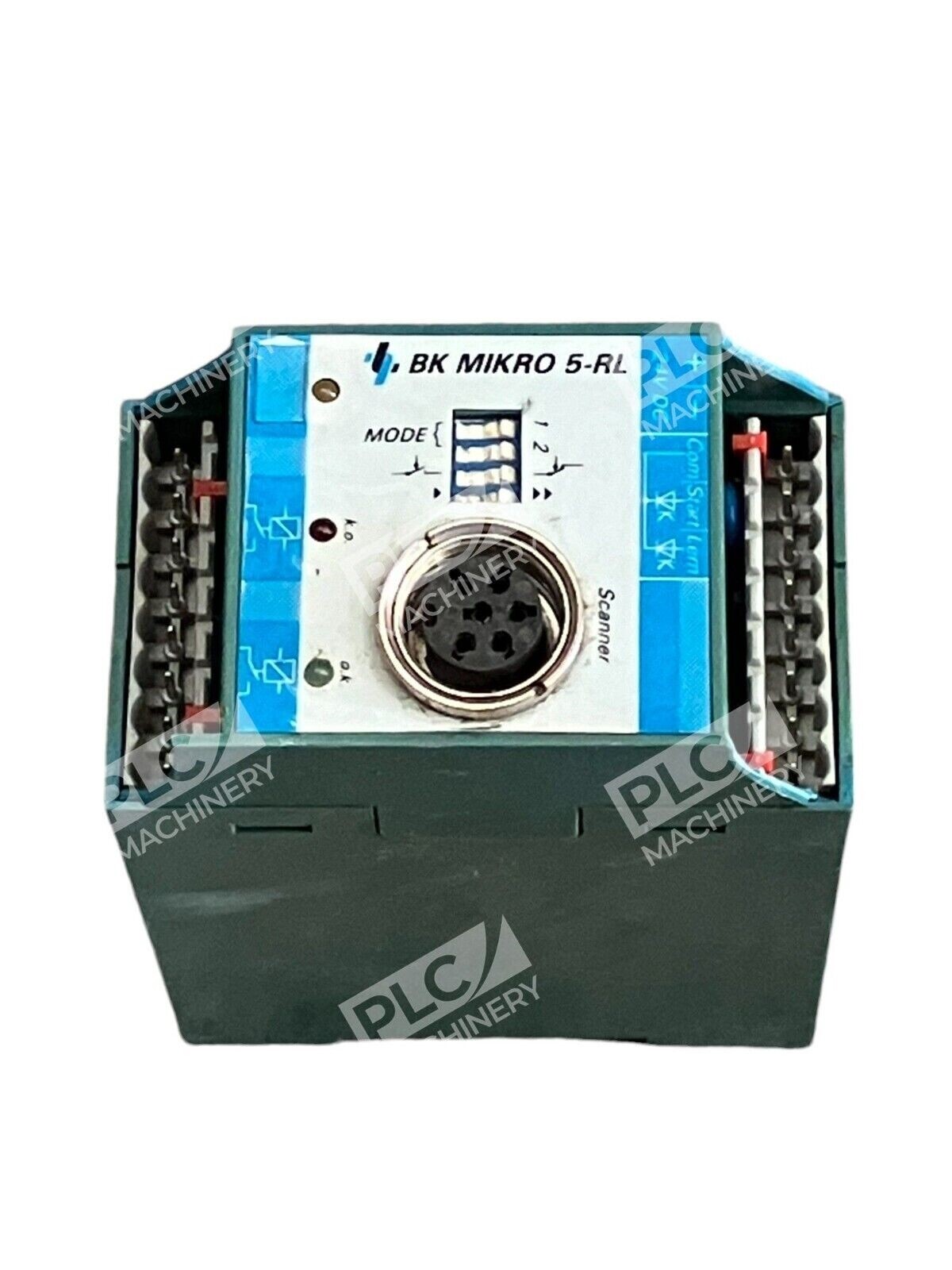

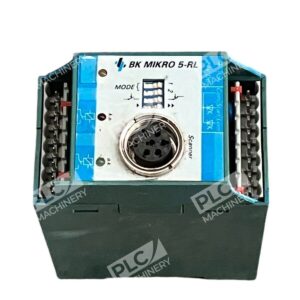

The BK Mikro 5-RL tool monitoring system is designed for precision tool position monitoring and detection in CNC, turning, milling, and multi-tool machining applications. This system is designed for simultaneous scanning of two tools, consisting of a control unit, sensing head, and connection cable for flexible installation in machine tool environments.
Key Features
- Dual-tool simultaneous monitoring and detection
- Customizable relay outputs with automatic zero position detection and cable break detection
- Teach-in cycle for quick tool position calibration
- Status indication via LED indicators for power, fault, and operation modes
- Support for multiple supply voltage configurations (120 VAC, 230 VAC, or 24 VDC)
- Industrial-grade construction for machine tool integration
Technical Specifications
- Power Supply: 120 VAC, 230 VAC, or 24 VDC (selectable)
- Control Inputs: Digital control inputs for mode and configuration selection
- Relay Outputs: Normally open and normally closed contact configurations available
- Scanning Capability: Dual independent tool position detection channels
- Connection: Screw terminals for power and signal connections
- Status Indicators: Yellow LED (supply/status), Red/Green LED (fault/OK indication)
- Cable: Integrated connection cable with tool sensor connector
- Operating Environment: Industrial machine tool environment
- Manufacturer: Techna-Tool
Typical Applications
- CNC machine tool monitoring and tool change detection
- Multi-spindle turning center tool position verification
- Tool breakage and wear detection systems
- Automatic tool changer position confirmation
- Machine tool spindle and turret monitoring
- Production quality control and downtime prevention
Compatibility & Replacements
Compatible With
- Techna-Tool TK 5 scanning sensor head
- CNC control systems with 24 VDC or 120/230 VAC inputs
- Industrial relay modules and control logic systems
- Standard 16-pin relay socket mounting
- Machine tool electrical systems with screw terminal connections
Replaces / Drop-In Replacement For
Verify compatibility with your machine tool manufacturer’s documentation before ordering. Direct replacement capability depends on original equipment specifications and mounting configuration.
Works With
- Techna-Tool TK 5 sensor equipment and accessories
- Standard industrial PLC and CNC control systems
- Custom relay logic and hardwired control circuits
- 24 VDC and AC mains electrical systems
