Overview

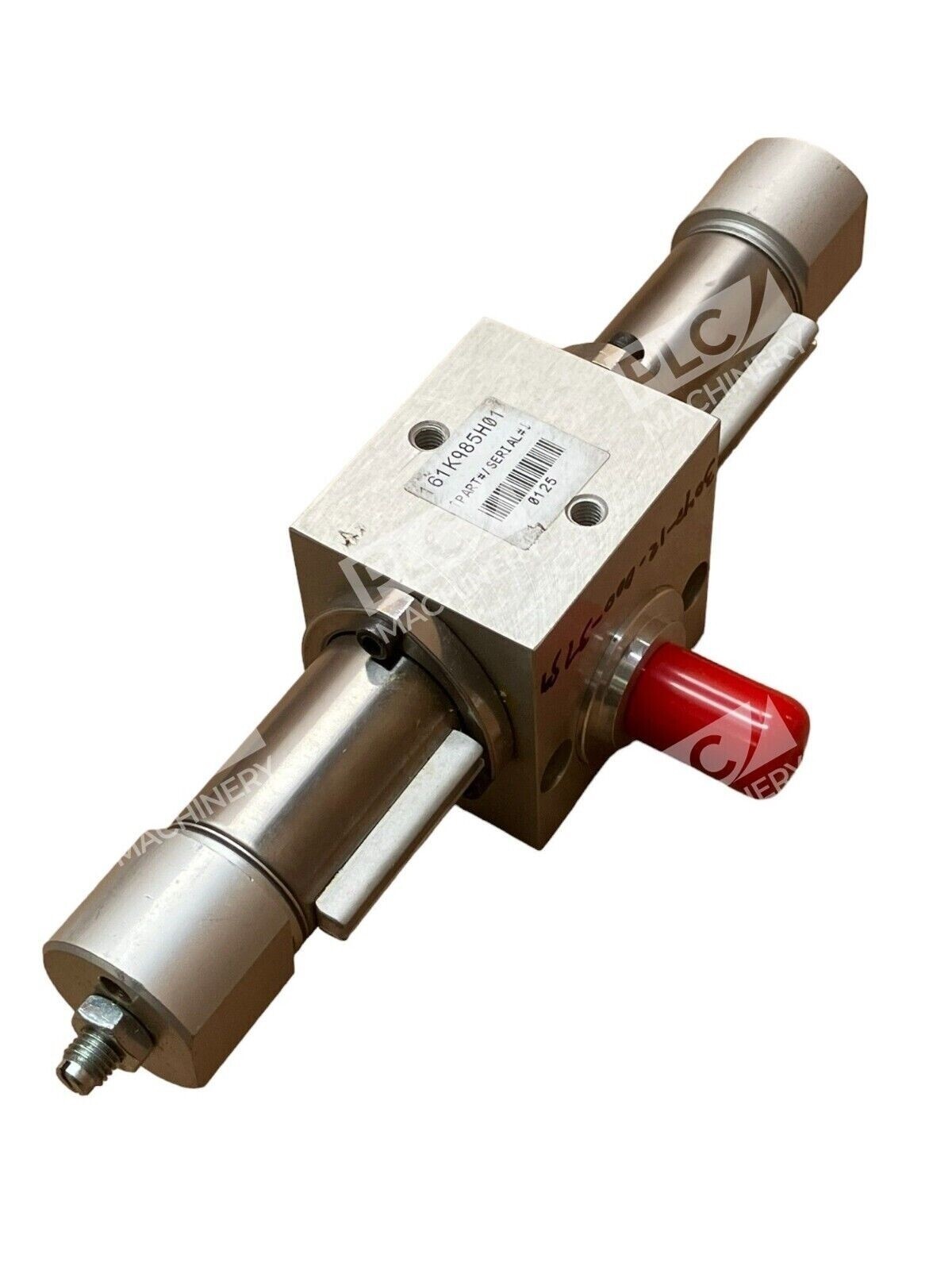

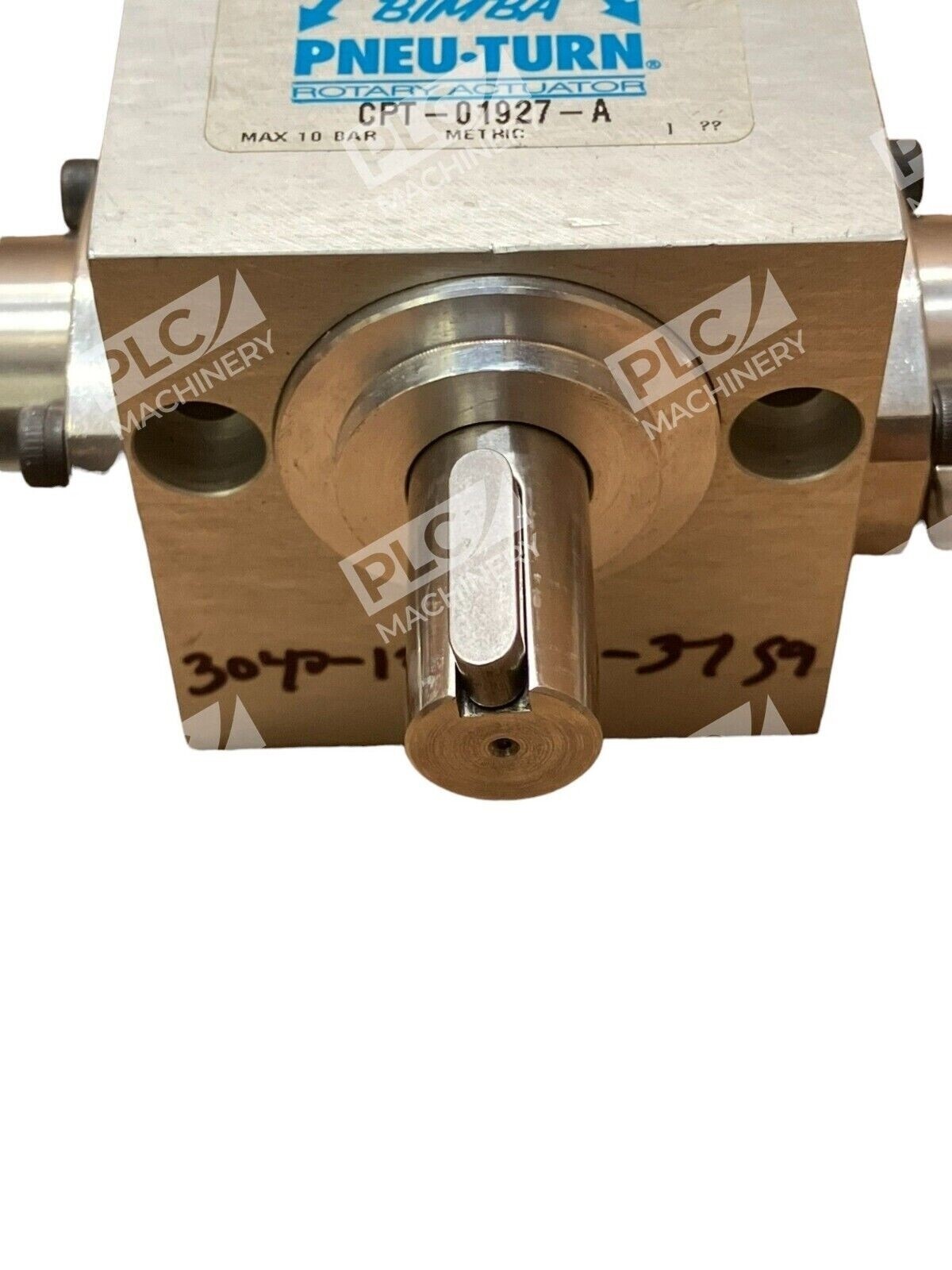

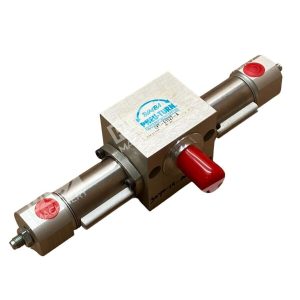

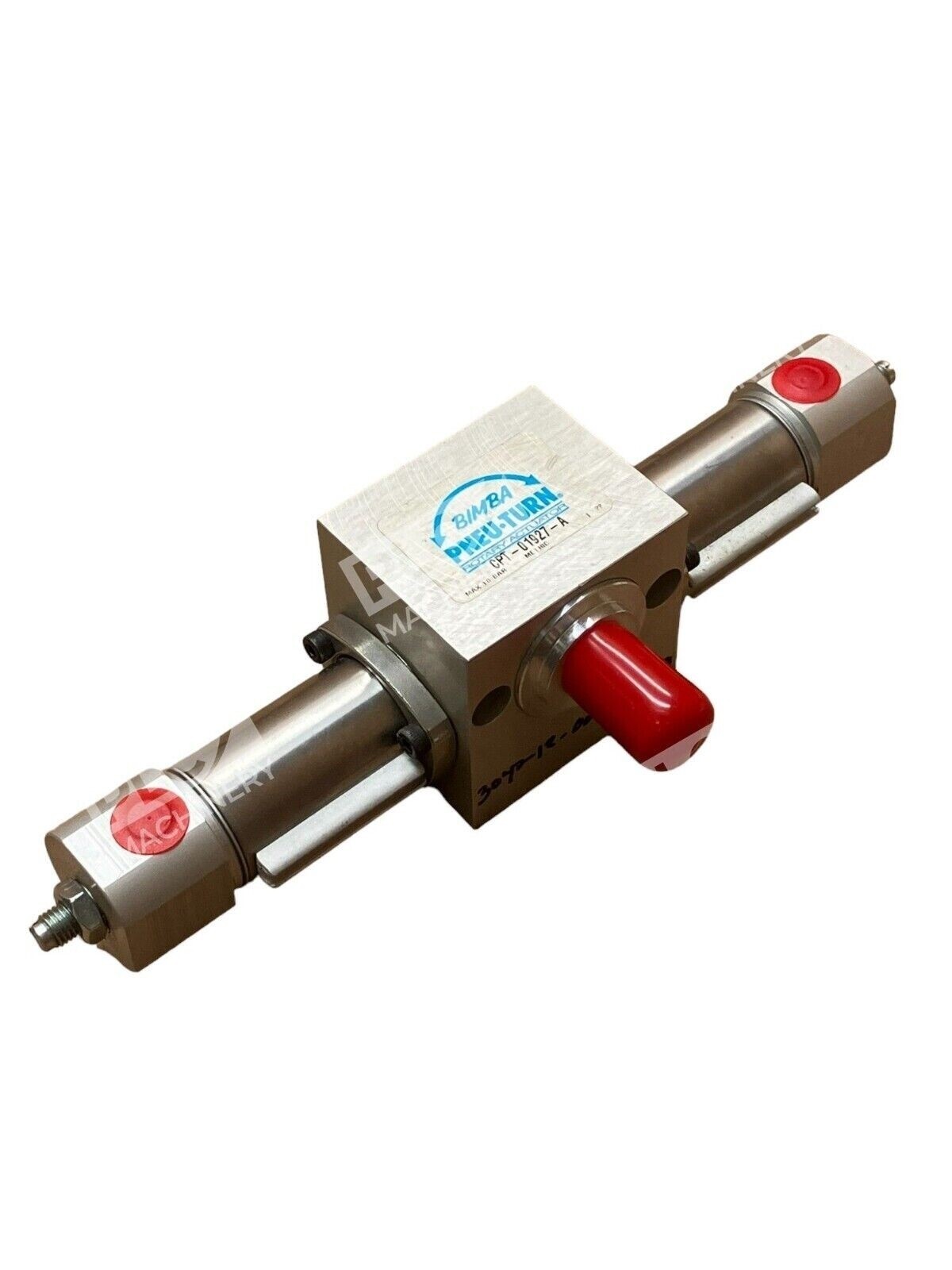

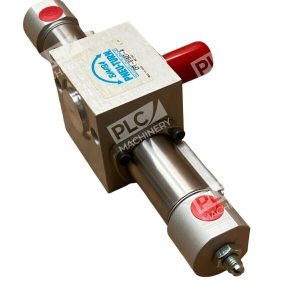

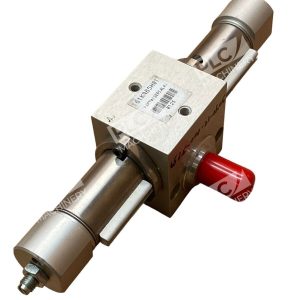

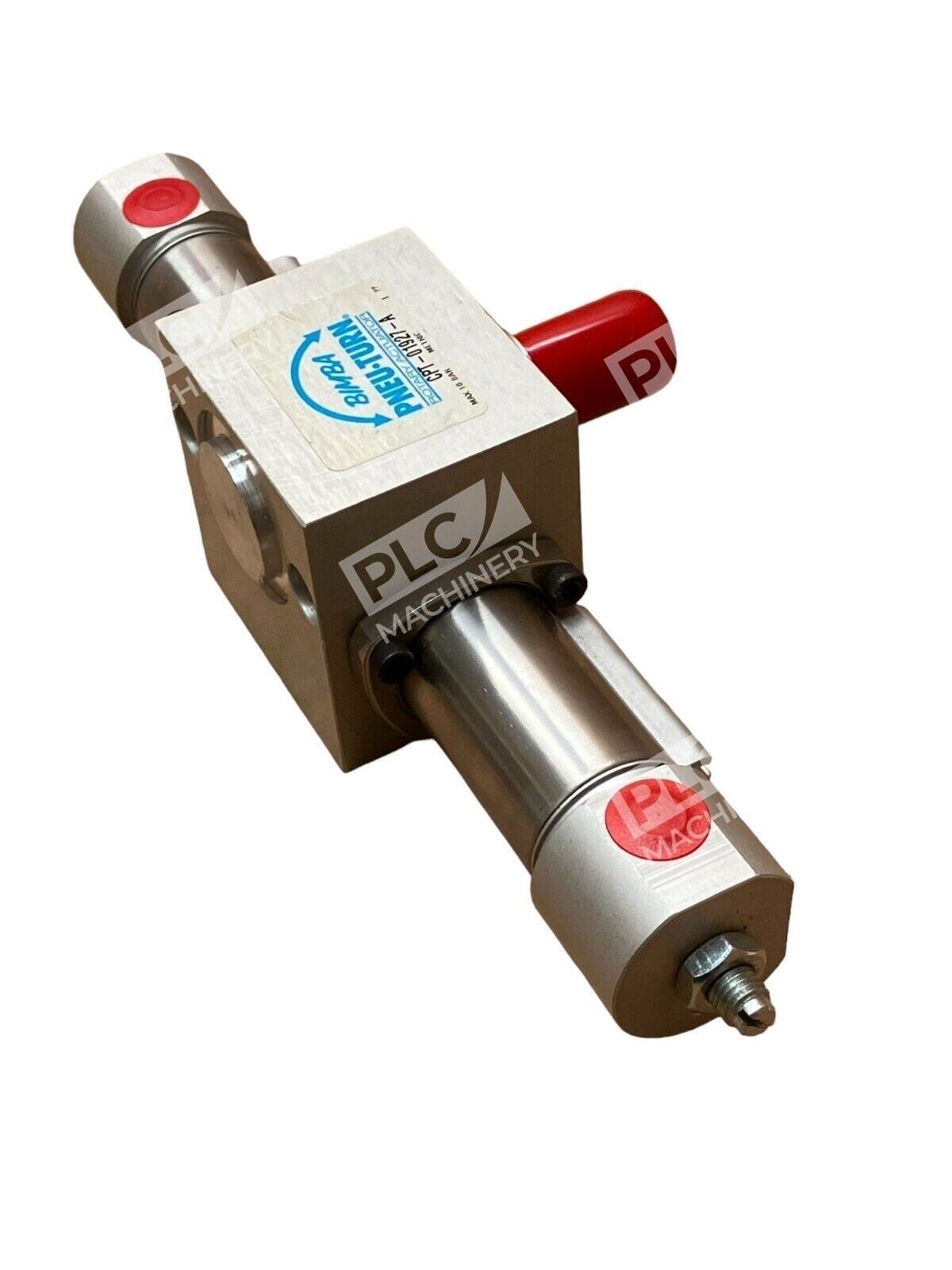

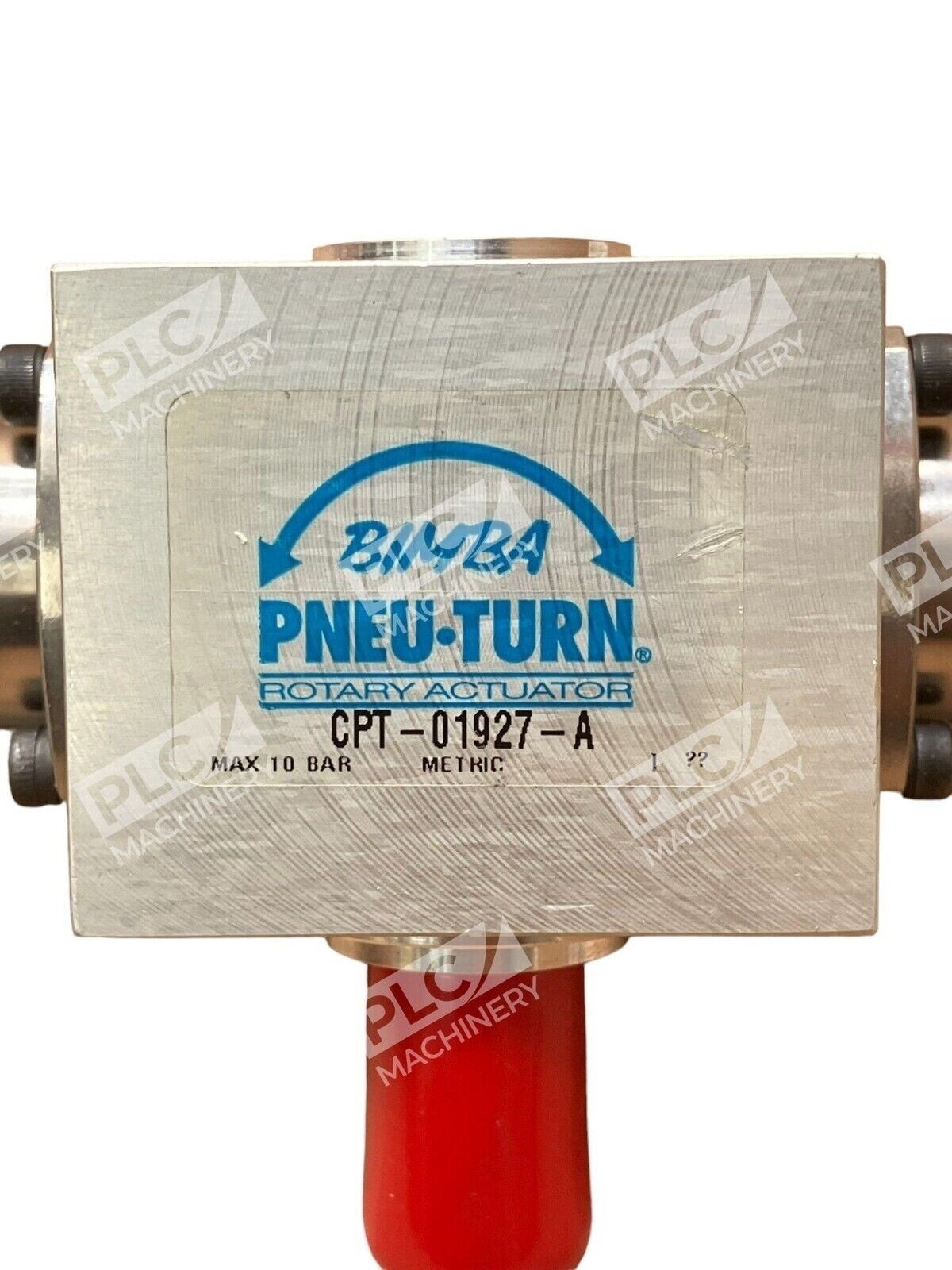

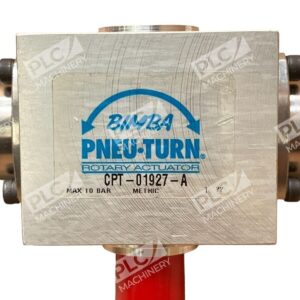

The Bimba CPT-01927-A Pneu-Turn rotary actuator is a rack-and-pinion pneumatic motion device designed for metric-based industrial automation systems. Rated for a maximum operating pressure of 10 BAR, this actuator delivers consistent rotary motion for indexing, clamping, and material handling applications. The CPT-01927-A combines durable construction with a compact footprint, making it ideal for space-constrained automation environments.
Key Features
- Manufactured using corrosive resistant components including 304 stainless steel gear shaft and cylinder bodies, anodized aluminum housing and end caps
- Standard models include a self-lubricating sintered iron copper shaft bearing
- Optional shaft ball bearings are also available
- Rack-and-pinion design for precise rotational control
- 10 BAR rated pressure with metric porting configuration
- Low-maintenance operation with standard self-lubricating bearings
Technical Specifications
The following specifications apply to the Bimba CPT-01927-A rotary actuator. For complete dimensional and performance data, consult the manufacturer’s technical documentation or contact your system integrator.
Typical Applications
- Rotary indexing and positioning in automated machinery
- Clamping and unclamping operations on production equipment
- Camming and material transfer functions
- Mixing and blending operations requiring controlled rotation
- Packaging and assembly line automation
- Machine tool spindle rotation and control
Compatibility & Replacements
Compatible With
- Standard pneumatic control systems operating 10 BAR metric pressure
- Metric ISO porting configurations
- Bimba pneumatic valve systems and controllers
- Industrial PLC and automation control platforms
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The CPT-01927-A is a metric rotary actuator; ensure the model you are replacing has equivalent metric porting and 10 BAR pressure rating.
Works With
- Pneumatic proportional directional control valves
- Solenoid directional control valves (pilot or direct operated)
- Pneumatic shuttle valves, check valves, and flow controls
- Metric ISO 4401 standard porting
- Industrial automation controller platforms
