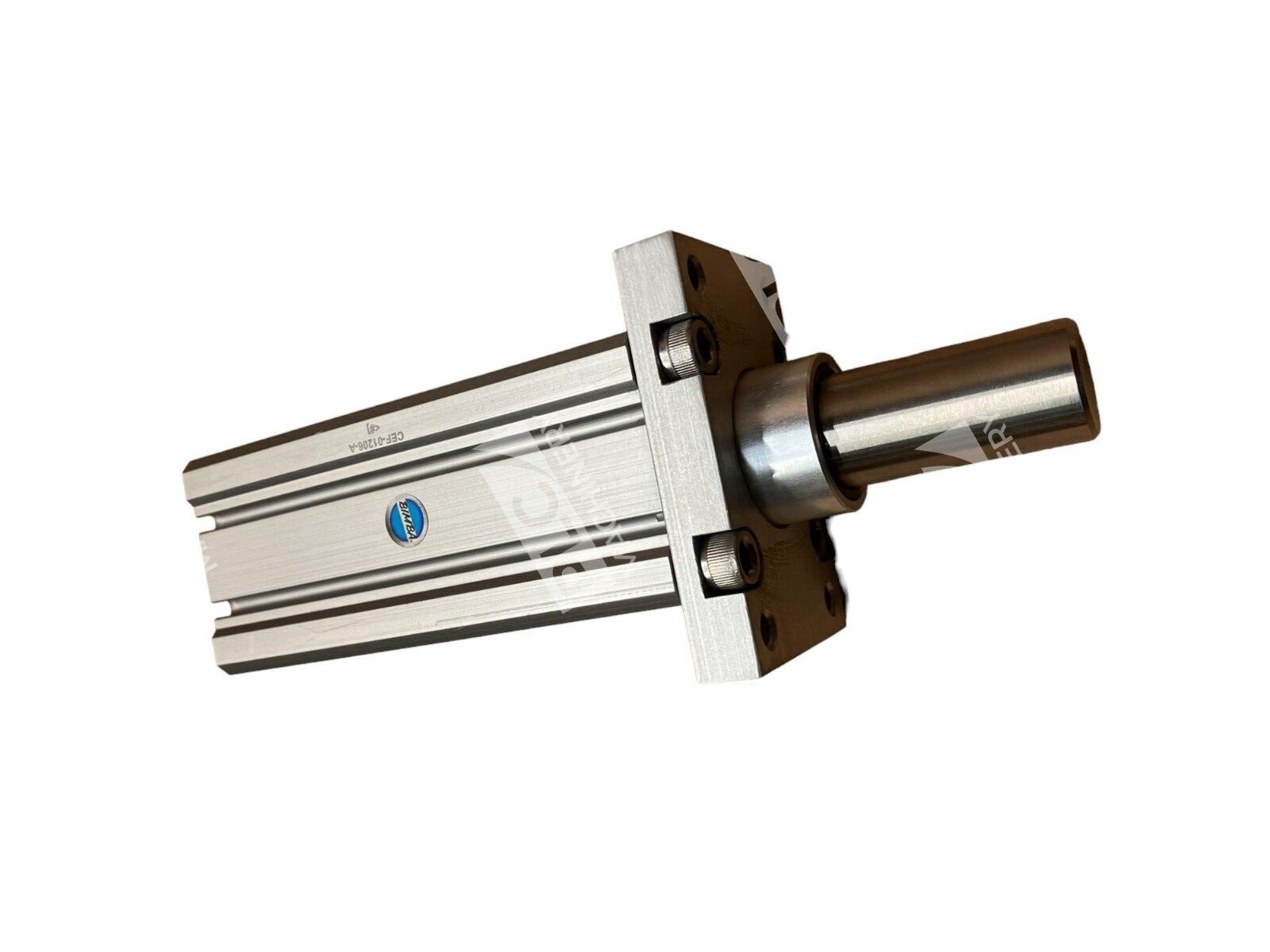

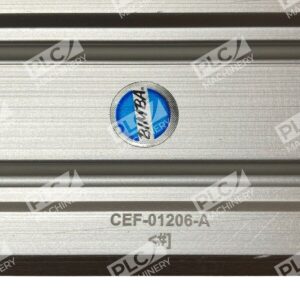

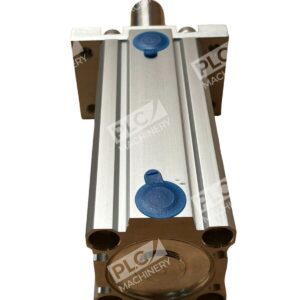

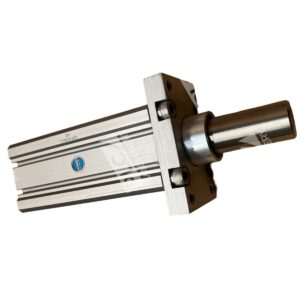

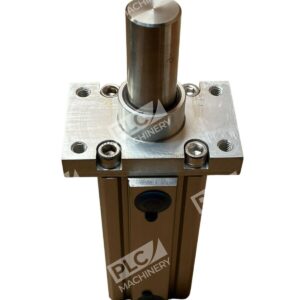

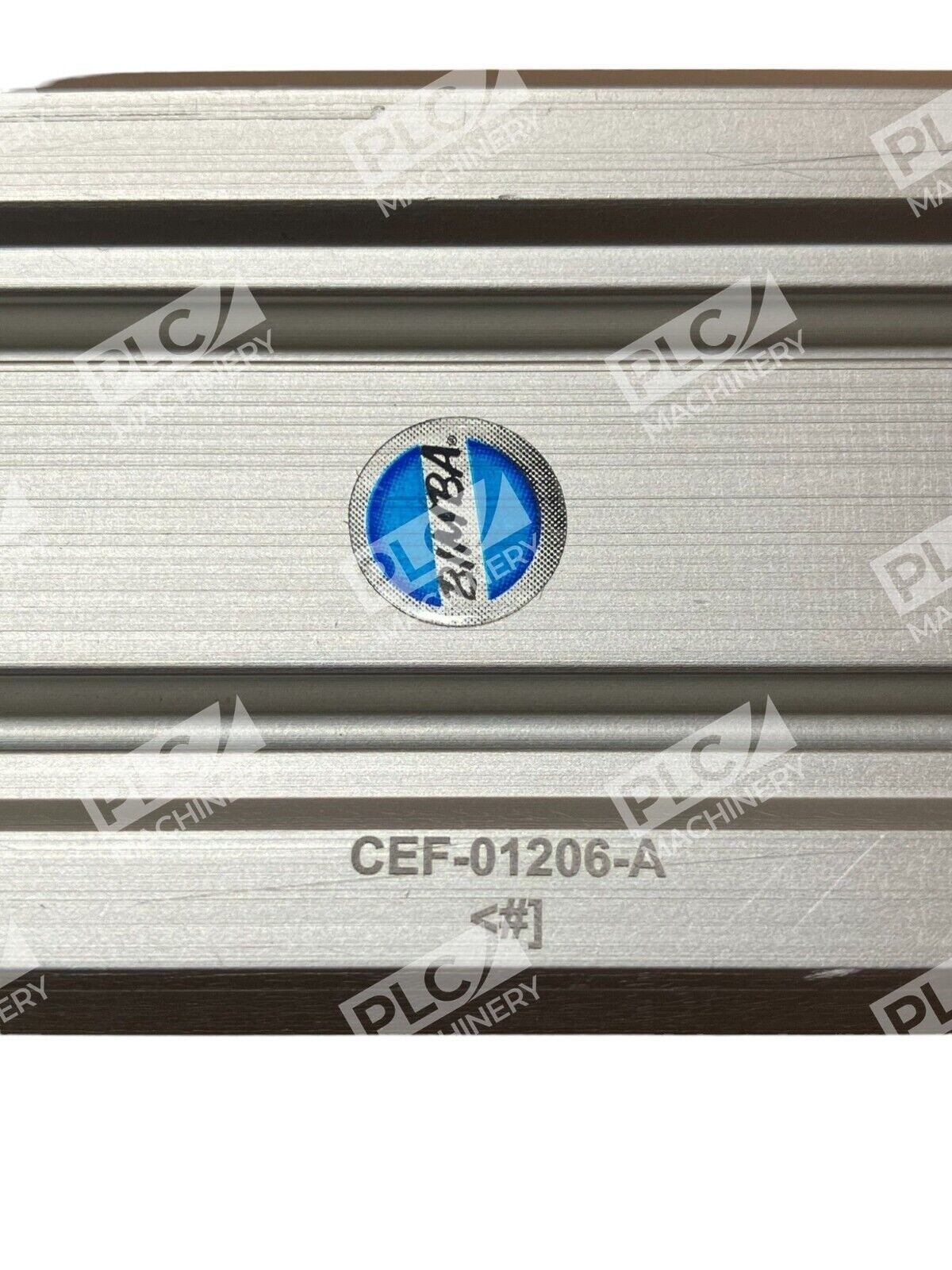

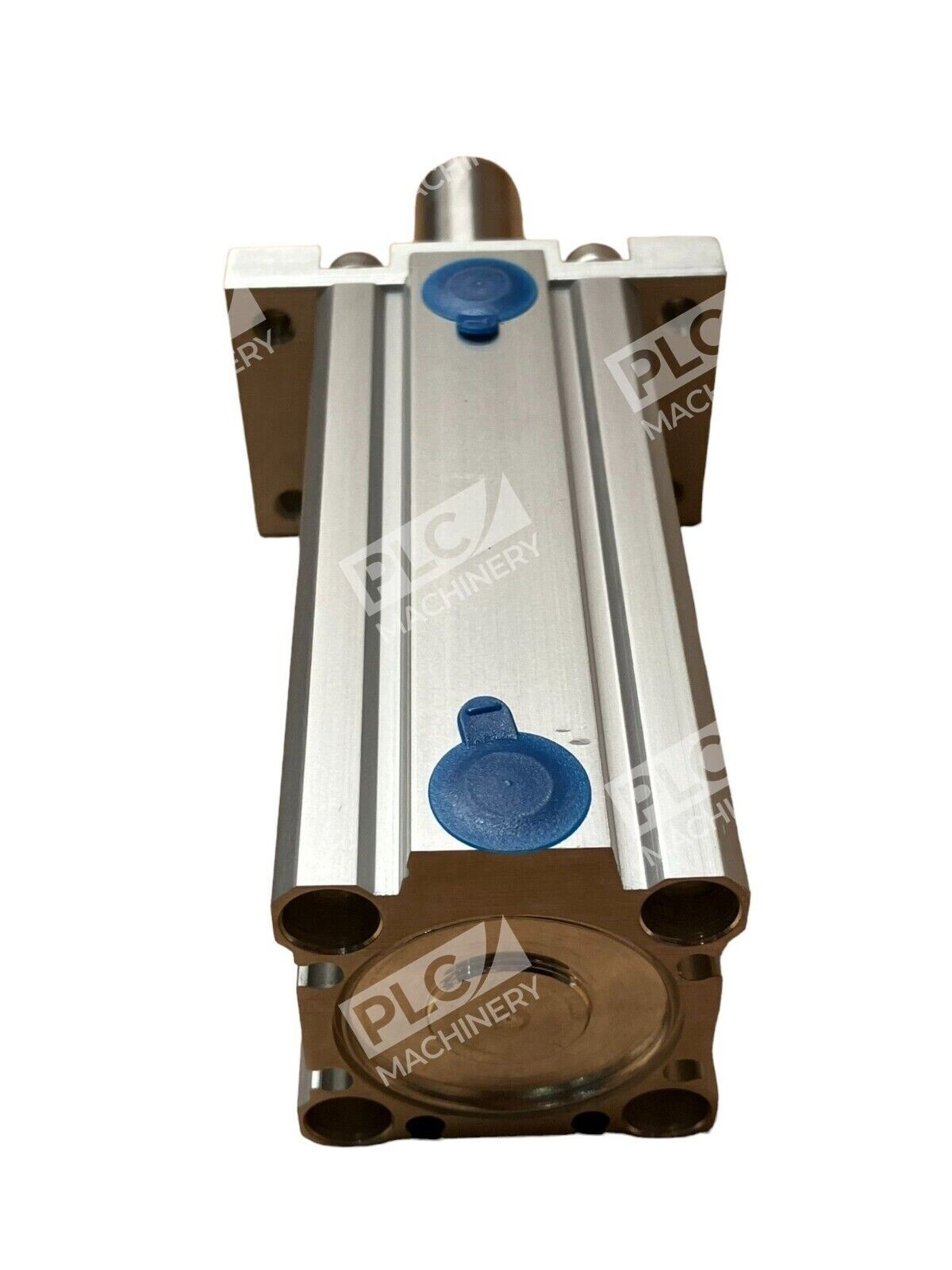

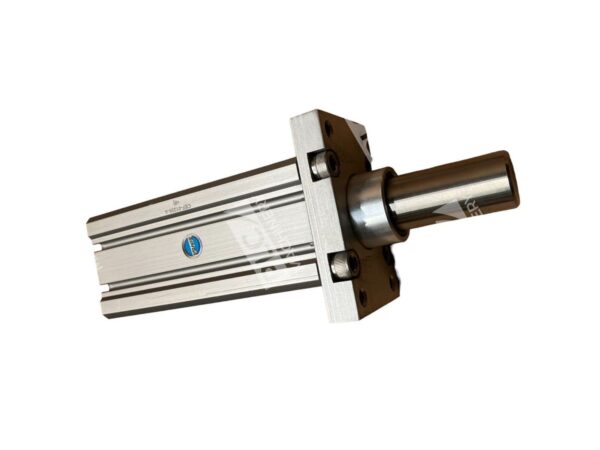

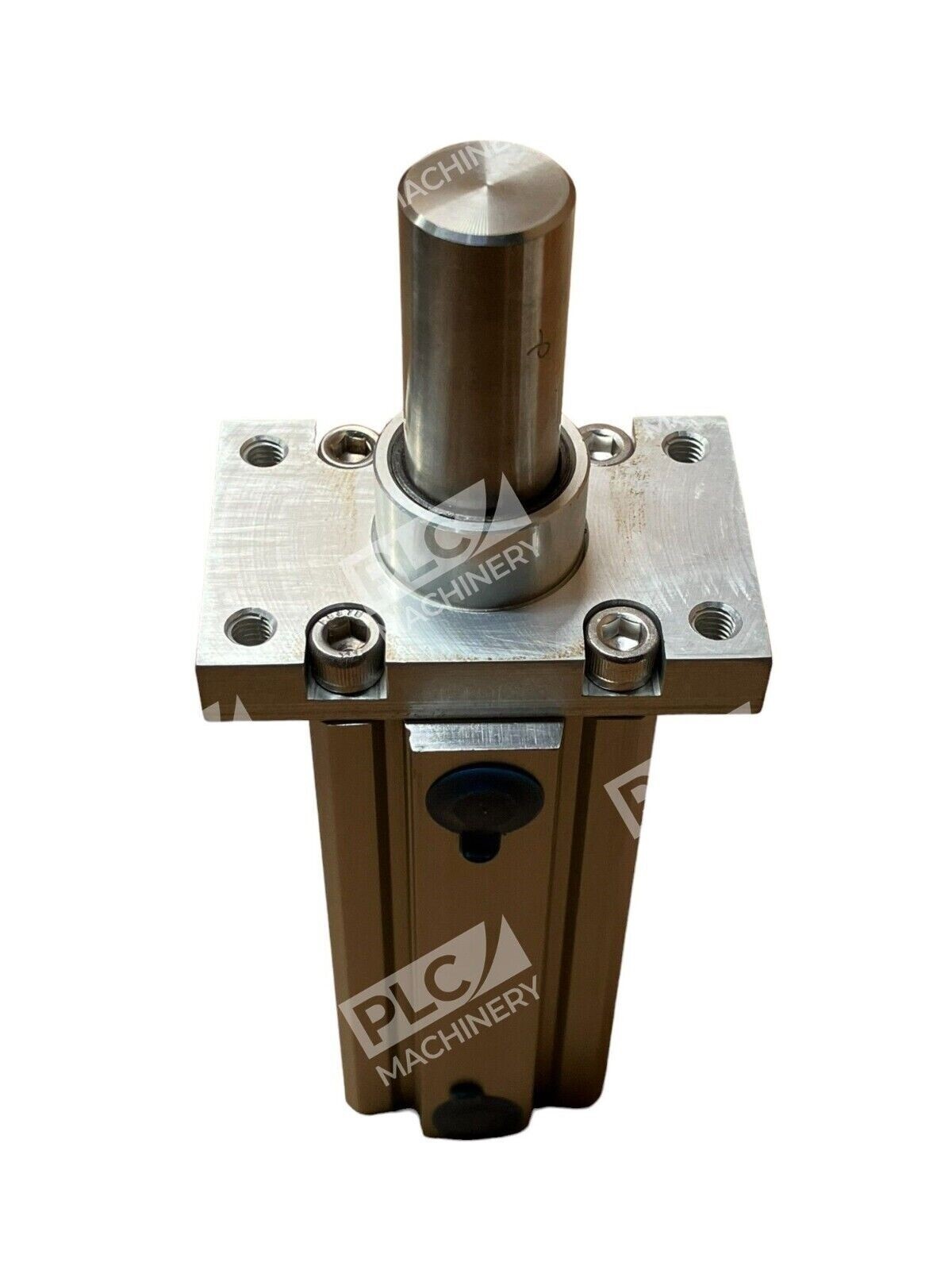

The Bimba CEF-01206-A pneumatic cylinder is a compact-design linear actuator built for industrial automation and machinery applications where space is premium. Manufactured by Bimba, a leading supplier of pneumatic components, this cylinder delivers dependable push/pull force using standard compressed air pressure.
Overview
The Bimba CEF-01206-A combines compact footprint with robust construction. It is designed as a non-repairable single-acting or double-acting cylinder suitable for applications requiring precise linear motion, fixture clamping, material handling, and process automation. The unit operates on standard shop air at pressures up to 250 PSI, making it compatible with existing pneumatic infrastructure in manufacturing and maintenance facilities.
Key Features
- Compact design for space-limited applications
- Proven Bimba quality and long service life
- Standard NFPA port configuration
- Ductile iron and aluminum construction for corrosion resistance
- Available in multiple stroke lengths
- Low-maintenance operation with standard pneumatic compatibility
Technical Specifications
- Manufacturer: Bimba
- Part Number: CEF-01206-A
- Product Type: Compact Pneumatic Cylinder
- Maximum Operating Pressure: 250 PSI
- Port Thread Size: 1/4″ NPT (standard)
- Construction Materials: Ductile Iron / Aluminum
- Operating Temperature: -10°C to +80°C
- Weight: Approximately 3.0 lbs
- Condition: New, Open Box
- Mounting: Trunnion / Foot Pad
Typical Applications
- Assembly line clamping and positioning
- Material handling equipment
- Punch press and stamping machines
- Packaging machinery
- Industrial automation fixtures
- Valve actuation and process control
- Maintenance and retrofit applications
Compatibility & Replacements
Compatible With
- Standard compressed air systems (shop air)
- NFPA-compliant pneumatic networks
- Industrial pneumatic control valves
- Manual and solenoid valve actuation
- ISO 4401 and CETOP ported manifolds
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The CEF-01206-A is a specific compact cylinder design; ensure port configuration, bore size, and stroke length match your original equipment specifications.
Works With
- Parker, SMC, and Festo pneumatic valves
- Standard 1/4″ and 3/8″ NPT manifold systems
- Compressed air regulators and pressure switches
- Pneumatic flow control and speed control units
