Overview

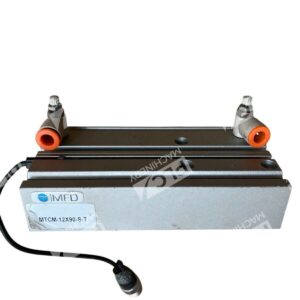

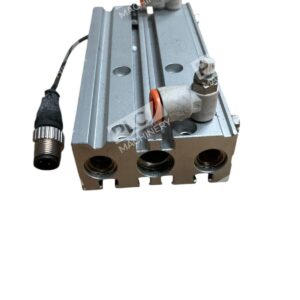

The Bimba MTCM-12X90-S-T is a compact double-acting extruded thruster designed for industrial pneumatic applications requiring precise linear motion. With a 12mm bore diameter and 90mm stroke length, this unit delivers controlled actuation in confined spaces while maintaining robust performance in demanding environments.
Key Features
- Double-acting pneumatic thruster with single-ended rod design
- Integrated bronze bushing for smooth, controlled linear motion
- Built-in magnet piston for proximity sensor compatibility
- End-of-stroke bumper cushioning reduces impact and extends service life
- Compact extruded aluminum body for space-constrained installations
- RoHS compliant construction
Technical Specifications
- Bore Diameter: 12mm
- Stroke Length: 90mm
- Bushing Type: Bronze
- Piston: Magnet-equipped
- Ports: M5 x 0.8 threaded connection (2x)
- Body Style: Extruded aluminum
- Mounting: Clevis foot and rod-end trunnion compatible
- Operating Pressure Range: 14–145 PSI
- Temperature Range: −4°F to 158°F (−20°C to 70°C)
- Certifications: RoHS compliant
Typical Applications
- Automation equipment and assembly machinery
- Material handling and positioning systems
- Packaging and labeling machinery
- Control valve actuation and damping systems
- Clamping and ejection mechanisms
- Robotics and pick-and-place systems
Compatibility & Replacements
Compatible With
- Standard pneumatic control systems operating at 14–145 PSI
- 4/3 spool and proportional solenoid valve configurations
- Inductive proximity sensors (magnet-compatible)
- Industrial PLC and automation controllers
- Modular pneumatic manifold systems
Replaces / Drop-In Replacement For
- Other Bimba MTCM-12 series thrusters with 90mm stroke (model variations)
- Generic 12mm bore extruded thrusters from comparable manufacturers
- Verify compatibility with your system integrator before ordering.
Works With
- Pneumatic pressure regulators and flow control valves
- Solenoid directional control valves (standard porting)
- Industrial pneumatic tubing and hose systems
- Sensor integration: inductive position sensing via integrated magnet
- ISO 4401 / CETOP 05 NG6 valve body configurations
